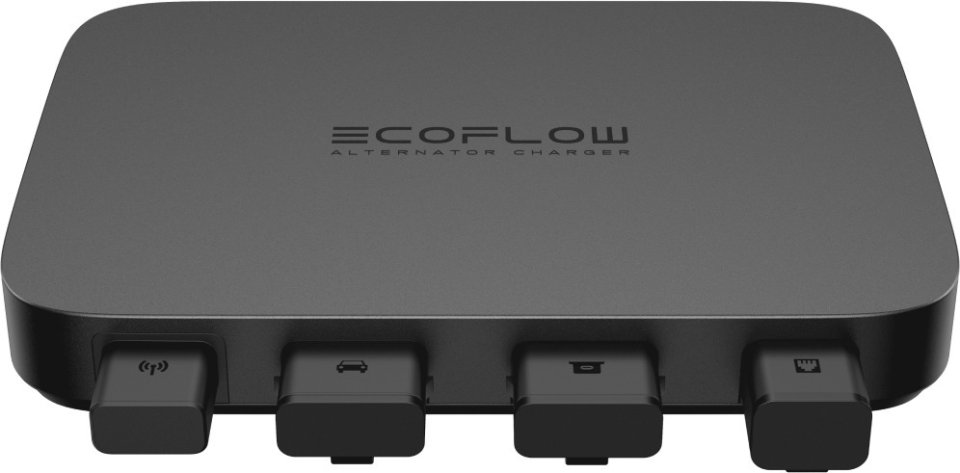

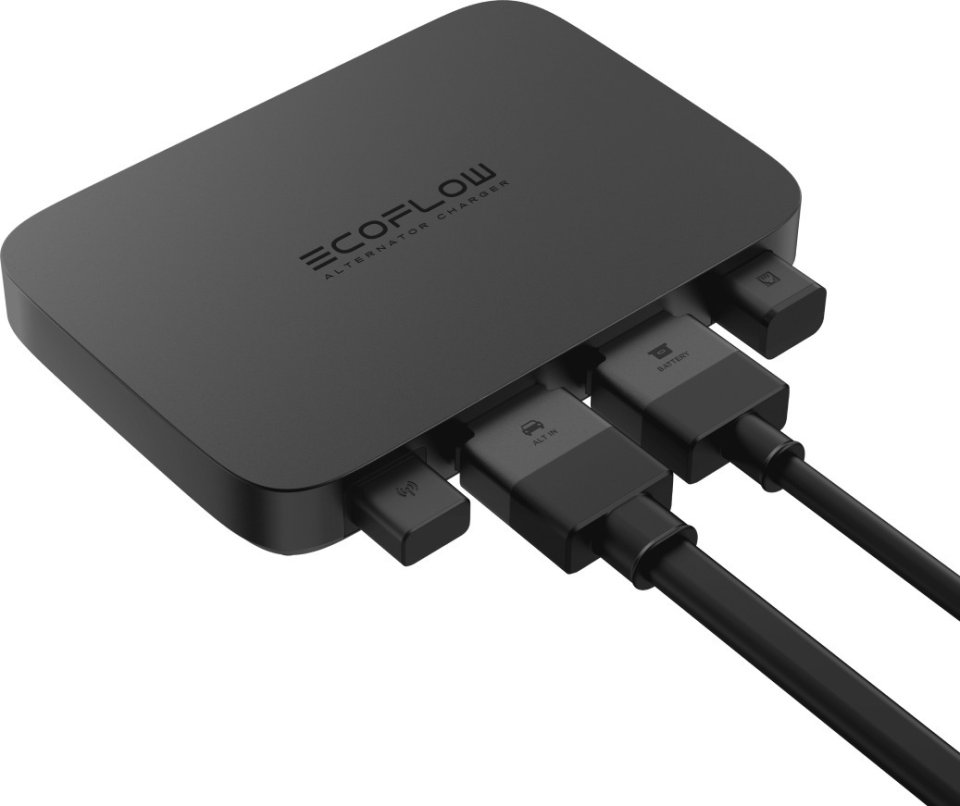

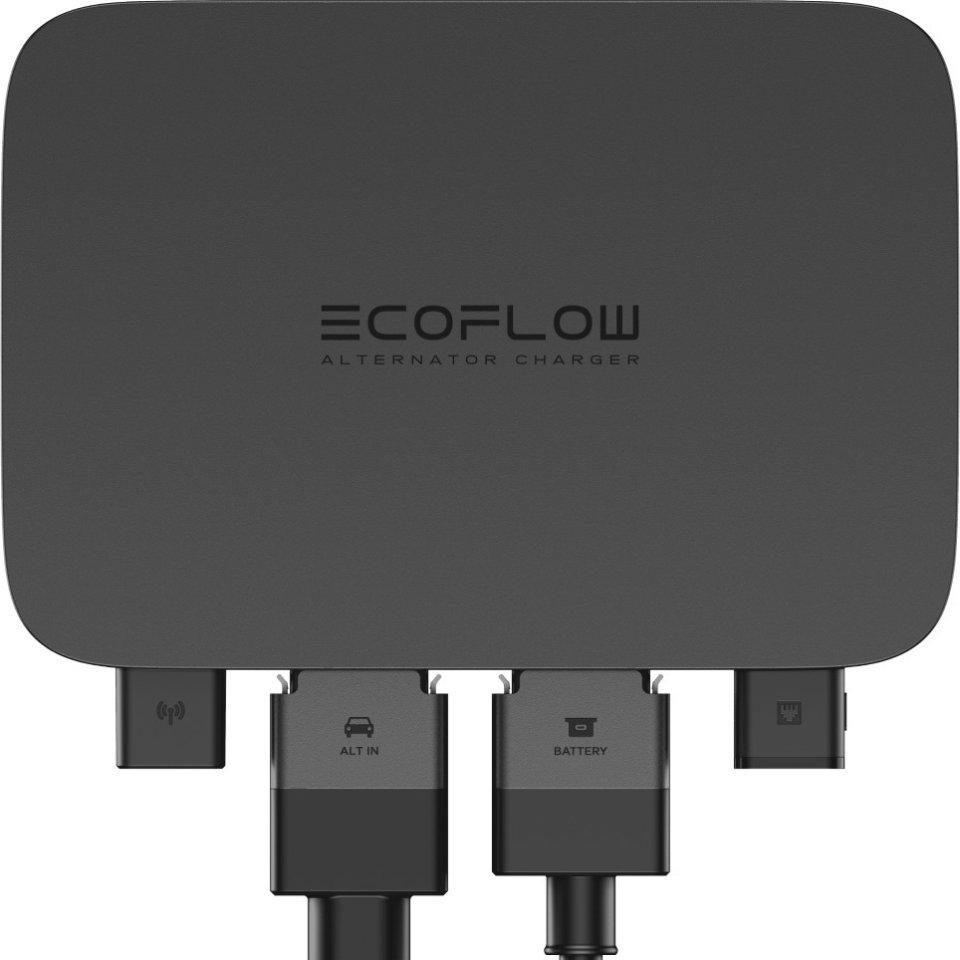

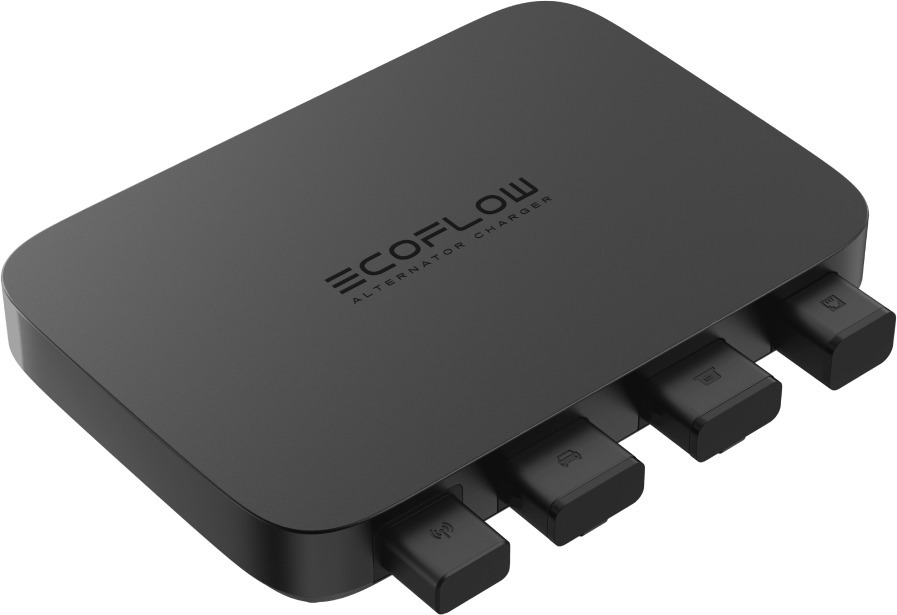

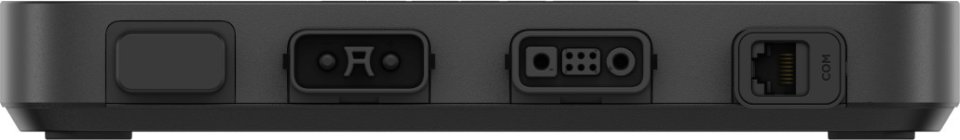

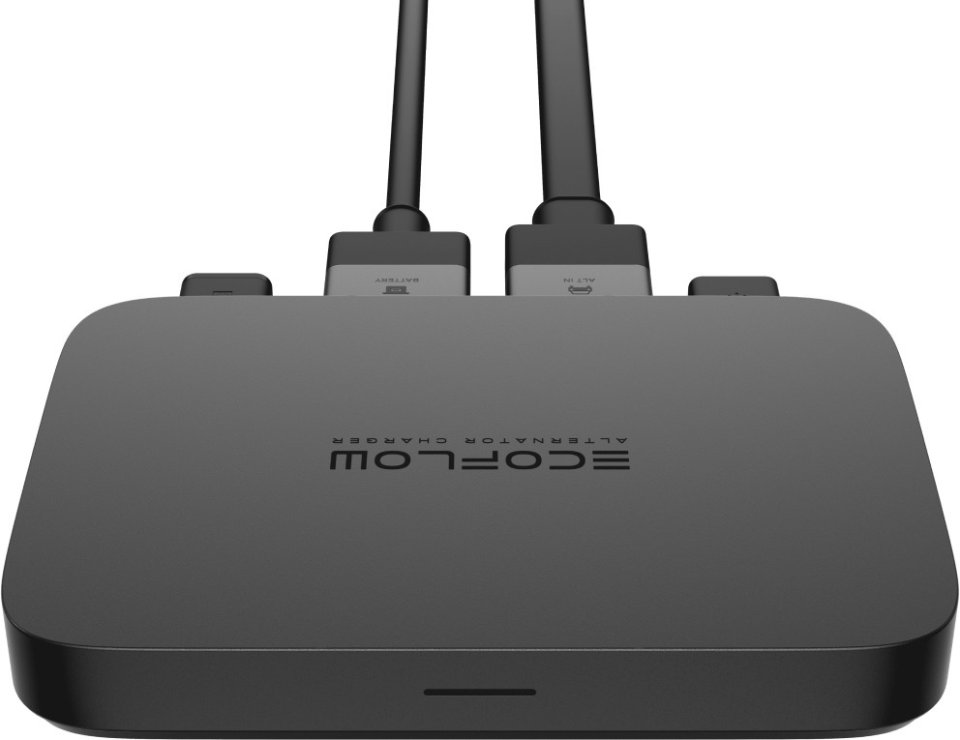

EcoFlow Alternator Charger 800 W

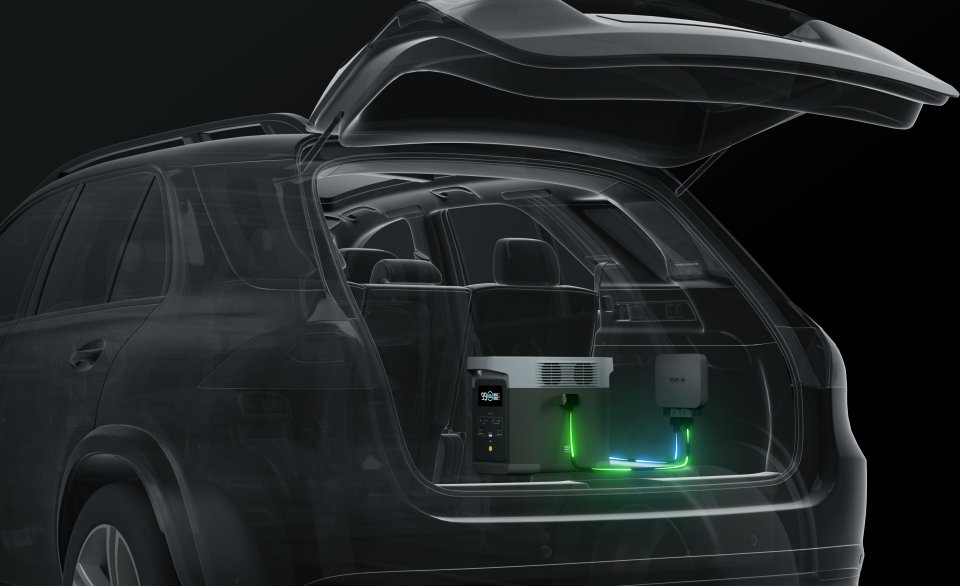

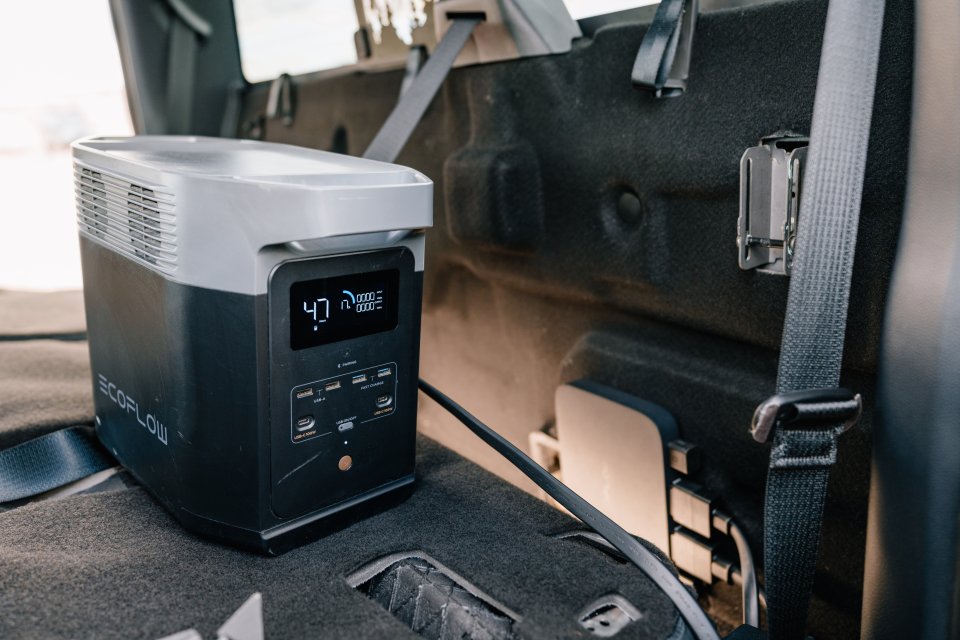

The EcoFlow Alternator Charger allows you to charge the power station up to eight times faster during driving simply by using the excess energy produced by the vehicle. At its fastest, a 1 kWh charge can be completed in about 80 minutes (1.3 hours).

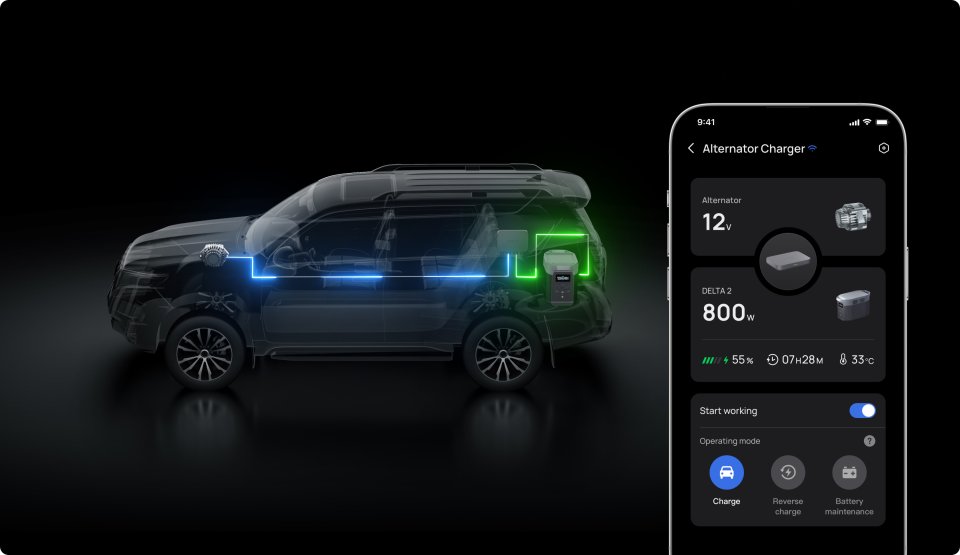

The EcoFlow Alternator Charger is controlled via the EcoFlow app. There are three different operating modes to choose from. The charging mode is used for charging the power station battery. When the reverse charging mode is selected, the Alternator charger uses the power station to charge the vehicle's starter battery or the motorhome battery. When the maintenance mode is selected, the Alternator extends the life of the vehicle's battery by using a lower current.

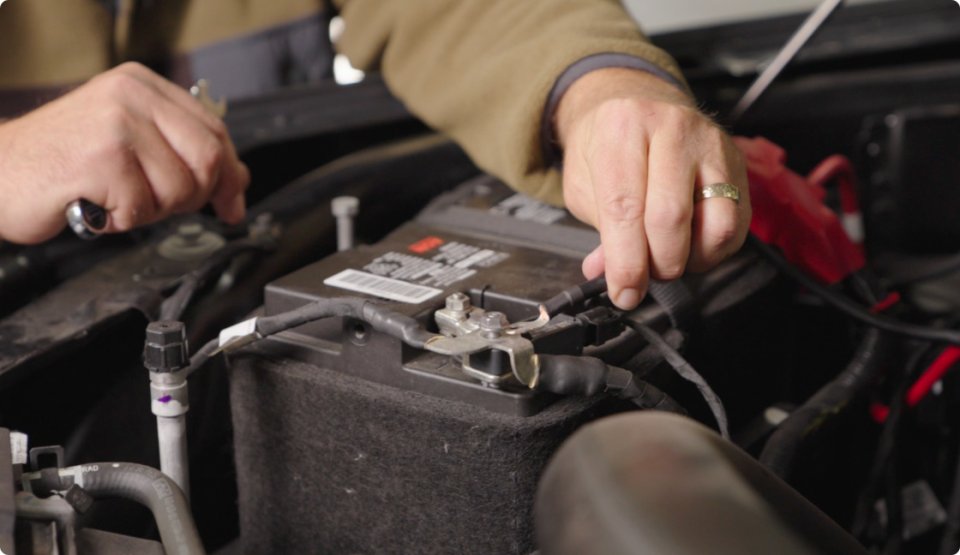

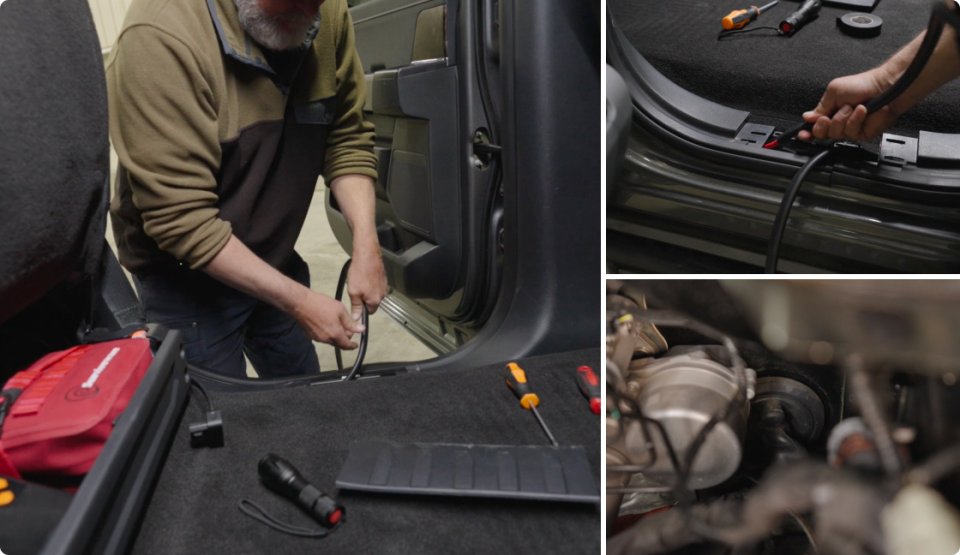

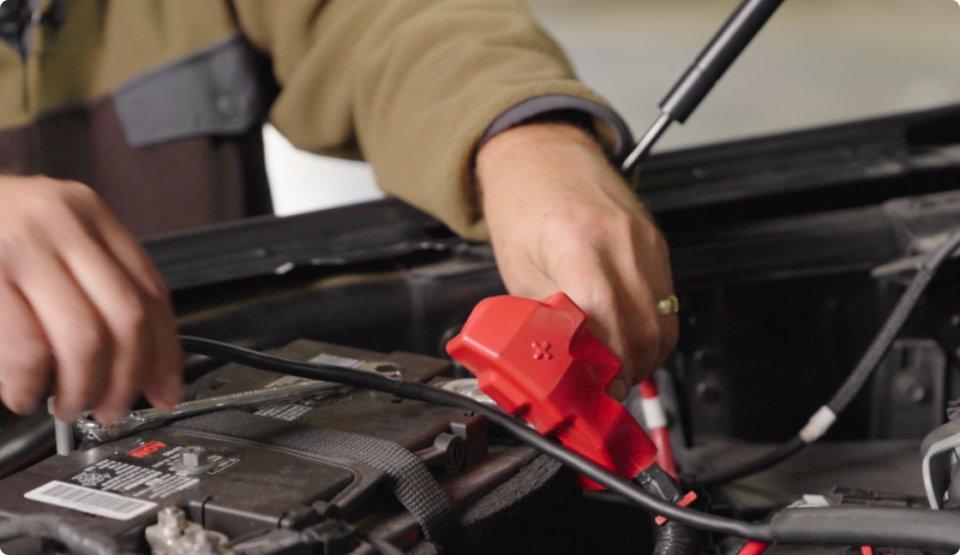

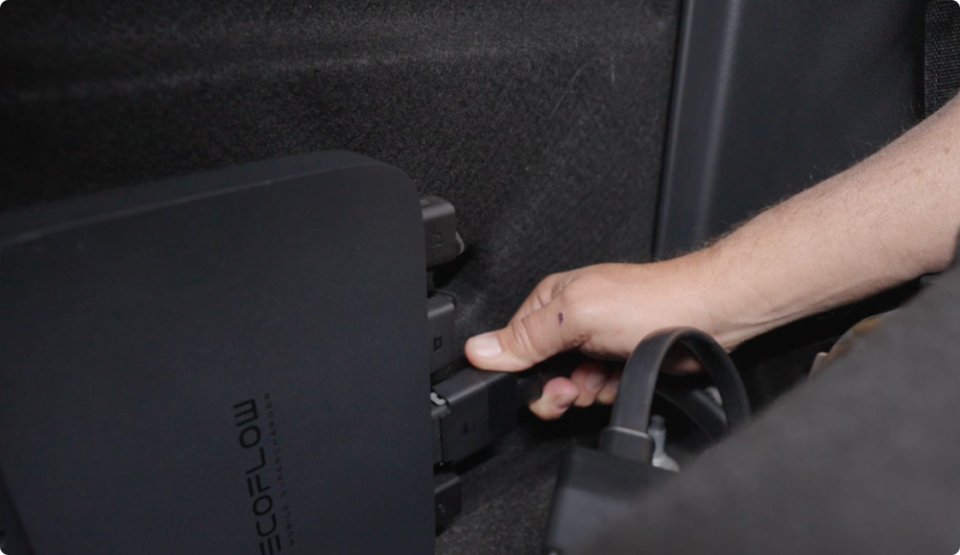

Note, ensure the compatibility and proper installation of the Alternator charger. Use an authorized vehicle installer if necessary.

Features:

• Charges up to eight times faster during driving. A 1 kWh charge can be completed in as little as 1.3 hours (~80 minutes).
• Three different operating modes - charging, battery maintenance, and reverse charging mode.
• GaN technology ensures safe charging. Protection features include reverse polarity protection, overcurrent protection, short circuit protection, and over- and undervoltage protection.

Technical specifications:

• Dimensions: 242 x 194 x 35 mm (LxWxH)
• Weight: 2.3 kg
• Charging (operating mode): input: 11-31 V, max 76 A, output: 40-60 V, max 800 W
• Battery maintenance (operating mode): input: 40-60 V, max 21 A, output: 13.8 V / 27.6 V, max 800 W
• Reverse charging mode (operating mode): input: 40-60 V, max 3 A, output: 13.8 V / 27.6 V, max 100 W
• Wi-Fi: 2.4 GHz, 2412-2472 MHz
• Bluetooth: 2402-2480 MHz
• Fuse nominal current: 125 A
• Protection: reverse polarity protection, overcurrent protection, short circuit protection, over- and undervoltage protection
• Operating temperature: -20°C...+60°C
• Storage temperature: -30°C...+70°C
• Humidity in use: < 95%
• Humidity in storage: < 95%

Compatibility:

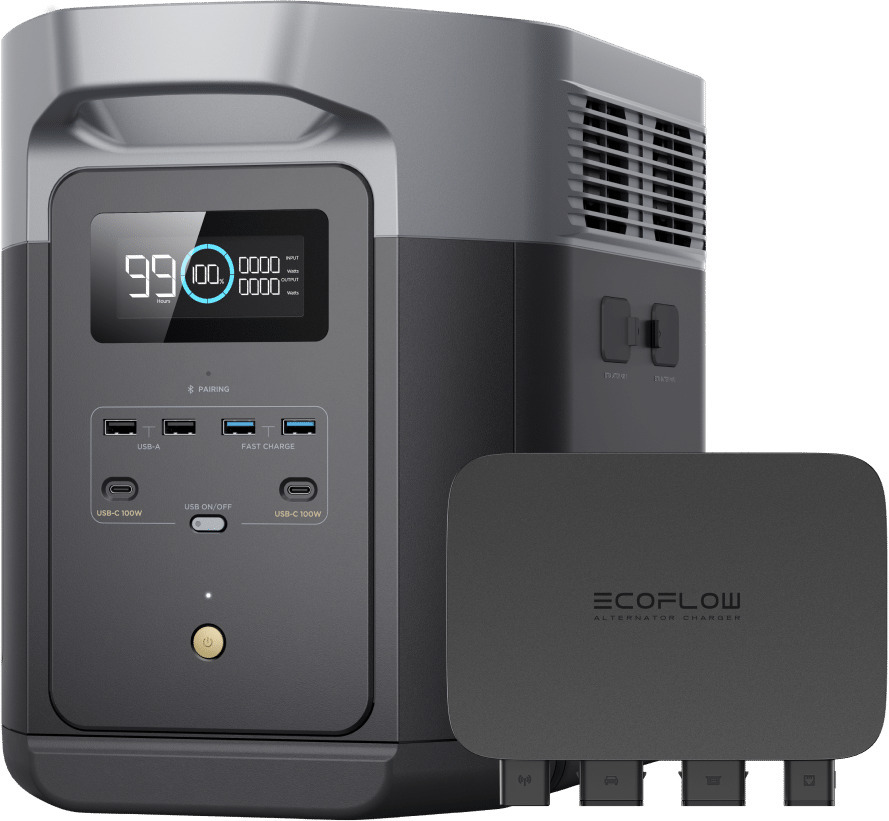

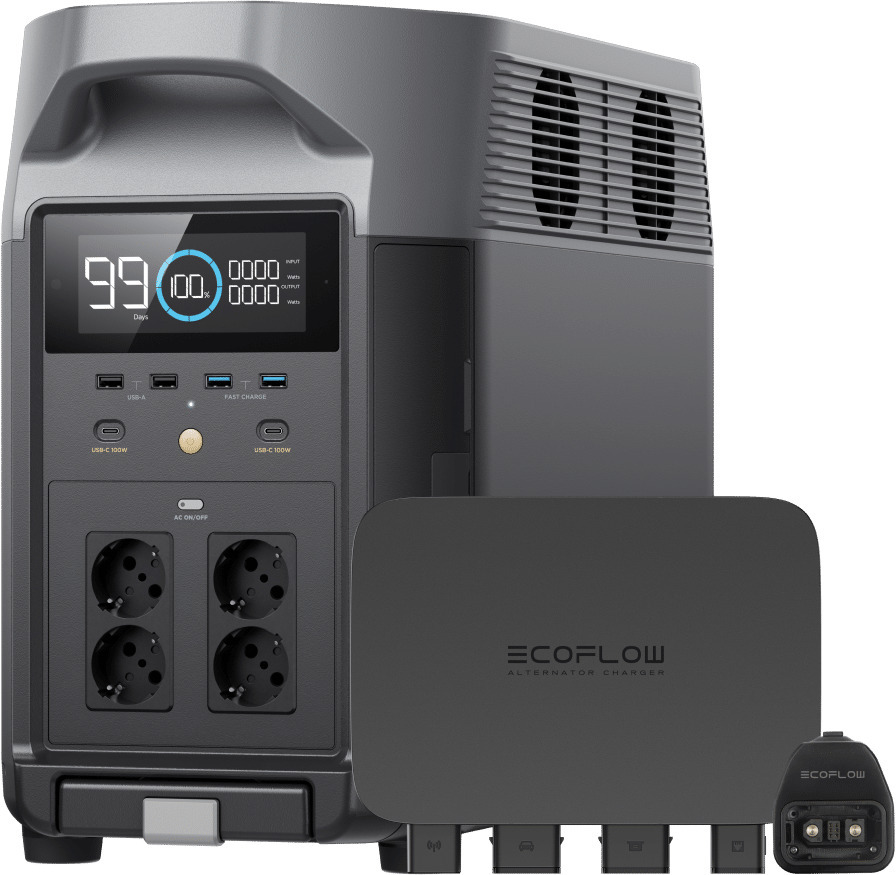

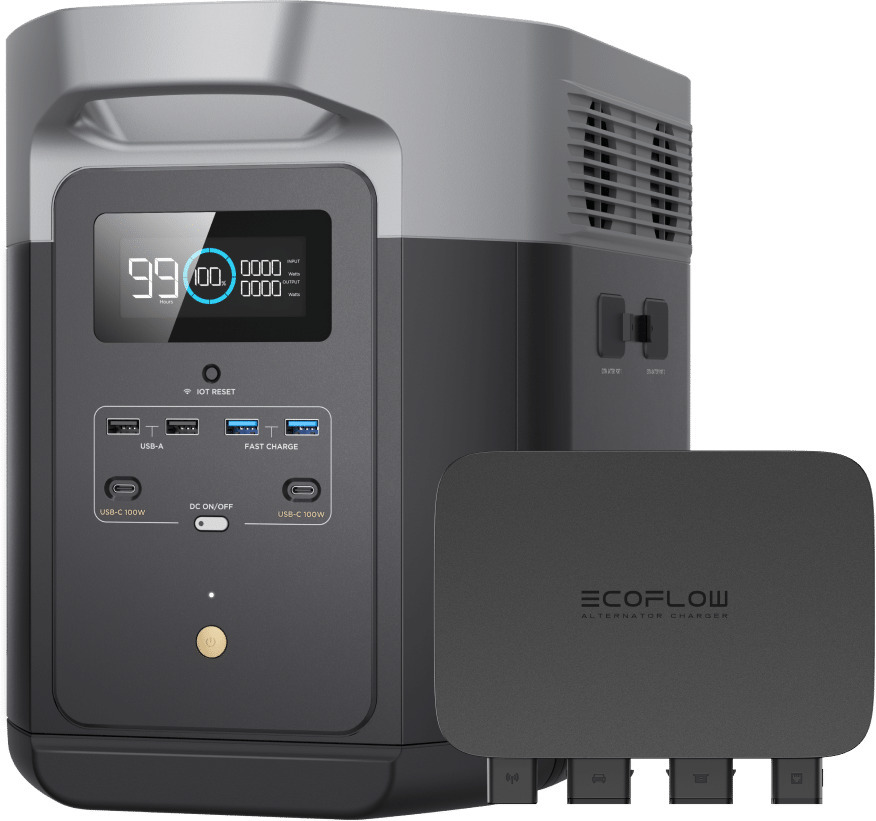

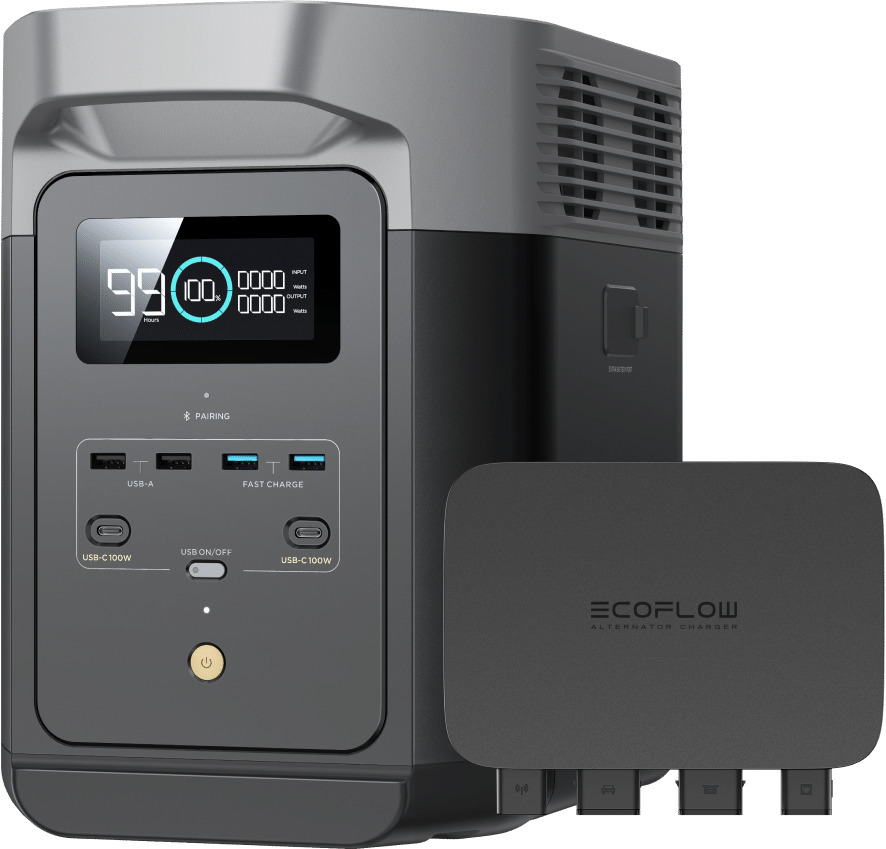

• EcoFlow Delta Pro
• EcoFlow Delta 2 Max
• EcoFlow Delta Max 2000 (2016 Wh)
• EcoFlow Delta 2
• EcoFlow Delta 2 Extra Battery
• EcoFlow Delta 2 Max Extra Battery

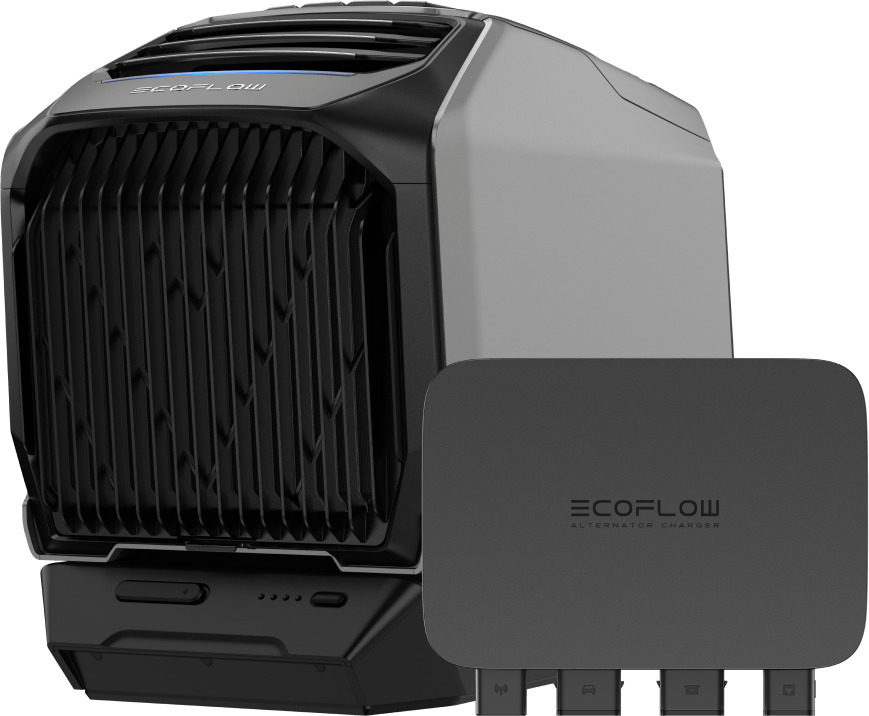

• EcoFlow Wave 2 (requires Wave 2 extra battery)

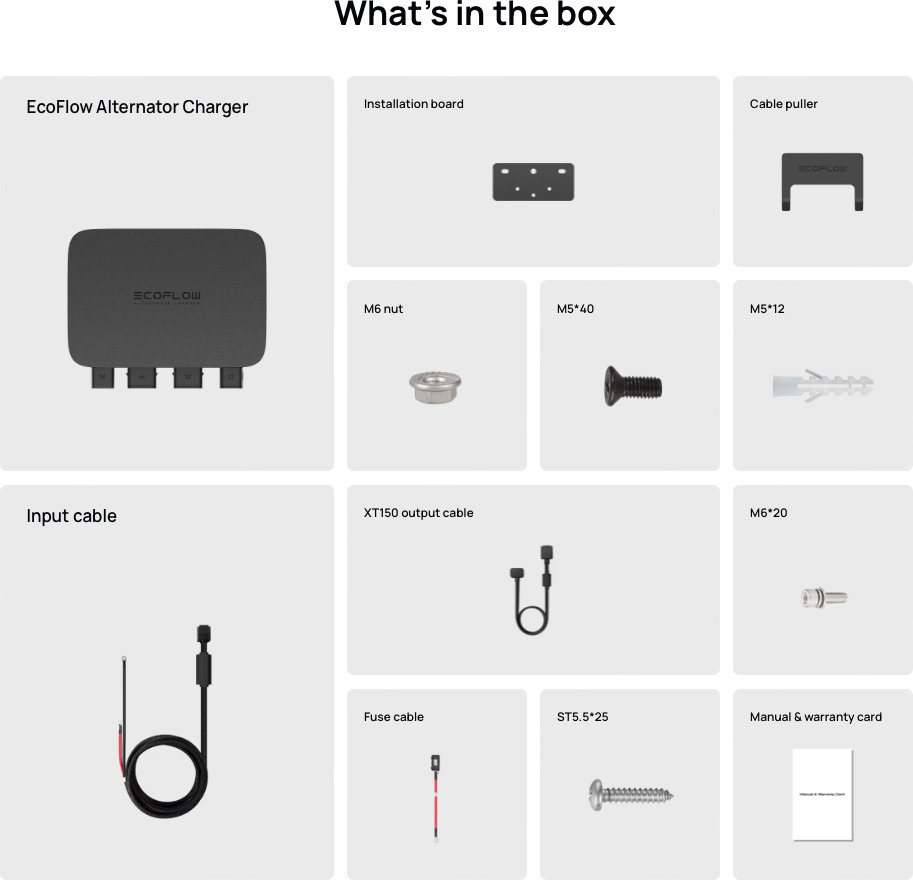

Sales package contents:

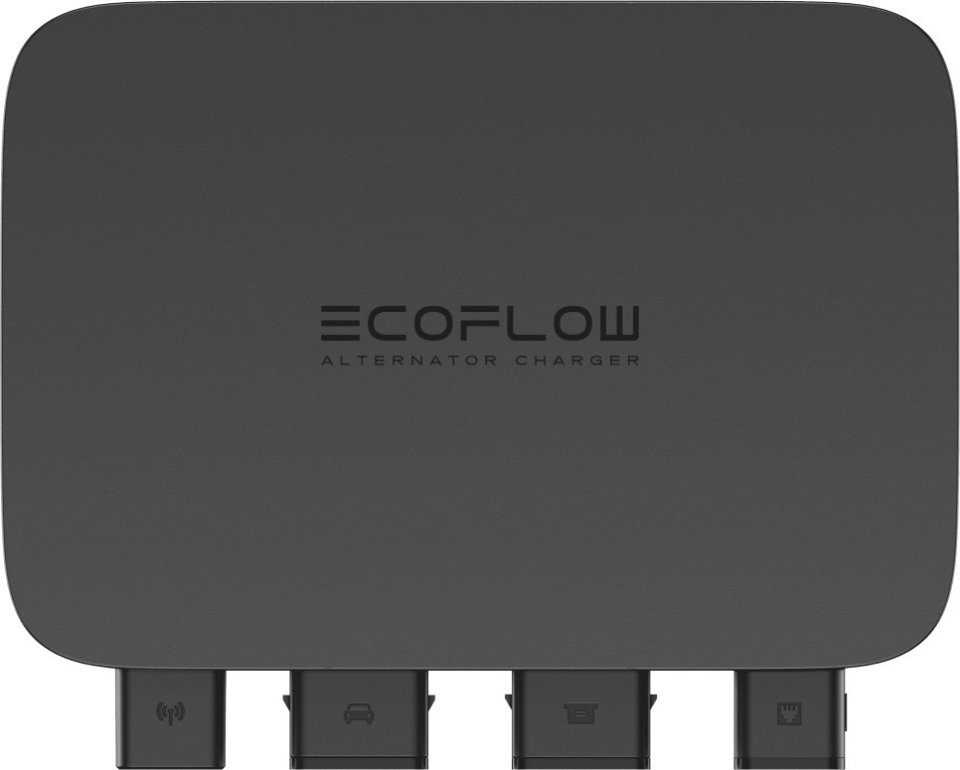

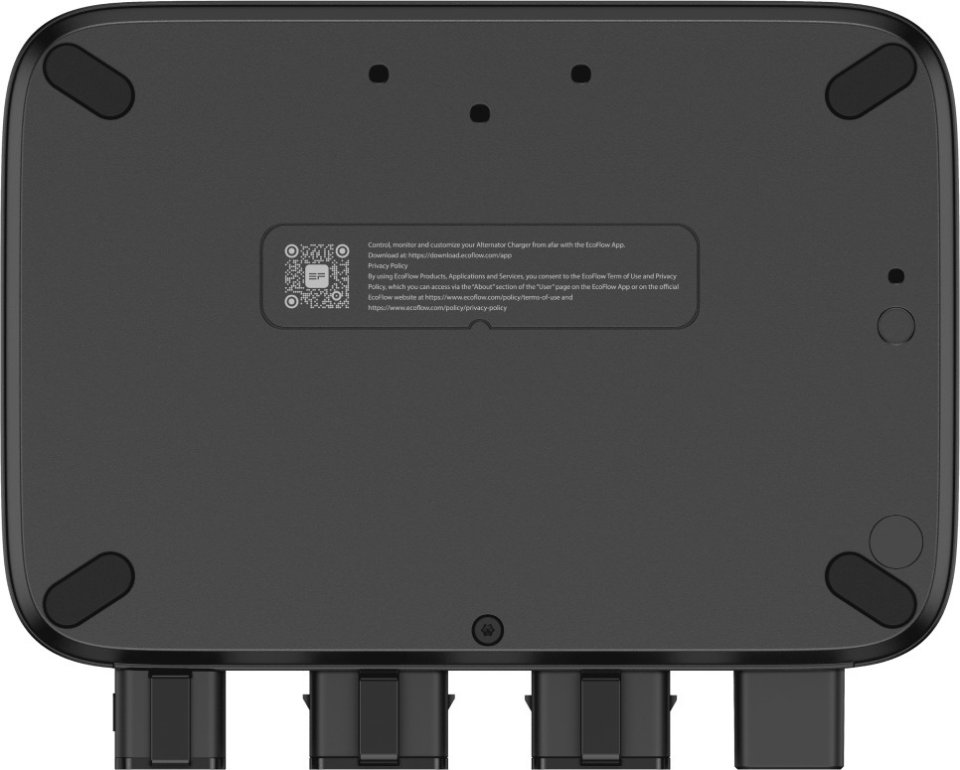

• EcoFlow Alternator Charger
• Input cable
• Mounting plate
• Cable puller
• XT150 output cable

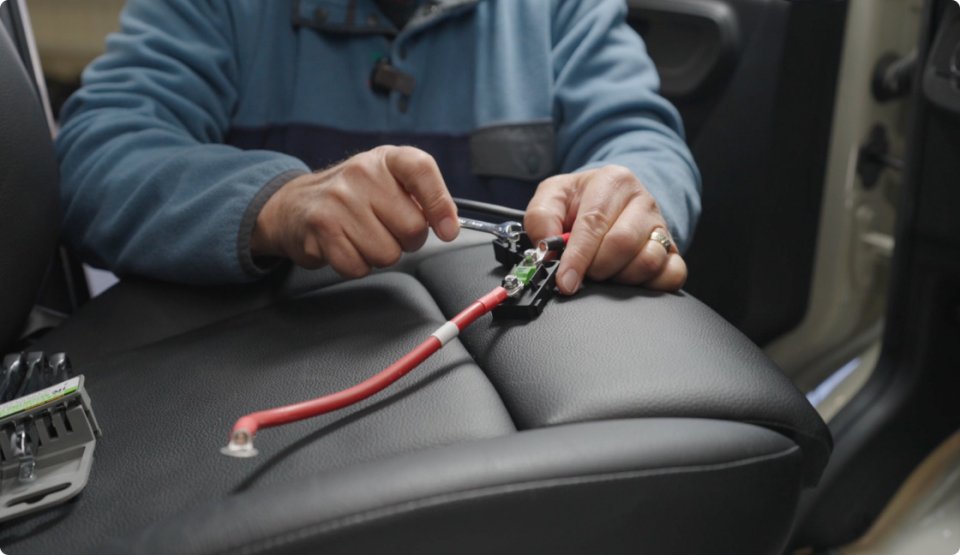

• Fuse cable
• M6 nut
• M5*40 screw
• M6*20 screw
• ST5.5*25 screw
• M5*12 screw anchor
• Quick guide
