DJI Power Solar Panel Adapter Module (MPPT) Solar Charging Controller

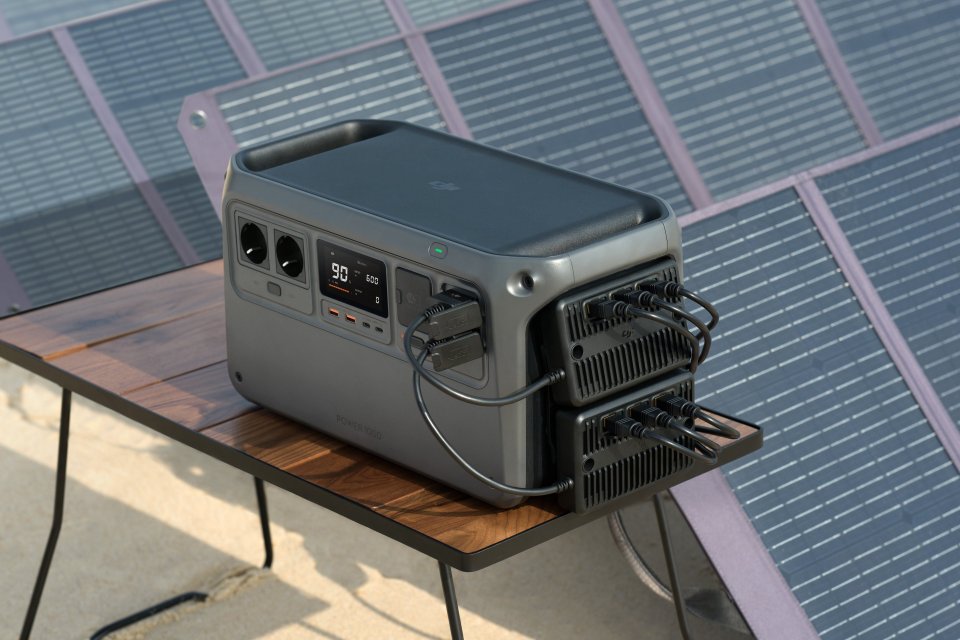

DJI Power Solar Panel Adapter Module (MPPT) - With the solar power charge controller, you can connect solar panels to the DJI Power series power station via the XT60 connector on the adapter panel and charge it environmentally friendly with solar energy. We recommend using DJI Power series power stations with DJI-approved solar panels (Zignes). If you use solar panels from other manufacturers, using the MPPT module and converting the solar panel connector to an XT60 connector is necessary to enable solar charging for the DJI Power series.

Tips:

1. You can connect up to three solar panels to one MPPT module. Two modules can be installed on the DJI Power 1000 power station.
2. When using solar panels not officially recommended by DJI, and to prevent damage to the MPPT module and power station, ensure the solar panel's open-circuit voltage is below 30 V and the input current is a maximum of 10 A. The power of one solar panel must not exceed 200 W, and the total output power of the solar panels connected to the entire MPPT module must not exceed 400 W.
3. When using solar panels with the MPPT module, install the included metal heat sink.
4. When using the DJI Power 500 power supply, the maximum power of solar panels connected to the entire adapter module must not exceed 300 W.

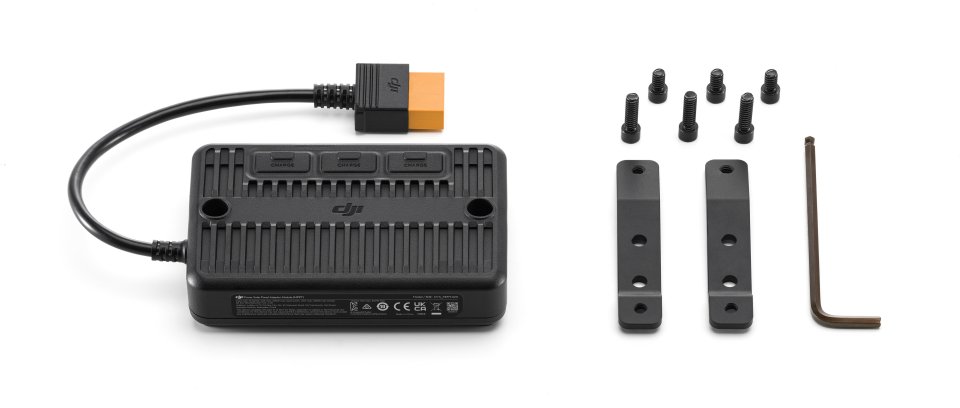

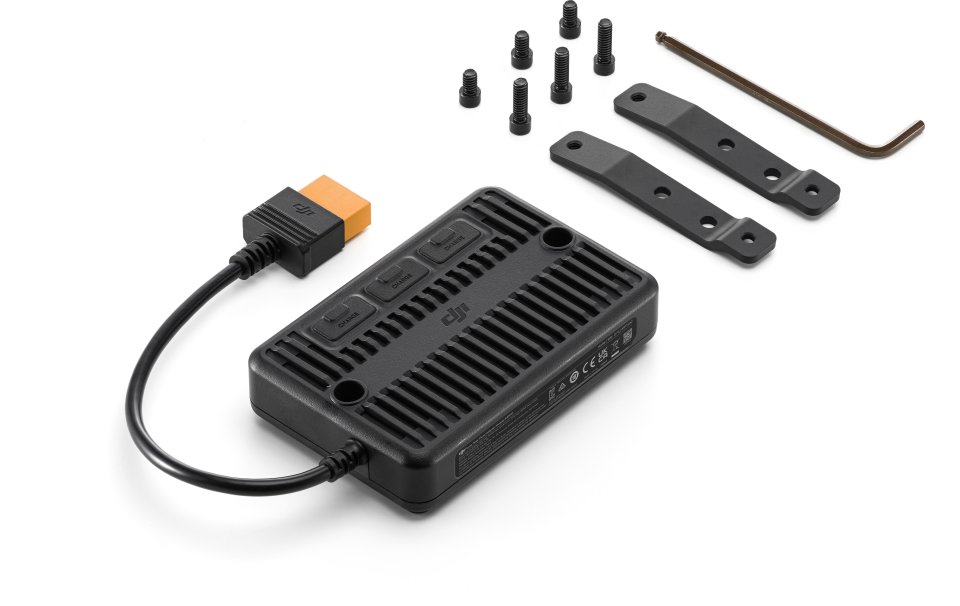

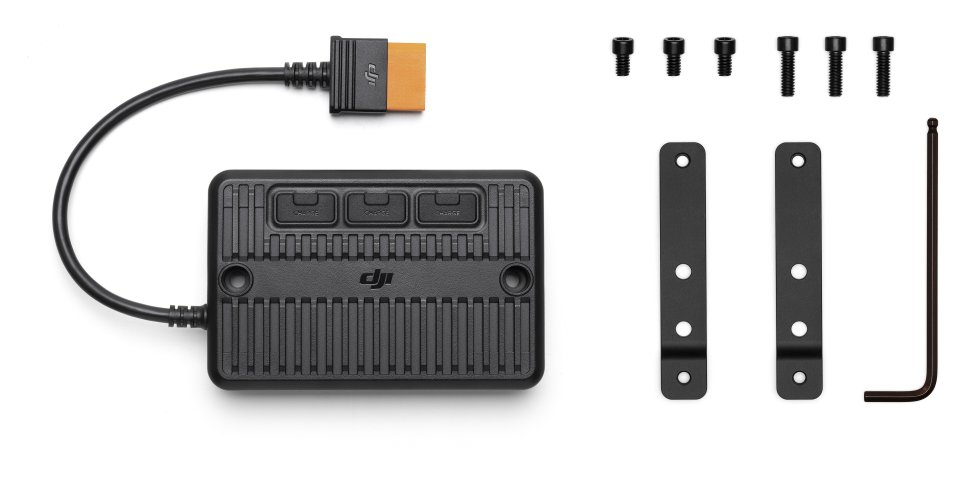

Included in the package:

• 1 x DJI Power Solar Panel Adapter Module (MPPT)
• 2 x Metal heat sink
• 1 x Ball-head hex wrench
• 3 pcs 10 mm screws
• 3 pcs 20 mm screws

Technical specifications:

• Total output power: one channel max. 200 W / three channels max. 400 W (DJI Power 1000), 300 W (DJI Power 500)
• Input voltage: 12 - 30 V DC
• Maximum input current: one channel 10 A / three channels 16 A
• Operating temperature: -10 °C ... +45 °C

Compatibility:

• DJI Power 500/1000
