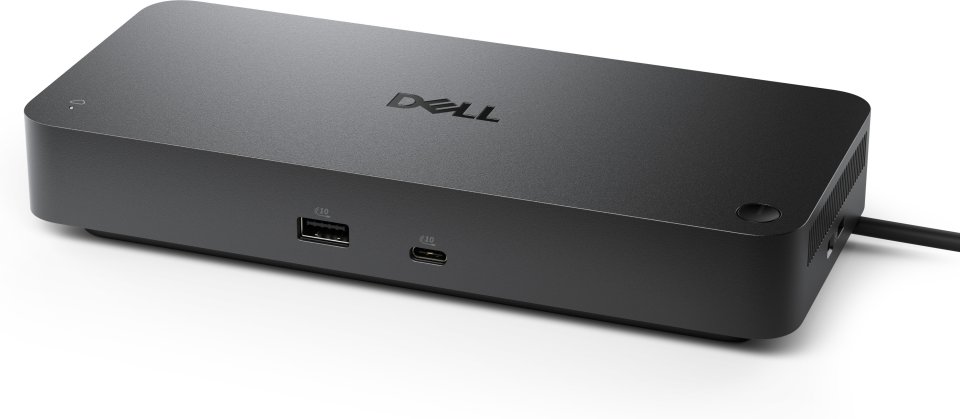

Welcome to a new era of AI work with the Dell Pro Thunderbolt 5 Smart Dock! This smart dock is designed to maximize your productivity and make multitasking seamless with up to four 4K 120Hz displays.

Thunderbolt 5 Connectivity Technology

The first Thunderbolt 5 dock on the market offers an impressive 1.25 GB/s data transfer speed, ensuring fast and reliable connections to all your devices. One USB-C cable is enough—you get up to 300W power delivery for Dell systems and 240W for other devices.

Versatile Display Support

Imagine your desktop with four crisp 4K monitors. The dock supports multiple resolutions from QHD up to 8K. You can enjoy a 4K 120Hz experience on three displays or use four QHD 60Hz monitors simultaneously. The possibilities are endless.

Smart Management Features

Remote management over Wi-Fi makes IT maintenance easy—you can configure and update the dock without the user needing to connect it to a PC. With Intel vPro computers, you get Intel AMT via Thunderbolt connectivity.

Responsible Choice

Responsibility matters—the dock is made from at least 65% recycled materials and packaged in 100% recycled or renewable packaging.

Features

• Thunderbolt 5 connectivity technology with 1.25 GB/s speed
• Support for four displays, up to 4K 120Hz
• 300W power delivery for Dell systems, 240W for other brands
• Remote management over Wi-Fi
• 6 USB ports (4x USB-A, 2x USB-C)
• DisplayPort 2.1 and HDMI 2.1 connections
• Intel AMT support for vPro computers
• Made from 65% recycled material
• Kernel DMA protection
• MAC address passthrough
• PXE Boot support
• Wake-on-LAN functionality

Technical Specifications

• Cable length: 81 cm
• Host connection: Thunderbolt 5
• Data transfer speed: 1.25 GB/s
• USB-A 3.2 Gen 2 ports: 4 pcs (4.5W each, 10 Gbps)
• USB-C 3.2 Gen 2 ports: 1 pc (15W, 10 Gbps)
• USB-C Multi-function DisplayPort: 1 pc (7.5W)
• Thunderbolt 5 ports: 2 pcs (15W each)
• DisplayPort version: 2.1 (2 pcs)
• HDMI version: 2.1 (1 pc)
• Ethernet (RJ-45): Yes
• Supported resolutions: 2560 x 1440, 3440 x 1440, 3840 x 2160, 5120 x 2160, 6144 x 3456, 7680 x 4320
• Display configurations: 8K 60Hz (1 display), 6K 60Hz (2 displays), 5K 60Hz (1 display), 4K 120Hz (3-4 displays), 4K 60Hz (2-4 displays)
• Security connections: Noble Wedge, Kensington
• Management features: WLAN-LAN switch, port blocking, Dell Command Update, MAC address passthrough
• Security features: Kernel Direct Memory Access (DMA) protection
• Network features: PXE Boot, Wake-on-LAN, dock power button synchronization
• Supported operating systems: Windows 11, Windows 10, macOS, Ubuntu 24.04, ChromeOS 141, Red Hat Enterprise Linux 9.7
• Power distribution: All ports deliver power regardless of PC state
• Remote management: Wi-Fi-based configuration, deployment, and updates
• Intel vPro support: Intel Active Management Technology (AMT) via Thunderbolt connection
