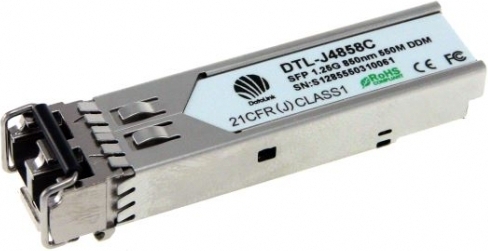

Datolink 1000M 550 m HP Compatible SFP Transceiver Module

Datolink DLT-J4858C is a Gigabit multi-mode SFP module for HP / Aruba Ethernet switches, access points, and routers with DDM support. The module is equipped with duplex LC connectors. The module is technically compatible with the HP J4858C / JD118B / X121 SFP module. It can also be used in other switch/media converter/router/access point devices that do not require special coding.

Technical specifications:

• 1000Base-SX
• Data transfer rate: 1.25 Gbit/s
• Fiber optic cable:
• - Multi-mode OM1 (62.5/125 µm)
• - OM3 (50/125 µm)
• Distance:
• - 275 m (OM1)
• - 550 m (OM3)
• Wavelength: 850 nm
• Optical components: VCEL/PIN
• LC connector (Duplex)
• DDM support, Digital Diagnostic Monitoring
• Fiber Channel (ANSI)
• Telcordia GR-468-CORE
• Hot-Plug
• Operating voltage: 3.3 VDC
• Low power consumption
• Operating temperature range: 0...+70 °C
• IEEE 802.3z (Class 1 laser safety)
• Approvals: CE, RoHS

Compatible HP products:
• HP ProCurve 6108 Switch
• HP ProCurve 6200-24G-mGBIC Switch
• HP ProCurve 6600-24G-4XG Switch
• HP ProCurve 6600-24XG Switch
• HP ProCurve 6600-48G-4XG Switch
• HP ProCurve 8212zl Routing Switch
• HP ProCurve 9308M Routing Switch
• HP ProCurve E6600-24G Switch
• HP ProCurve E6600-48G Switch
• HP ProCurve E8206 zl Switch Base System
• HP ProCurve E8212 zl Switch Base System
• HP ProCurve Edge 8108fl Fabric Switch
• HP ProCurve Edge 8116fl Fabric Switch
• HP ProCurve 1410-24G Switch
• HP ProCurve 1700-24 Switch
• HP ProCurve 1700-8 Switch
• HP ProCurve 1800-24G Switch
• HP ProCurve 1800-8G Switch
• HP ProCurve 1810-24G Switch
• HP ProCurve 2510-24 Switch
• HP ProCurve 2510-24G Switch
• HP ProCurve 2510-48 Switch
• HP ProCurve 2510-48G Switch
• HP ProCurve 2520-24G-PoE Switch
• HP ProCurve 2520-24-PoE Switch
• HP ProCurve 2520-8G-PoE Switch
• HP ProCurve 2520-8-PoE Switch
• HP ProCurve 2610-24 Switch
• HP ProCurve 2610-24-PoE Switch
• HP ProCurve 2610-24-PPoE Switch
• HP ProCurve 2610-48 Switch
• HP ProCurve 2610-48-PoE Switch
• HP ProCurve 2615-8-PoE Switch
• HP ProCurve 2626 Racked Switch
• HP ProCurve 2626 Switch
• HP ProCurve 2650 Factory Rack Switch
• HP ProCurve 2650 Switch
• HP ProCurve 2650-PWR Switch
• HP ProCurve 2810-24G Switch
• HP ProCurve 2810-48G Switch
• HP ProCurve 2900-24G Switch
• HP ProCurve 2900-48G Switch
• HP ProCurve 2910-24G Switch
• HP ProCurve 2910-24G-PoE+ Switch
• HP ProCurve 2910-48G Switch
• HP ProCurve 2910-48G-PoE+ Switch
• HP ProCurve 2915-8G-PoE Switch
• HP ProCurve 3500-24 Switch
• HP ProCurve 3500-24G-PoE Switch
• HP ProCurve 3500-24G-PoE+ Switch
• HP ProCurve 3500-48 Switch
• HP ProCurve 3500-48G-PoE Switch
• HP ProCurve 3500-48G-PoE+ Switch
• HP ProCurve 3500-48-PoE Switch
• HP ProCurve 4202-72 Switch
• HP ProCurve 4204 Switch Chassis
• HP ProCurve 4204-44G-4SFP Switch
• HP ProCurve 4208 Switch Chassis
• HP ProCurve 4208-68G-4SFP Switch
• HP ProCurve 4208-96 Switch
• HP ProCurve 5304xl Switch
• HP ProCurve 5308xl Switch
• HP ProCurve 5308xl-48G Switch
• HP ProCurve 5348xl Switch
• HP ProCurve 5372xl Factory Racked Switch
• HP ProCurve 5372xl Switch
• HP ProCurve 5406-44G-PoE+-4SFP Switch
• HP ProCurve 5406-48G Switch
• HP ProCurve 5412-92G-PoE+-4SFP Switch
• HP ProCurve 5412-96G Switch
• HP ProCurve E2600-8-PoE Switch
• HP ProCurve E3400-24G Switch
• HP ProCurve E3400-48G Switch
• HP ProCurve E5406 Switch Chassis
• HP ProCurve E5412 Switch Chassis
• HP ProCurve V1400-24G Switch
• HP ProCurve V1400-8G Switch
