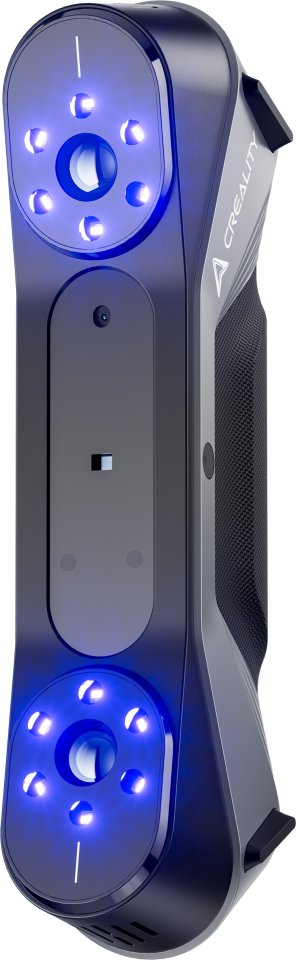

7 laser lines, metrological accuracy

• Metrological accuracy: with laser scanning settings, accuracy can reach up to 0.02 mm.
• 7 parallel blue laser lines for detailed scanning, with a single line accuracy of up to 0.1 mm, allowing for sharper and clearer point cloud edges.

High-speed scanning that exceeds all expectations

• Blue light scanning speed up to 60 fps
• NIR scanning speed up to 20 fps

Infrared structured light scanning

• Insignificant scanning: CR-Scan Raptor utilizes speckle-matching 3D imaging, and no markers are required for versatile workpieces. Objects can be scanned directly and quickly.
• Unique face and body algorithm: the face and body mode is equipped with a unique face mapping algorithm that captures more details; scanning the human body takes only 2 minutes.

Accurate and detailed scanning

• Advanced temperature correction algorithm: improves temperature stability and ensures accuracy.

High-performance structure

• 20 mm large depth range
• Low distortion <5%
• 9-element glass lens
• Metal lens housing and mount

CR-Scan Raptor covers both close and far scanning, and it is equipped with good stability in high and low temperatures, providing reliable measurement results.

Versatile scanning for objects of all sizes

By combining line lasers and infrared structured light, CR-Scan Raptor can scan objects ranging from 5*5*5 mm to 2000*2000*200 mm. It effortlessly scans small figures, bolts, faces, human bodies, car parts, and much more.

Vibration reduction feature for smoother scanning

CR-Scan Raptor is equipped with One-Shot 3D imaging technology, which ensures natural stability and reduces tracking disturbances. Fast return speed ensures smoother handheld scanning.

Scan black/metal objects without spray

You can scan cars, car parts, tires, and other black/metal objects without scanning spray and achieve the desired model effect.

24-bit full-color scanning

With 12 round LED texture lights, it enhances color mapping brightness in dark environments and accurately represents the colors of objects.

Scanning in various environments

Two-color round LED texture lights help achieve more realistic scanning results. Blue light provides additional illumination for laser line scanning. White light enhances the brightness of color surfaces.

Technical specifications:

• Marker recognition enhancement: 12 infrared LEDs
• Laser safety: Class 1 (eye-safe)
• IMU: Yes
• File format: OBJ/STL/PLY
• Input power: 12 V 2 A
• Data interface: Type C / USB 3.0
• Device dimensions: 215 x 50 x 74 mm
• Device weight: 372 g
• Wireless scanning: Supported
• Compatible operating systems: Windows 10/11 (64 bit) and macOS
• Operating temperature: -10°C–40°C

Scanning mode: Blue light (7 laser lines)

• Accuracy: Up to 0.002 mm @ 100 mm
• 3D resolution: 0.02–2 mm
• Scanning speed: Up to 60 fps
• Minimum scanning volume: 5 x 5 x 5 mm
• Single scan area: 270 x 170 mm @ 1000 mm
• Operating distance: 150–400 mm
• Color mapping: Yes
• Alignment mode: Marker
• 3D imaging camera accuracy: 1920 x 1200
• Color complementary light: 12 white LEDs

Scanning mode: NIR (infrared binary structured light)

• Accuracy: Up to 0.01 mm
• 3D resolution: 0.1–2 mm
• Scanning speed: Up to 20 fps
• Minimum scanning volume: 150 x 150 x 150 mm
• Single scan area: 930 x 580 mm @ 1000 mm
• Operating distance: 170–1000 mm
• Color mapping: Yes
• Alignment mode: Marker / geometric / texture
• 3D imaging camera accuracy: 1920 x 1200
• Color complementary light: 12 white LEDs
