| Color | White |
|---|---|
| Country of Origin | Vietnam |
| PID | 1013873 |
| Product depth (mm) | 340 |
| Product height (mm) | 467 |
| Product weight (g) | 13 920 |
| Product width (mm) | 470 |
| Motherboard form factor | ATX, EATX, Micro-ATX, Mini-ITX |
| Maximum CPU cooler height (mm) | 180 |
| Maximum graphics card length (mm) | 430 |
| Supported radiator size (mm) | 360 |
| Side Window | Yes |
| Manufacturer address | Wormerweg 8, 1311 XB, Almere, Netherlands |
| Manufacturer's email address | |
| Manufacturer name | Corsair |
The CORSAIR AIR 5400 RS-R ARGB is a mid-tower PC case designed with a unique three-chamber layout that enhances cooling efficiency and keeps your build organized. It separates key components like the CPU, GPU, and power supply into individual compartments to optimize airflow and temperature control. The curved tempered glass panels offer a clear view inside, while the included reverse-rotation RGB fans provide effective cooling and subtle lighting effects.

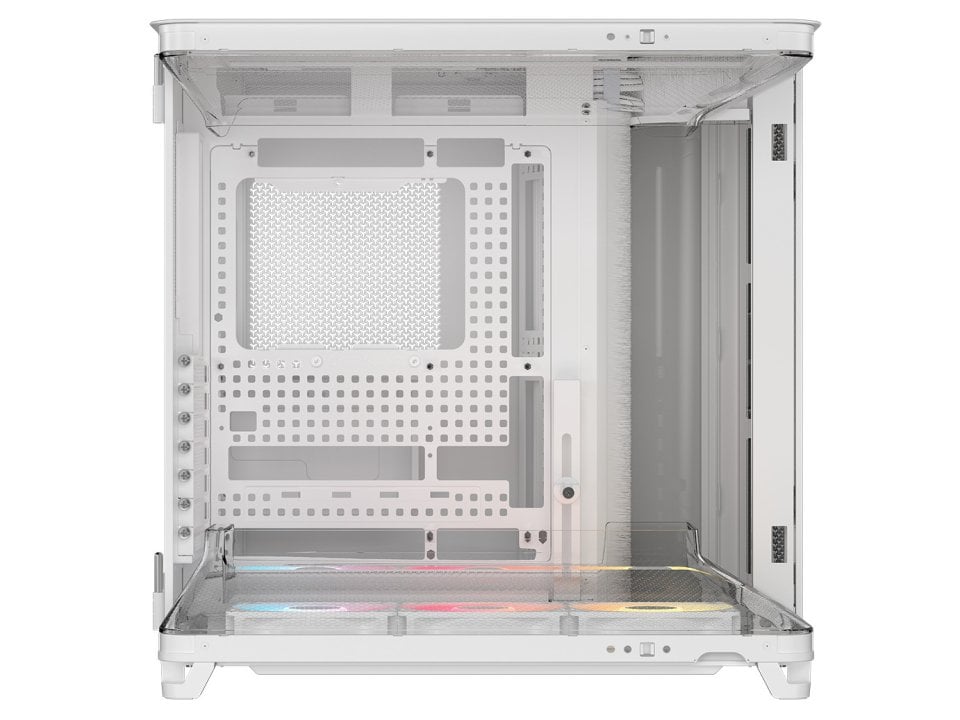

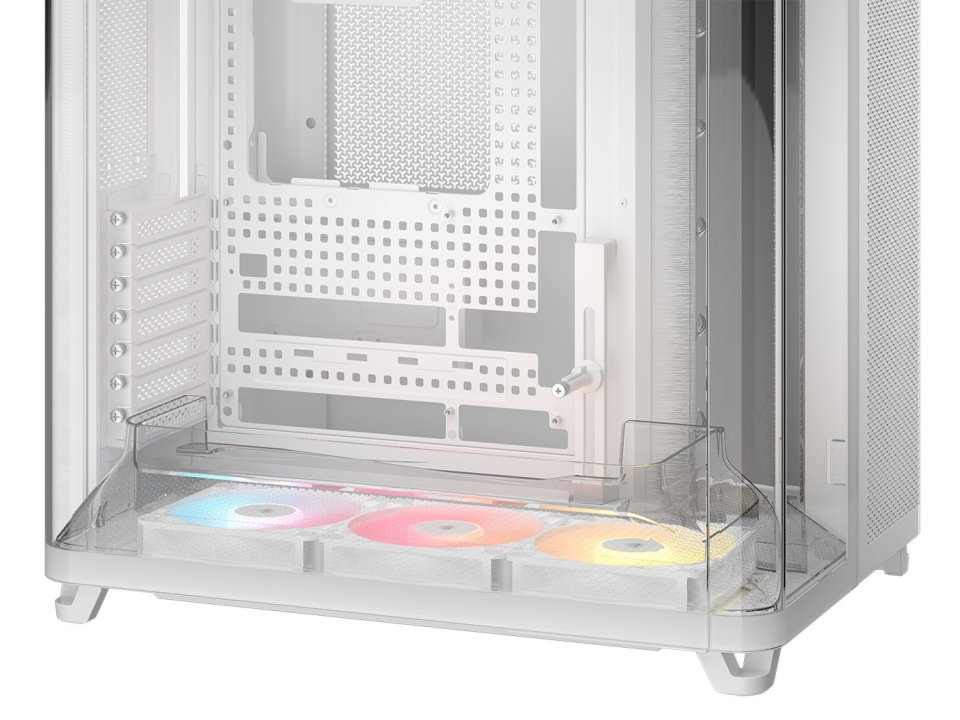

The AIR 5400 stands out with its distinct three-chamber structure dividing the case into CPU, GPU/motherboard, and power supply/storage sections. The CPU chamber supports a 360 mm radiator, allowing targeted cooling without heat spreading to other areas. The GPU and motherboard chamber is designed for strong vertical airflow to keep graphics cards and components cool. The PSU and storage chamber is isolated with its own intake and exhaust vents. Air channels at the bottom of the main chamber accelerate airflow through narrow paths, enhancing cooling without extra noise.

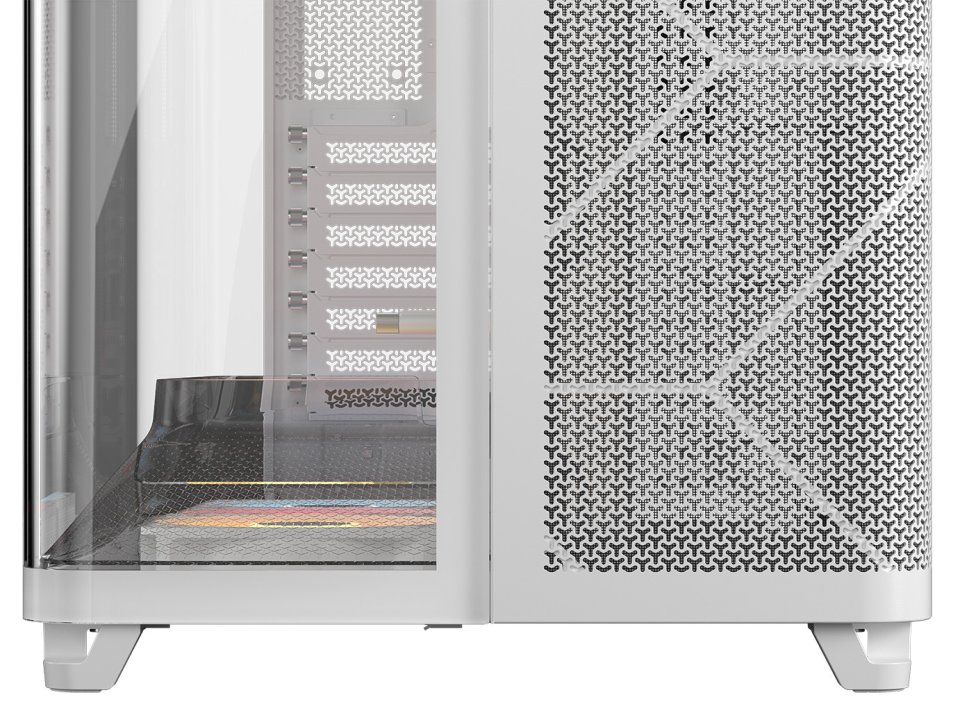

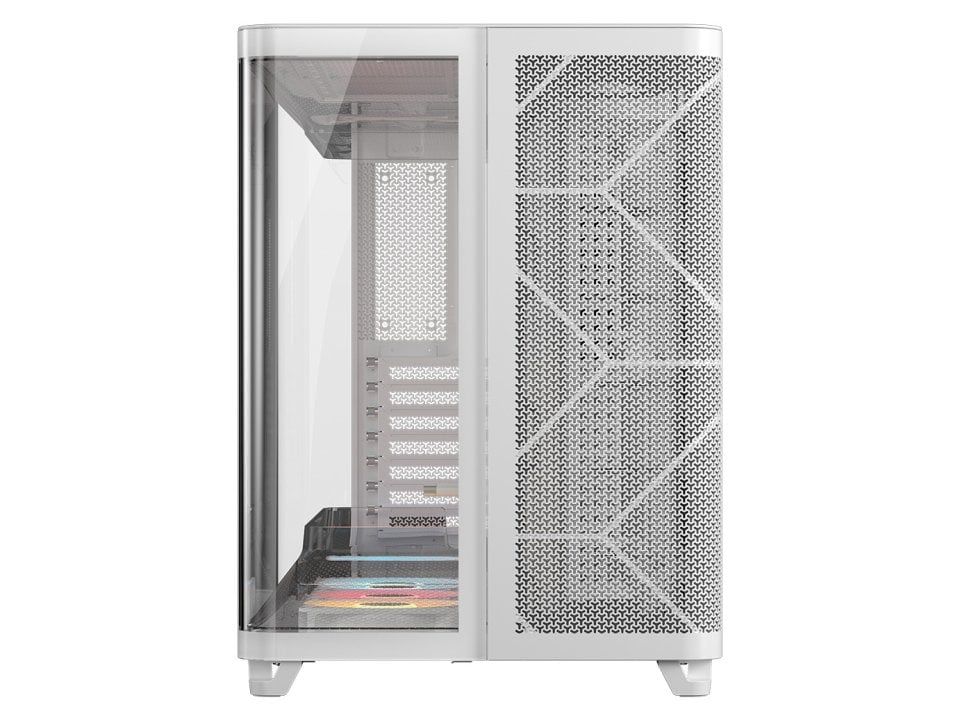

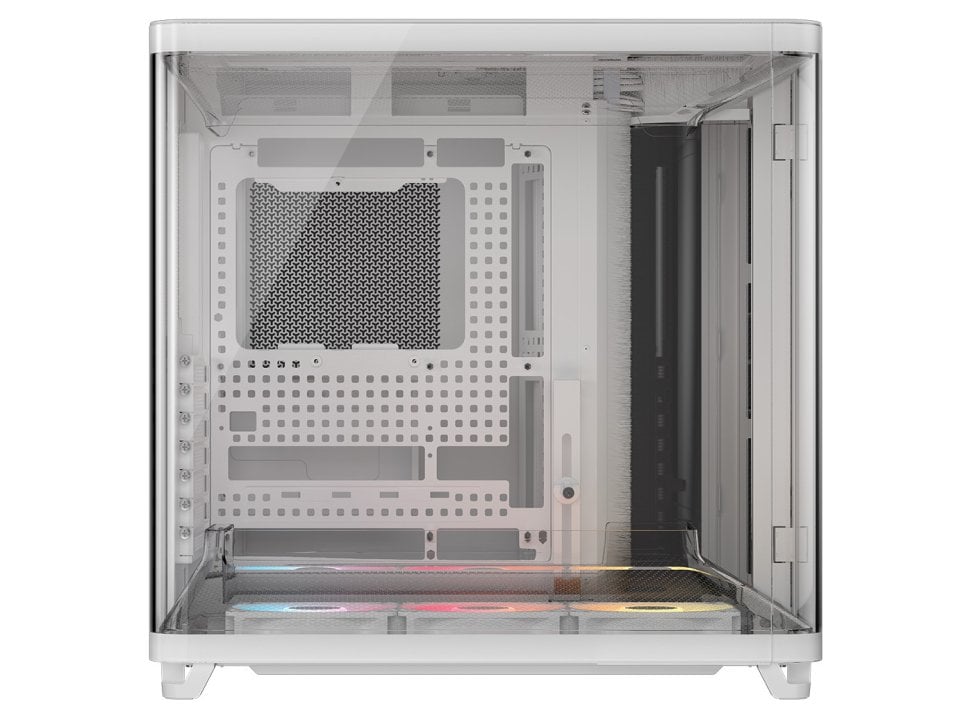

Curved glass panels on the front and back open outward on hinges, providing easy access for upgrades and maintenance. The glass shell is split into two parts with a hidden hinge mechanism to maintain a clean look. The case supports the latest motherboards with reverse mounting, including ASUS BTF, MSI Project Zero, and Gigabyte Project Stealth, which help keep cables tidy and organized.

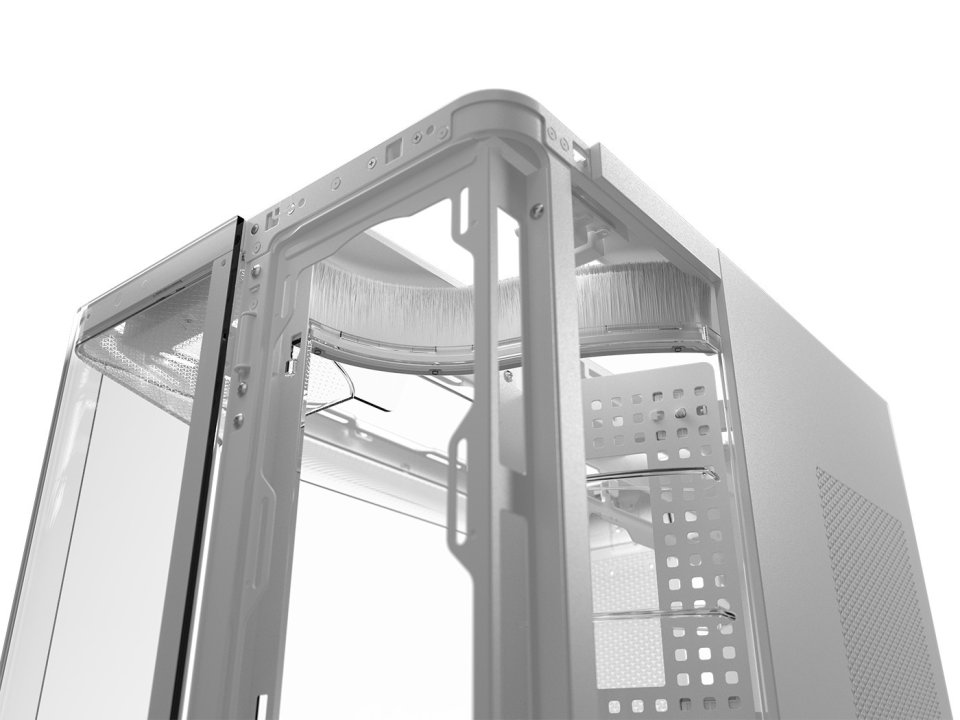

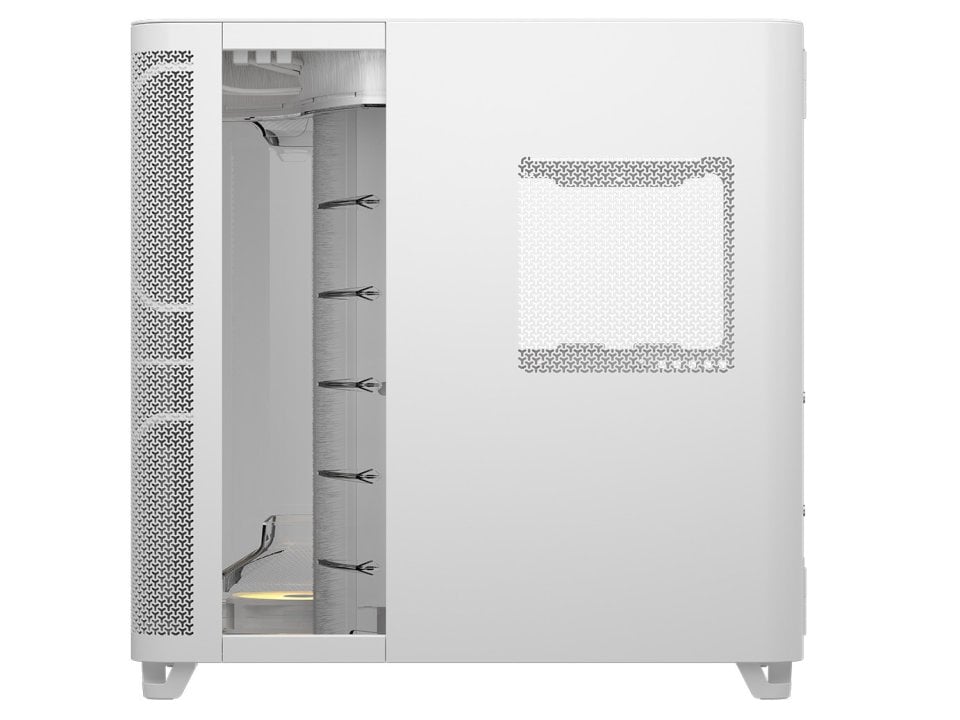

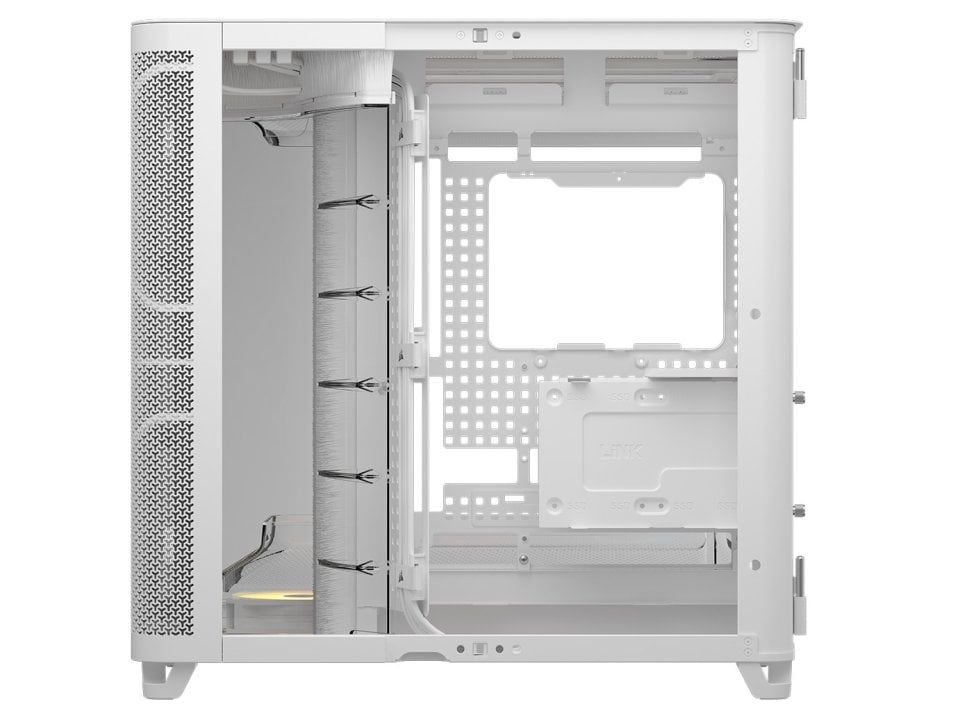

The AIR 5400 includes the RapidRoute 2.0 cable management system featuring a pegboard-style motherboard tray with adjustable cable clips. These clips can be positioned and rotated freely to simplify cable routing and maintain a neat interior. Vertical polymer brushes separate the chambers to hide cable pass-throughs. The package also includes useful DIY accessories like a reusable screw box, QuikTurn screws, and a microfiber cloth for cleaning glass surfaces.

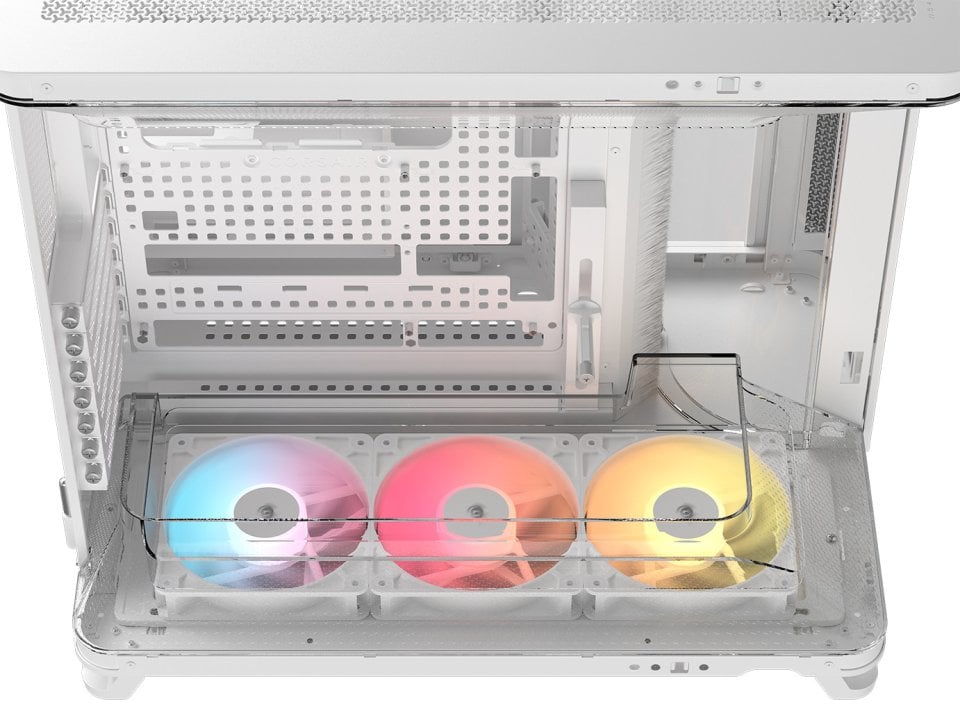

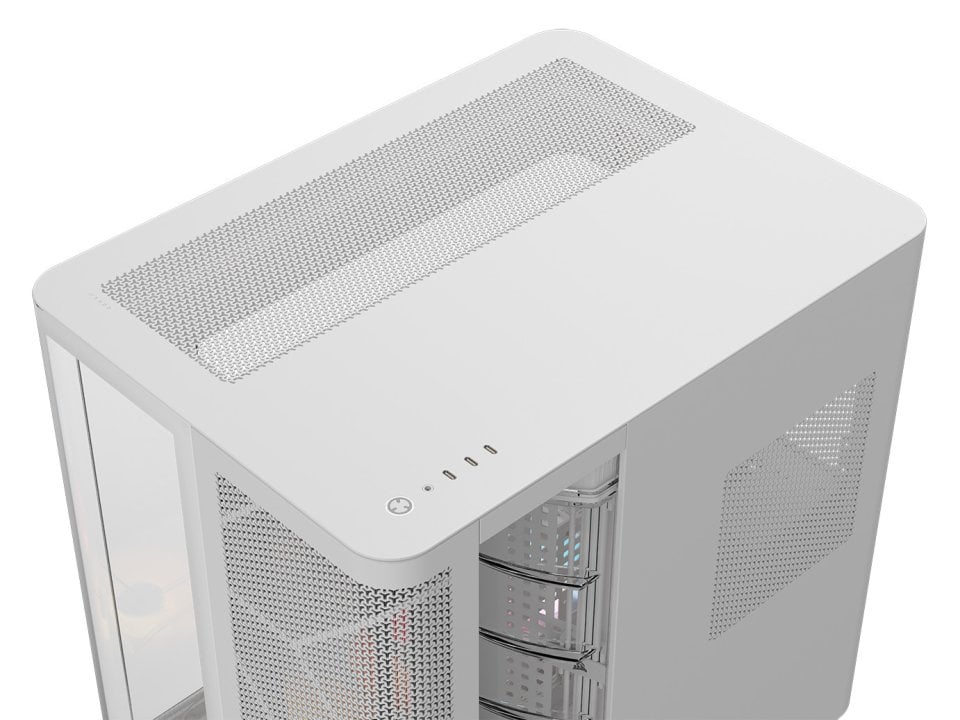

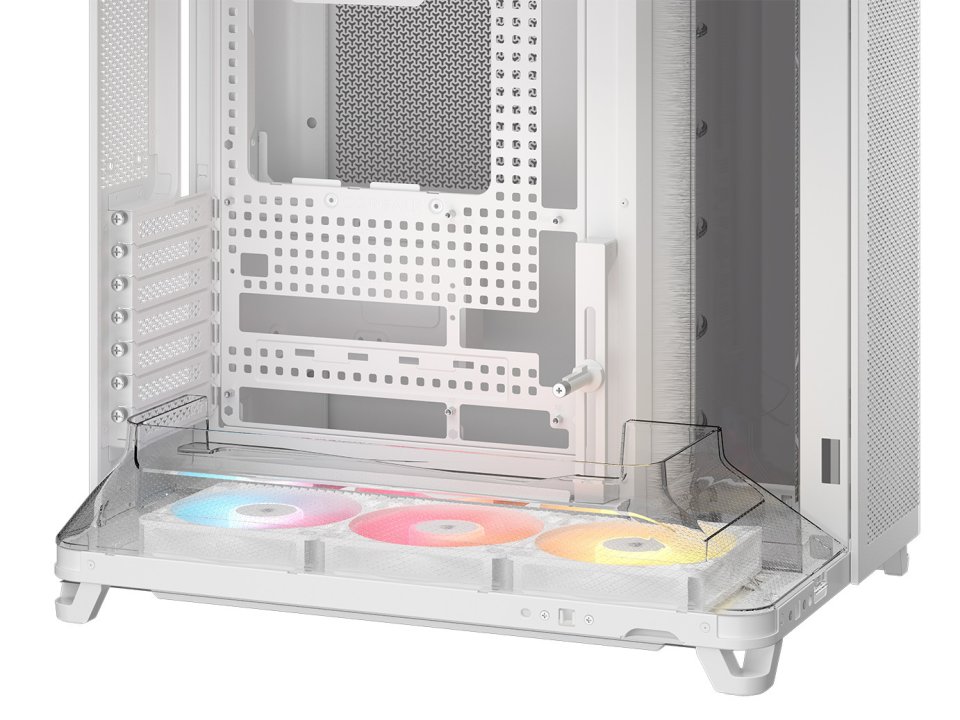

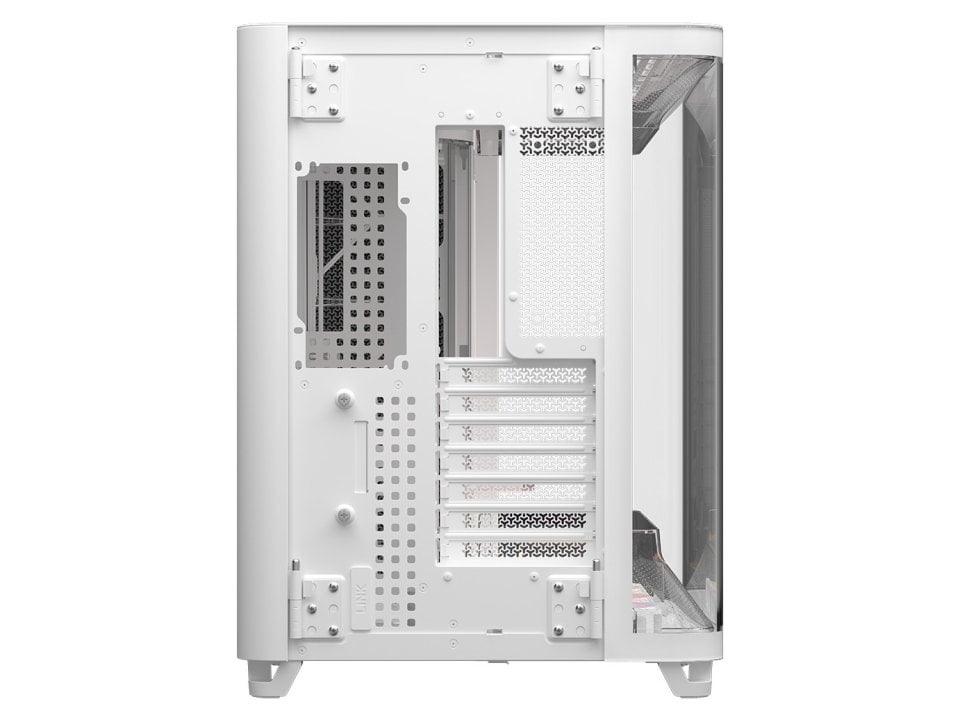

Measuring 470 x 340 x 467 mm, the case is constructed from steel, tempered glass, plastic, and acrylic. Cooling comes from three 120 mm RS-R ARGB fans at the bottom, one 120 mm fan at the rear, and three 120 mm fans at the top. It supports 360 mm or 240 mm radiators on the front and top. Compatible motherboard sizes include Mini-ITX, Micro-ATX, ATX, and E-ATX (up to 305 x 277 mm). The case accommodates GPUs up to 430 mm long, CPU coolers up to 180 mm tall, and power supplies up to 200 mm deep. The front panel includes three USB Type-C ports—one with 20 Gb/s speed and two with 5 Gb/s—and a combined headphone/microphone jack. There are seven horizontal expansion slots and storage space for one 3,5″ HDD and two 2,5″ SSDs.
