| Color | Black |
|---|---|
| Country of Origin | Vietnam |
| PID | 1013870 |
| Product depth (mm) | 340 |
| Product height (mm) | 467 |
| Product weight (g) | 13 920 |
| Product width (mm) | 470 |
| Motherboard form factor | ATX, EATX, Micro-ATX, Mini-ITX |
| Maximum CPU cooler height (mm) | 180 |
| Maximum graphics card length (mm) | 430 |
| Supported radiator size (mm) | 360 |
| Side Window | Yes |
| Manufacturer address | Wormerweg 8, 1311 XB, Almere, Netherlands |
| Manufacturer's email address | |
| Manufacturer name | Corsair |

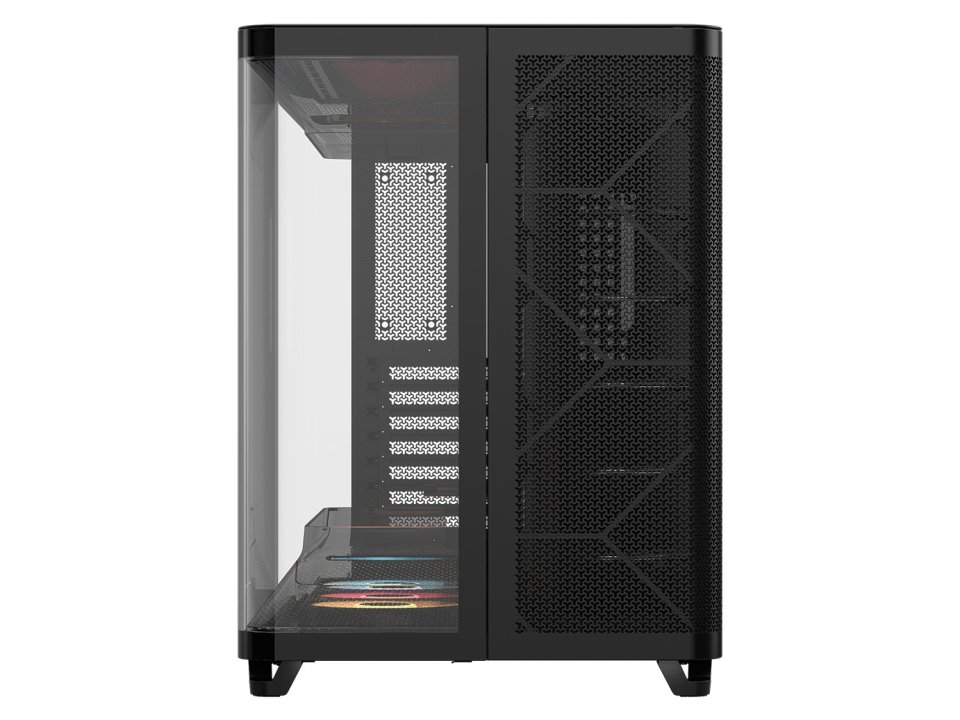

The CORSAIR AIR 5400 RS-R ARGB is a mid-tower PC case designed with a unique three-chamber layout that separates key components like the CPU, GPU, and power supply into their own compartments. This setup improves airflow and cooling efficiency while keeping your build clean and organized. The curved tempered glass panels offer a clear panoramic view inside, and the included reverse-rotation RGB fans provide effective cooling combined with subtle lighting effects.

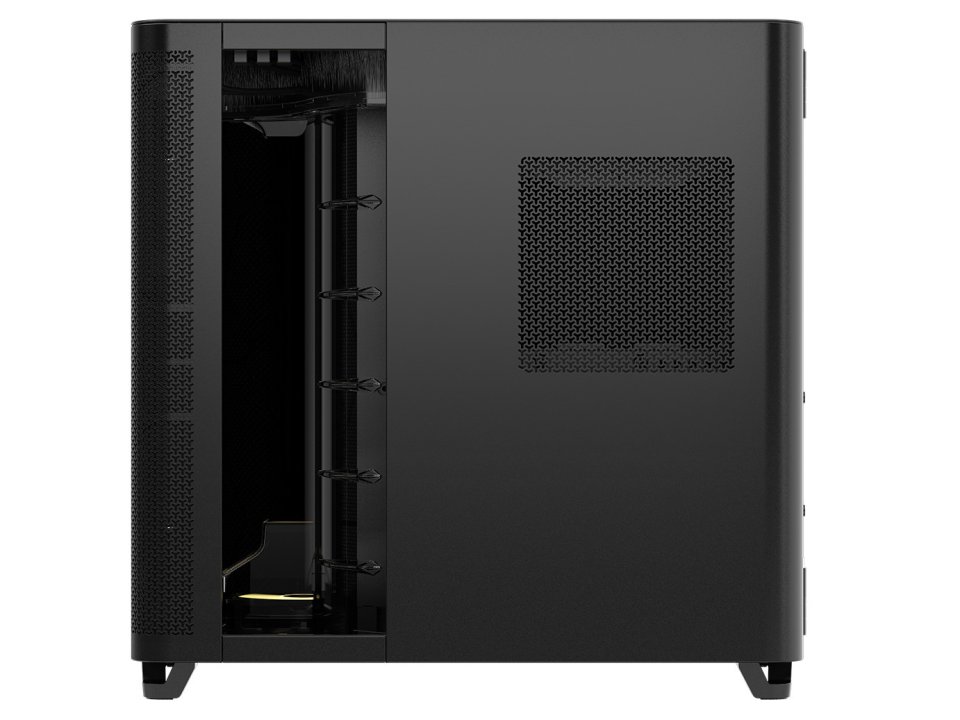

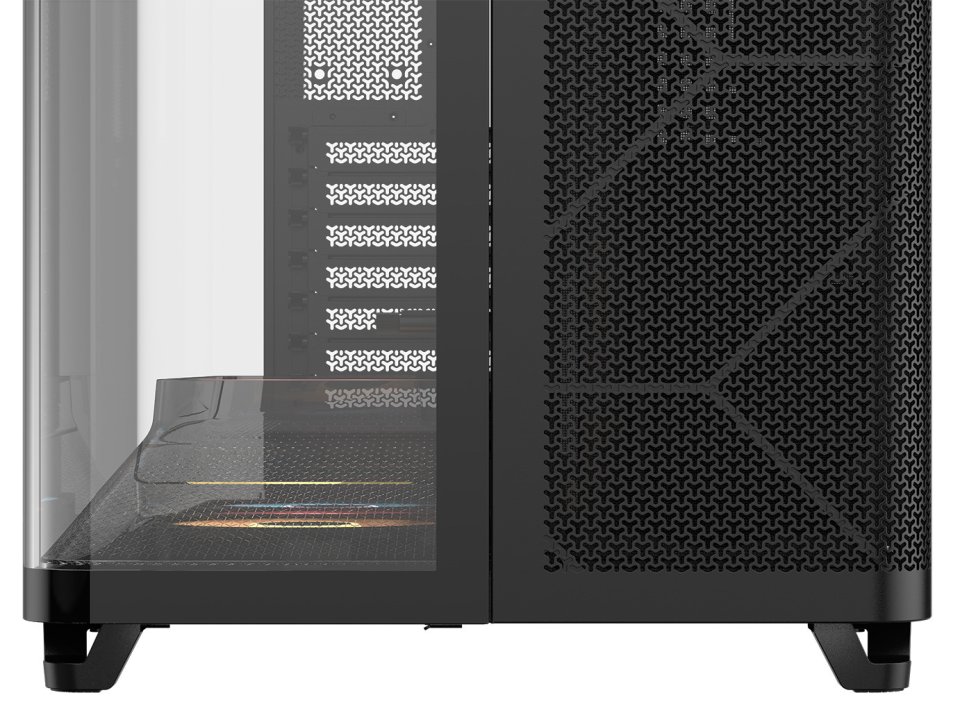

The AIR 5400’s standout feature is its division into three distinct chambers: one for the CPU, one for the GPU and motherboard, and one for the power supply and storage. The CPU chamber supports a 360 mm radiator to cool the processor without affecting other parts. The GPU and motherboard chamber is designed for strong vertical airflow to keep graphics cards and other components cool. The power supply chamber has its own intake and exhaust vents. Air channels at the bottom of the main chamber guide airflow through a narrow path to enhance cooling without adding noise.

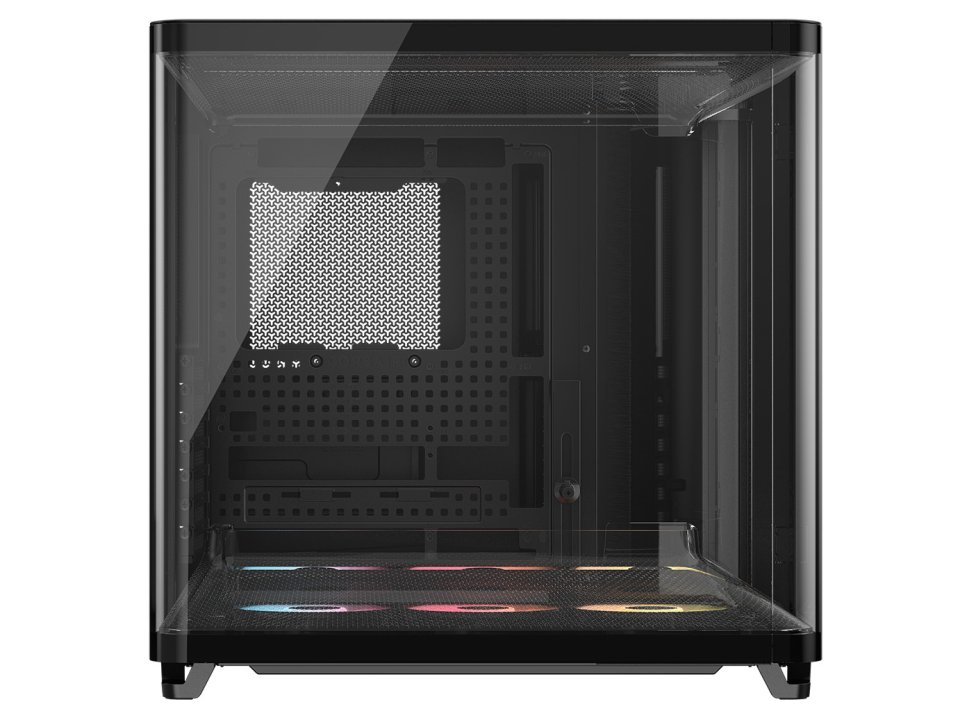

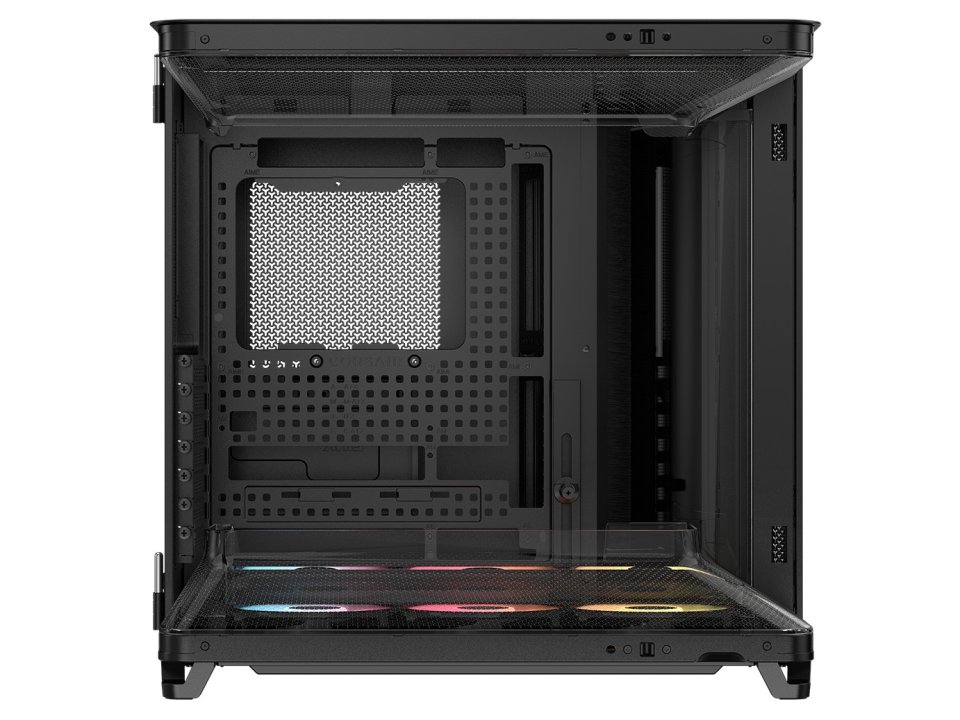

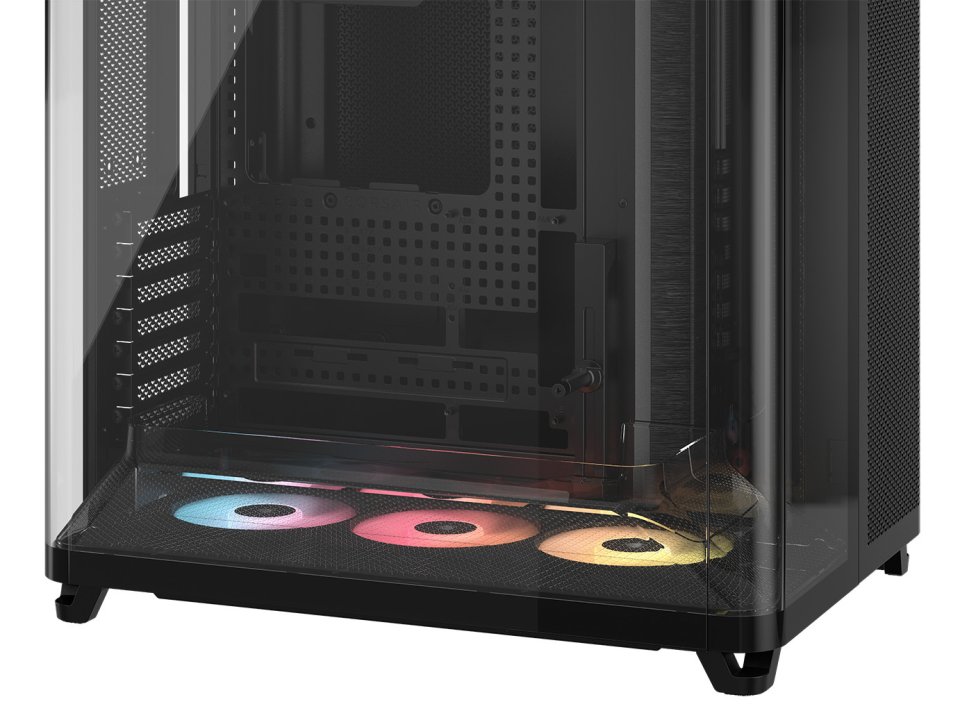

Both the front and rear panels are made of curved tempered glass that swings open on hinges, allowing easy access for upgrades and maintenance. The glass is split into two parts with a spiral hinge mechanism hidden from view to maintain a sleek appearance. The case supports the latest motherboards with reverse-mount options like ASUS BTF, MSI Project Zero, and Gigabyte Project Stealth, which help keep cables tidy and organized.

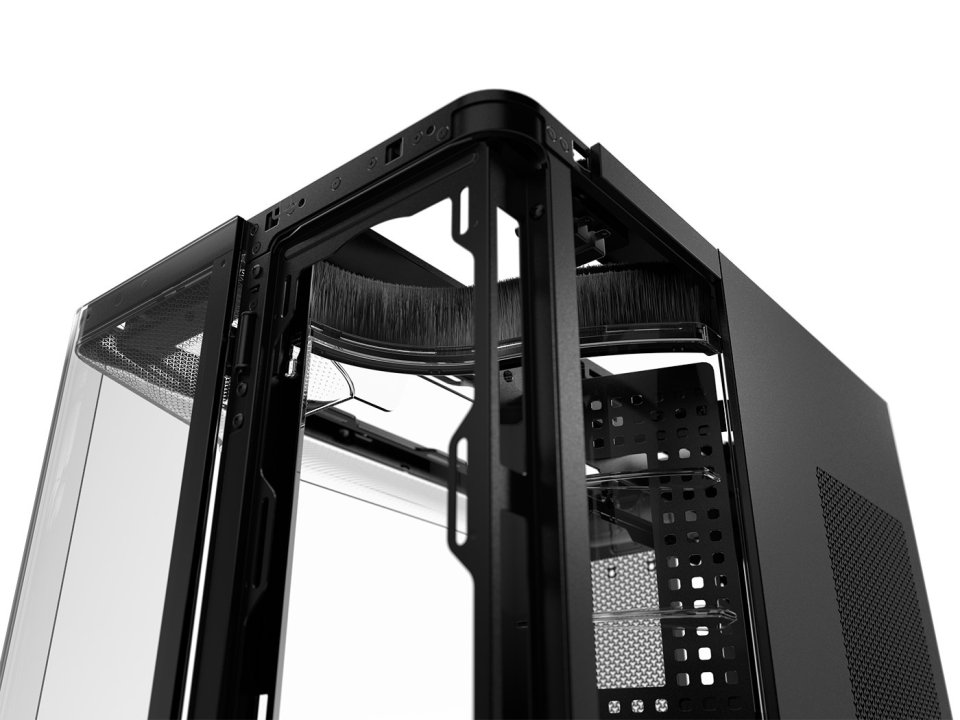

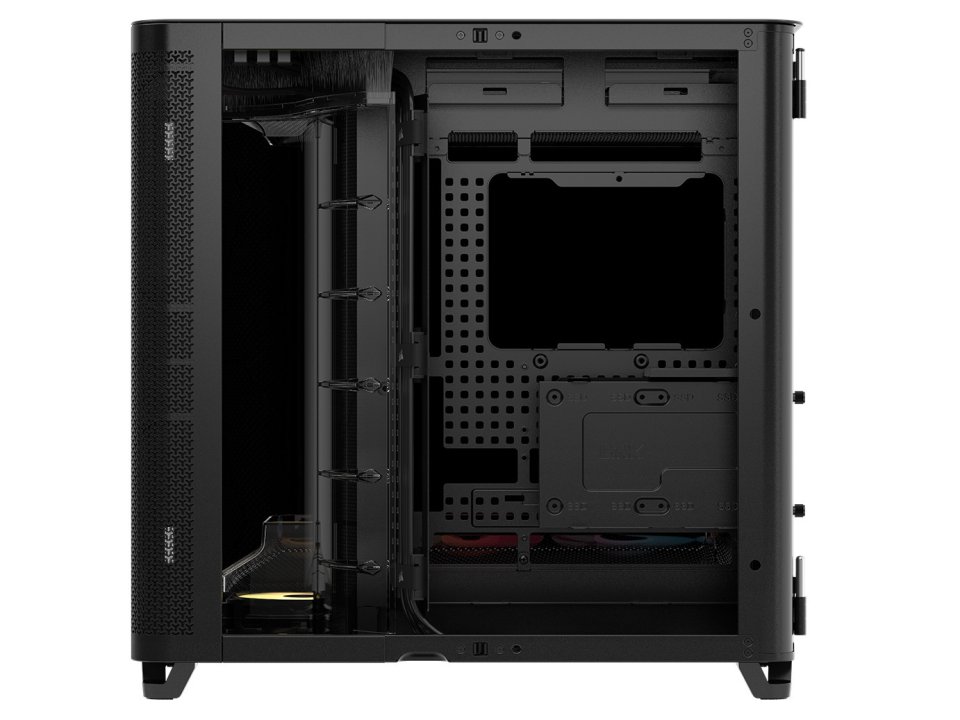

The case includes the RapidRoute 2.0 cable management system with a pegboard-style motherboard tray and adjustable cable clips. These clips can be repositioned and rotated to simplify cable routing and maintain a clean interior. Vertical polymer brushes between chambers prevent visible cable pass-throughs. The package also contains useful DIY accessories such as a reusable screw box, QuikTurn screws, and a microfiber cloth for cleaning the glass panels.

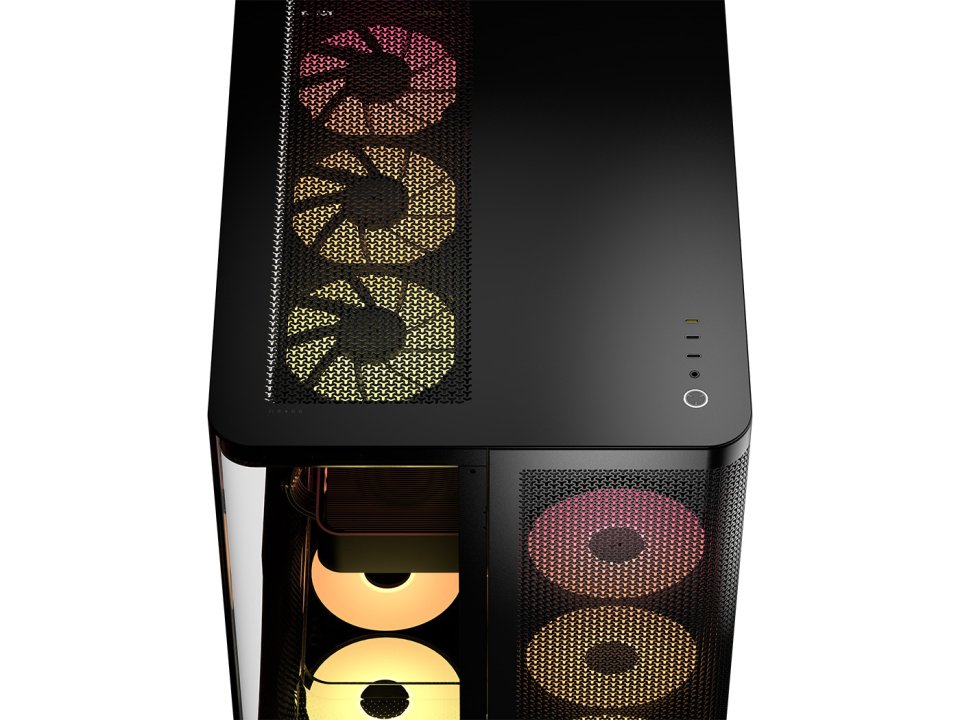

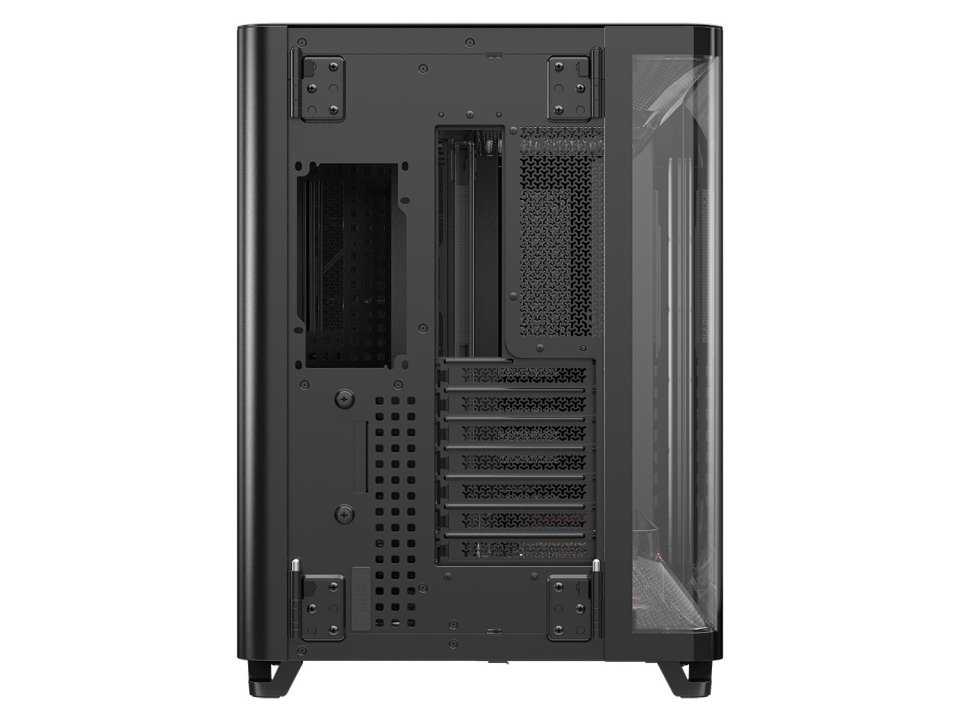

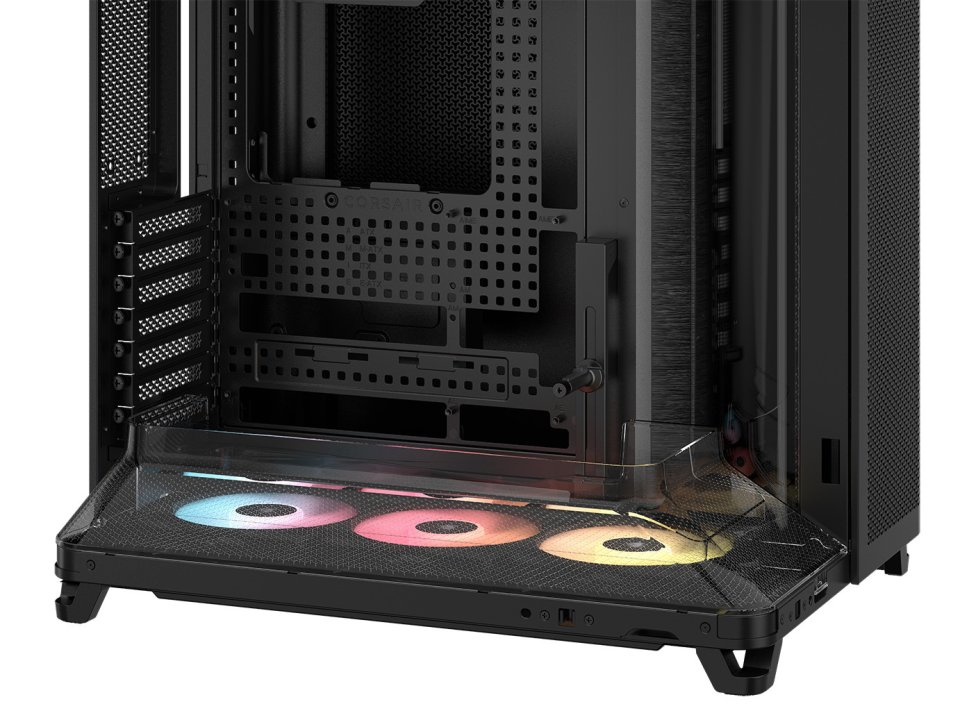

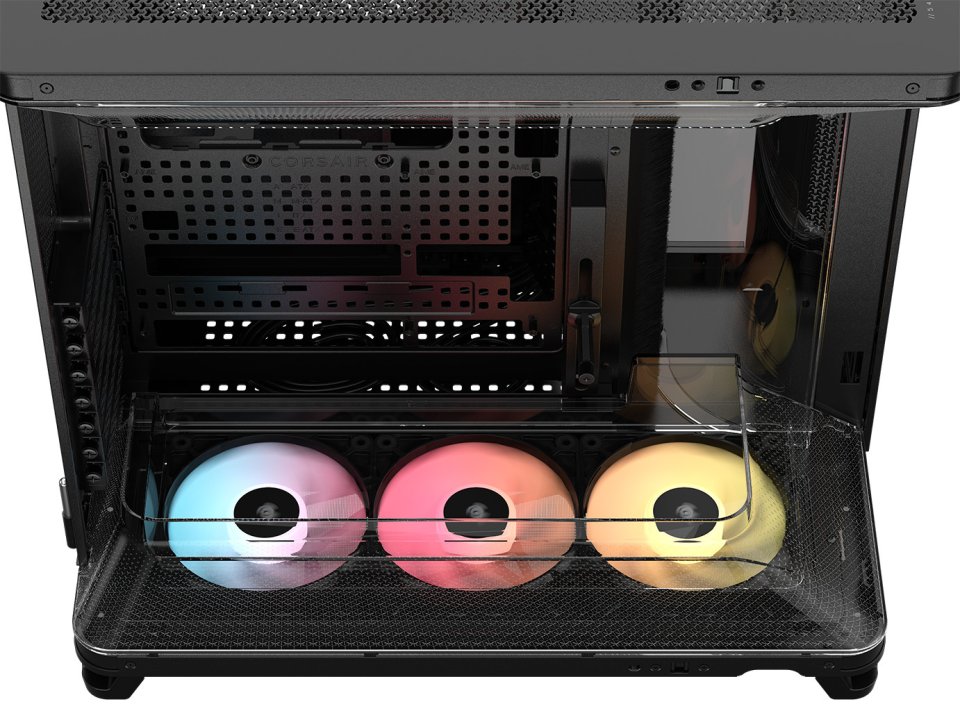

Measuring 470 x 340 x 467 mm, the case is constructed from steel, tempered glass, plastic, and acrylic. Cooling comes from three 120 mm RS-R ARGB fans at the bottom, one 120 mm fan at the rear, and three 120 mm fans on top. It supports 360 mm or 240 mm radiators at the front and top. Compatible motherboard sizes include Mini-ITX, Micro-ATX, ATX, and E-ATX (up to 305 x 277 mm). Graphics cards up to 430 mm long and CPU coolers up to 180 mm tall fit comfortably. Power supplies up to 200 mm in length are supported. The front panel offers three USB Type-C ports—one with 20 Gb/s speed and two with 5 Gb/s—as well as a headphone/microphone jack. There are seven horizontal expansion slots and room for one 3,5″ HDD and two 2,5″ SSDs.
