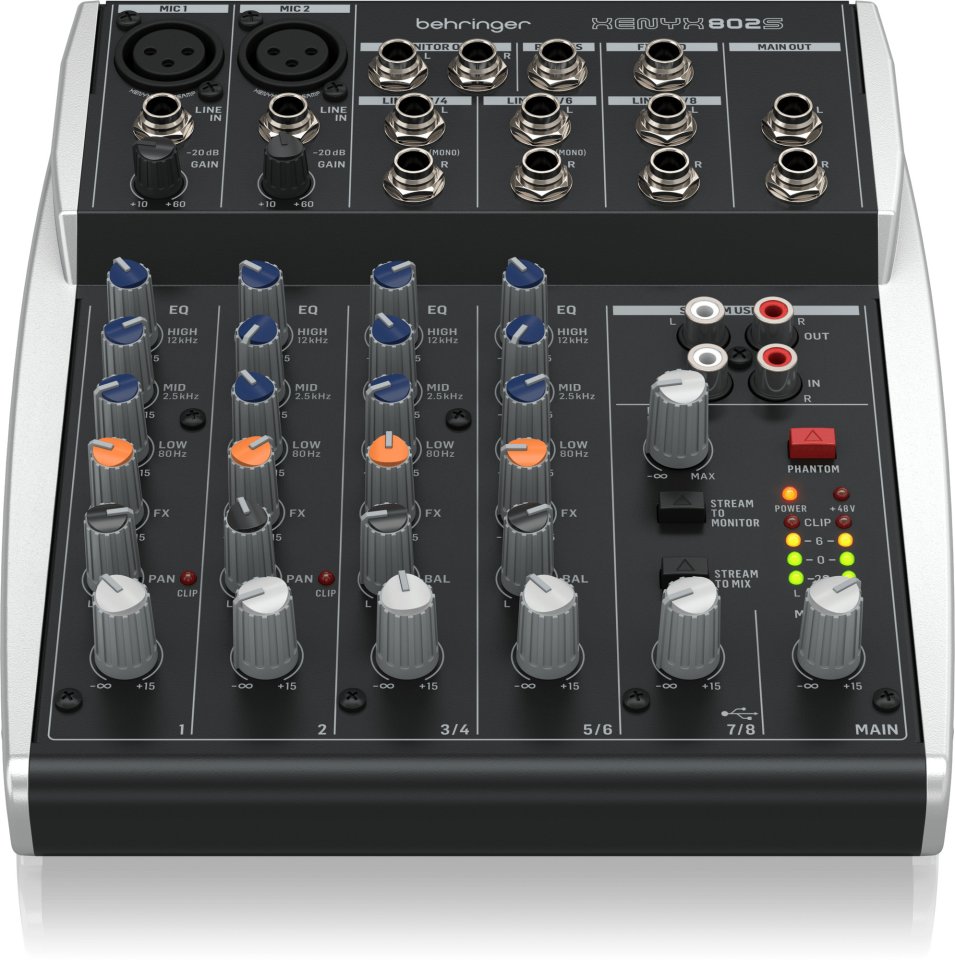

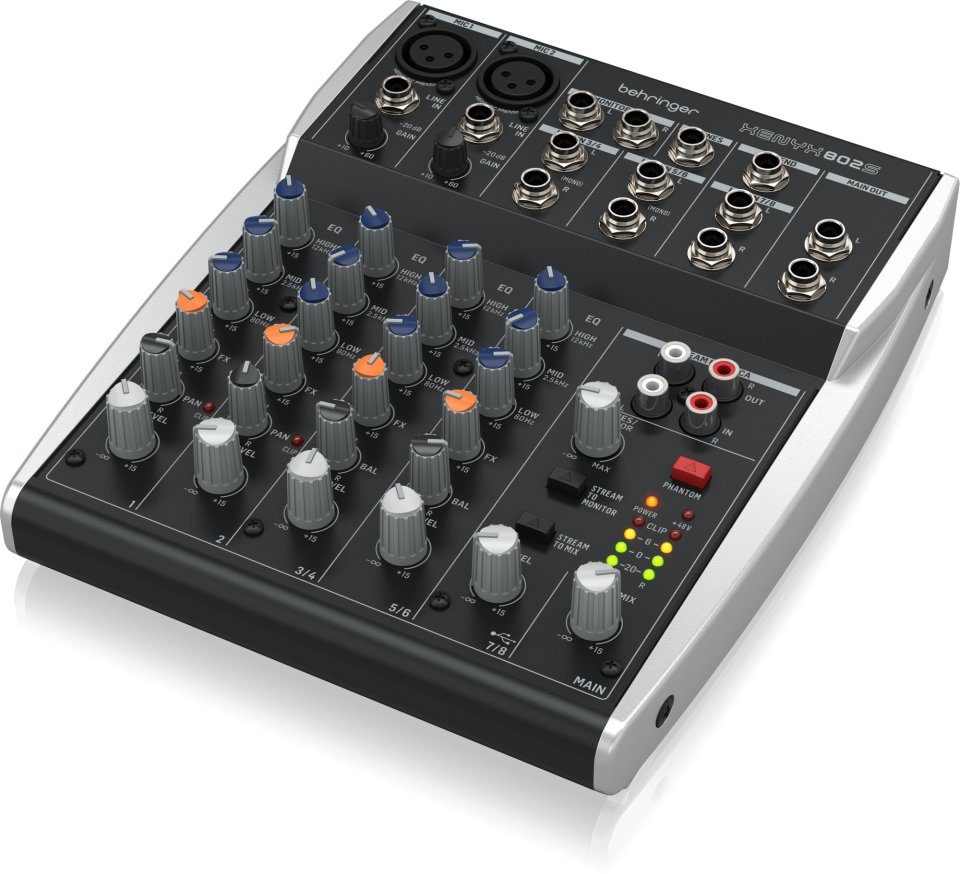

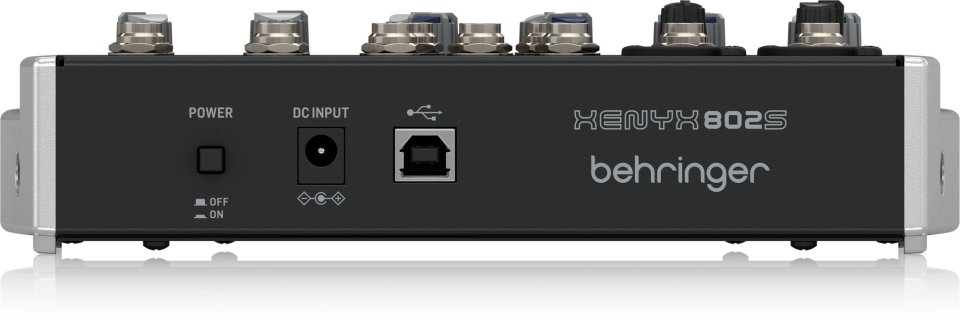

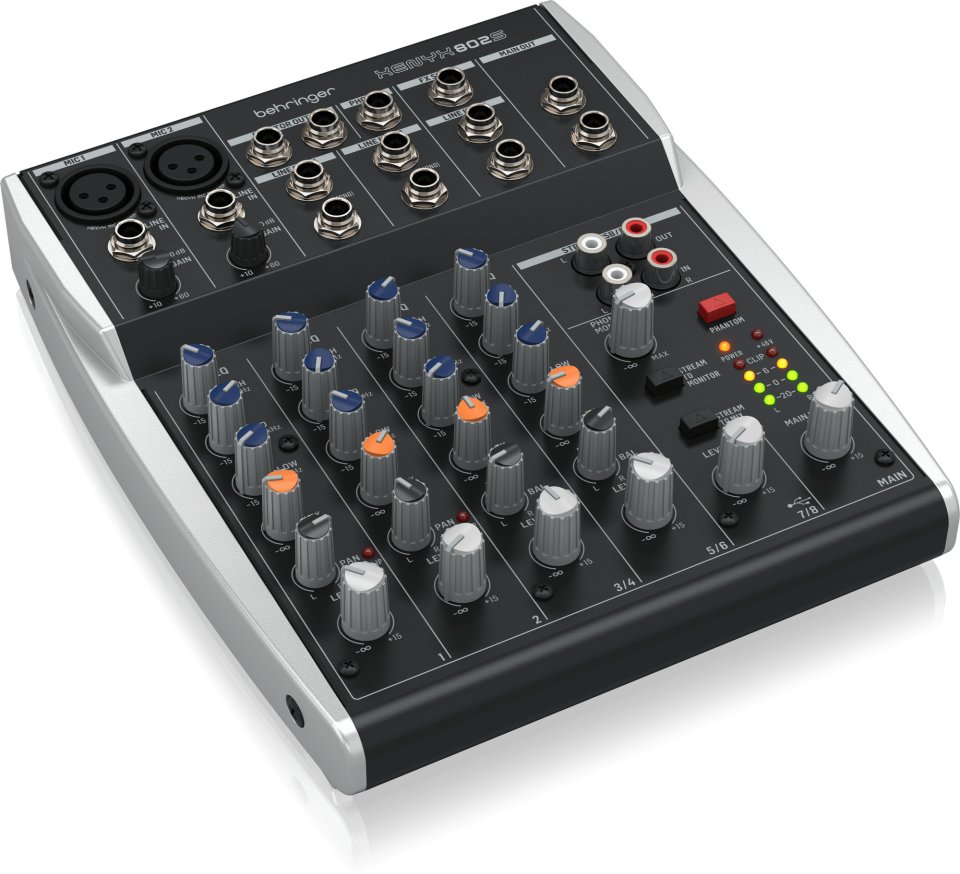

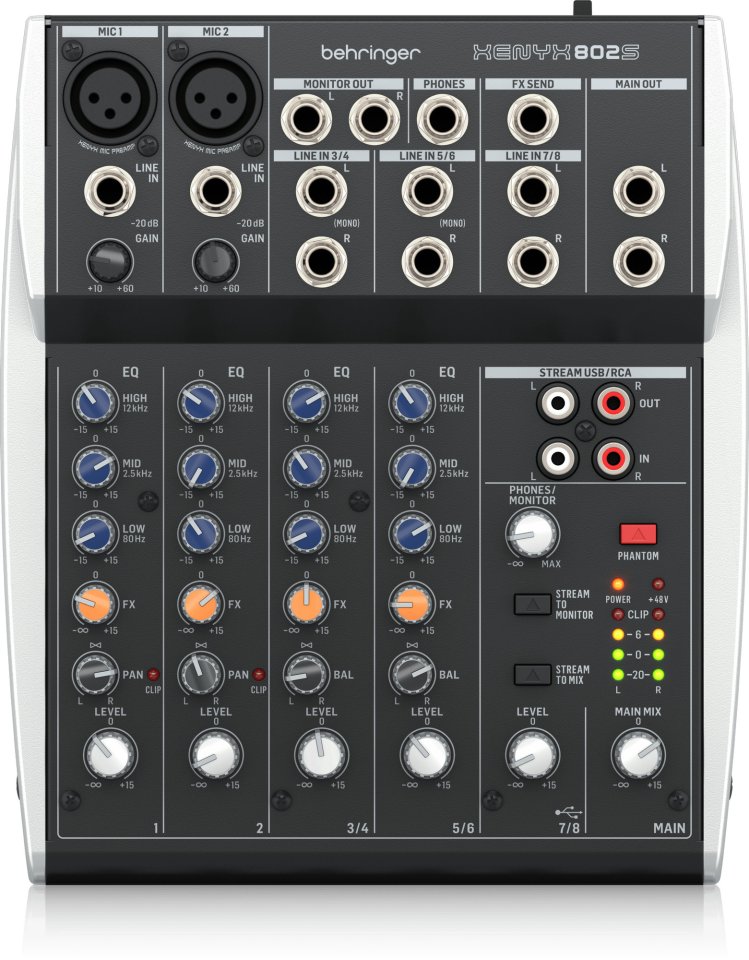

Compact 8-channel analog mixer specifically designed for streamers. Features include two XENYX microphone preamps, an integrated USB audio interface, direct mixing of PC/game audio to the streaming output, and a 3-band EQ. Stereo channel 7/8 automatically switches between TRS input and USB playback.

Features:

• Analog mixer for streaming, podcasting, and recording
• 2 Xenyx microphone preamps
• Stereo USB interface for connecting to a computer or mobile device
• Direct mixing of PC/game sounds to the streaming output
• Analog mixing and equalization
• Stereo channel 7/8 automatically switches between TRS input and USB playback
• 3-band EQ for producing warm and musical sound
• Channel-specific FX Send control for external effect processors or monitoring mixes
• High-quality monitor, headphone, and streaming outputs
• Stereo RCA inputs that can be assigned to main mix or monitoring/headphone outputs
• 48 V Phantom power

Connections:

• USB-B
• 2 x microphone input (XLR)
• 2 x mono line input (6.3 mm)
• 3 x line-level stereo input (6.3 mm)
• 1 FX Send (6.3 mm)
• Monitor output: unbalanced 6.3 mm
• Master output: unbalanced 6.3 mm
• Streaming L/R In/Out: RCA
• Headphone output: 6.3 mm stereo
