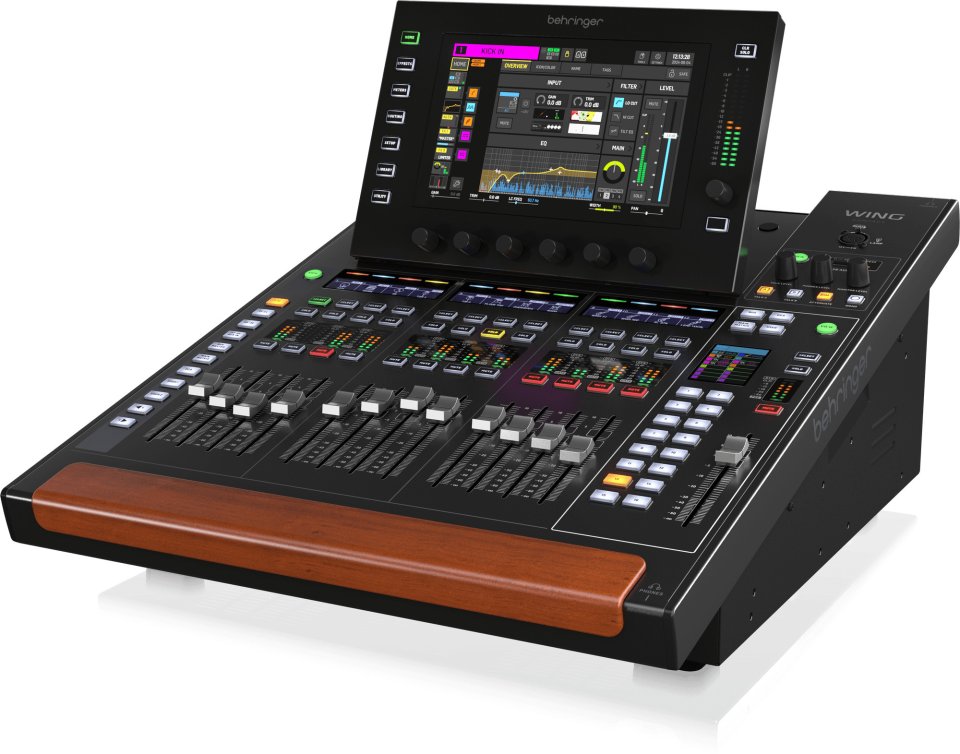

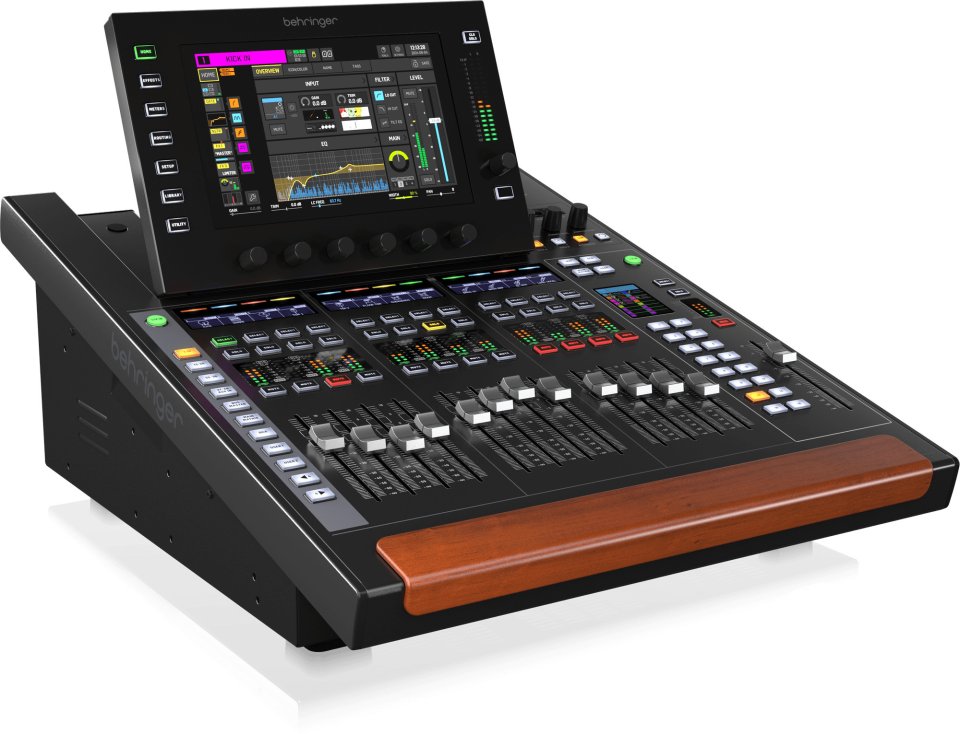

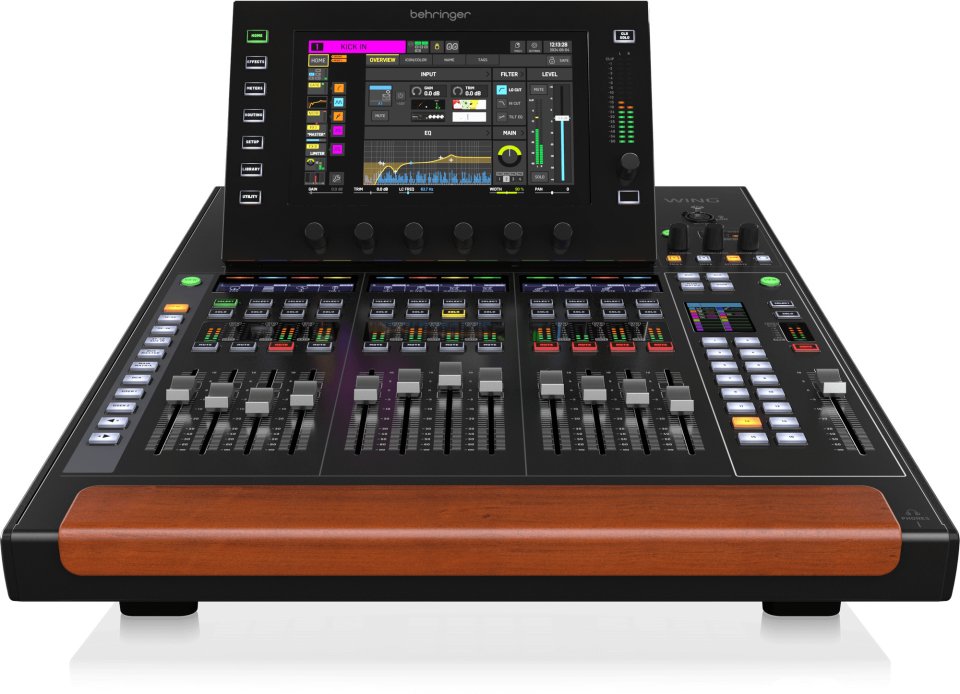

Behringer WING Compact – Digital Mixer

Behringer WING Compact IN BETWEEN !!! NDA 10.7.2024 !!!

You can rely on the input and output arsenal of the WING Rack digital mixer when you need to handle large amounts of channels reliably: 24 microphone preamps, 3 AES50 ports for up to 144 channels (I/O), 48x48 channel USB audio, AES/EBU stereo I/O, StageCONNECT interface... And all of this is now in a compact rack-mountable 13 fader mixer format!

• 24 Midas PRO microphone preamps, 8 outputs
• 13 x 100 mm motorized faders
• 16 True-stereo effect processors, over 80 world-class algorithms
• 3 plug-in slots for gates, dynamics processing, and EQ on every channel
• 4 main, 8 matrix, and 16 aux stereo buses, all with dual inserts, 8-band parametric EQs, stereo spreader, and full dynamics processor
• 40 stereo inputs with 5 assignable plug-in processing slots per input
• 8 stereo aux input channels with one FX insert point and four-band parametric EQ
• 8 mute groups and 8 DCAs for grouping and consolidating tracks
• 2 Ethernet ports with an integrated switch for networked remote control and optional AoIP use via Waves SoundGrid or Dante
• StageConnect Host interface, able to share a maximum of 32 channels in either direction via a single XLR connection
• 4 headphone outputs for IEM use
• 4-channel GPIO for controlling almost any section of the WING
• 5-pin MIDI in and out for controlling and synchronizing external devices
• DAW control compatible (MCU, presets for Cubase, Ableton Live, Logic X, Nuendo, ProTools, Reaper, Studio One)
• Offline editing and remote control with WING-CoPilot, WING-Q, and WING-edit software
• 19" rack-compatible, height 4U
• 3 AES50 ports (totaling 144 input and output signals, SuperMac CAT5 connection, extremely low jitter and 6 samples latency)
• 10.1" touchscreen, adjustable angle
• Integrated USB Audio / MIDI interface, 48 channels in/out
• Dual SD card recorder/player, max 64 tracks, markers for song locations
