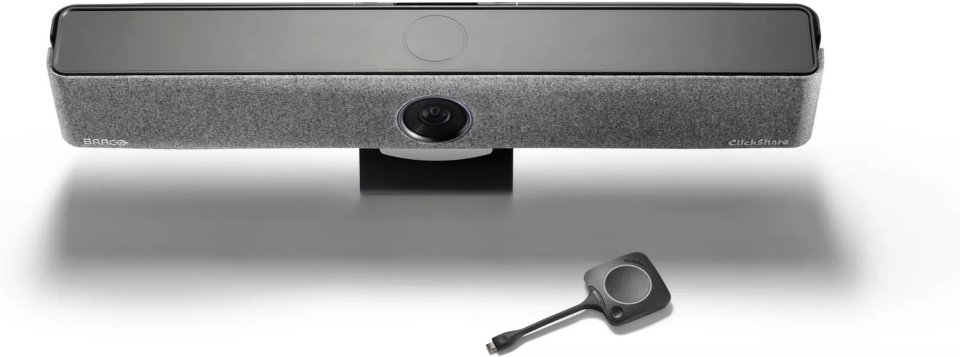

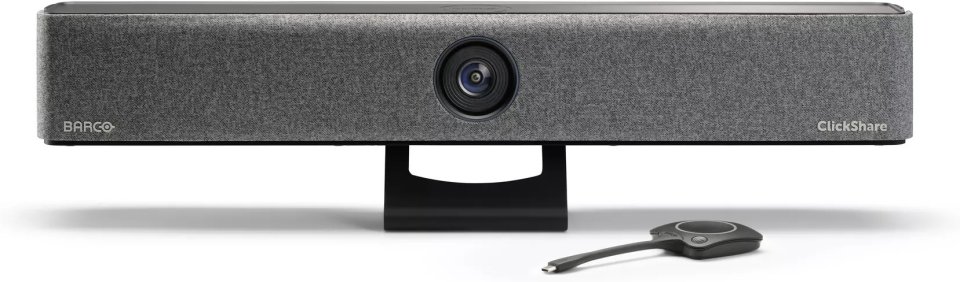

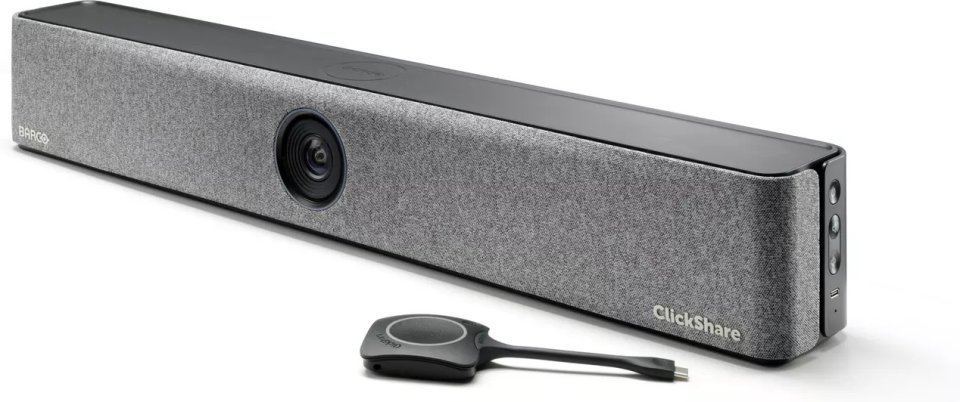

ClickShare Bar Core is an all-in-one video conferencing device that enables immersive, effortless wireless meetings in small and medium-sized meeting rooms using any video conferencing platform. This solution ensures that meeting participants feel heard and seen thanks to its high-quality AV features, while providing simplified installation and lower total cost of ownership.

• Crystal-clear, high-quality stereo sound*
• Advanced AI-powered 4K camera
• Simplified installation
• Smart investment: fewer interventions, minimized downtime, future-proof platform
• Carbon-neutral product**

Technical specifications:

• Video output: 4K UHD (3840×2160) @ 30Hz. HDMI 1.4b or USB-C DP ALT mode (DisplayPort 1.2)
• Video input: –

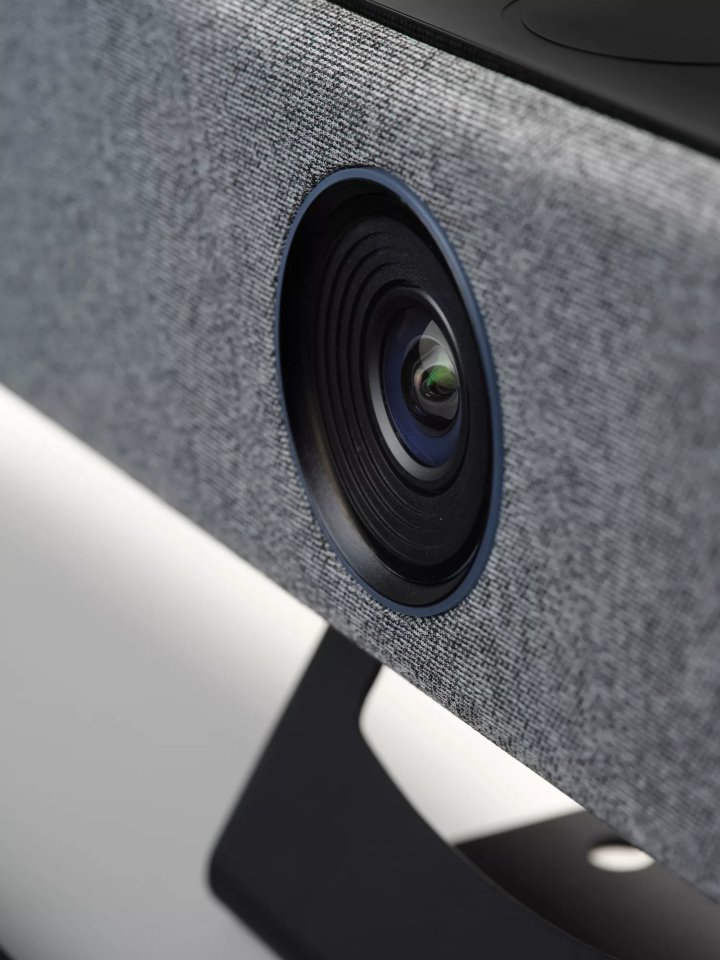

• Camera: 4K camera, 3x zoom/ePTZ, 120˚ FOV
• Camera AI: Group framing and composition mode for up to 4 people
• Audio output: 2 x 10 W full duplex and stereo speakers, 8 ohm impedance (available mid-2024)
• Audio pickup: 6 beamforming MEMS microphones with echo and background noise cancellation. Pickup range up to 4.5 meters
• Connections: 1 x USB-C 3.1 (DP) for display, 1 x USB-A 2.0, 1 x Ethernet LAN 1 Gbit, 1 x USB-C 2.0 (side)
• AirPlay, Google Cast, Miracast (available mid-2024)
• Data transfer: 802.11a, 802.11b/g/n, 802.11ac
• Maximum transfer distance 30 m
• Network connection: LAN & WiFi
• Wireless meeting: via app or button
• System requirements: Windows 10 or later, macOS 11 (Ventura) or later, Android v13 or later (ClickShare App), iOS 16 or later (ClickShare App)
• Authentication protocol: WPA2-PSK in standalone mode, WPA2-PSK or IEEE 802.1X with ClickShare button in network integration mode
• Includes power supply and 1 ClickShare button
• Theft protection system: Kensington lock (rear and bottom)
• Power consumption: Operation: 5–20 W, max 65 W
• Power supply: Standard 110/220 V AC plug or USB-C (rear)
• Weight: 2500 g
• Dimensions: 98 mm x 640 mm x 101 mm
• Warranty: 1 year standard. 5 years warranty when registered via SmartCare

* Stereo speakers available mid-2024.
**Carbon-neutral label targeted by the end of Q1 2024.
