Additional information

Color

Black

PID

634903

Connectivity type

XLR

On/Off Switch

No

Microphone Operating Type

Condenser

Polar Pattern

Cardioid

Manufacturer address

Eitnergasse 15 Wien AT-1230 Austria

Manufacturer's email address

https://austrian.audio/support-downloads/

Manufacturer name

Austrian Audio GmbH

When former AKG designers founded their own company, Austrian Audio, in the summer of 2017, they set an ambitious goal to bring high-end audio technology back to Austria’s capital, Vienna. The heart-shaped Austrian Audio OC18 is an extremely sensitive, low-noise condenser microphone.

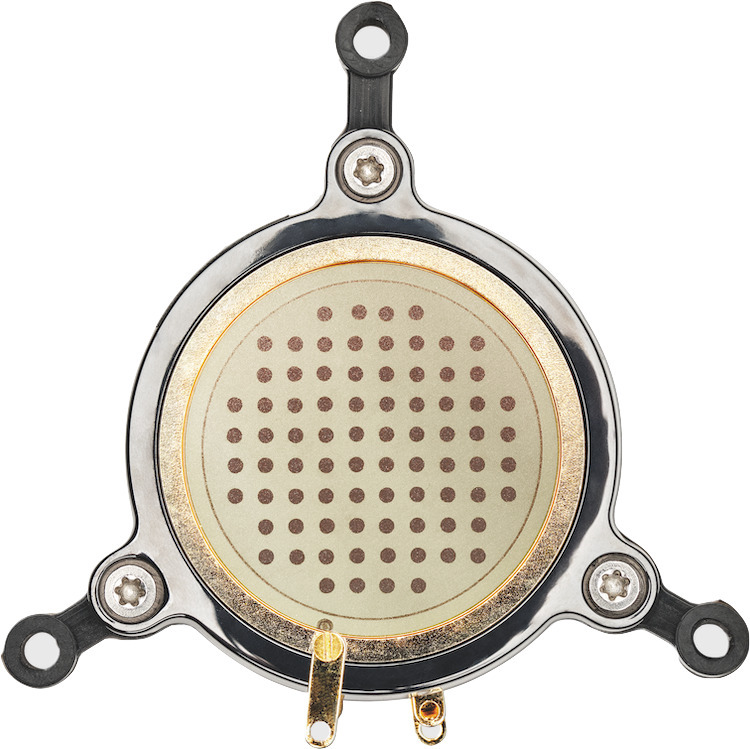

The large-diaphragm OC18 microphone’s unique ceramic CKR12 capsule is based on the best-measured examples of the legendary AKG CK12 capsule, known from both the tube microphone C12 and the newer C414 models. All Austrian Audio OC18 and OC818 microphones have the same output level with one-decibel accuracy, allowing them to be used in stereo pairs and grouped together. The microphones have a completely analog signal path.

Features:

  • Polar pattern: Heart
  • Impedance: 275 Ohms
  • Frequency range: 20 – 20,000 Hz
  • Sensitivity: 13 mV/Pa
  • Max SPL: 148 dB SPL (158 dB SPL w/ pad)
  • Pad switch: -10 dB, -20 dB
  • Operating voltage: 48V Phantom
  • Analog low-cut filter with three selectable cutoff frequencies (40 Hz, 80 Hz, 160 Hz)
  • Two different analog attenuation levels
  • Compatible with other OC18 and OC818 microphones with one-decibel accuracy
  • Connector: 3-pin XLR
  • Dimensions: 157 x 63 x 35 mm
  • Weight: 335 g
Toote pildid on illustratiivsed ja näitlikud. Originaaltoote omadused võivad nende tegelikust väljanägemisest erineda, seega palun tutvuge tootekirjelduses toodud tootespetsifikatsioonidega.
LAOS OLEMAS

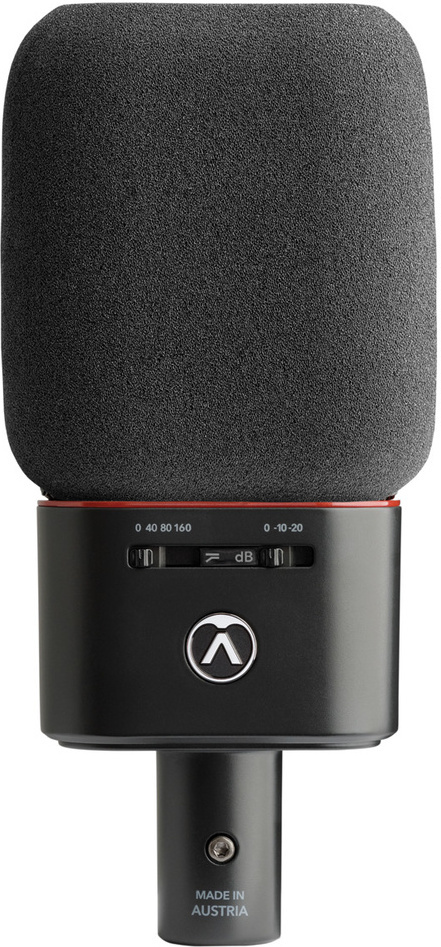

Austrian Audio OC18 Studio Set Condenser Microphone

696.87
sis. KM 24%
  • Large diaphragm condenser microphone
  • Direction pattern: Heart
  • Factory calibrated bias voltage
  • Subsonic filter 40, 80, and 160 Hz
Eeldatav tarneaeg: 4-7 päeva
Maksa hiljem või osana
Tootekood: 8AOOC18STUDIOSET
EAN kood: 9120097810045, 2220006349035

When former AKG designers founded their own company, Austrian Audio, in the summer of 2017, they set an ambitious goal to bring high-end audio technology back to Austria's capital, Vienna. The heart-shaped Austrian Audio OC18 is an extremely sensitive, low-noise condenser microphone.

The large-diaphragm OC18 microphone's unique ceramic CKR12 capsule is based on the best-measured examples of the legendary AKG CK12 capsule, known from both the tube microphone C12 and the newer C414 models. All Austrian Audio OC18 and OC818 microphones have the same output level with one-decibel accuracy, allowing them to be used in stereo pairs and grouped together. The microphones have a completely analog signal path.

Features:

  • Polar pattern: Heart
  • Impedance: 275 Ohms
  • Frequency range: 20 - 20,000 Hz
  • Sensitivity: 13 mV/Pa
  • Max SPL: 148 dB SPL (158 dB SPL w/ pad)
  • Pad switch: -10 dB, -20 dB
  • Operating voltage: 48V Phantom
  • Analog low-cut filter with three selectable cutoff frequencies (40 Hz, 80 Hz, 160 Hz)
  • Two different analog attenuation levels
  • Compatible with other OC18 and OC818 microphones with one-decibel accuracy
  • Connector: 3-pin XLR
  • Dimensions: 157 x 63 x 35 mm
  • Weight: 335 g
