| Color | Black |
|---|---|
| Country of Origin | China |
| PID | 1013936 |
| Product depth (mm) | 244 |
| Product height (mm) | 48 |
| Product weight (g) | 1 000 |
| Product width (mm) | 305 |
| Bluetooth | Yes |
| Bluetooth version | 5.4 |
| WiFi | Yes |
| Wireless network standard | Wi-Fi 7 (802.11be) |
| Motherboard Chipset | AMD X870 |
| Motherboard form factor | ATX |
| Processor Socket | AM5 |
| Maximum supported memory (Gt) | 256 |
| Number of RAM slots | 4 |
| Supported RAM | DDR5 |
| Manufacturer address | "Torshamnsgatan 35, 164 40 Kista, Sweden " |
| Manufacturer's email address | https://www.asus.com/content/asus-product-security-advisory/ |
| Manufacturer name | Asus Nordic AB |

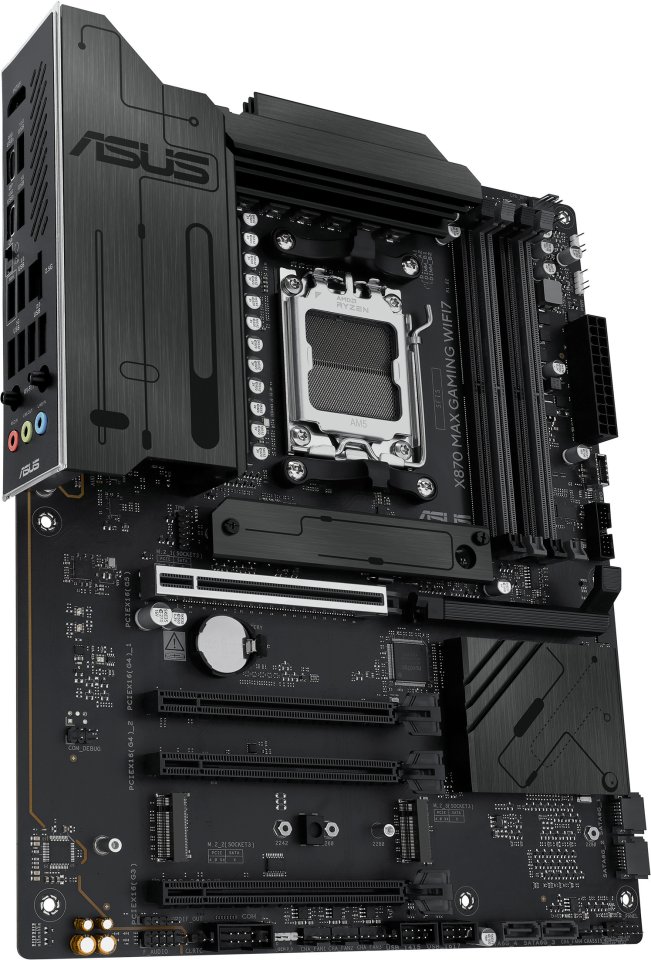

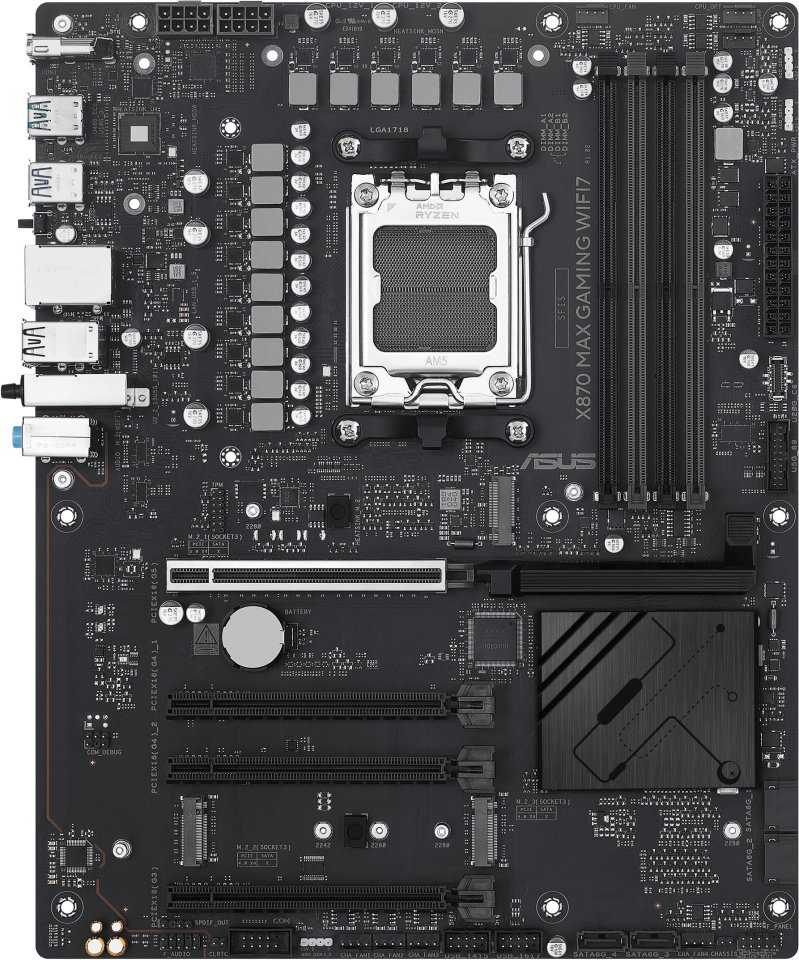

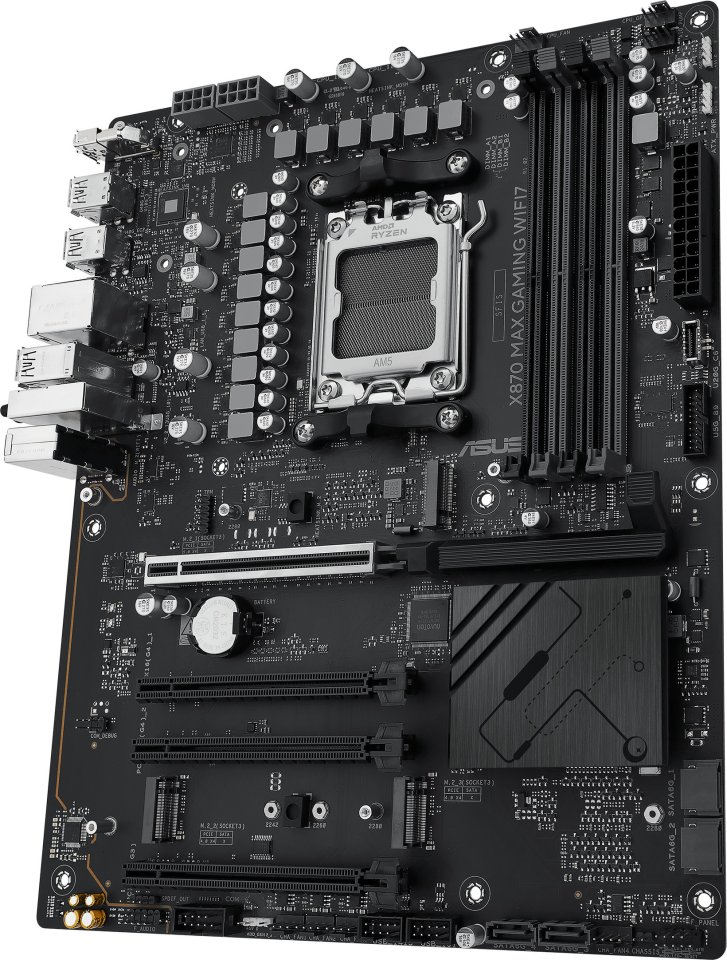

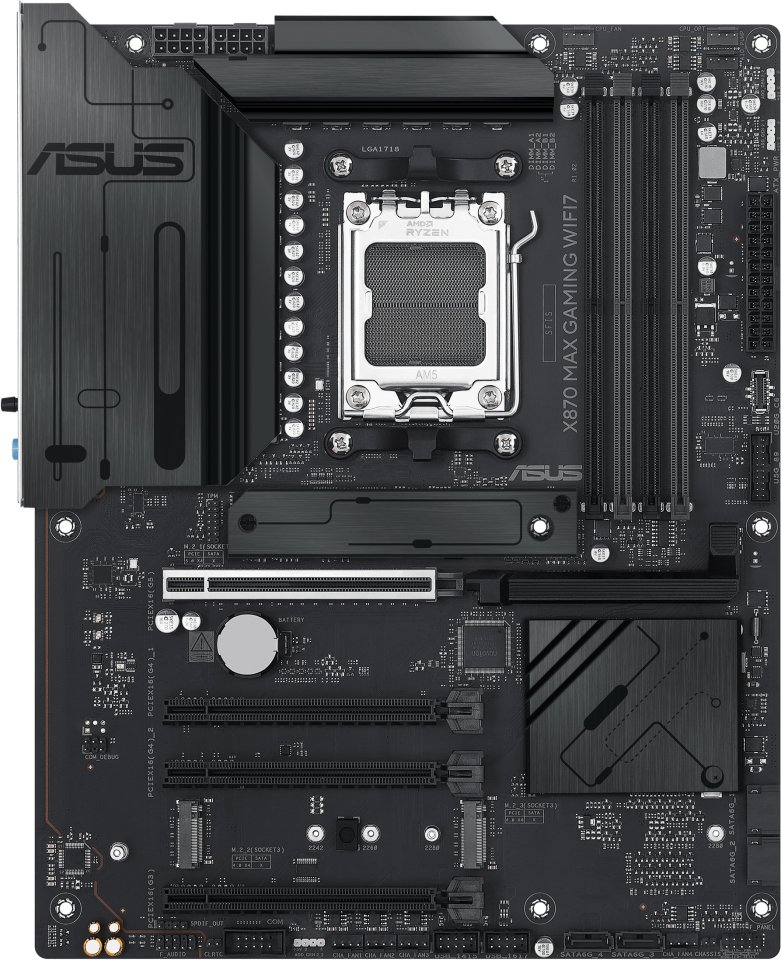

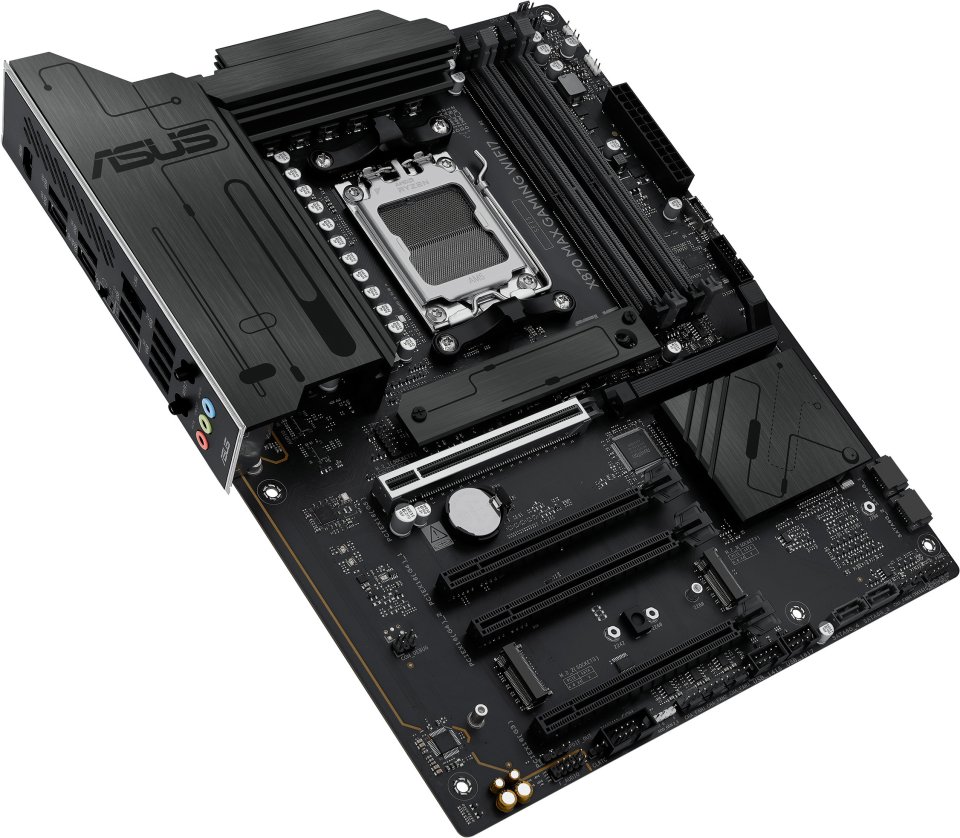

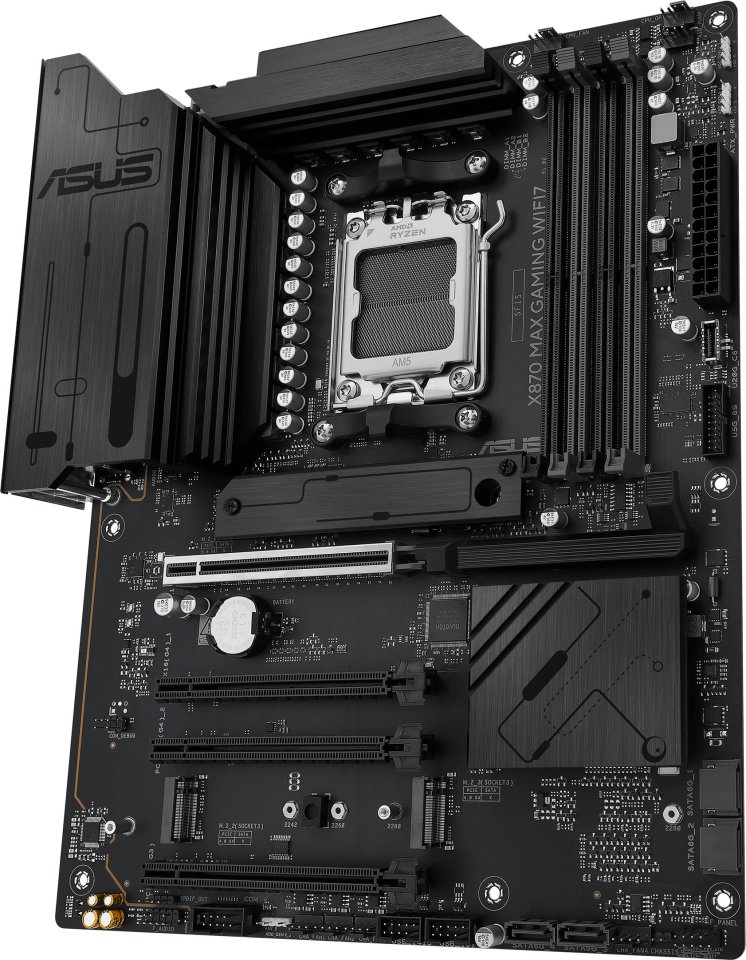

The ASUS X870 MAX GAMING WIFI7 is an ATX motherboard based on the AMD X870 chipset, supporting the latest AMD Ryzen processors with the AM5 socket. It offers DDR5 memory support, three M.2 slots, and PCIe 5.0 readiness, making it an excellent choice for demanding gaming setups and AI-powered workstations that require high computing power, fast data transfer, and expandability.
The motherboard supports AMD Ryzen 7000, 8000, and 9000 series processors with the AM5 socket. Four DIMM slots allow up to 256 GB of DDR5 memory in dual-channel mode, with support for both ECC and non-ECC memory. Storage solutions include three M.2 slots (one with PCIe 5.0 support) and four SATA III ports, with RAID 0/1/5/10 support. There are a total of five expansion slots, including one PCIe 5.0 x16, one PCIe 4.0 x16 (in x8/x4 mode), two PCIe 4.0 x16 (in x1 mode), and one PCIe 3.0 x16 (in x1 mode), enabling versatile configurations.

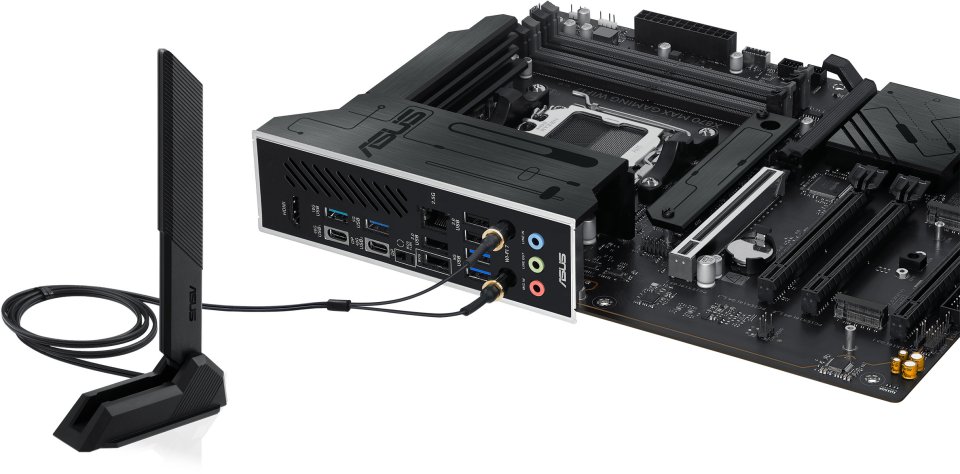

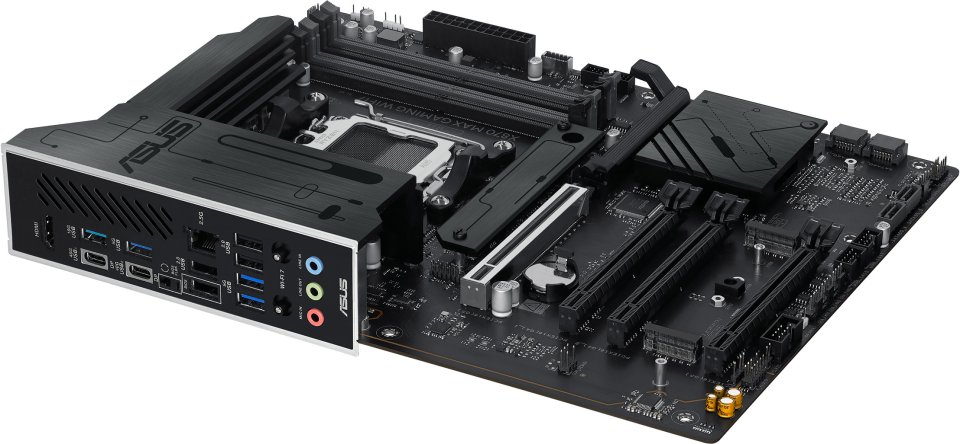

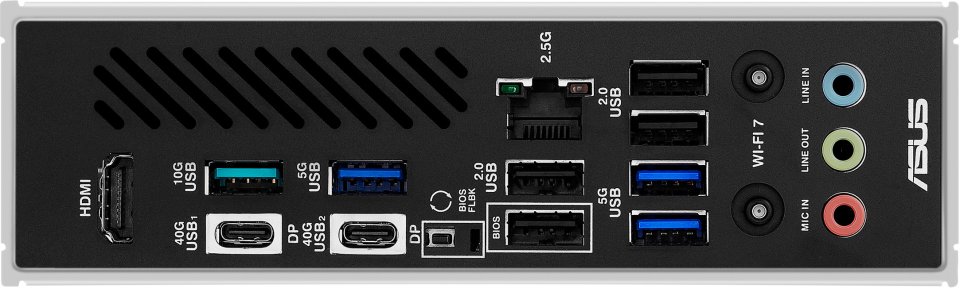

The motherboard offers a comprehensive selection of USB ports: USB 40Gbps Type-C, USB 20Gbps Type-C, USB 10Gbps Type-A, USB 5Gbps, and USB 2.0. Graphics card connections include HDMI and USB Type-C with DisplayPort support. Wireless connectivity is handled by Wi-Fi 7 and Bluetooth 5.4, while wired networking uses Realtek 2.5 Gb Ethernet.
The motherboard features flexible M.2 cooling, VRM cooling, and multiple fan headers, including AIO pump support. RGB LED lighting and three Addressable RGB Gen 2 headers allow visual customization of the setup with Aura Sync software. The BIOS is UEFI AMI type, and the BIOS FlashBack™ feature facilitates updates without an installed processor. The motherboard supports the Windows 11 operating system.
42 in stock
