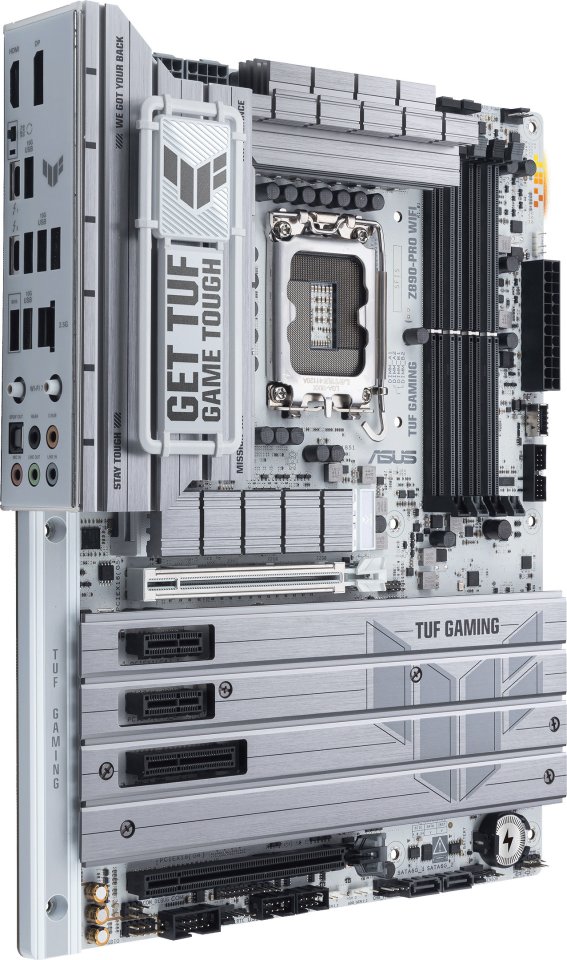

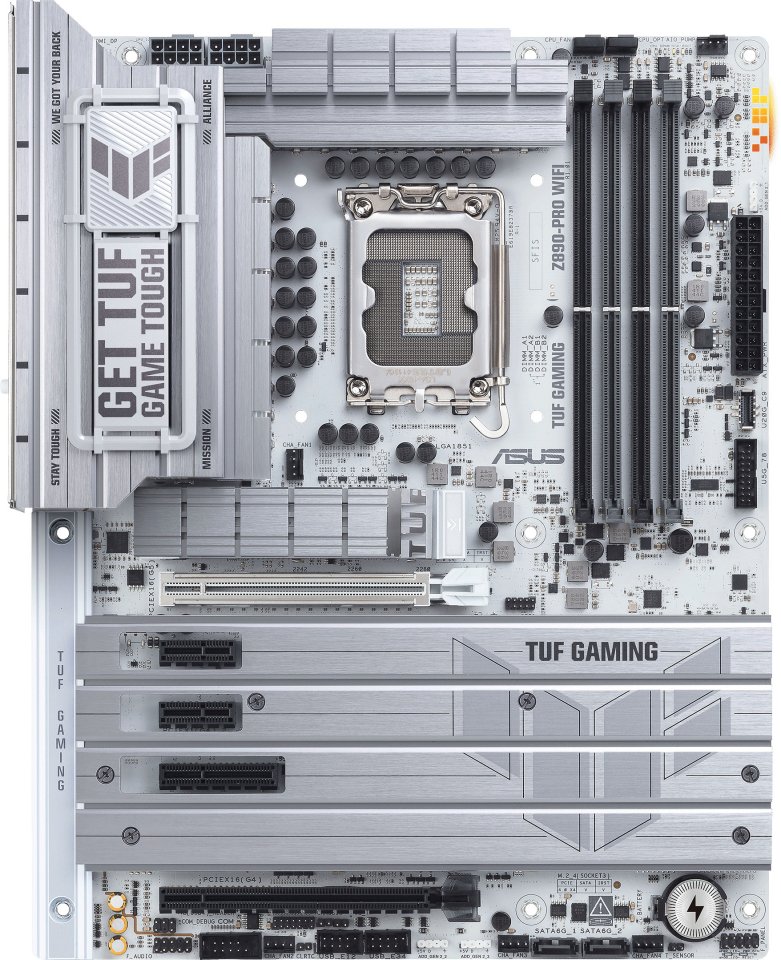

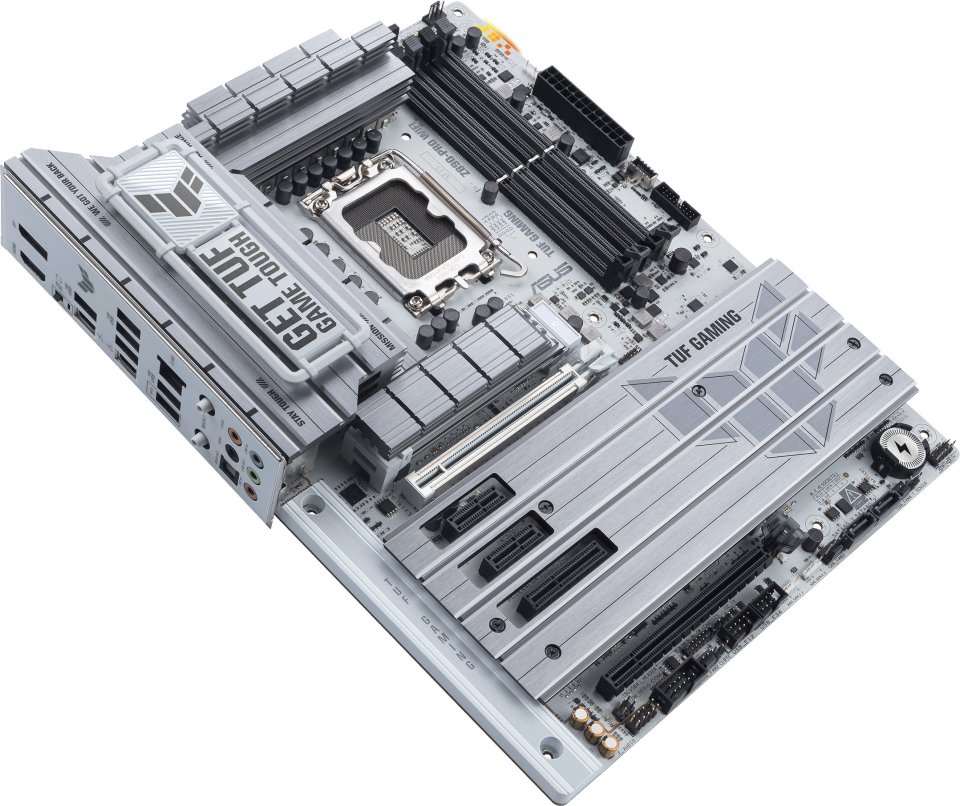

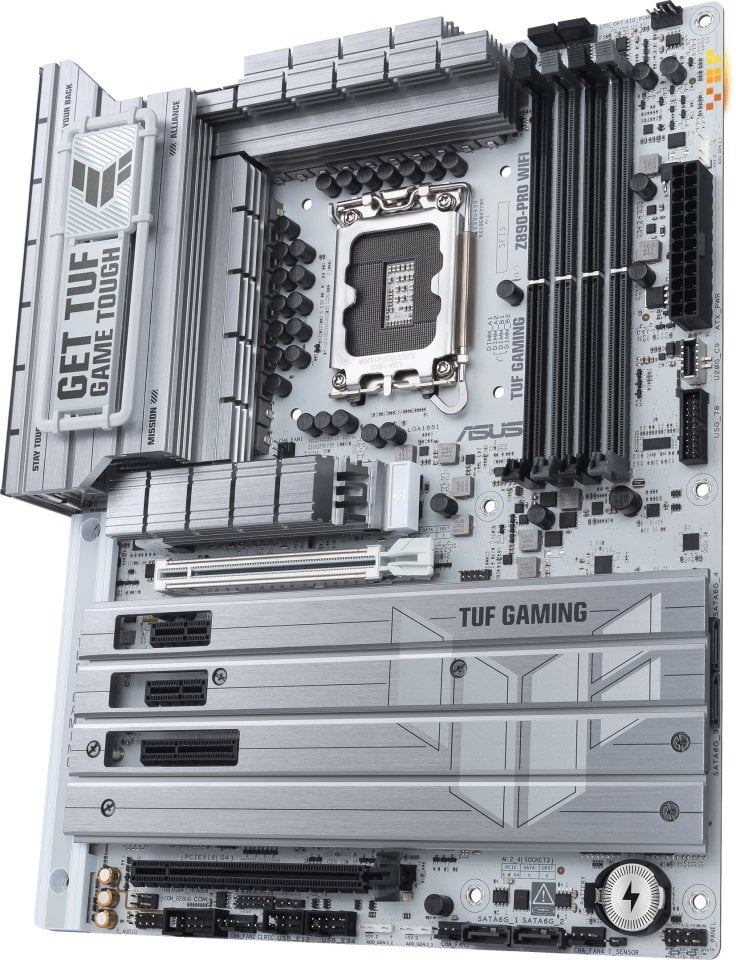

ASUS TUF GAMING Z890-PRO WIFI incorporates all the essential elements of the latest Intel Core Ultra processors (Series 2) and combines them with gaming-appropriate features and proven durability. This motherboard is designed with military-grade components, an upgraded power solution, and comprehensive cooling system, exceeding expectations with solid and stable performance for marathon gaming sessions.

TUF GAMING motherboards also undergo rigorous durability tests to ensure they withstand conditions where others might fail. This platform provides the power and connectivity advanced AI PC applications require.

Ready for advanced AI computers: The power and connectivity needed for demanding AI applications.

Intel LGA 1851 socket: Ready for Intel Core Ultra processors (Series 2).

Complete AI solutions: AI Advisor, AI Cooling II, and AI Networking II simplify setup and enhance performance.

Intelligent control: NPU Boost, DIMM Fit, and AEMP III improve CPU and memory performance.

Robust power solution: ProCool power connectors, 8-layer PCB, alloy chokes, and durable capacitors ensure stable power delivery.

Optimized thermal design: PCH heatsinks, hybrid fan headers, and Fan Xpert 4 with AI Cooling II.

Latest M.2 support: M.2: One internal PCIe 5.0 M.2 slot with cooling solution and three PCIe 4.0 M.2 slots.

Abundant connectivity: Thunderbolt 4 USB Type-C ports, front-panel USB 20Gbps Type-C port, Thunderbolt (USB4) support.

Powerful network connections: ASUS WiFi Q-Antenna and Intel 2.5 Gb Ethernet connection.

DIY Friendly Design: M.2 Q-Release, PCIe Q-Release, M.2 Q-Latch, Q-Antenna, Q-Dashboard, Q-LED, BIOS FlashBack button, and pre-installed I/O shield.

Unmatched customization: Three addressable Gen 2 headers, all configurable with ASUS Aura Sync RGB lighting.

Renowned software: ASUS DriverHub, ASUS MyHotkey, TurboV Core, GlideX, and intuitive UEFI BIOS dashboard.

Specifications:

• Chipset: Intel Z890
• Processor socket: LGA 1851
• Processor support: Intel Core Ultra (series 2)
• Motherboard size: ATX (12 in x 9.6 in)
• Memory slots (pcs): 4
• Memory type: DDR5 9066+ MT/s, Non-ECC, Un-buffered, Clocked Un-buffered, Dual Channel
• Maximum memory capacity (GB): 192
• Network interfaces: 1 x Intel 2.5Gb Ethernet, 2×2 Wi-Fi 7 (802.11be), Bluetooth v5.4
• Sound card: Realtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC

Expansion slots:

• Intel Core Ultra processors (series 2)
  1 x PCIe 5.0 x16 slot
• Intel Z890 Chipset
  1 x PCIe 4.0 x16 slot (supports x4 mode)
  1 x PCIe 4.0 x4 slot
  2 x PCIe 4.0 x1 slots

Storage interfaces:

• 4 x SATA 6Gb/s ports
• Intel Core Ultra processors (series 2)
  M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
  M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
• Intel Z890 Chipset
  M.2_3 slot (Key M), type 2280/22110 (supports PCIe 4.0 x4 mode)
  M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes)

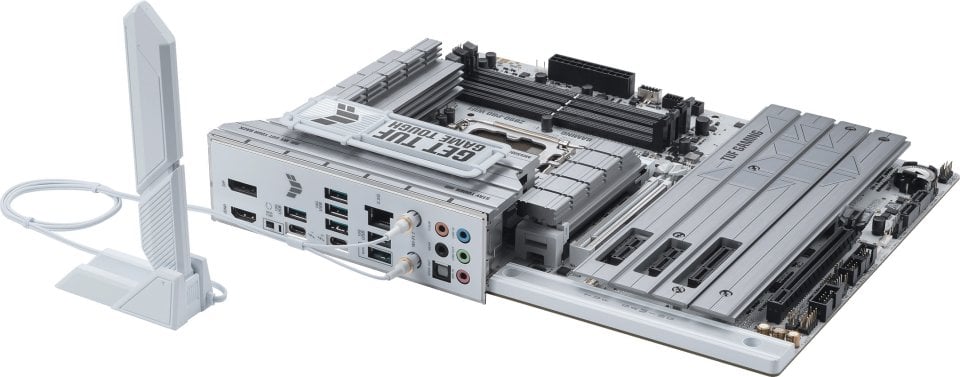

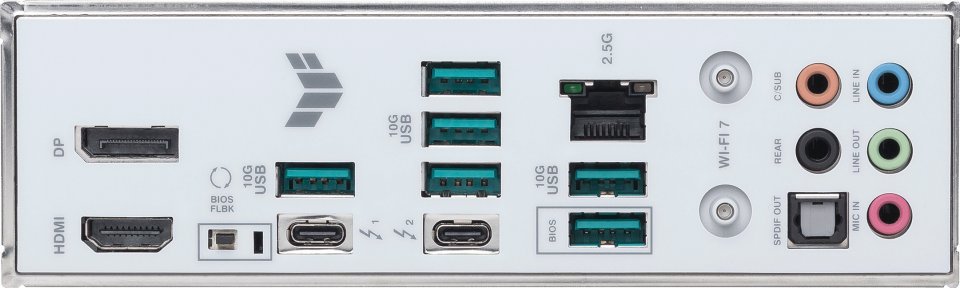

Rear panel connectors:

• 2 x Thunderbolt 4 USB Type-C ports
• 6 x USB 10Gbps ports (6 x Type-A)
• 1 x DisplayPort
• 1 x HDMI port
• 1 x Wi-Fi module
• 1 x Intel 2.5Gb Ethernet port
• 5 x Audio jacks
• 1 x Optical S/PDIF out port
• 1 x BIOS FlashBack button

Internal connectors:

• Fan and Cooling related
  1 x 4-pin CPU Fan header
  1 x 4-pin CPU OPT Fan header
  1 x 4-pin AIO Pump header
  4 x 4-pin Chassis Fan headers
• Power related
  1 x 24-pin Main Power connector
  2 x 8-pin +12V CPU Power connector
• Storage related
  4 x M.2 slots (Key M)
  4 x SATA 6Gb/s ports
• USB
  1 x USB 20Gbps connector (supports USB Type-C)
  1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
  2 x USB 2.0 headers support 4 additional USB 2.0 ports
• Miscellaneous
  3 x Addressable Gen 2 headers
  1 x Clear CMOS header
  1 x Chassis Intrusion header
  1 x COM Port header
  1 x Front Panel Audio header (F_AUDIO)
  1 x 10-1 pin Front System Panel header
  1 x Thermal Sensor header
  1 x Thunderbolt (USB4) header
