| Country of Origin | China |
|---|---|
| PID | 1035719 |
| Product depth (mm) | 244 |
| Product height (mm) | 50 |
| Product weight (g) | 1 560 |
| Product width (mm) | 305 |
| Bluetooth | Yes |
| Bluetooth version | 5.4 |
| WiFi | Yes |
| Wireless network standard | Wi-Fi 7 (802.11be) |
| Motherboard Chipset | AMD X870 |
| Motherboard form factor | ATX |
| Processor Socket | AM5 |
| Maximum supported memory (Gt) | 256 |
| Number of RAM slots | 4 |
| Supported RAM | DDR5 |
| Manufacturer address | "Torshamnsgatan 35, 164 40 Kista, Sweden " |
| Manufacturer's email address | https://www.asus.com/content/asus-product-security-advisory/ |
| Manufacturer name | Asus Nordic AB |

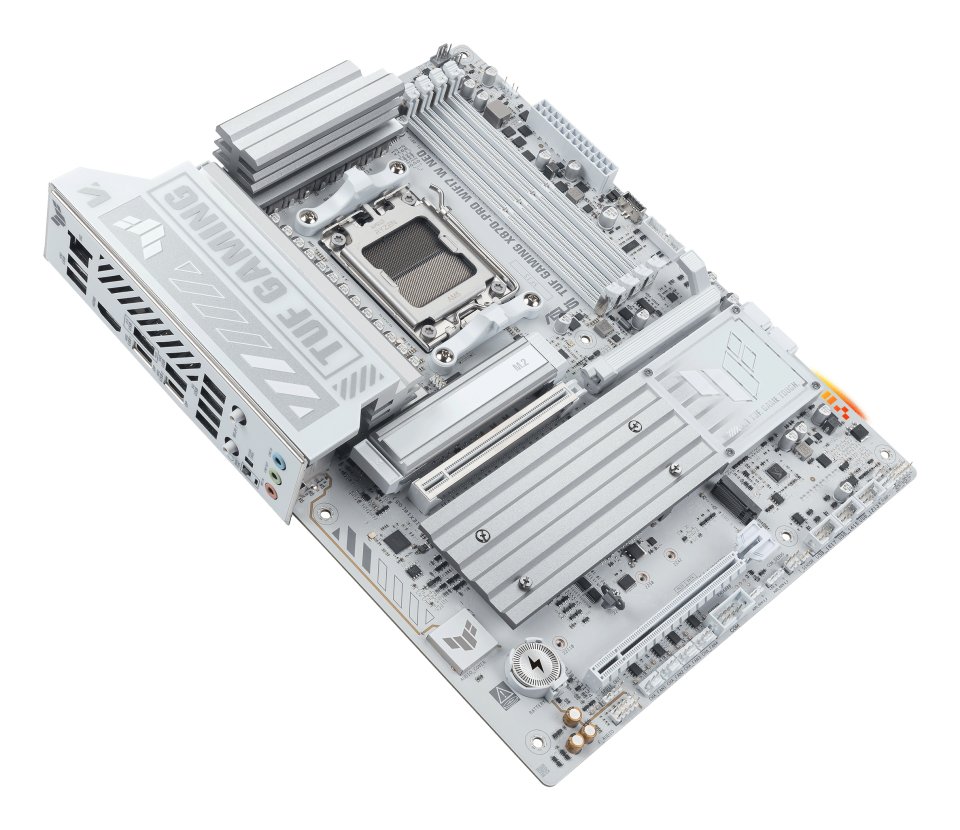

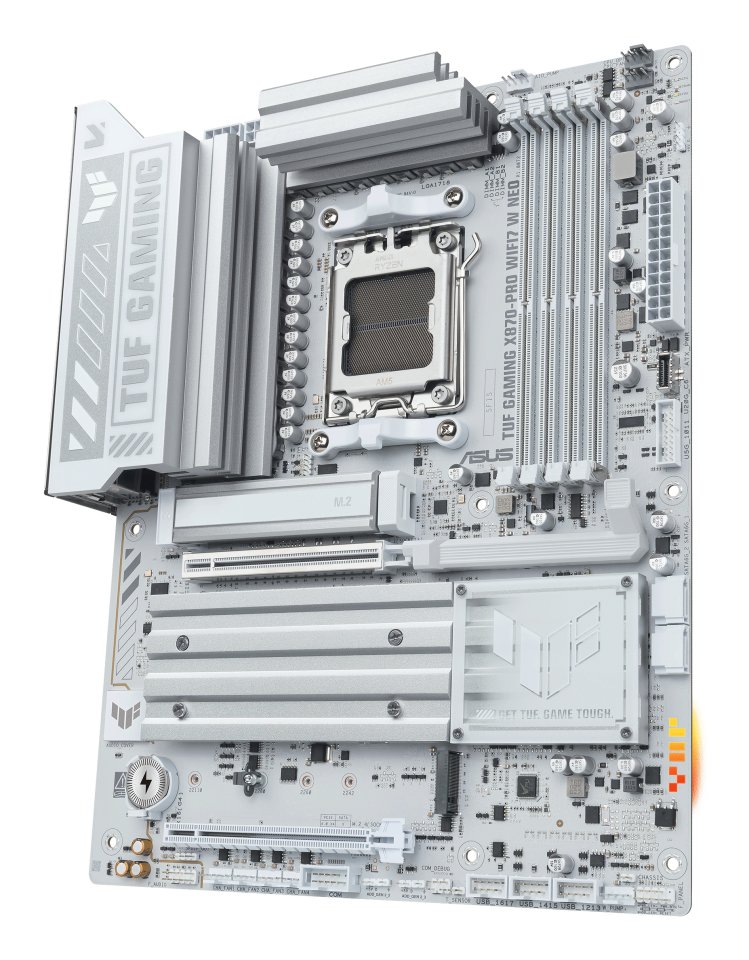

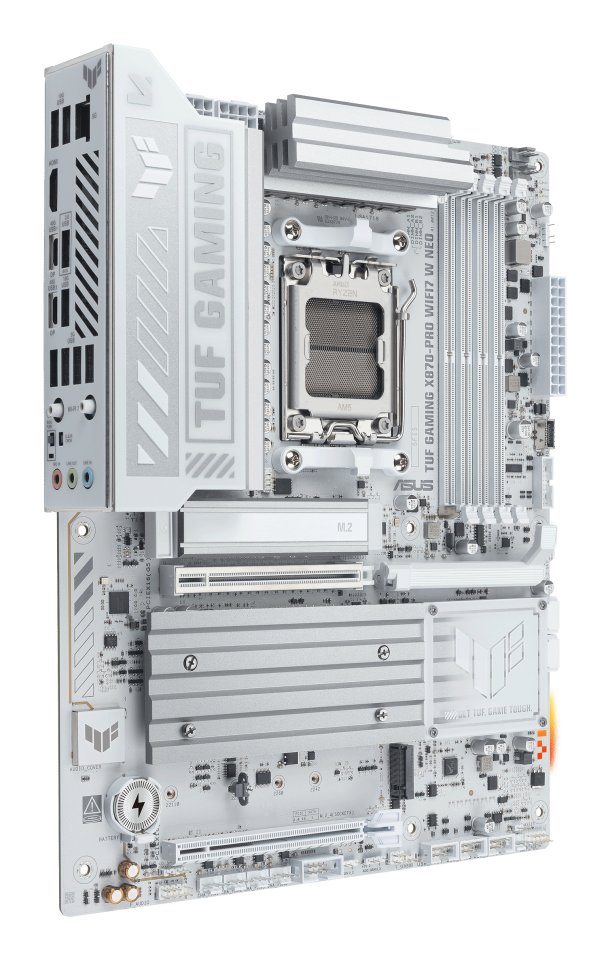

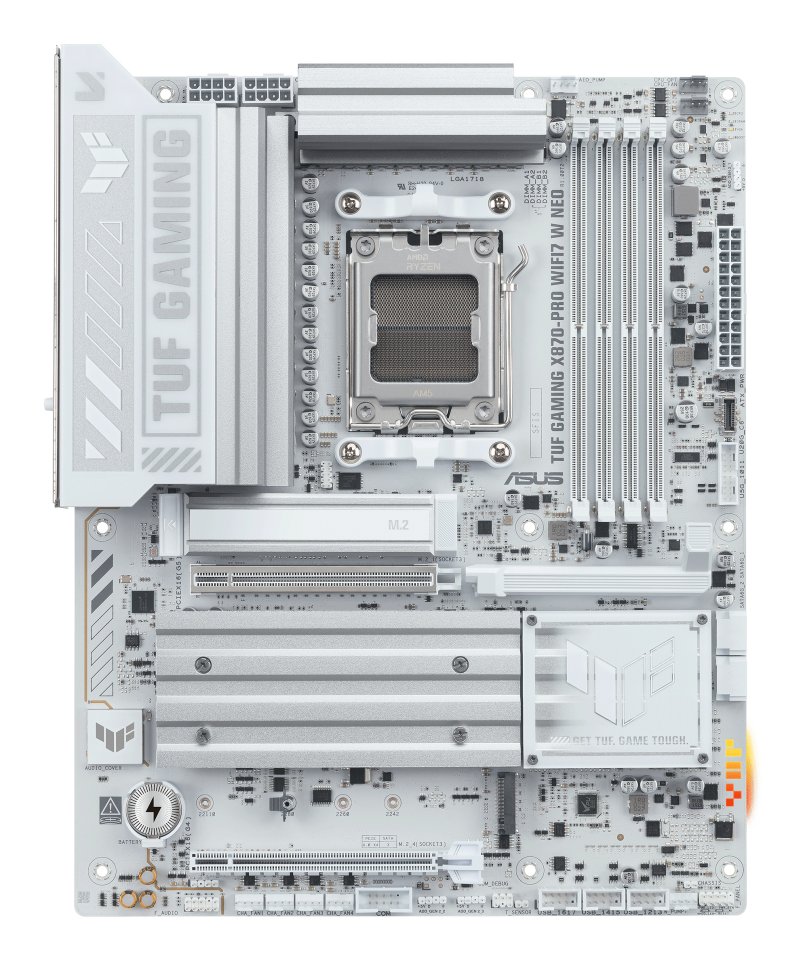

The ASUS TUF GAMING X870-PRO WIFI7 W NEO is an ATX-sized motherboard designed for AMD’s latest Ryzen 7000, 8000, and 9000 series processors with the AM5 socket. It offers extensive connectivity options, supports fast DDR5 memory, and versatile storage solutions, making it suitable for demanding gaming and efficient work. The motherboard also features Wi-Fi 7 support and a 5 Gb Ethernet connection, ensuring fast and stable network connections.
The TUF GAMING X870-PRO WIFI7 W NEO supports AMD Ryzen 7000, 8000, and 9000 series processors with the AM5 socket. The motherboard has four DIMM memory slots supporting DDR5 SDRAM up to 256 GB and memory speeds up to 9600 MHz. The memory channels are dual-channel, and the motherboard supports both ECC and Non-ECC memory, providing flexibility for different use cases.
The motherboard has six storage drive connectors, including two SATA III ports and four M.2 slots, supporting both SSD and HDD drives. RAID support is available for levels 0, 1, 5, and 10, enabling versatile storage configurations and improving data security and performance. There is one PCI Express x16 slot supporting the PCIe 4.0 standard, allowing for fast expansion card usage.

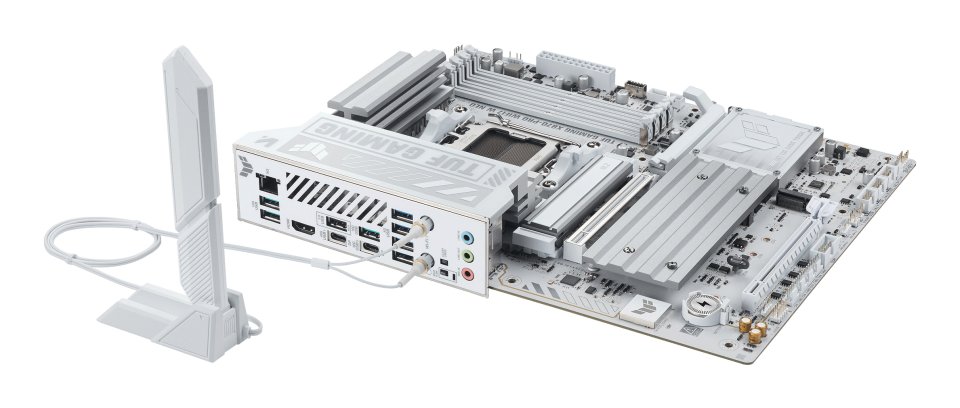

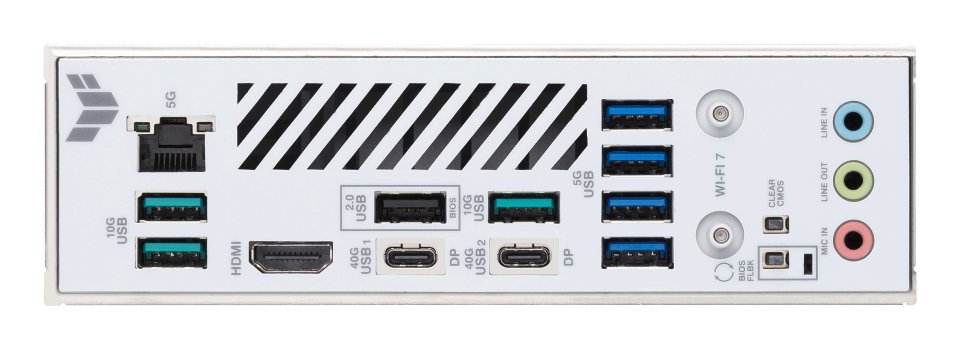

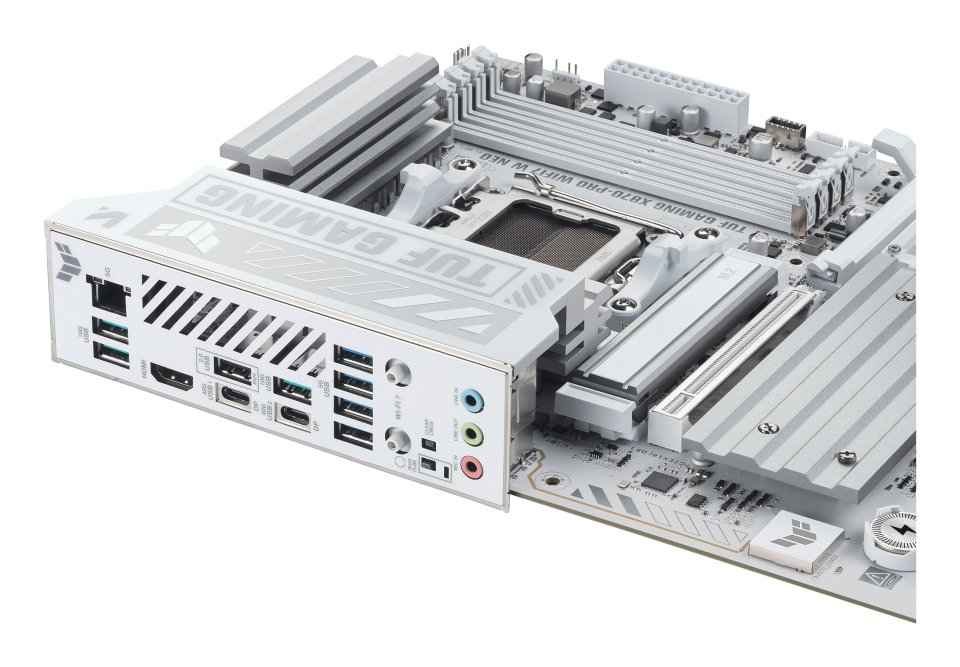

The motherboard offers versatile connections such as a USB 3.2 Gen 2×2 port, multiple USB 3.2 Gen 1 and Gen 2 Type-A ports, and USB4 Gen 3×2 ports. Networking is handled by a 5 Gb Ethernet port and Wi-Fi 7 (802.11be) support with the Realtek RTL8922AE controller. Bluetooth 5.4 enables wireless connections to other devices. This provides users with fast and stable connections for both wired and wireless networks.
The motherboard is white and measures according to the ATX standard (305 x 244 x 50 mm). It includes 7.1-channel audio with the Realtek ALC1220P audio chip, offering high-quality sound. Cooling management features multiple fan connectors, including a CPU fan connector, four chassis fan connectors, and a water pump connector. The BIOS is UEFI AMI type with 512 Mbit memory and a Clear CMOS button for easy settings restoration. Power connectors include a 24-pin ATX and an 8-pin EPS, ensuring stable power delivery.
4 in stock
The ASUS TUF GAMING X870-PRO WIFI7 W NEO is an ATX-sized motherboard designed for AMD's latest Ryzen 7000, 8000, and 9000 series processors with the AM5 socket. It offers extensive connectivity options, supports fast DDR5 memory, and versatile storage solutions, making it suitable for demanding gaming and efficient work. The motherboard also features Wi-Fi 7 support and a 5 Gb Ethernet connection, ensuring fast and stable network connections.
The TUF GAMING X870-PRO WIFI7 W NEO supports AMD Ryzen 7000, 8000, and 9000 series processors with the AM5 socket. The motherboard has four DIMM memory slots supporting DDR5 SDRAM up to 256 GB and memory speeds up to 9600 MHz. The memory channels are dual-channel, and the motherboard supports both ECC and Non-ECC memory, providing flexibility for different use cases.
The motherboard has six storage drive connectors, including two SATA III ports and four M.2 slots, supporting both SSD and HDD drives. RAID support is available for levels 0, 1, 5, and 10, enabling versatile storage configurations and improving data security and performance. There is one PCI Express x16 slot supporting the PCIe 4.0 standard, allowing for fast expansion card usage.
The motherboard offers versatile connections such as a USB 3.2 Gen 2x2 port, multiple USB 3.2 Gen 1 and Gen 2 Type-A ports, and USB4 Gen 3x2 ports. Networking is handled by a 5 Gb Ethernet port and Wi-Fi 7 (802.11be) support with the Realtek RTL8922AE controller. Bluetooth 5.4 enables wireless connections to other devices. This provides users with fast and stable connections for both wired and wireless networks.
The motherboard is white and measures according to the ATX standard (305 x 244 x 50 mm). It includes 7.1-channel audio with the Realtek ALC1220P audio chip, offering high-quality sound. Cooling management features multiple fan connectors, including a CPU fan connector, four chassis fan connectors, and a water pump connector. The BIOS is UEFI AMI type with 512 Mbit memory and a Clear CMOS button for easy settings restoration. Power connectors include a 24-pin ATX and an 8-pin EPS, ensuring stable power delivery.
