| Color | Black |
|---|---|
| Country of Origin | China |
| PID | 973901 |
| Product depth (mm) | 244 |
| Product weight (g) | 1 650 |
| Product width (mm) | 244 |
| WiFi | No |
| Motherboard Chipset | Intel B860 |
| Motherboard form factor | Micro-ATX |
| Processor Socket | LGA 1851 |
| Maximum supported memory (Gt) | 256 |
| Number of RAM slots | 4 |
| Supported RAM | DDR5 |
| Manufacturer address | Torshamnsgatan 35 164 40 Kista, Sweden |
| Manufacturer's email address | https://www.asus.com/content/asus-product-security-advisory/ |
| Manufacturer name | Asus Nordic AB |

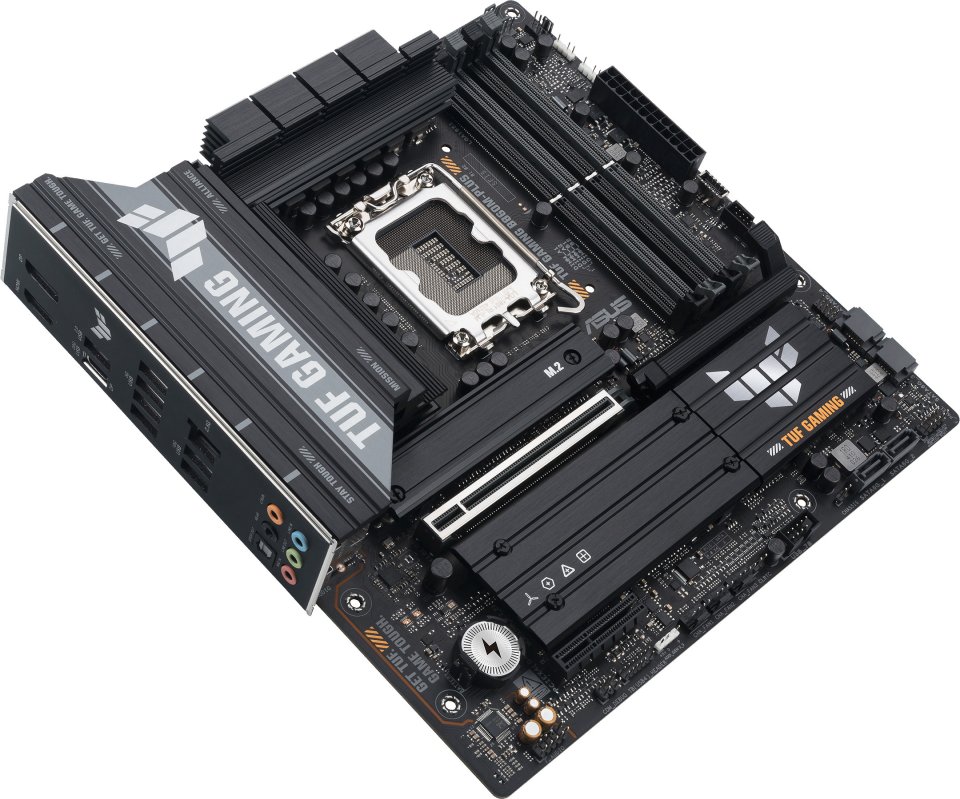

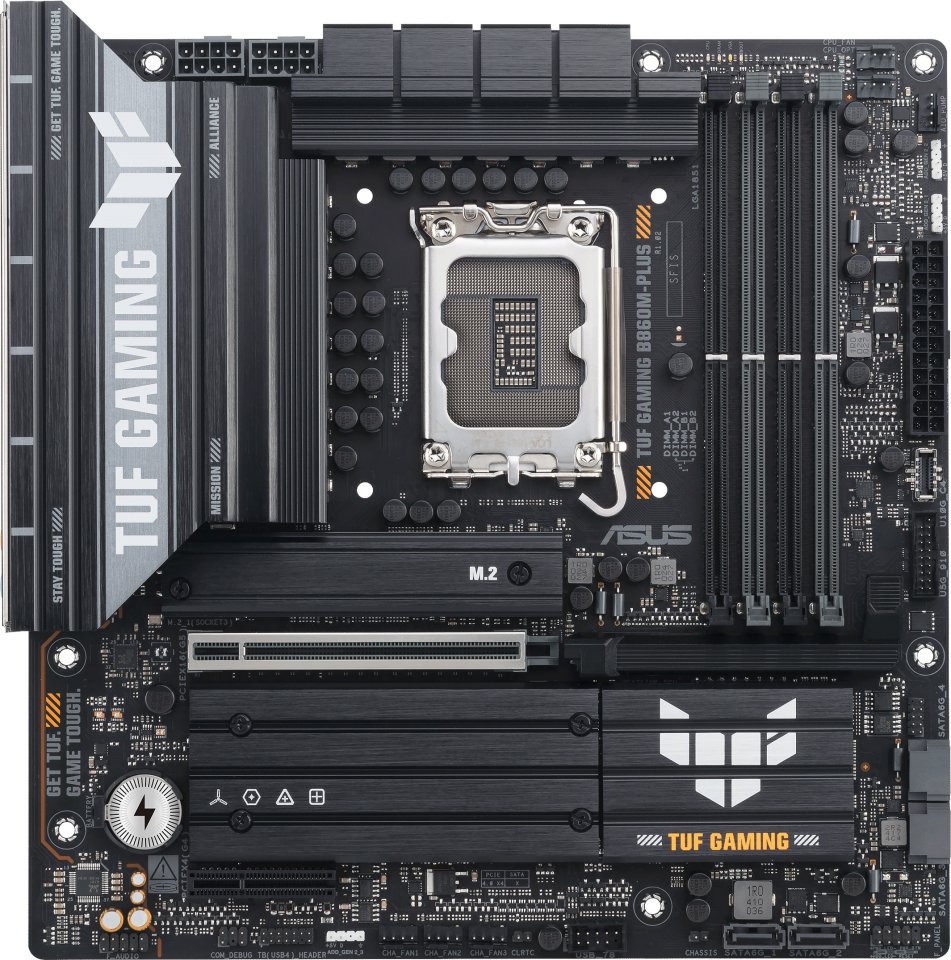

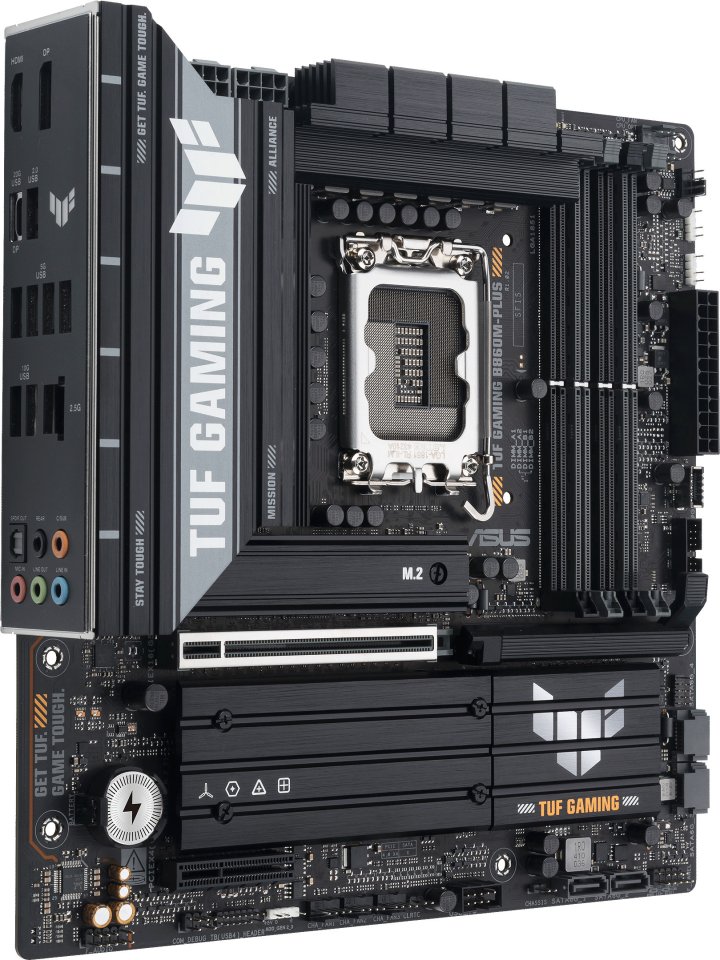

ASUS TUF GAMING B860M-PLUS is designed to provide a stable and durable platform for gamers who want to harness the power of the latest Intel Core Ultra processors (2nd generation). The motherboard features 12+1+2+1 (80A) power phases that ensure reliable power delivery even in intense gaming situations. Military-grade components and an enhanced cooling system, such as VRM and M.2 heatsinks, guarantee system stability and long lifespan.
The motherboard supports PCIe 5.0 connectivity, enabling the use of next-generation graphics cards and delivering excellent performance in demanding games and applications. Three M.2 slots, one supporting PCIe 5.0 x4 mode and two supporting PCIe 4.0 x4 mode, provide fast storage solutions and ample space for multiple SSDs. Additionally, the motherboard has four DDR5 memory slots that support dual-channel memory and AEMP III profiles, allowing memory overclocking up to speeds of 8800+ MT/s.

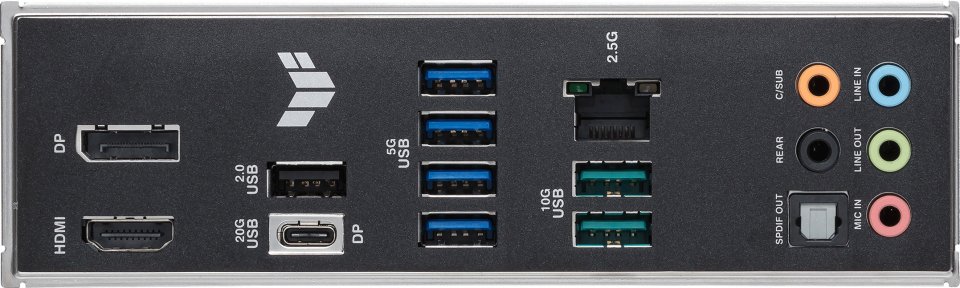

In terms of connectivity, the TUF GAMING B860M-PLUS offers 2.5 Gb Ethernet for fast and reliable network connections. The motherboard also includes versatile USB ports, including a 20 Gbps USB Type-C® port on the rear panel and a 10 Gbps USB Type-C port on the front panel, enabling fast data transfer and compatibility with the latest peripherals. ASUS Aura Sync lighting technology provides full RGB lighting control, allowing users to customize their system’s appearance to their liking.
Technical specifications:
ASUS TUF GAMING B860M-PLUS is designed to provide a stable and durable platform for gamers who want to harness the power of the latest Intel Core Ultra processors (2nd generation). The motherboard features 12+1+2+1 (80A) power phases that ensure reliable power delivery even in intense gaming situations. Military-grade components and an enhanced cooling system, such as VRM and M.2 heatsinks, guarantee system stability and long lifespan.
The motherboard supports PCIe 5.0 connectivity, enabling the use of next-generation graphics cards and delivering excellent performance in demanding games and applications. Three M.2 slots, one supporting PCIe 5.0 x4 mode and two supporting PCIe 4.0 x4 mode, provide fast storage solutions and ample space for multiple SSDs. Additionally, the motherboard has four DDR5 memory slots that support dual-channel memory and AEMP III profiles, allowing memory overclocking up to speeds of 8800+ MT/s.
In terms of connectivity, the TUF GAMING B860M-PLUS offers 2.5 Gb Ethernet for fast and reliable network connections. The motherboard also includes versatile USB ports, including a 20 Gbps USB Type-C® port on the rear panel and a 10 Gbps USB Type-C port on the front panel, enabling fast data transfer and compatibility with the latest peripherals. ASUS Aura Sync lighting technology provides full RGB lighting control, allowing users to customize their system’s appearance to their liking.
Technical specifications:
