| Color | Black |
|---|---|
| Country of Origin | China |
| PID | 973895 |
| Product depth (mm) | 244 |
| Product weight (g) | 2 100 |
| Product width (mm) | 305 |
| Bluetooth | Yes |
| Bluetooth version | 5.4 |
| WiFi | Yes |
| Wireless network standard | Wi-Fi 7 (802.11be) |
| Motherboard Chipset | Intel B860 |
| Motherboard form factor | ATX |
| Processor Socket | LGA 1851 |
| Maximum supported memory (Gt) | 256 |
| Number of RAM slots | 4 |
| Supported RAM | DDR5 |
| Manufacturer address | Torshamnsgatan 35 164 40 Kista, Sweden |
| Manufacturer's email address | https://www.asus.com/content/asus-product-security-advisory/ |
| Manufacturer name | Asus Nordic AB |

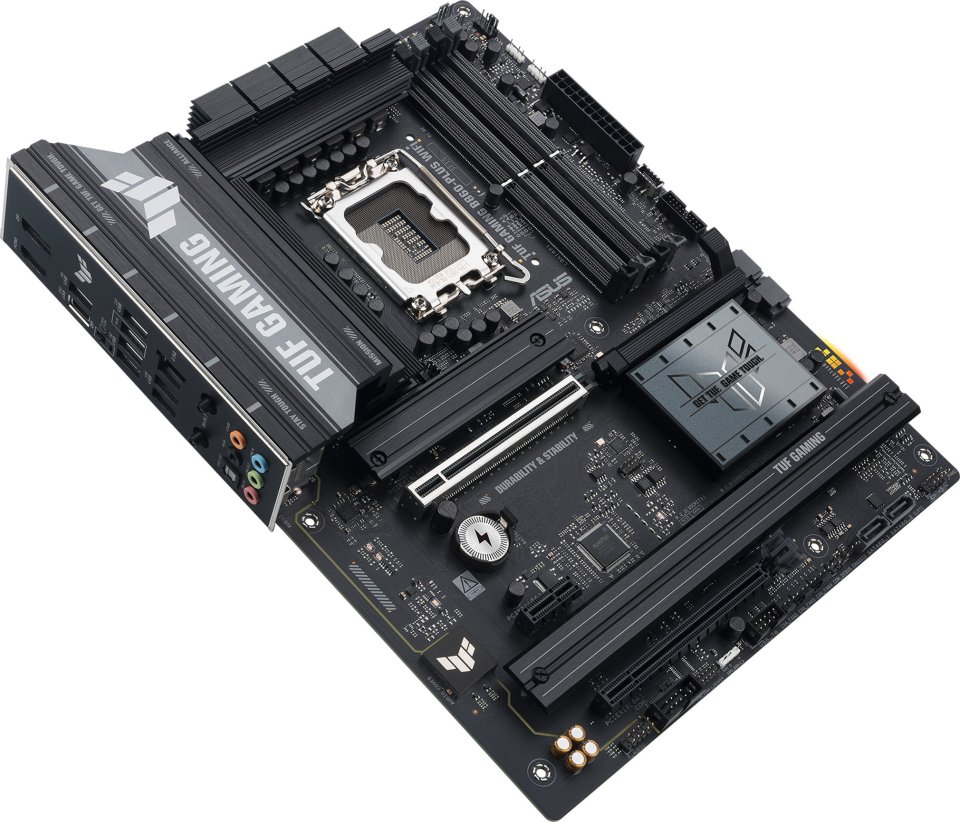

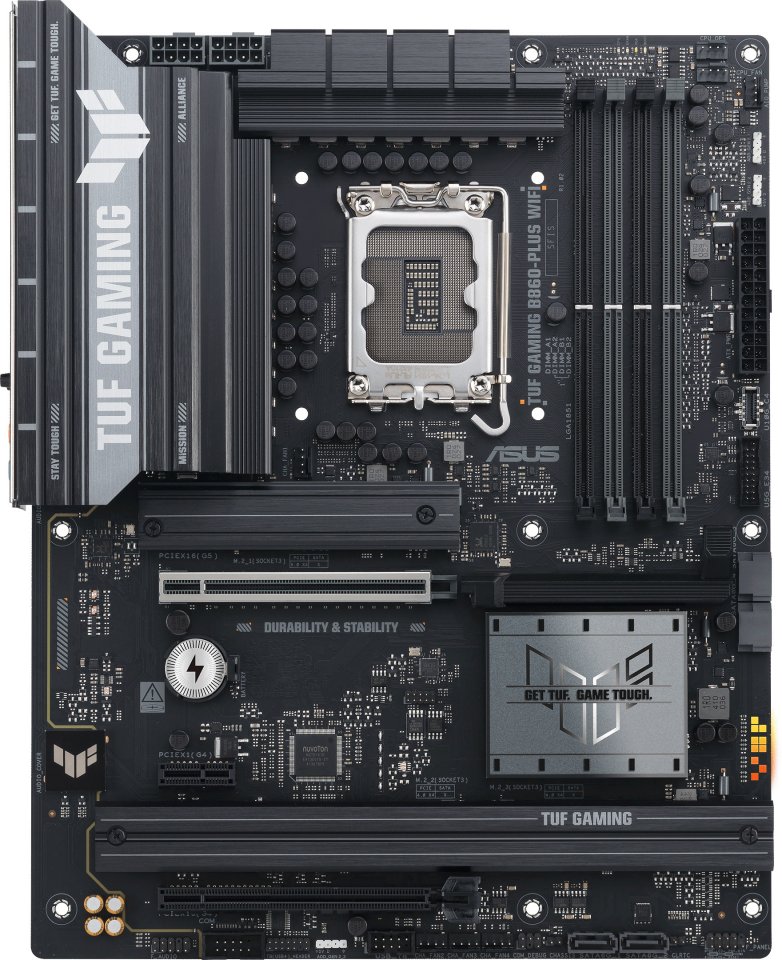

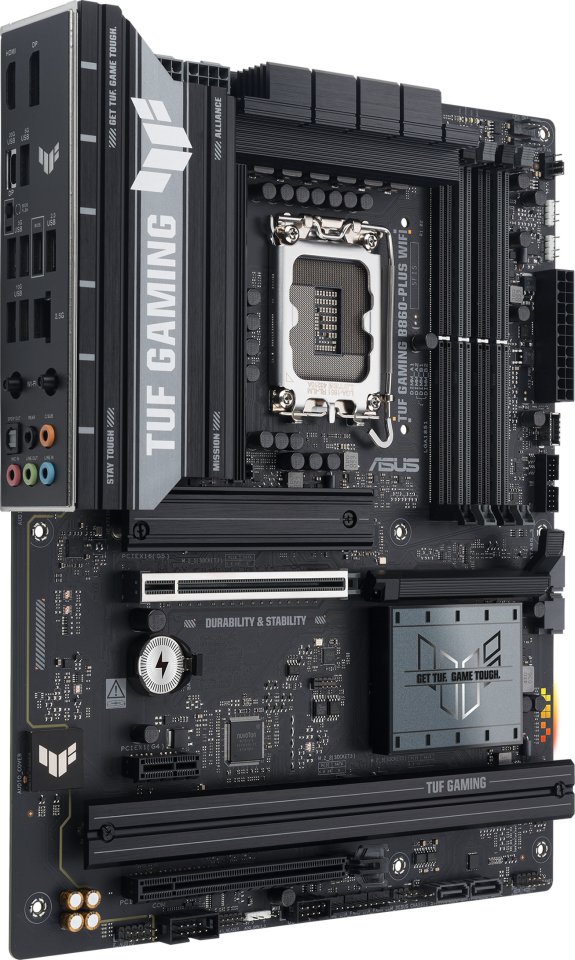

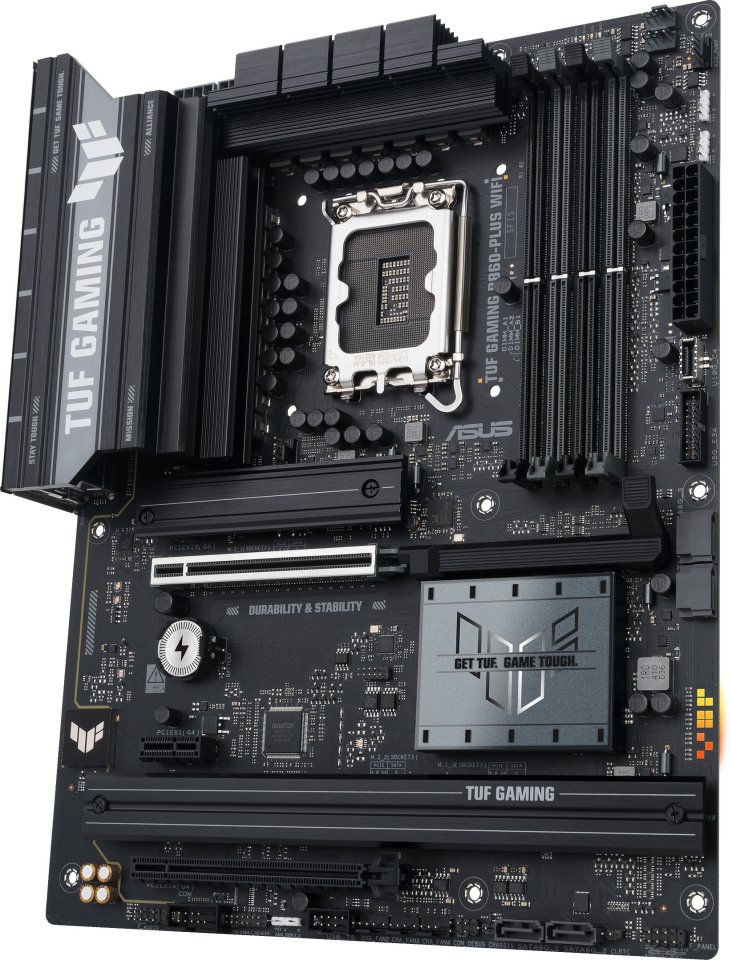

ASUS TUF GAMING B860-PLUS WIFI is designed to deliver top-tier performance for gamers and demanding users. It supports the latest Intel Core Ultra processors (2nd generation) and features 12+1+2+1 (80A) power phases, ensuring stable and efficient power delivery even under intense usage. The motherboard has four DDR5 memory slots supporting AEMP III profiles, enabling memory speeds of up to 8666+ MT/s.
For cooling, the motherboard includes extended VRM heatsinks and two M.2 heatsinks covering three M.2 slots, ensuring optimal component temperatures. Expansion slots include one PCIe 5.0 x16 SafeSlot, one PCIe 4.0 x16 (supports x4 mode), and one PCIe 4.0 x1 slot, offering versatile options for additional devices. The motherboard also has three M.2 slots—one supporting PCIe 5.0 x4 and two supporting PCIe 4.0 x4—as well as four SATA 6 Gb/s ports for storage solutions.

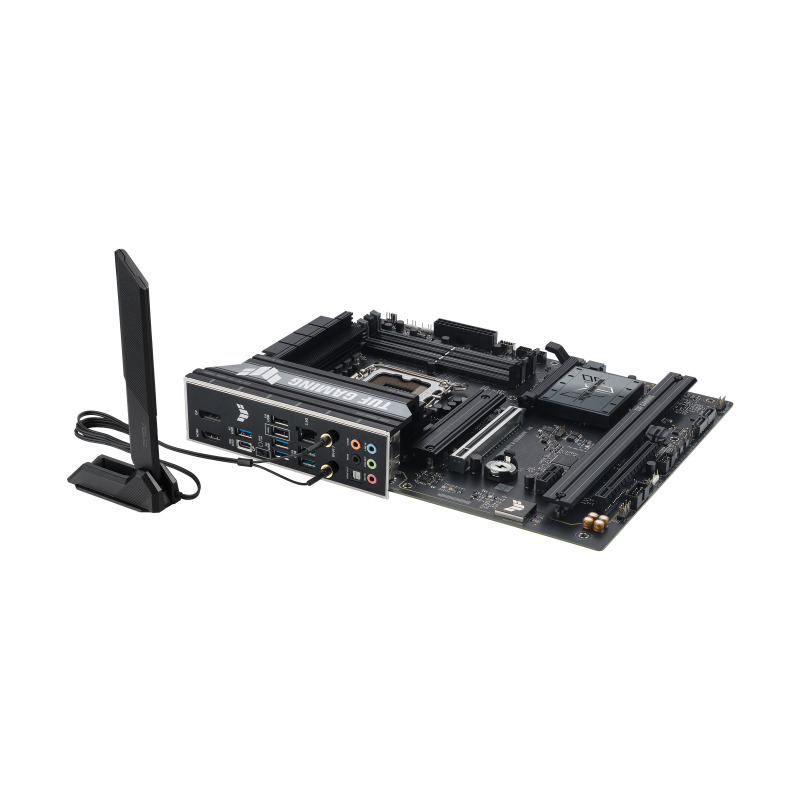

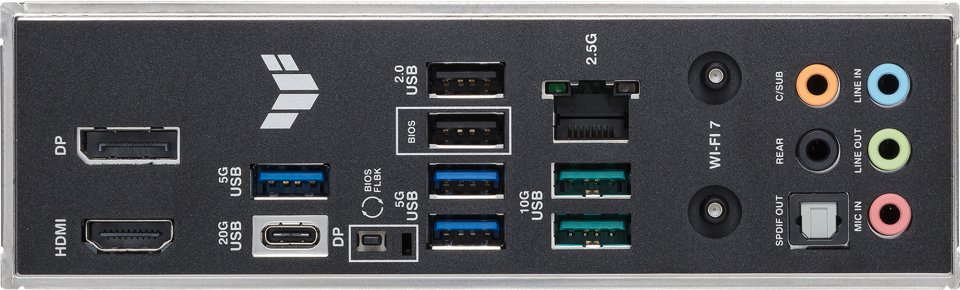

In terms of connectivity, the TUF GAMING B860-PLUS WIFI features the ASUS WiFi Q-Antenna system with WiFi 7 support, providing fast and reliable wireless connections. Additionally, the motherboard includes a Realtek 2.5Gb Ethernet port for high-speed wired networking. The rear panel offers diverse ports, including a USB 20Gbps Type-C® with DP alt mode, USB 10Gbps Type-C®, and several USB 5Gbps ports. The motherboard also supports Aura Sync lighting, allowing users to customize RGB lighting to their preferences.
Technical specifications:
ASUS TUF GAMING B860-PLUS WIFI is designed to deliver top-tier performance for gamers and demanding users. It supports the latest Intel Core Ultra processors (2nd generation) and features 12+1+2+1 (80A) power phases, ensuring stable and efficient power delivery even under intense usage. The motherboard has four DDR5 memory slots supporting AEMP III profiles, enabling memory speeds of up to 8666+ MT/s.
For cooling, the motherboard includes extended VRM heatsinks and two M.2 heatsinks covering three M.2 slots, ensuring optimal component temperatures. Expansion slots include one PCIe 5.0 x16 SafeSlot, one PCIe 4.0 x16 (supports x4 mode), and one PCIe 4.0 x1 slot, offering versatile options for additional devices. The motherboard also has three M.2 slots—one supporting PCIe 5.0 x4 and two supporting PCIe 4.0 x4—as well as four SATA 6 Gb/s ports for storage solutions.
In terms of connectivity, the TUF GAMING B860-PLUS WIFI features the ASUS WiFi Q-Antenna system with WiFi 7 support, providing fast and reliable wireless connections. Additionally, the motherboard includes a Realtek 2.5Gb Ethernet port for high-speed wired networking. The rear panel offers diverse ports, including a USB 20Gbps Type-C® with DP alt mode, USB 10Gbps Type-C®, and several USB 5Gbps ports. The motherboard also supports Aura Sync lighting, allowing users to customize RGB lighting to their preferences.
