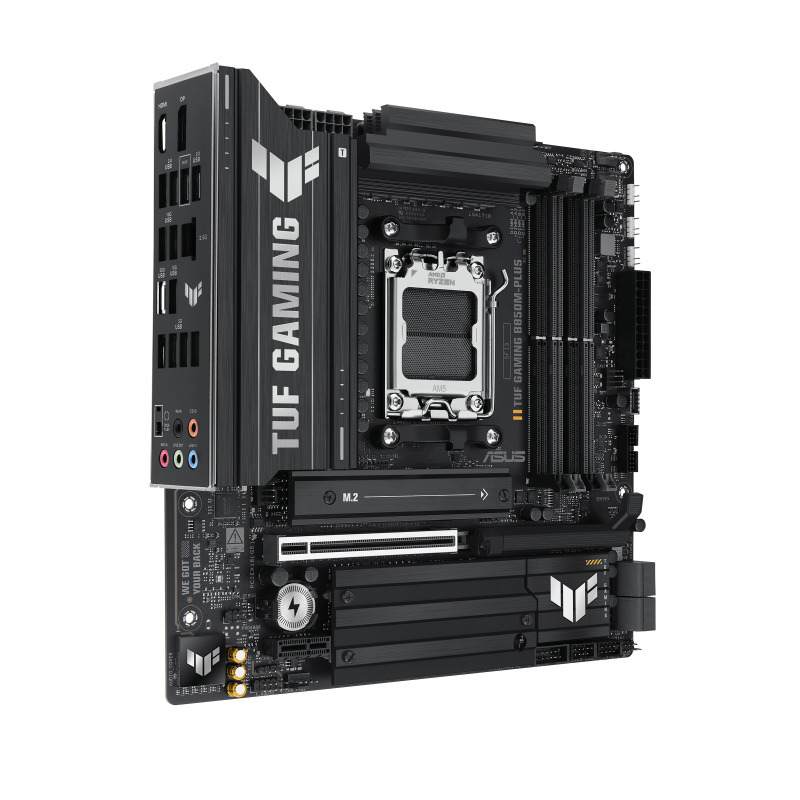

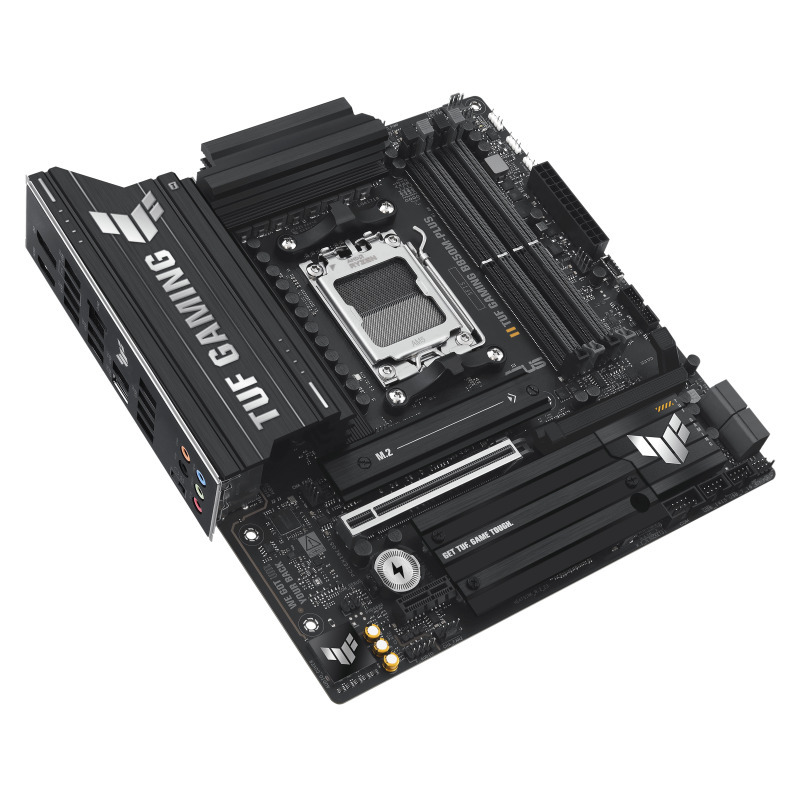

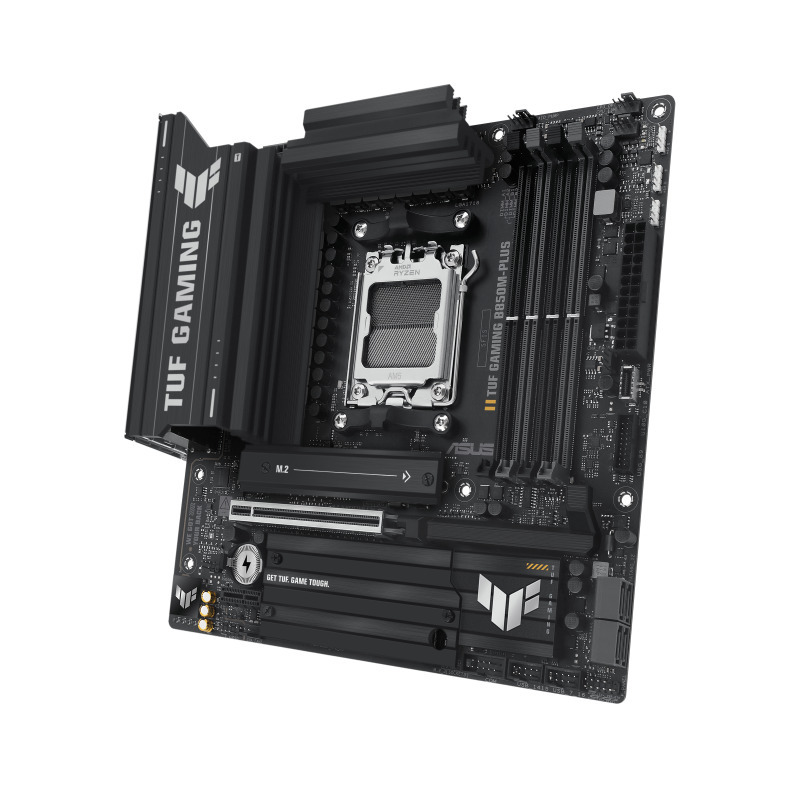

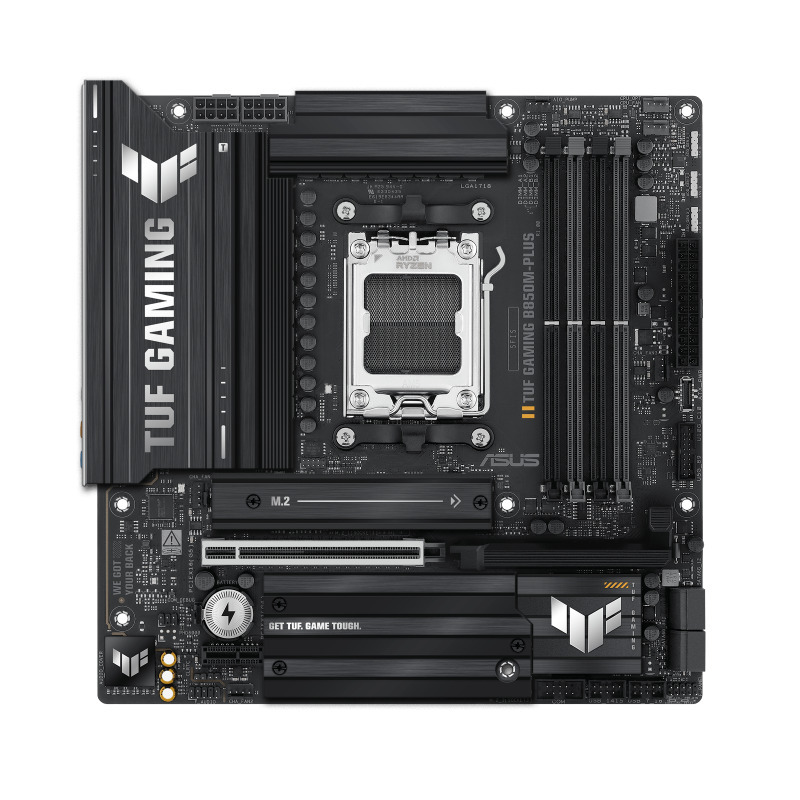

TUF GAMING B850M-PLUS is a micro-ATX motherboard that offers excellent performance and reliability for an AMD Ryzen-based gaming PC. It supports the latest AMD Ryzen 9000, 8000, and 7000 series processors and DDR5 memory, delivering top-tier performance for demanding gamers. The motherboard also features numerous connectors and capabilities, making it an excellent choice for versatile use.

TUF series motherboards are known for their durability and reliability. The TUF GAMING B850M-PLUS is equipped with multiple protection features that ensure long component lifespan. It includes SafeSlot protection, which safeguards the graphics card from damage.

Technical specifications:

• Model name: TUF GAMING B850M-PLUS
• Form factor: Micro-ATX
• Processor support: AMD Ryzen™ 9000, 8000, and 7000 series desktop processors
• Processor socket: AMD Socket AM5
• Chipset: AMD B850
• Expansion slots: 1 x PCIe 5.0 x16 slot (supports x16 mode), 1 x PCIe 4.0 x16 slot (supports x8/x4 mode), 1 x PCIe 4.0 x1 slot
• Display output: 1 x DisplayPort (supports max. 8K@30Hz according to DisplayPort 1.4), 1 x HDMI™ port (supports 4K@60Hz according to HDMI 2.1)
• Storage: 3 x M.2, 4 x SATA 6 Gb/s
• Memory support: 4 x DIMM slots, up to 192 GB, DDR5, supports up to 8000+ MT/s (OC), ECC and Non-ECC Un-buffered DIMM, dual-channel memory architecture

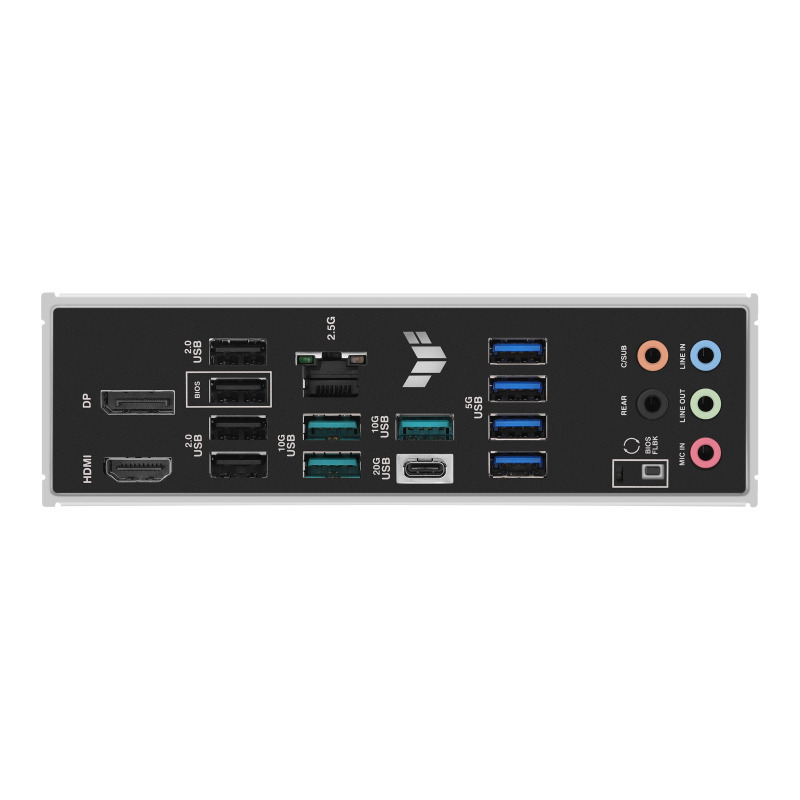

• USB ports: Rear panel: 1 x USB 20 Gbps (Type-C), 3 x USB 10 Gbps (Type-A), 4 x USB 5 Gbps (Type-A), 4 x USB 2.0 (Type-A); Front panel: 1 x USB 10 Gbps (Type-C), 1 x USB 5 Gbps (2 additional USB 5 Gbps ports), 2 x USB 2.0 (4 additional USB 2.0 ports)
• LAN: 1 x Realtek 2.5 Gb Ethernet
• Audio: Realtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC
