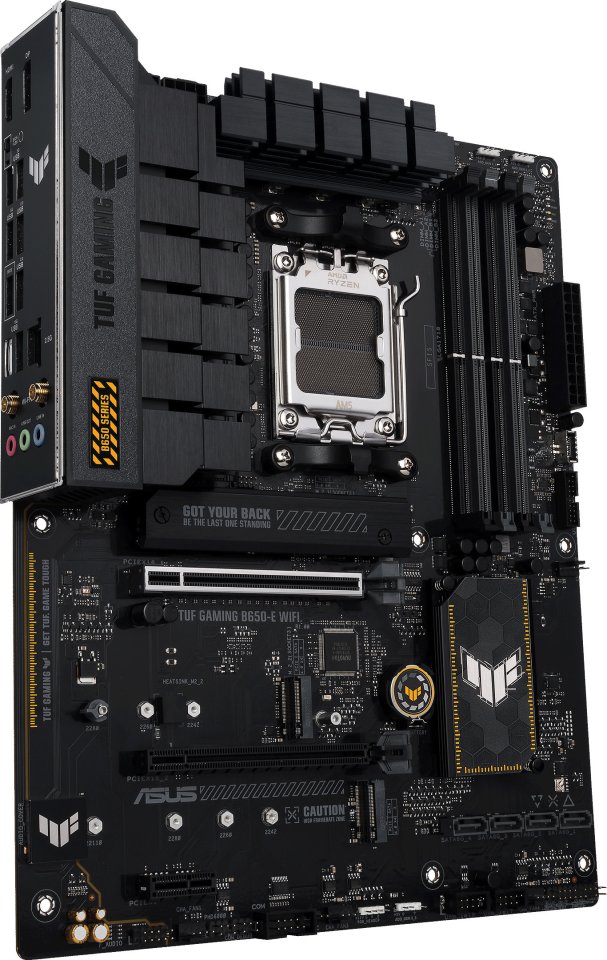

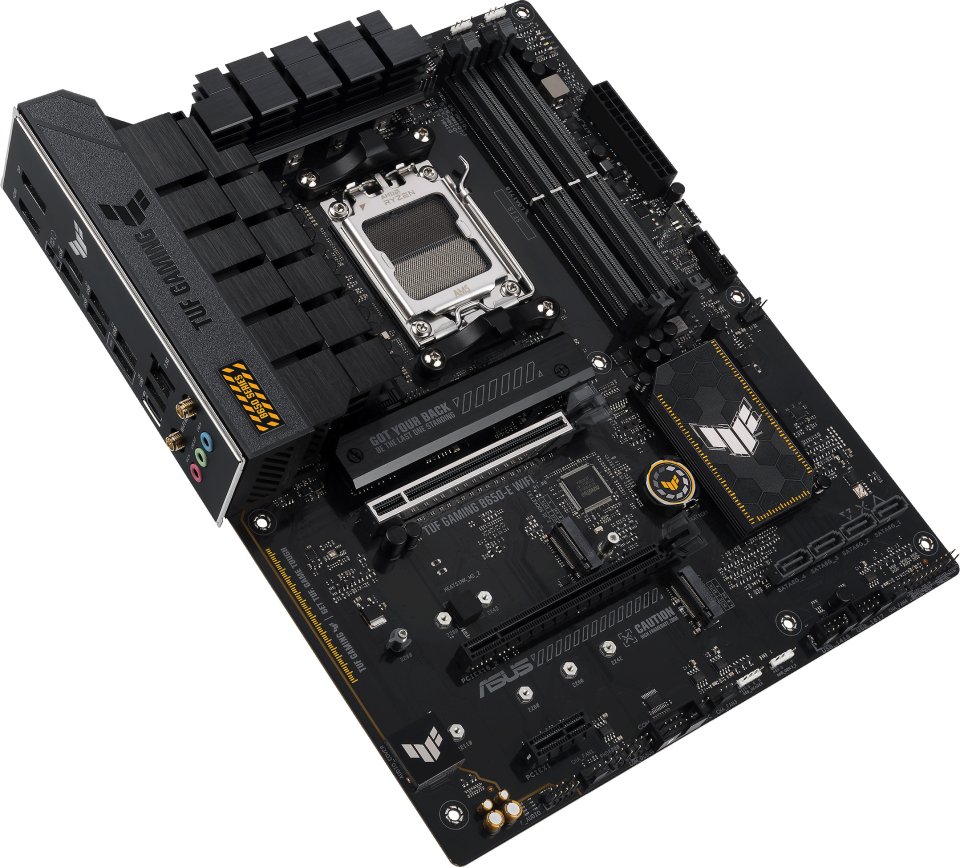

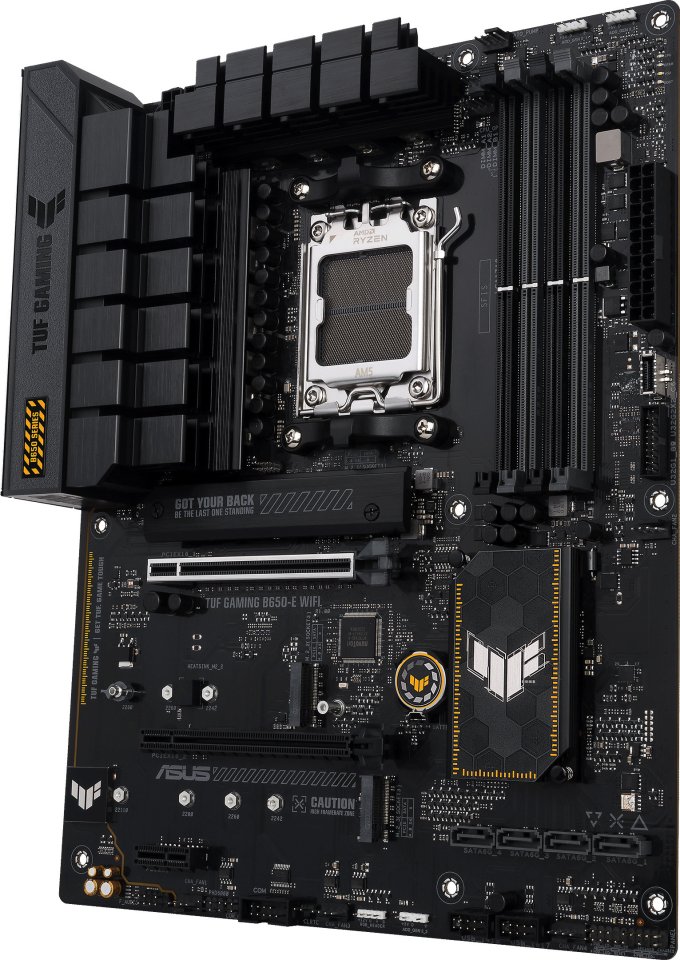

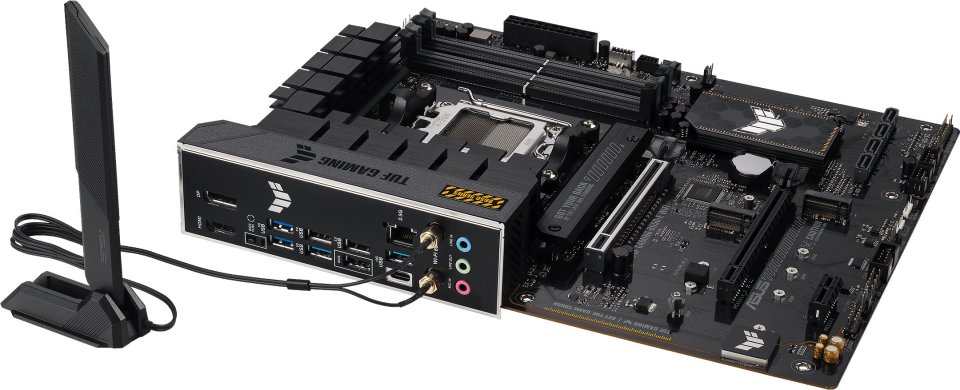

TUF GAMING B650-E WIFI is an AM5 socket ATX gaming motherboard for Ryzen 8000 series processors, featuring PCIe 5.0 M.2 support, three M.2 slots, 2.5 Gb LAN, WiFi 6E, DDR5 memory support, 8(60A)+2(60A) power stages with enlarged VRM heatsinks, and plenty of connectivity options for various needs, not to mention Asus Aura Sync RGB support.

The ASUS TUF GAMING B650-E WIFI incorporates all the essential elements of the latest AMD Ryzen 7000 series processors and combines them with features suitable for gaming use and proven durability. This motherboard is built with military-grade components, an upgraded power solution, and a comprehensive cooling system, exceeding expectations with rock-solid and stable performance in marathon gaming sessions. TUF GAMING motherboards also undergo rigorous durability tests to ensure they withstand conditions where others might fail. Aesthetically, this model uses black and geometric design elements that reflect the reliability and stability characteristic of the TUF GAMING series.

Features:

• Chipset: AMD B650
• Processor socket: AM5
• Processor support: AMD Ryzen 7000 / 8000 series
• Motherboard size: ATX (12 in x 9.6 in)
• Memory slots: 4
• Memory type: DDR5 (8000+(OC)/7800(OC)/7600(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600(OC)/5400(OC)/5200/5000/4800 MHz), ECC, Non-ECC, Un-buffered, Dual Channel
• Maximum memory capacity (GB): 192
• Network connections: Realtek 2.5Gb Ethernet, Wi-Fi 6E (802.11a/b/g/n/ac/ax) 2×2 Dual Band, Bluetooth v5.3
• Sound card: Realtek 7.1 Surround Sound High Definition Audio CODEC

Expansion slots:

• 1 x PCIe 4.0/3.0 x16 slot
• 1 x PCIe 4.0 x16 slot (supports x8/x4 mode)
• 1 x PCIe 4.0/3.0 x16 slot (supports x1 mode)
• 1 x PCIe 4.0/3.0 x1 slot

Storage connections:

• 4 x SATA 6Gb/s ports
• 3 x M.2 slots
  M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
  M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4/x2 mode)
  M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)

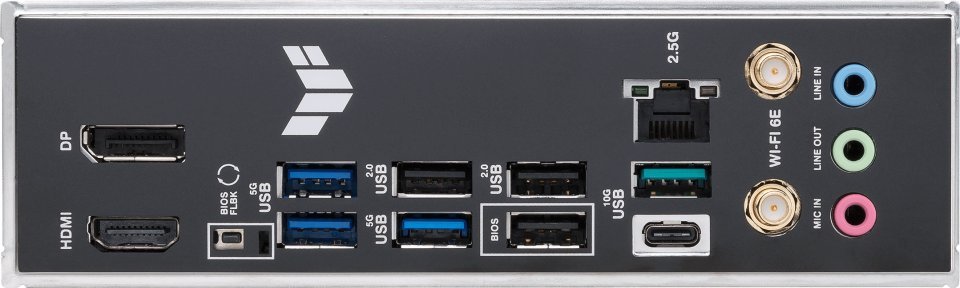

Rear panel connections:

• 2 x USB 10Gbps ports (1 x Type-A + 1 x USB Type-C)
• 3 x USB 5Gbps ports (3 x Type-A)
• 3 x USB 2.0 ports (3 x Type-A)
• 1 x DisplayPort
• 1 x HDMI port
• 1 x Wi-Fi Module
• 1 x Realtek 2.5Gb Ethernet port
• 5 x Audio jacks
• 1 x BIOS FlashBack button

Internal connections:

• Fan and Cooling related
  1 x 4-pin CPU Fan header
  1 x 4-pin CPU OPT Fan header
  1 x 4-pin AIO Pump header
  4 x 4-pin Chassis Fan headers
• Power related
  1 x 24-pin Main Power connector
  1 x 8-pin +12V Power connector
  1 x 4-pin +12V Power connector
• Storage related
  3 x M.2 slots (Key M)
  4 x SATA 6Gb/s ports
• USB
  1 x USB 20Gbps connector (supports USB Type-C)
  1 x USB 5Gbps header supporting 2 additional USB 5Gbps ports
  2 x USB 2.0 headers supporting 4 additional USB 2.0 ports
• Miscellaneous
  3 x Addressable Gen 2 headers
  1 x Aura RGB header
  1 x Clear CMOS header
  1 x COM Port header
  1 x Front Panel Audio header (AAFP)
  20-3 pin System Panel header with Chassis intrude function
