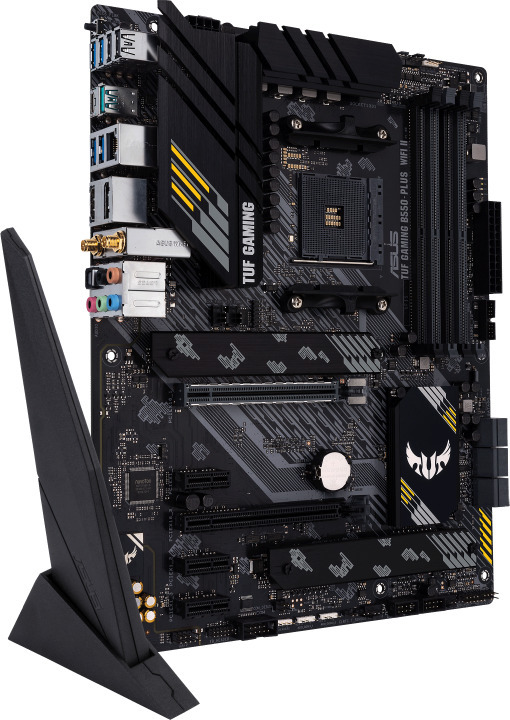

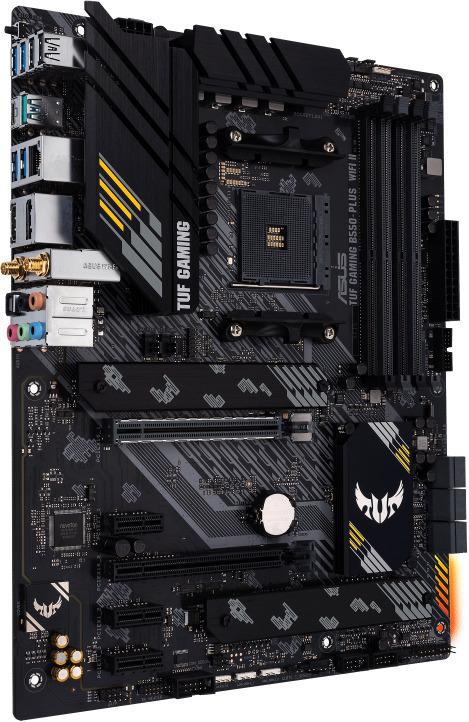

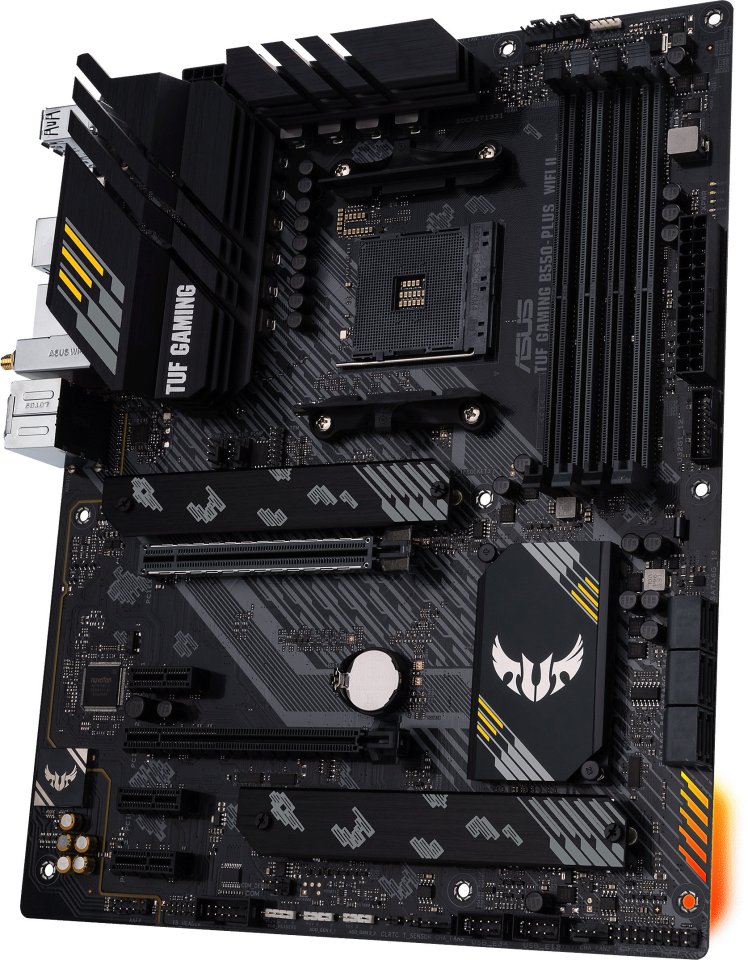

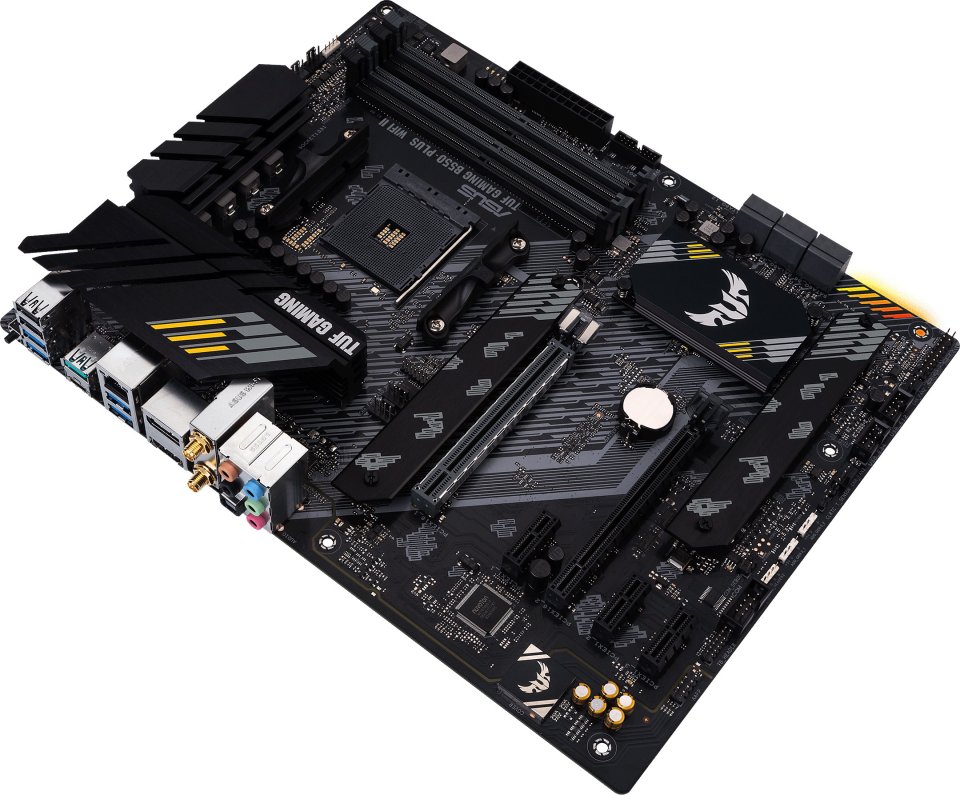

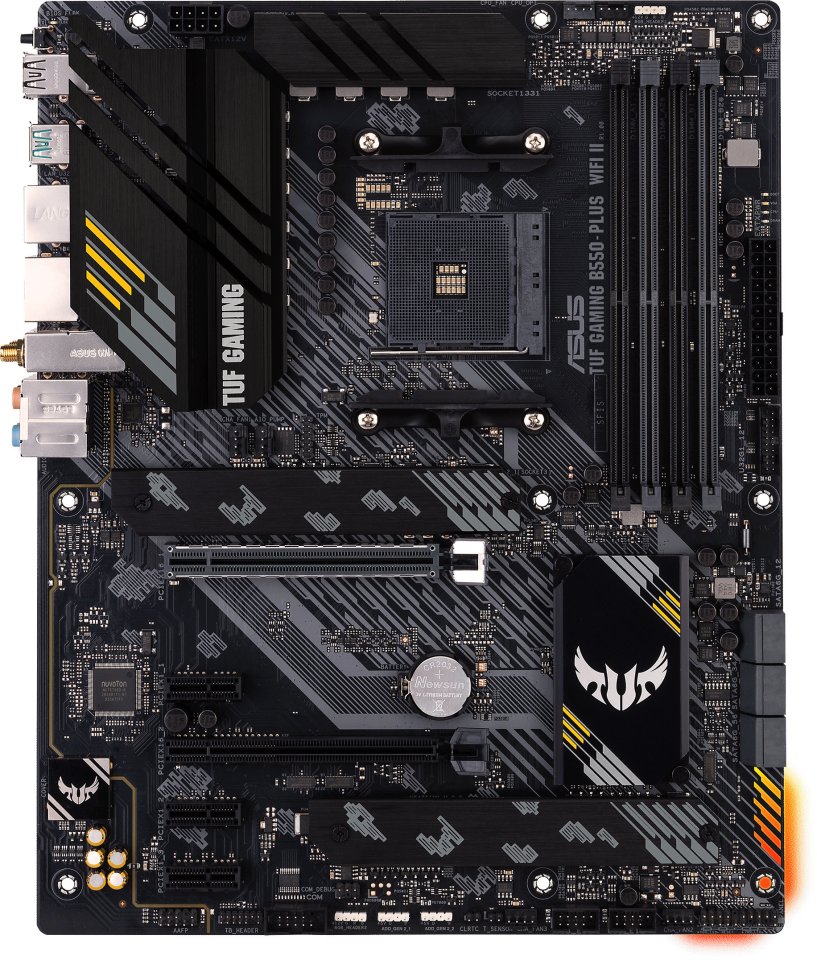

TUF GAMING B550-PLUS WIFI II takes all the key components of the latest Intel processors and adds features important to gamers along with proven durability. Military-grade components, updated power delivery, and a comprehensive cooling system ensure that this motherboard delivers rock-solid and stable performance for long gaming sessions. Aesthetically, the TUF GAMING B550-PLUS WIFI II reflects the reliability and stability that define the TUF Gaming series with its simple geometric design elements and the new TUF Gaming logo.

• AM4 socket: For AMD Ryzen 5000 series / 5000 G series / 4000 G series / 3000 series processors
• Robust performance: 8+2 DrMOS power stages, ProCool connectors, military-grade TUF components
• Comprehensive cooling: VRM heatsink, fanless PCH heatsink, M.2 heatsink, support for hybrid fans, and Fan Xpert 4 utility
• Next-generation connectivity: PCIe 4.0 M.2, USB 3.2 Gen 2 Type-A and Type-C, Thunderbolt 3 support
• Designed for online gaming: Wi-Fi 6, 2.5 Gb Ethernet, and TUF LANGuard
• Two-way AI noise cancellation: Reduces background noise from microphone and audio output, delivering clear sound for gaming and video calls
• Aura Sync RGB: Enables synchronized LED lighting across a wide range of compatible PC devices

Features:

• Chipset: AMD B550
• Processor socket: AM4
• Processor support: AMD Ryzen 5000 / 5000 G / 4000 G / 3000
• Motherboard size: ATX
• Memory slots (qty): 4
• Memory type: DDR4
• Maximum memory capacity (GB): 128
• Network interfaces: Realtek 2.5Gb Ethernet, Wi-Fi 6 (802.11 a/b/g/n/ac/ax) 2×2, Bluetooth v5.2
• Sound card: Realtek 7.1 Surround Sound High Definition Audio CODEC

Expansion slots:

• AMD Ryzen 5000, 3000 Series
  1 x PCIe 4.0 x16 slot (supports x16 mode)
• AMD Ryzen 5000 G, 4000 G Series
  1 x PCIe 3.0 x16 slot (supports x16 mode)
• AMD B550 Chipset

  1 x PCIe 3.0 x16 slot (supports x4 mode)

  3 x PCIe 3.0 x1 slots

Storage interfaces:

• 6 x SATA 6Gb/s ports
• 2 x M.2 slots
• AMD Ryzen 5000, 3000 Series
  M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 & SATA modes)
• AMD Ryzen 5000 G, 4000 G Series
  M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 3.0 x4 & SATA modes)
• AMD B550 Chipset
  M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 3.0 x4 & SATA modes)

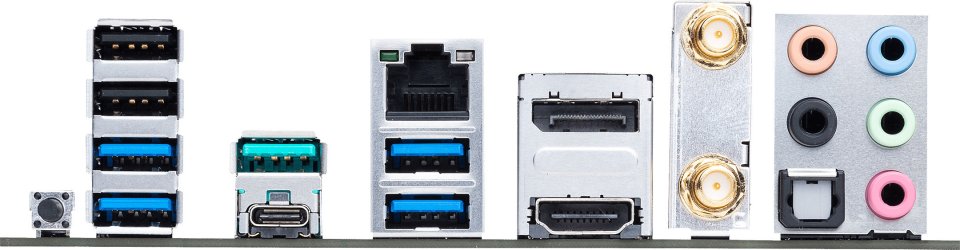

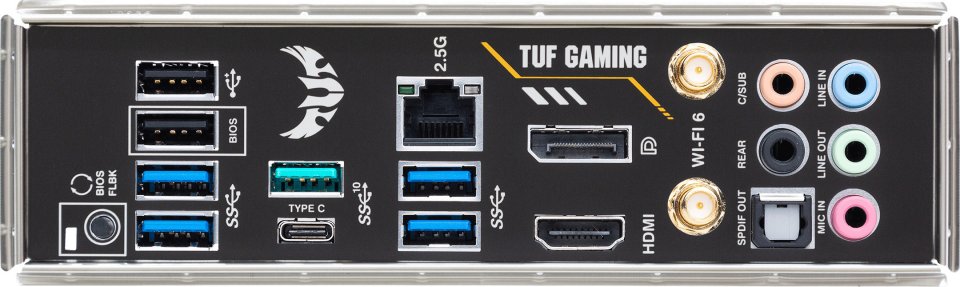

Rear panel connectors:

• 2 x USB 3.2 Gen 2 ports (1 x Type-A + 1 x USB Type-C)
• 4 x USB 3.2 Gen 1 ports (4 x Type-A)
• 2 x USB 2.0 ports (2 x Type-A)
• 1 x DisplayPort
• 1 x HDMI port
• 1 x ASUS Wi-Fi Module
• 1 x Realtek 2.5Gb Ethernet port
• 5 x Audio jacks
• 1 x Optical S/PDIF out port
• 1 x BIOS FlashBack button

Internal connectors:

• Fan and Cooling related
• 1 x 4-pin CPU Fan header(s)
• 1 x 4-pin CPU OPT Fan header(s)
• 1 x 4-pin AIO Pump header(s)
• 3 x 4-pin Chassis Fan header(s)
• Power related
• 1 x 24-pin Main Power connector
• 1 x 8-pin +12V Power connector
• Storage related
• 2 x M.2 slots (Key M)
• 6 x SATA 6Gb/s ports
• USB
• 1 x USB 3.2 Gen 1 header(s) supporting additional 2 USB 3.2 Gen 1 ports
• 2 x USB 2.0 header(s) supporting additional 4 USB 2.0 ports
• Miscellaneous
• 2 x AURA Addressable Gen 2 header(s)
• 2 x AURA RGB header(s)
• 1 x Clear CMOS header
• 1 x COM Port header
• 1 x Front Panel Audio header (AAFP)
• 1 x SPI TPM header (14-1pin)
• 1 x 20-3 pin System Panel header
• 1 x Thermal Sensor header
• 1 x Thunderbolt header
