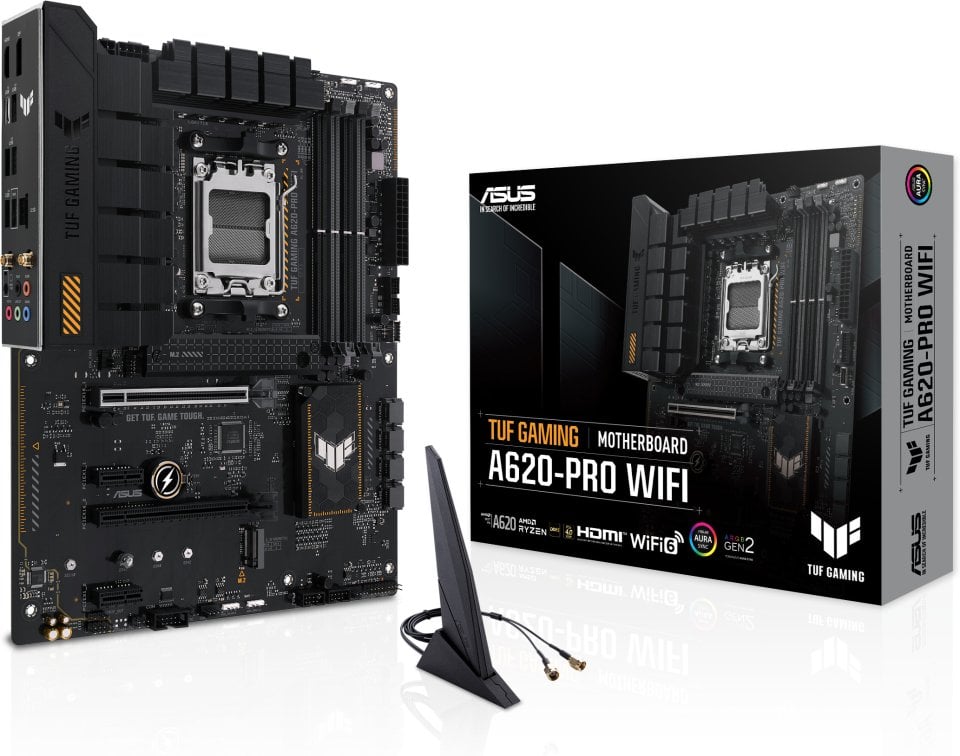

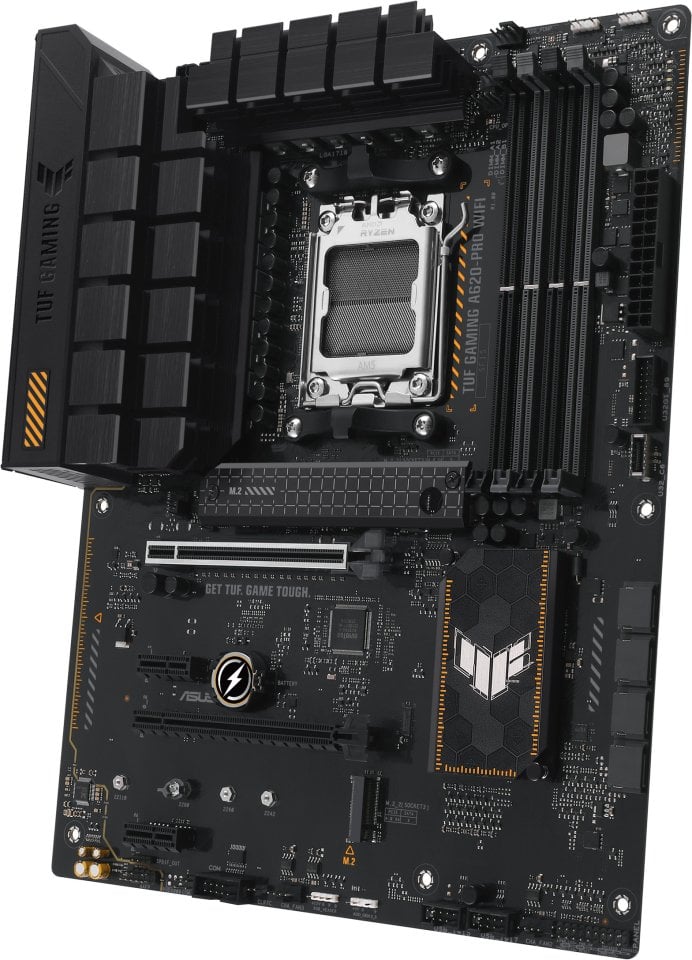

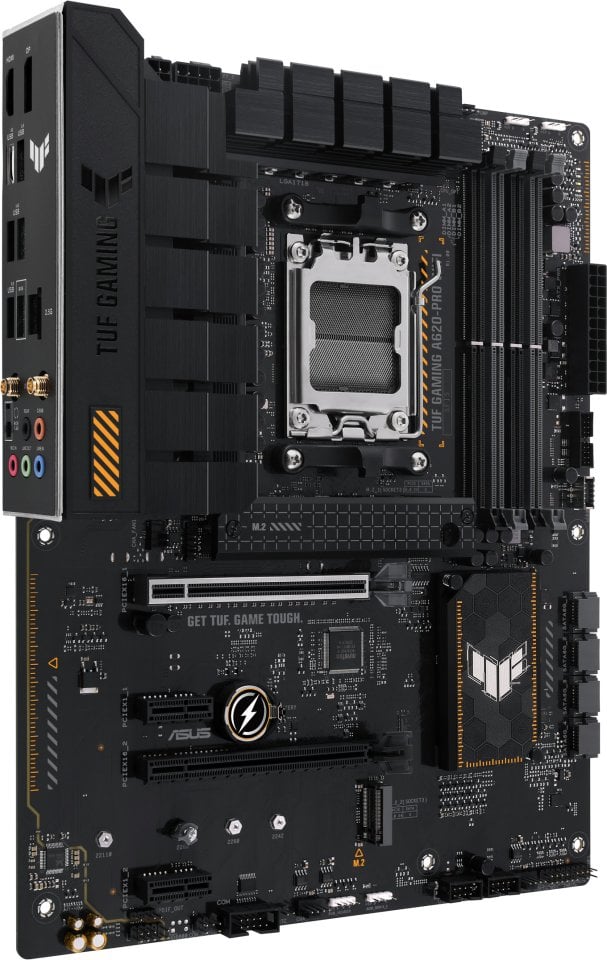

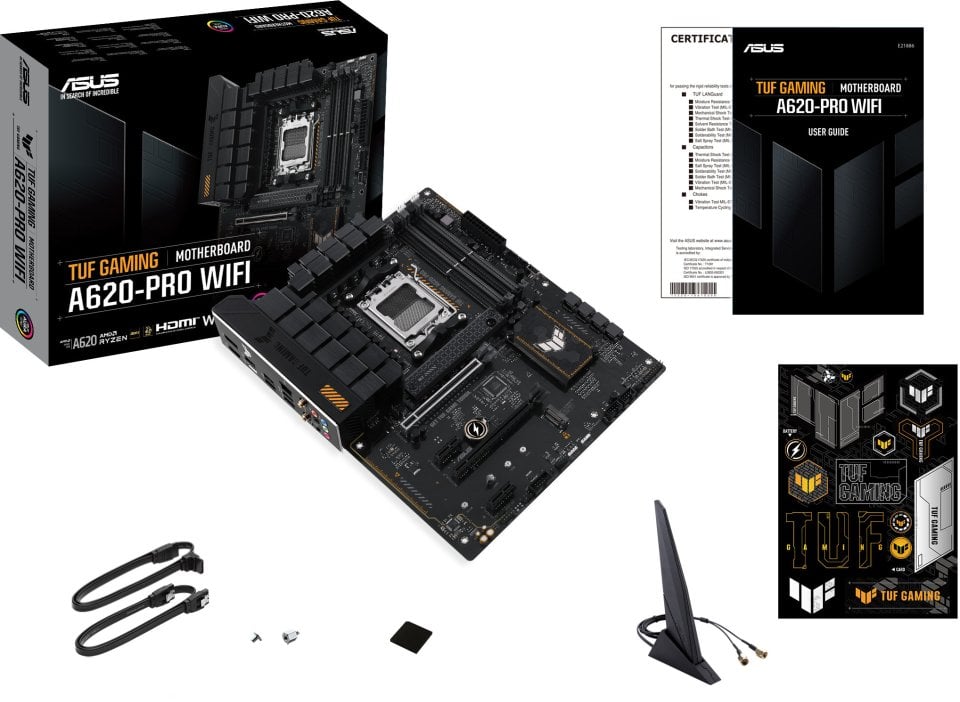

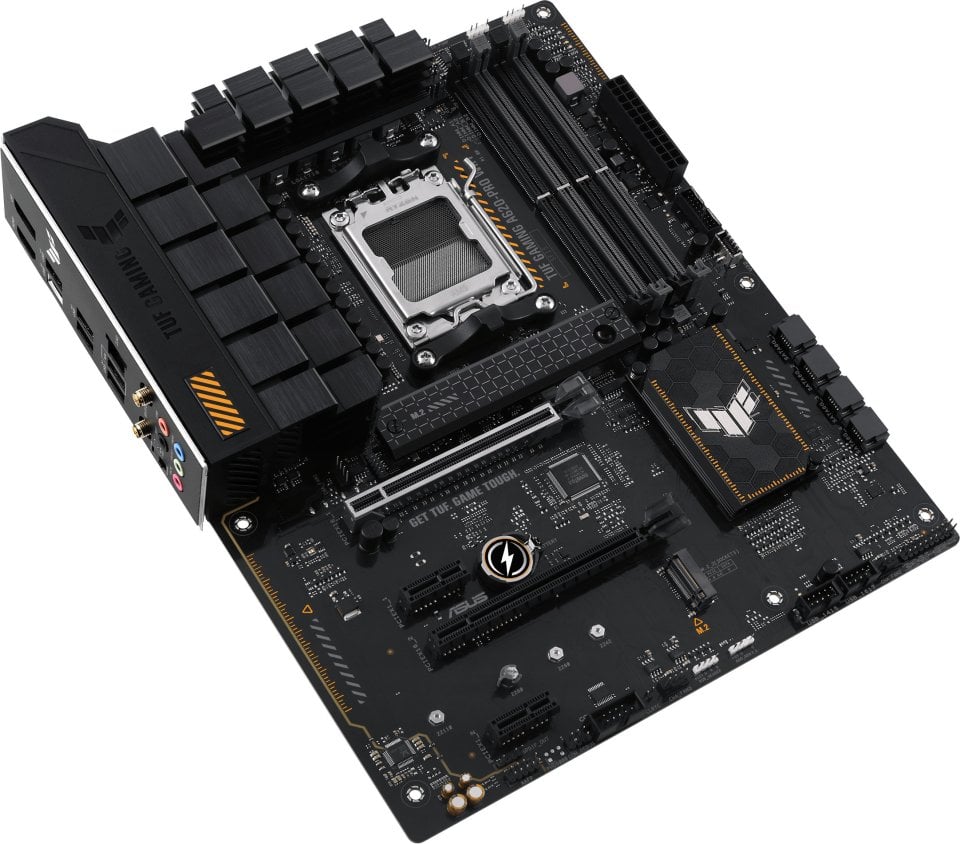

The ASUS TUF GAMING A620-PRO motherboard supports AMD Ryzen 7000 series processors and offers gaming-oriented features and durability at an affordable price. Its power solution (12+2 DrMOS) and cooling system provide stable performance for extended gaming sessions. The motherboard supports DDR5 memory and includes fast PCIe 4.0 M.2 storage.

The A620-PRO model features extensive internal and rear panel connectivity. The ultra-fast 2.5G network connection ensures smooth online gaming, and wireless connections are powered by modern WiFi 6 technology. The Realtek 7.1 audio chipset delivers a rich and clear soundscape with a 97 dB signal-to-noise ratio. You can connect lighting devices to three ARGB headers and control them with the Aura Sync application.

TUF GAMING motherboards undergo rigorous durability tests, so you can trust their quality.

Features:

• Chipset: AMD A620
• Processor socket: AM5
• Processor support: AMD Ryzen 7000 series
• Motherboard size: ATX
• Memory slots (pcs): 4
• Memory type: DDR5
• Maximum memory capacity (GB): 192
• Network interfaces: Realtek 2.5Gb Ethernet, Wi-Fi 6 (802.11 a/b/g/n/ac/ax), Bluetooth v5.3
• Sound card: Realtek 7.1 Surround Sound High Definition Audio CODEC
• Dimensions: 30.5 cm x 24.4 cm

Expansion slots:

• AMD Ryzen 7000: 1 x PCIe 4.0 x16 slot
• AMD A620 Chipset: 1 x PCIe 3.0 x16 slot, 2 x PCIe 3.0 x1 slots

Graphics:

• 1 x DisplayPort, max 8K 60Hz
• 1 x HDMI, max 4K 60Hz

Storage connections:

• 4 x SATA 6Gb/s ports
• 2 x M.2 slots
• AMD Ryzen 7000: M.2_1 slot (Key M) type 2242/2260/2280 (supports PCIe 4.0 x4 mode), M.2_2 slot (Key M) type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)

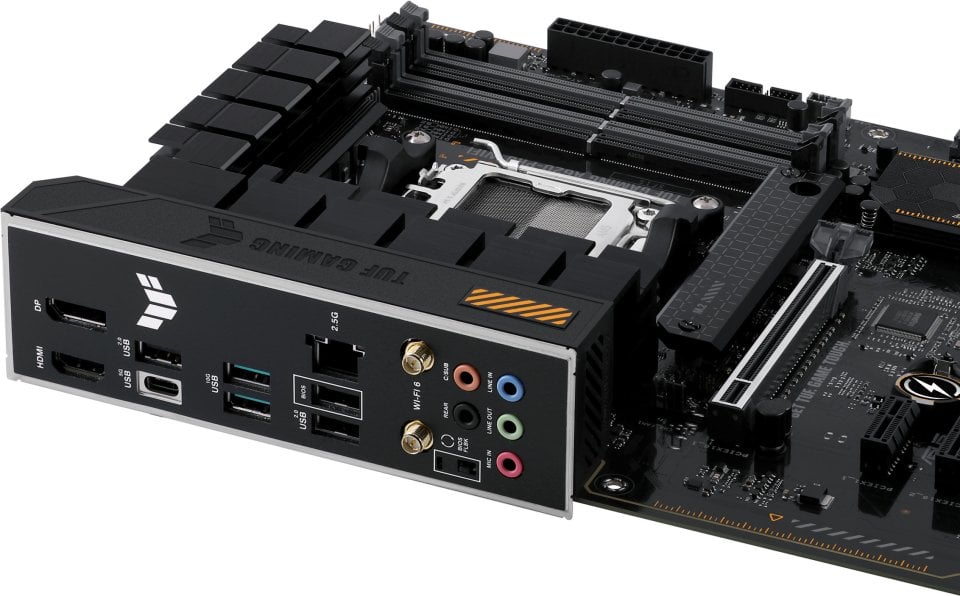

Rear panel connections:

• 2 x USB 3.2 Gen 2 ports (2 x Type-A)
• 1 x USB 3.2 Gen 1 (1 x USB Type-C)
• 3 x USB 2.0 ports
• 1 x DisplayPort
• 1 x HDMI port
• 1 x Wi-Fi Module
• 1 x Realtek 2.5Gb Ethernet port
• 5 x audio jacks
• 1 x BIOS FlashBack button

Internal connections:

• Fan and Cooling related
• 1 x 4-pin CPU Fan header
• 1 x 4-pin CPU OPT Fan header
• 1 x 4-pin AIO Pump header
• 3 x 4-pin Chassis Fan headers
• Power related
• 1 x 24-pin Main Power connector
• 1 x 8-pin +12V Power connector
• 1 x 4-pin +12V Power connector
• Storage related
• 2 x M.2 slots (Key M)
• 4 x SATA 6Gb/s ports
• USB
• 1 x USB 3.2 Gen 1 connector (Type-C)
• 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
• 2 x USB 2.0 headers support additional 4 USB 2.0 ports
• Miscellaneous
• 3 x Addressable Gen 2 headers
• 1 x Aura RGB header
• 1 x Clear CMOS header
• 1 x COM Port header
• 1 x Front Panel Audio header (AAFP)
• 1 x S/PDIF Out header
• 1 x 20-3 pin System Panel header with Chassis intrude function
