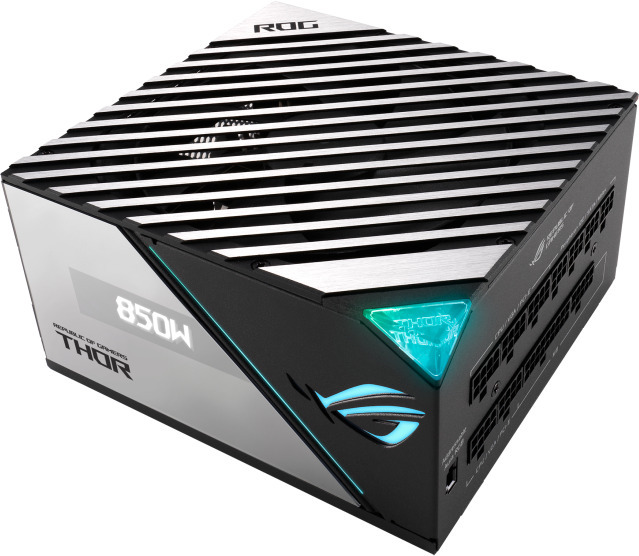

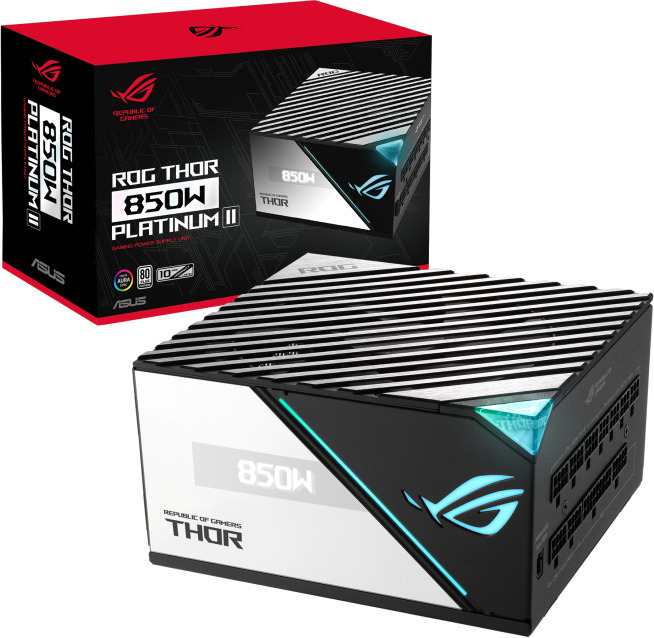

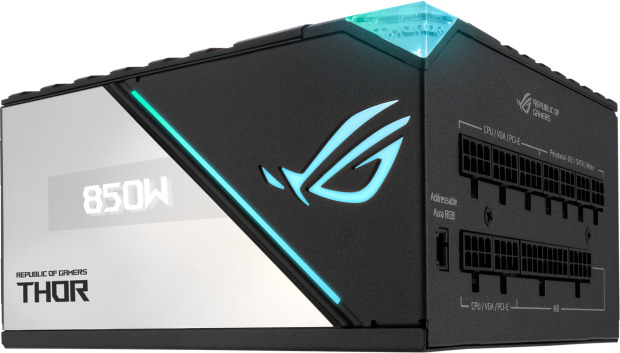

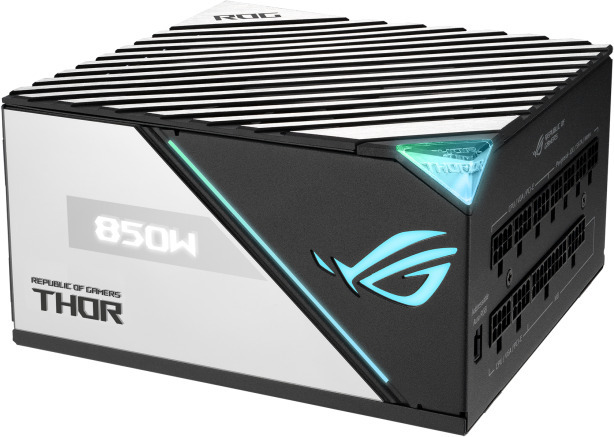

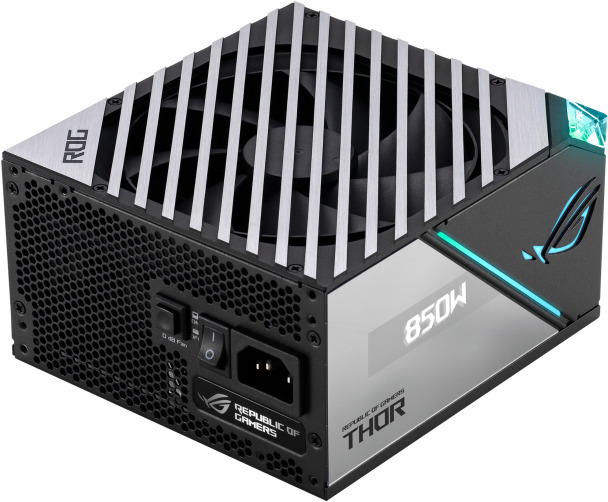

It has returned: the second generation ROG Thor Platinum, whose updated components make it the quietest power supply in its class. Because the highest quality ROG series motherboards and striking gaming PCs deserve to look good, ASUS added a mirror panel framing the OLED display on the power supply.

• Lambda A++ certification proves Thor’s silent power.
• 135 mm PWM-controlled Axial-tech fan keeps heat and noise away.
• ROG cooling fins transfer heat away from vital components.
• The power supply uses 100% Japan-made capacitors and other premium components to achieve 80 Plus Platinum certification.
• OLED display shows real-time power consumption.
• Aura Sync compatibility lets you customize and match lighting effects with compatible devices.

ROG Cooling Fins
ROG cooling fins have double the volume compared to standard cooling solutions. This enables low operating temperatures, long component lifespan, and silent operation.

Axial-tech Fan Design

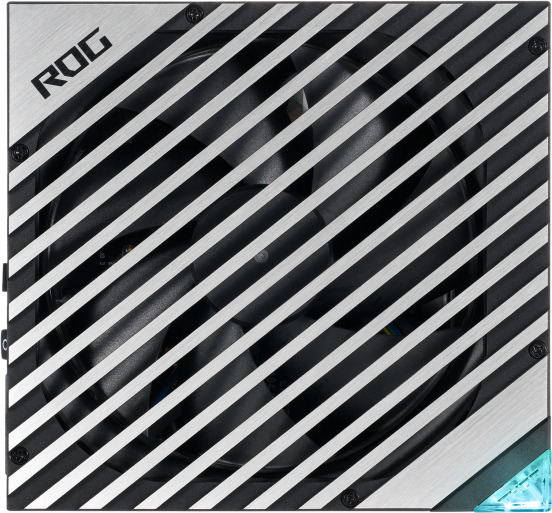

The 135 mm PWM-controlled Axial-tech fan keeps heat and noise away.

Dual Ball Bearing Fan
The dual ball bearings in the fans last up to twice as long as sleeve bearings.

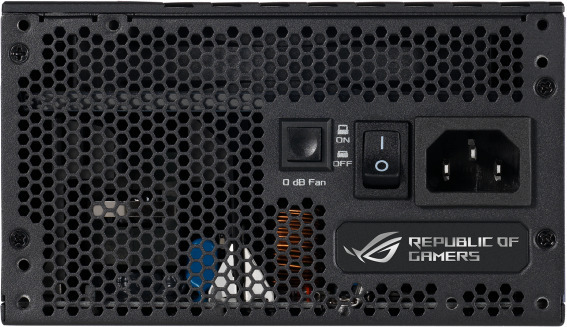

0dB Technology
To reduce noise, the PWM-controlled fan does not spin unless the power supply load exceeds 50 percent.

Lambda A++ Certification
Thanks to Thor II’s cooling improvements, the power supply earned the coveted Lambda A++ noise level rating. This truly demonstrates the immense quiet power of the latest generation power supply.

80 PLUS Platinum Certification
The ROG Thor Platinum II uses Japanese low-ESR capacitors to ensure efficient operation. The 80 PLUS Platinum certification guarantees 89% efficiency at 100% load and 92% efficiency at 50% load. Improved efficiency reduces heat generation and fan noise, also enhancing reliability.

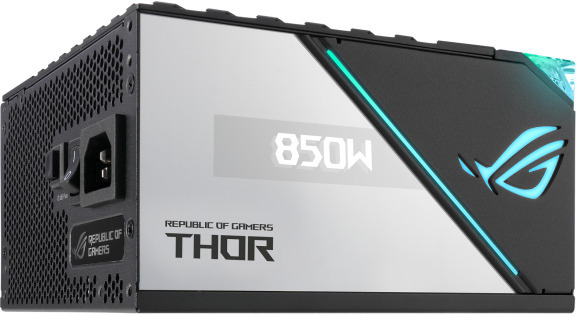

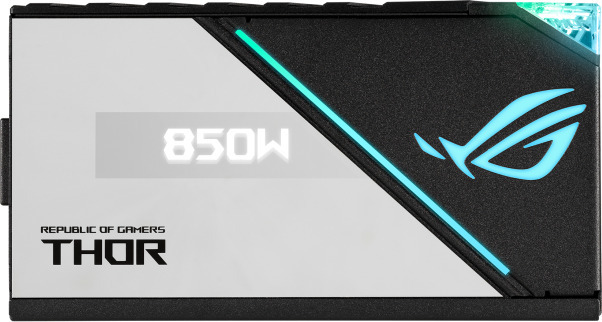

OLED Power Display
The built-in OLED display panel makes system tuning easy.

Aura Sync
Customize the Aura ROG logo and/or highlight your build’s look by adding RGB light strips.
*If the connection cable is not in use, the color effect will show a rainbow. Aura Sync requires a compatible ASUS or ROG motherboard. Likewise, Smart Mode lighting that changes according to GPU temperature requires a compatible ASUS or ROG graphics card.

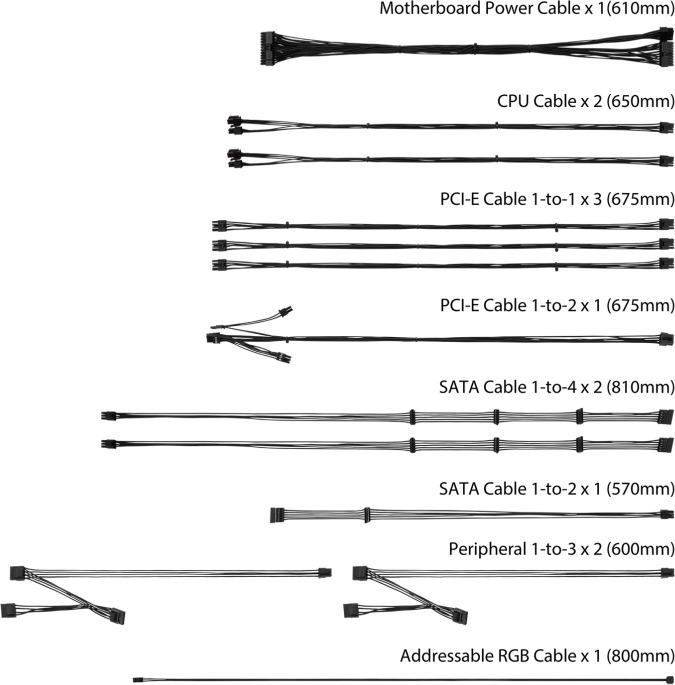

Braided Cables
The Thor II comes with a set of braided cables. ASUS also offers a 20% discount at the CableMod store.

PCIe 5.0 Ready
The ROG Thor Platinum II power supply includes a 16-pin PCIe cable capable of delivering up to 600 W of power to PCIe Gen 5.0 graphics cards. Prepare for the future of power delivery.

10-Year Warranty
ASUS is so confident in the durability of the ROG Thor Platinum II that it offers a 10-year warranty.

Specifications:

• Power: 850 W (+5V: 20 A, +3.3V: 20 A, +12V: 71 A, -12V: 0.3 A, +5Vsb: 3 A)
• 80 Plus Platinum certified
• Modularity: Fully modular
• Fan size: 135 mm
• Protection: OPP/OVP/UVP/SCP/OCP/OTP
• Dimensions: 160 x 150 x 86 mm
• Weight: 1.9 kg

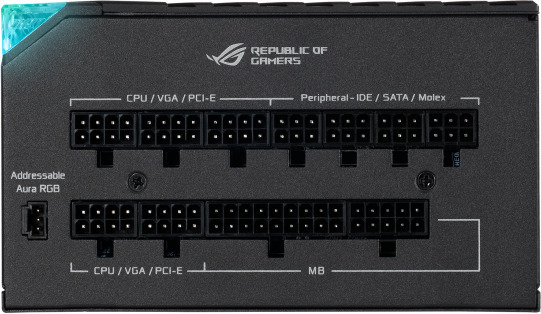

Connections:

• 1 x MB 24/20-pin
• 2 x CPU 4+4-pin
• 1 x PCI-E 16-pin
• 3 x PCI-E 6+2-pin
• 10 x SATA
• 6 x PERIPHERAL
