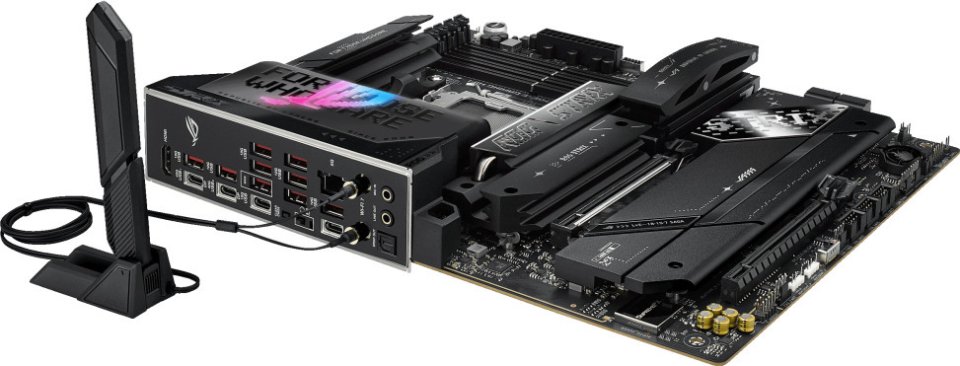

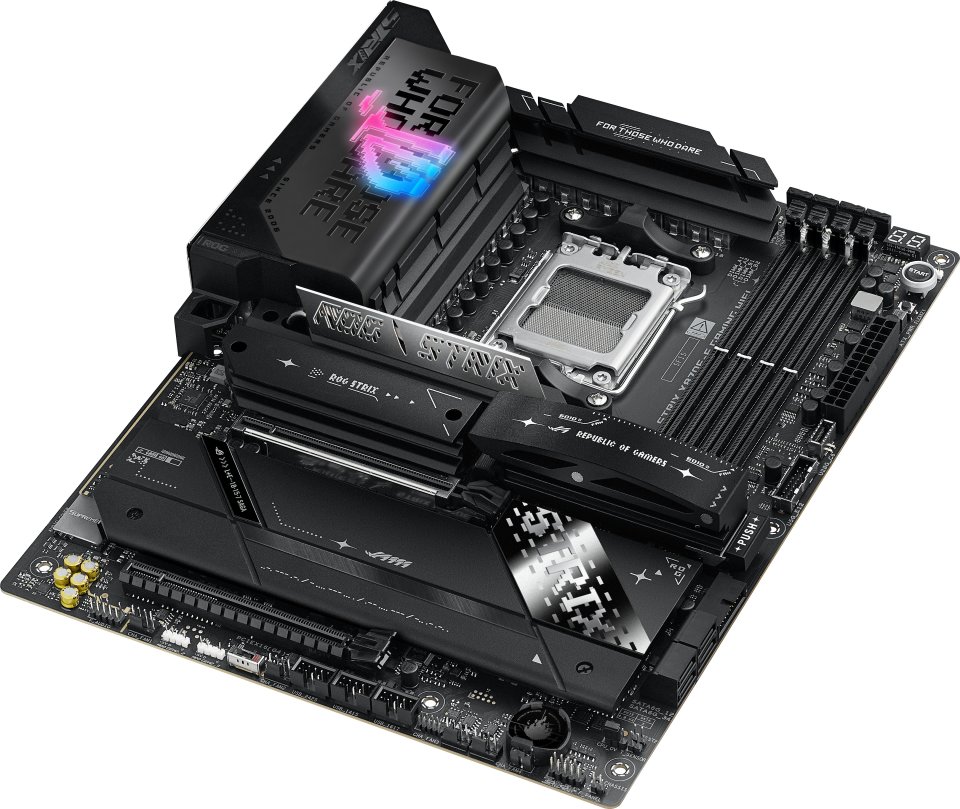

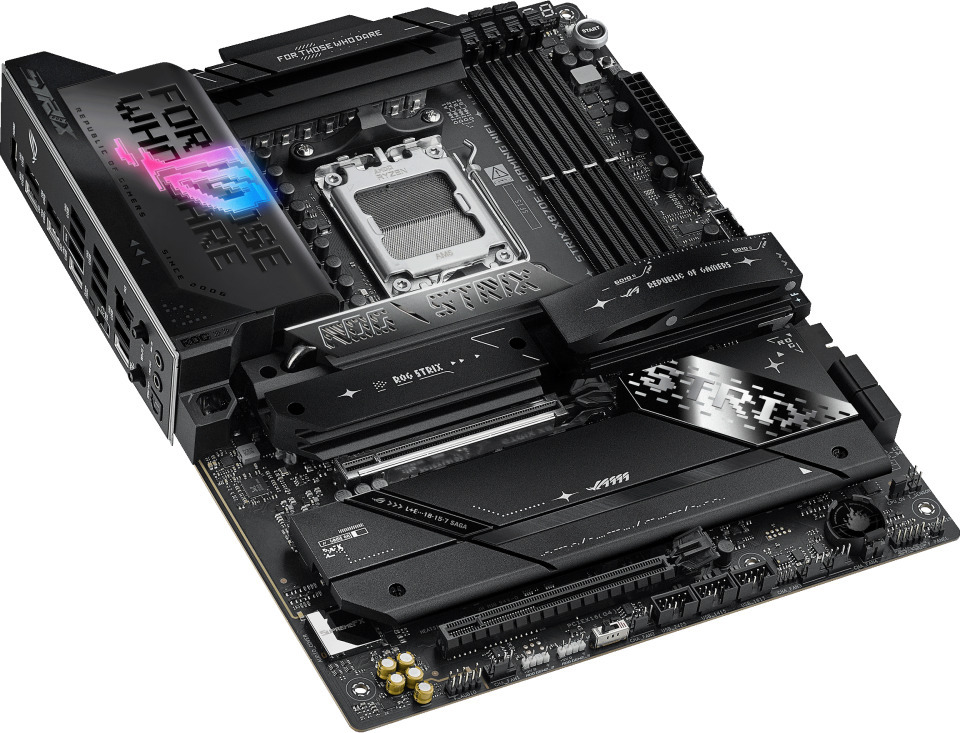

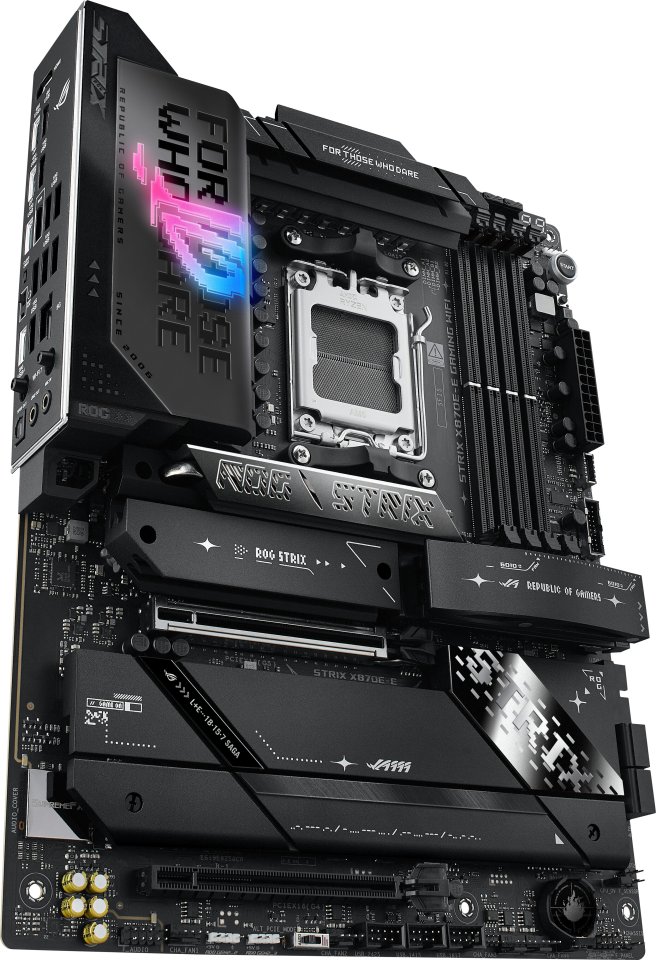

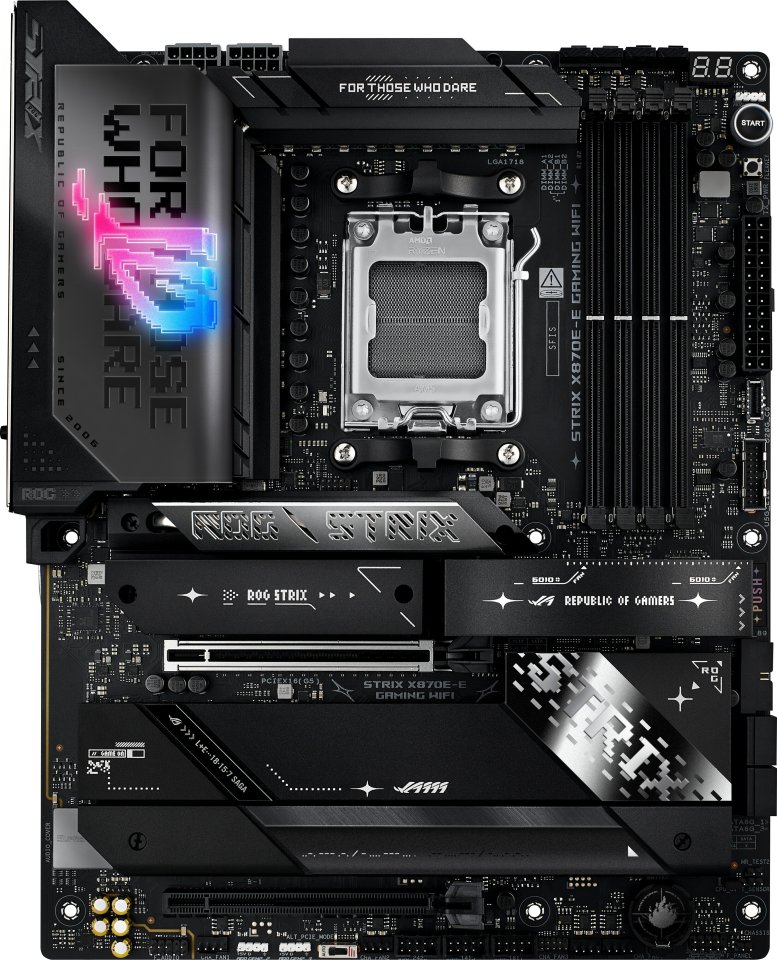

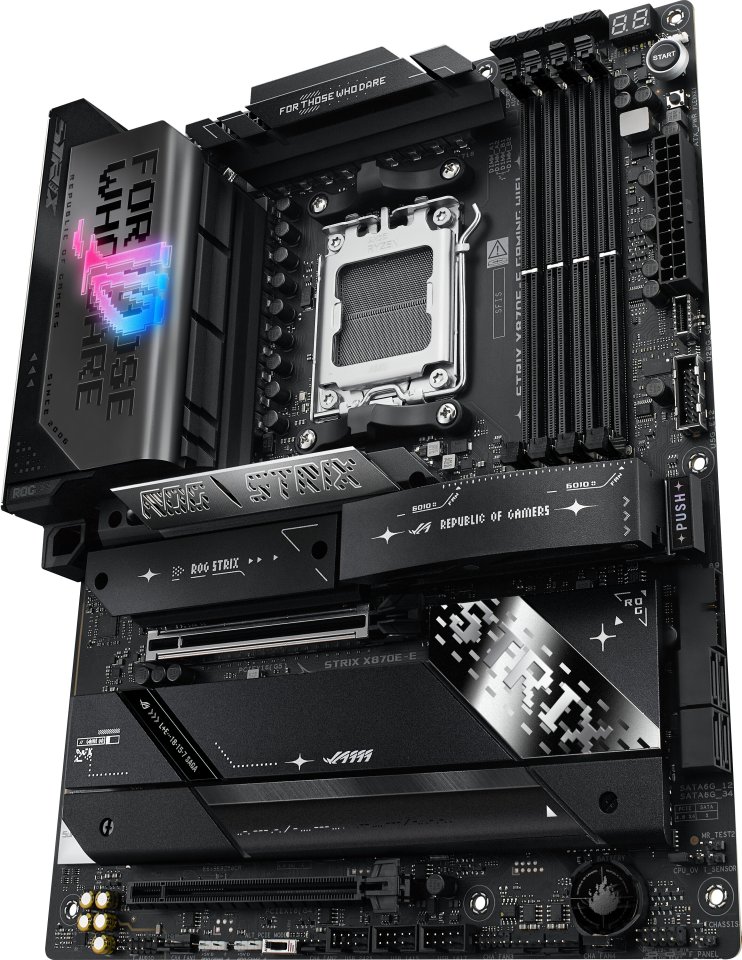

ROG Strix X870E-E Gaming WiFi is designed to harness the full power of AMD Ryzen 9000 series processors. It offers PCIe 5.0 support and advanced AI features such as AI overclocking, AI Cooling II, AI Networking II, and AEMP, making installation easy and maximizing performance. Two USB4 Type-C ports and WiFi 7 combined with Realtek 5Gb Ethernet ensure excellent connectivity, while powerful cooling components keep M.2 drives cool under heavy load. This motherboard meets the needs of demanding gamers and professionals, providing the power and connections required for advanced AI-PC applications.

18+2+2 power stages ensure smooth and efficient power distribution, especially for overclocking.

AI Networking II and AI Overclocking make performance optimization simple, offering automatic enhancements and real-time fine-tuning.

AI Cooling II and one-click fan control guarantee quiet and optimized cooling with a single click, keeping the system cool even under heavy load.

DDR5 memory support allows installation of up to 192 GB of memory, and AEMP profiles help unlock the full potential of the memory modules.

PCIe Gen 5 support provides maximum storage speeds and hardware expansion possibilities.

WIFI 7 ensures lightning-fast wireless connections.

USB4 ports offer next-generation data transfer speeds.

Features:

• Chipset: AMD X870E
• Processor socket: AM5
• Processor support: AMD Ryzen 7000 / 8000 / 9000 series
• Motherboard size: ATX (12 in x 9.6 in)
• Memory slots (qty): 4
• Memory type: DDR5 (8000+MT/s(OC) with Ryzen 9000 series processors, 8400+MT/s(OC) with Ryzen 8000 series processors, 8000+MT/s(OC) with Ryzen 7000 series processors), ECC, Non-ECC, Un-buffered, Dual Channel
• Maximum memory (GB): 192
• Network interfaces: Realtek 5Gb Ethernet, 2×2 Wi-Fi 7 (802.11be), Bluetooth v5.4
• Audio card: ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4082

Expansion slots:

• AMD Ryzen 9000 & 7000 series processors
  1 x PCIe 5.0 x16 slot (supports x16 mode)
• AMD Ryzen 8000 series processors
  1 x PCIe 4.0 x16 slot (supports x8/x4 mode)
• AMD X870E Chipset
  1 x PCIe 4.0 x16 slot (supports x4 mode)

Storage interfaces:

• 4 x SATA 6Gb/s ports
• AMD Ryzen 9000 & 7000 series processors
  M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
  M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
  M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode)
• AMD Ryzen 8000 series processors
  M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
  M.2_2 slot (Key M), type 2242/2260/2280 (not supported)
  M.2_3 slot (Key M), type 2242/2260/2280/22110 (not supported)
• AMD X870E Chipset
  M.2_4 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
  M.2_5 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)

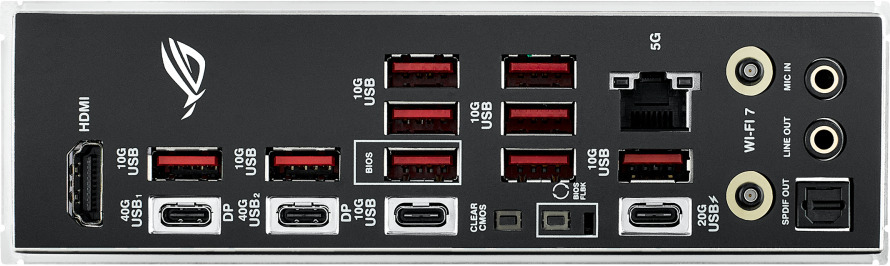

Rear panel connectors:

• 2 x USB4 (40Gbps) ports (2 x USB Type-C)
• 1 x USB 20Gbps port (1 x USB Type-C with up to 30W PD Fast-charge)
• 10 x USB 10Gbps ports (9 x Type-A + 1 x USB Type-C)
• 1 x HDMI port
• 1 x Wi-Fi Module
• 1 x Realtek 5Gb Ethernet
• 2 x Gold-plated audio jacks
• 1 x Optical S/PDIF out port
• 1 x BIOS FlashBack button
• 1 x Clear CMOS button

Internal connectors:

• Fan and Cooling related
  1 x 4-pin CPU Fan header
  1 x 4-pin CPU OPT Fan header
  1 x 4-pin AIO Pump header
  5 x 4-pin Chassis Fan headers
• Power related
  1 x 24-pin Main Power connector
  2 x 8-pin +12V CPU Power connectors
• Storage related
  5 x M.2 slots (Key M)
  4 x SATA 6Gb/s ports
• USB
  2 x USB 20Gbps connectors (support USB Type-C)
  2 x USB 5Gbps headers support 4 additional USB 5Gbps ports
  3 x USB 2.0 headers support 6 additional USB 2.0 ports
• Miscellaneous
  3 x Addressable Gen 2 headers
  1 x CPU Over Voltage jumper
  1 x FlexKey button
  1 x Front Panel Audio header (F_AUDIO)
  1 x Start button
  1 x 10-1 pin System Panel header
  1 x Thermal Sensor header
