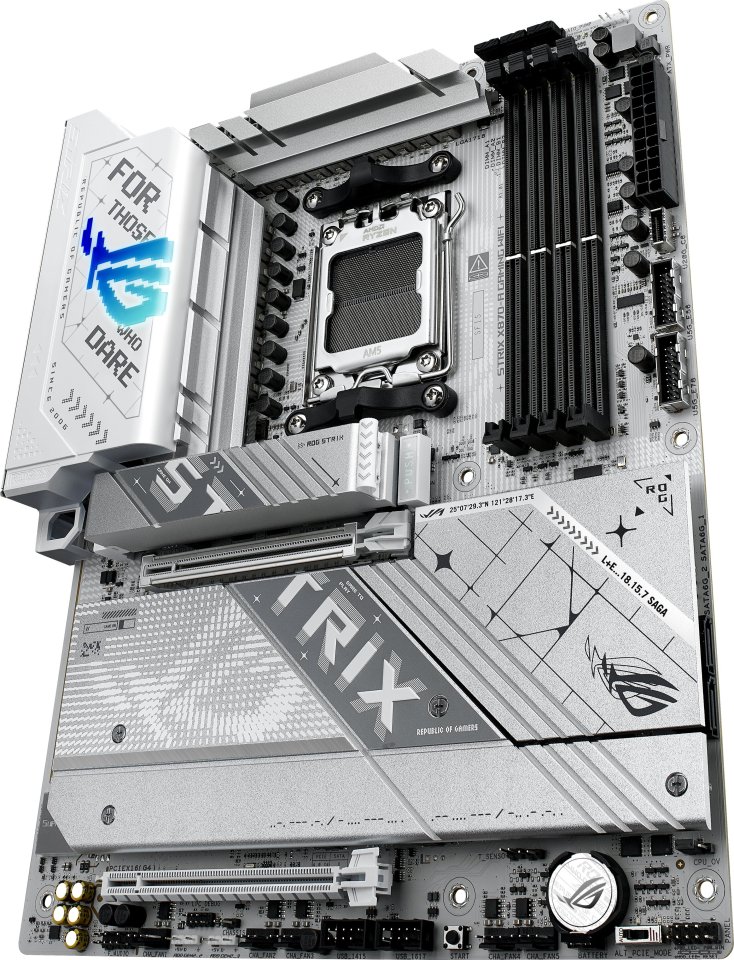

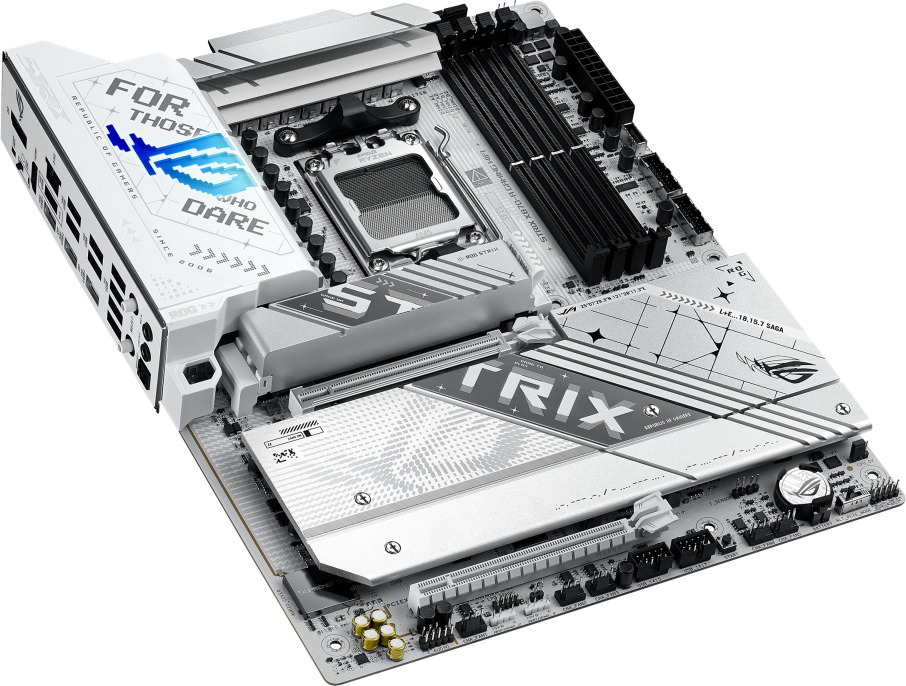

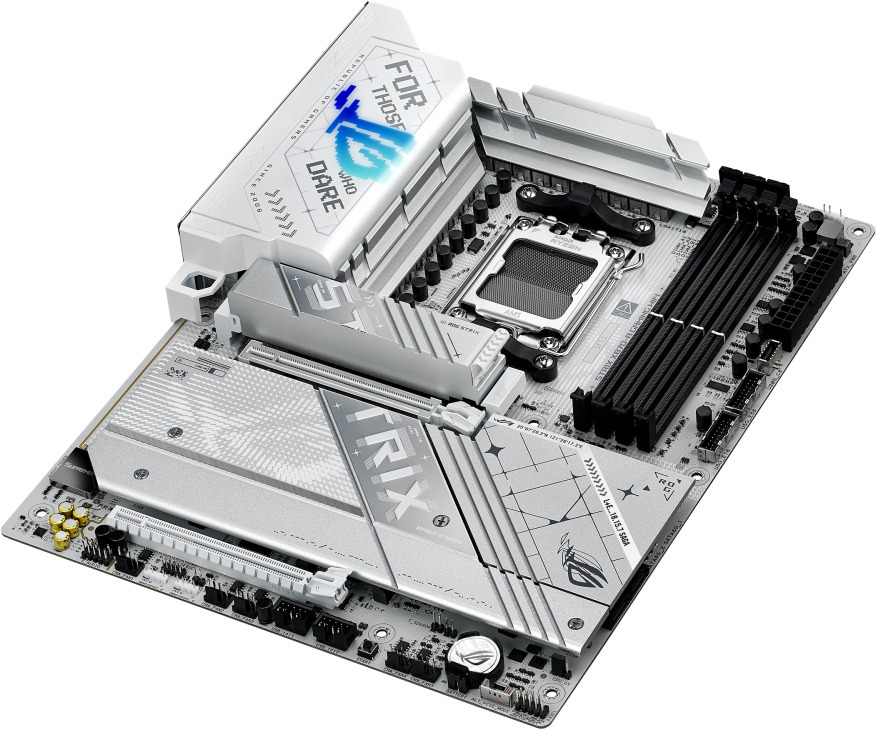

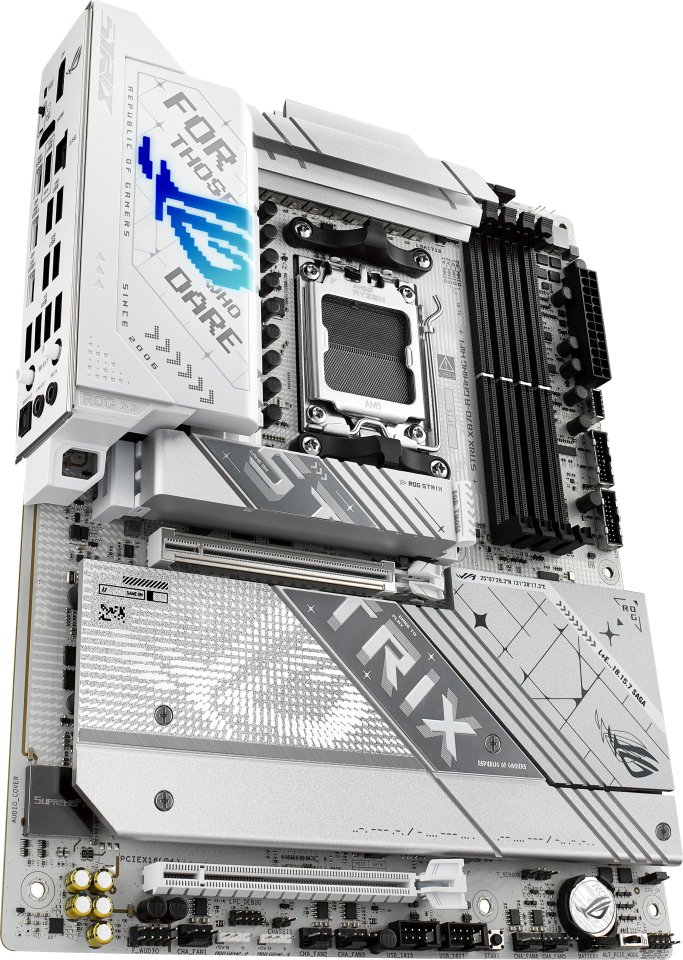

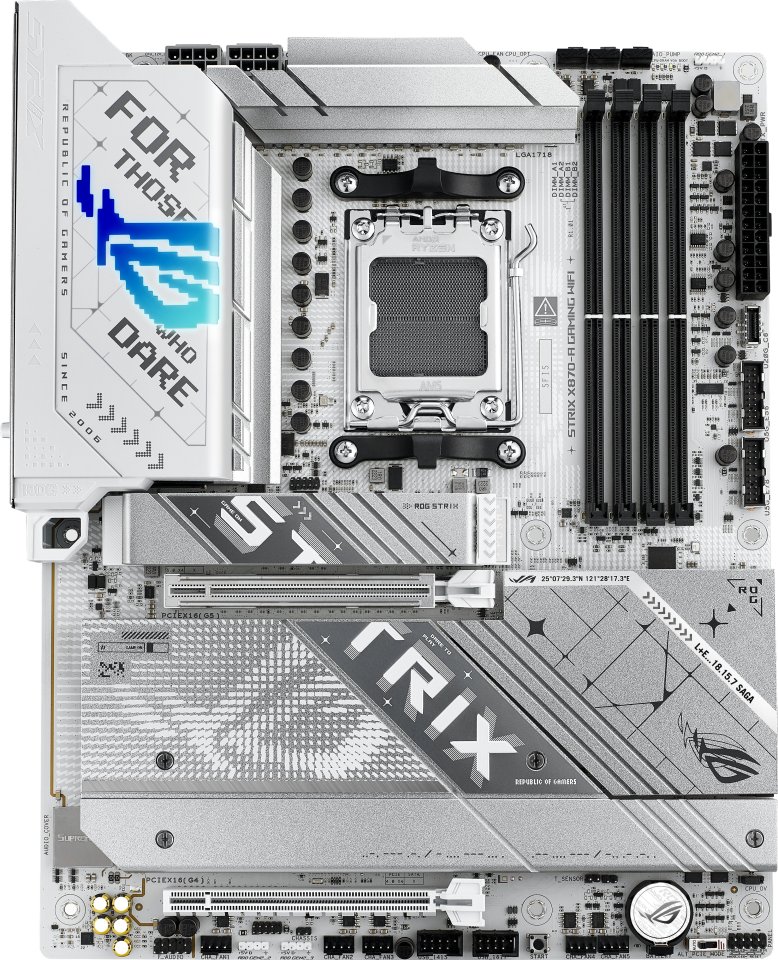

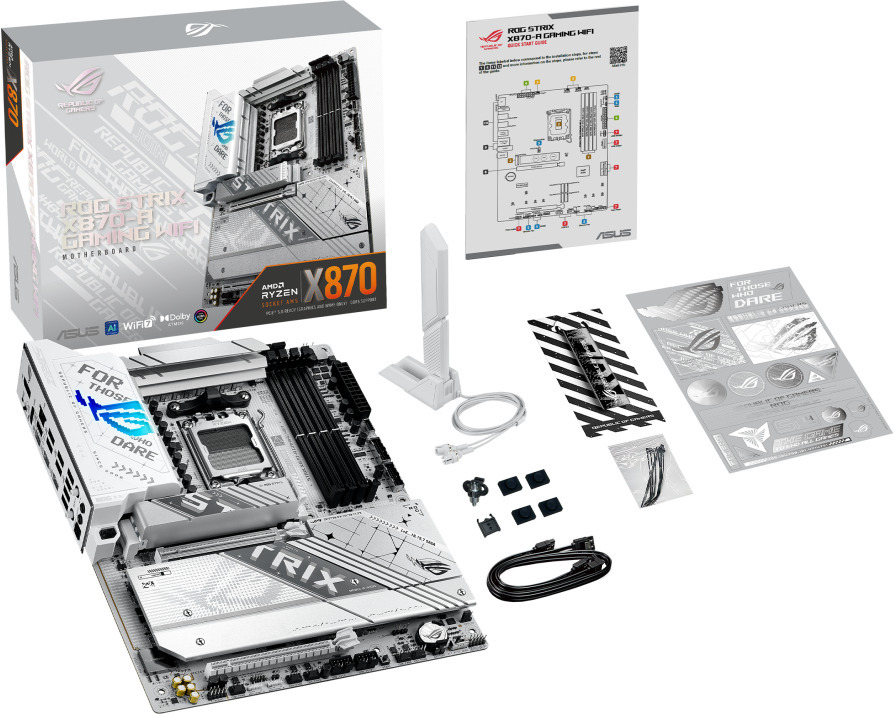

ROG Strix X870-A Gaming WiFi is designed to maximize the performance of AMD Ryzen 9000 series processors. Advanced power circuit design and AI solutions ensure top-tier efficiency. Additionally, two USB4 ports, WiFi 7, and fast DDR5 memory slots provide excellent connectivity. This motherboard combines the power and speed essential for both high-end gaming and demanding AI PC applications.

16+2+2 power stages guarantee smooth and efficient power distribution, especially for overclocking.

AI Networking II and AI Overclocking make performance optimization easy, offering automatic enhancements and real-time performance tuning.

AI Cooling II and one-click fan control ensure quiet and optimized cooling with a single click, keeping the system cool even under heavy loads.

DDR5 memory support allows installation of up to 192 GB of memory on the motherboard, and AEMP profiles help utilize the full potential of the memory modules.

PCIe Gen 5 support provides maximum storage speed and hardware expansion options.

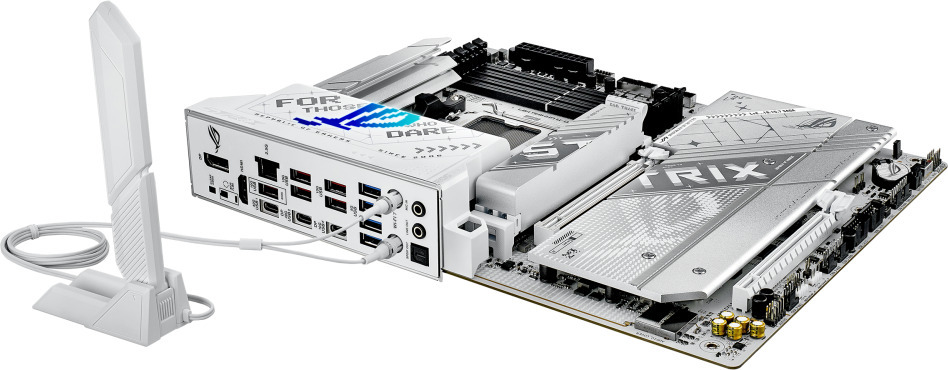

WiFi 7 ensures lightning-fast wireless connections.

USB4 ports offer next-generation data transfer speeds.

Features:

• Chipset: AMD X870
• Processor socket: AM5
• Processor support: AMD Ryzen 7000 / 8000 / 9000 series
• Motherboard size: ATX (12 in x 9.6 in)
• Memory slots (pcs): 4
• Memory type: DDR5 (8000+ MT/s (overclocked) with Ryzen 9000, 8000, and 7000 series processors), ECC, Non-ECC, Un-buffered, Dual Channel
• Maximum memory capacity (GB): 192
• Network interfaces: 1 x Intel 2.5Gb Ethernet, 2×2 Wi-Fi 7 (802.11be), Bluetooth v5.4
• Sound card: ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4082

Expansion slots:

• AMD Ryzen 9000 & 7000 series processors
  1 x PCIe 5.0 x16 slot (supports x16 mode)
• AMD Ryzen 8000 series processors
  1 x PCIe 4.0 x16 slot (supports x8/x4 mode)
• AMD X870 Chipset
  1 x PCIe 4.0 x16 slot (supports x4 mode)

Storage connections:

• 2 x SATA 6Gb/s ports
• AMD Ryzen 9000 & 7000 series processors
  M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
  M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode)
• AMD Ryzen 8000 series processors
  M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4/x2 mode)
  M.2_2 slot (Key M), type 2242/2260/2280/22110 (not supported)
• AMD X870E Chipset
  M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
  M.2_4 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)

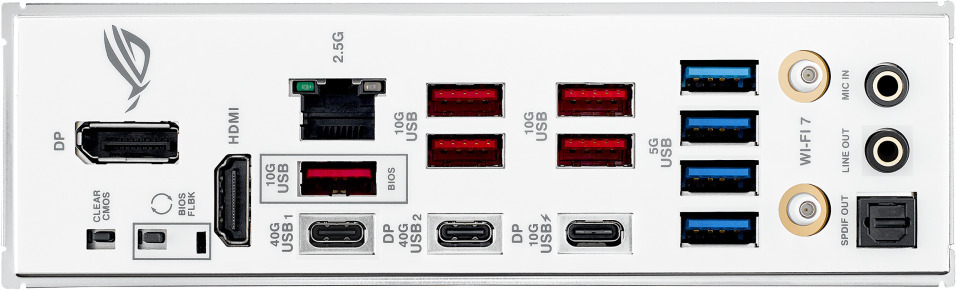

Rear panel connections:

• 2 x USB4 (40Gbps) ports (2 x USB Type-C with DP Alt mode)
• 6 x USB 10Gbps ports (5 x Type-A + 1 x USB Type-C with up to 30W PD Fast-charge)
• 4 x USB 5Gbps ports (4 x Type-A)
• 1 x DisplayPort
• 1 x HDMI port
• 1 x Wi-Fi module
• 1 x Intel 2.5Gb Ethernet
• 2 x Audio jacks
• 1 x Optical S/PDIF out port
• 1 x BIOS FlashBack button
• 1 x Clear CMOS button

Internal connections:

• Fan and Cooling related
  1 x 4-pin CPU Fan header
  1 x 4-pin CPU OPT Fan header
  1 x 4-pin AIO Pump header
  5 x 4-pin Chassis Fan headers
• Power related
  1 x 24-pin Main Power connector
  2 x 8-pin +12V CPU Power connectors
• Storage related
  4 x M.2 slots (Key M)
  2 x SATA 6Gb/s ports
• USB
  1 x USB 20Gbps connector (supports USB Type-C)
  2 x USB 5Gbps headers support 4 additional USB 5Gbps ports
  2 x USB 2.0 headers support 4 additional USB 2.0 ports
• Miscellaneous
  3 x Addressable Gen 2 headers
  1 x Alteration PCIe mode switch
  1 x Chassis Intrusion header
  1 x CPU Over voltage jumper
  1 x Front Panel Audio header (F_AUDIO)
  1 x Start button
  1 x 10-1 pin System Panel header
  1 x Thermal Sensor header
