| Color | White |
|---|---|
| Country of Origin | China |
| PID | 973883 |
| Product depth (mm) | 244 |
| Product height (mm) | 50 |
| Product weight (g) | 1 |
| Product width (mm) | 244 |
| Bluetooth | Yes |
| Bluetooth version | 5.4 |
| WiFi | Yes |
| Wireless network standard | Wi-Fi 7 (802.11be) |
| Motherboard Chipset | Intel B860 |
| Motherboard form factor | Micro-ATX |
| Processor Socket | LGA 1851 |
| Maximum supported memory (Gt) | 256 |
| Number of RAM slots | 4 |
| Supported RAM | DDR5 |
| Manufacturer address | Torshamnsgatan 35 164 40 Kista, Sweden |
| Manufacturer's email address | https://www.asus.com/content/asus-product-security-advisory/ |
| Manufacturer name | Asus Nordic AB |
ASUS ROG STRIX B860-G GAMING WIFI is a powerful and versatile micro-ATX motherboard designed to support Intel Core Ultra processors (2nd generation). It delivers excellent performance with its 12+1+1 power stage design, where each phase can handle up to 60A of power. DDR5 memory support allows speeds up to 9066 MT/s (OC), providing smooth multitasking and fast system responsiveness. Thanks to its compact size, this motherboard is ideal for smaller cases without compromising on features.

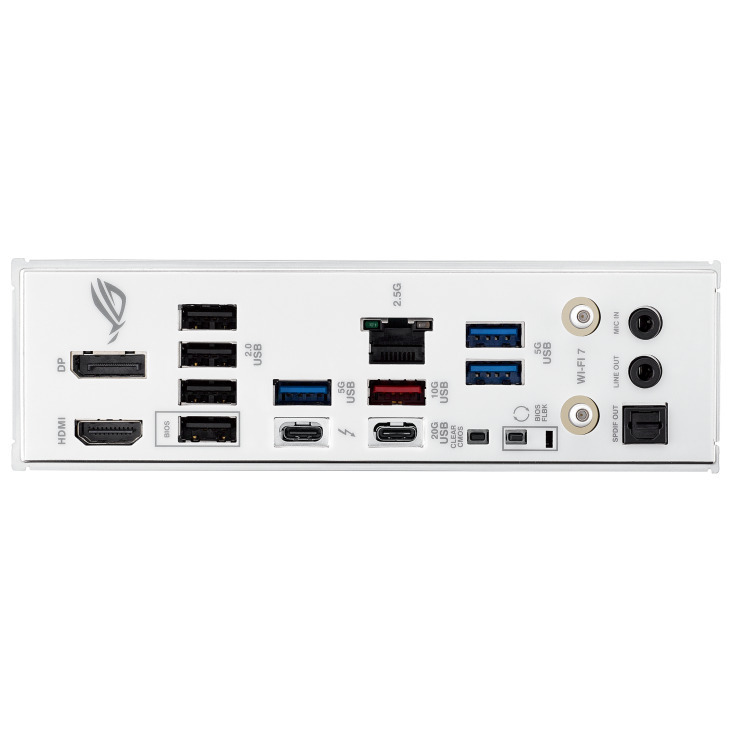

Connectivity options are top-notch, featuring WIFI 7 and an Intel 2.5Gb Ethernet port for fast and stable network connections. The motherboard supports one PCIe 5.0 x16 slot and two PCIe 4.0 x4 M.2 connectors, enabling the use of fast storage solutions and powerful graphics cards. A USB 3.2 Gen 2×2 Type-C port and Thunderbolt 4 support add expansion possibilities, while DIY-friendly design elements like Q-Latch and Q-LED features make assembly easy and convenient.
Cooling is optimized for intensive use, including VRM and M.2 heatsinks, as well as fan and AIO pump headers. The SupremeFX audio solution delivers immersive sound for gaming and entertainment. The ROG STRIX B860-G GAMING WIFI combines cutting-edge technology and gamer-focused features, making it an excellent choice for a high-performance and reliable gaming system.
Technical specifications:
ASUS ROG STRIX B860-G GAMING WIFI is a powerful and versatile micro-ATX motherboard designed to support Intel Core Ultra processors (2nd generation). It delivers excellent performance with its 12+1+1 power stage design, where each phase can handle up to 60A of power. DDR5 memory support allows speeds up to 9066 MT/s (OC), providing smooth multitasking and fast system responsiveness. Thanks to its compact size, this motherboard is ideal for smaller cases without compromising on features.
Connectivity options are top-notch, featuring WIFI 7 and an Intel 2.5Gb Ethernet port for fast and stable network connections. The motherboard supports one PCIe 5.0 x16 slot and two PCIe 4.0 x4 M.2 connectors, enabling the use of fast storage solutions and powerful graphics cards. A USB 3.2 Gen 2x2 Type-C port and Thunderbolt 4 support add expansion possibilities, while DIY-friendly design elements like Q-Latch and Q-LED features make assembly easy and convenient.
Cooling is optimized for intensive use, including VRM and M.2 heatsinks, as well as fan and AIO pump headers. The SupremeFX audio solution delivers immersive sound for gaming and entertainment. The ROG STRIX B860-G GAMING WIFI combines cutting-edge technology and gamer-focused features, making it an excellent choice for a high-performance and reliable gaming system.
