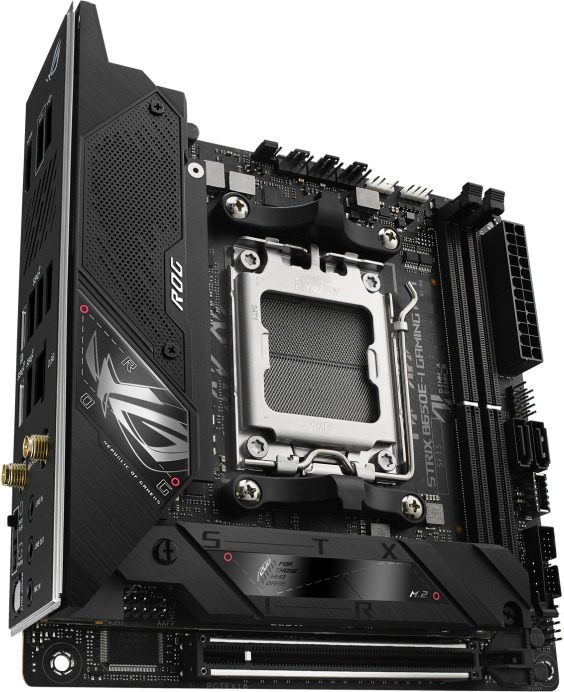

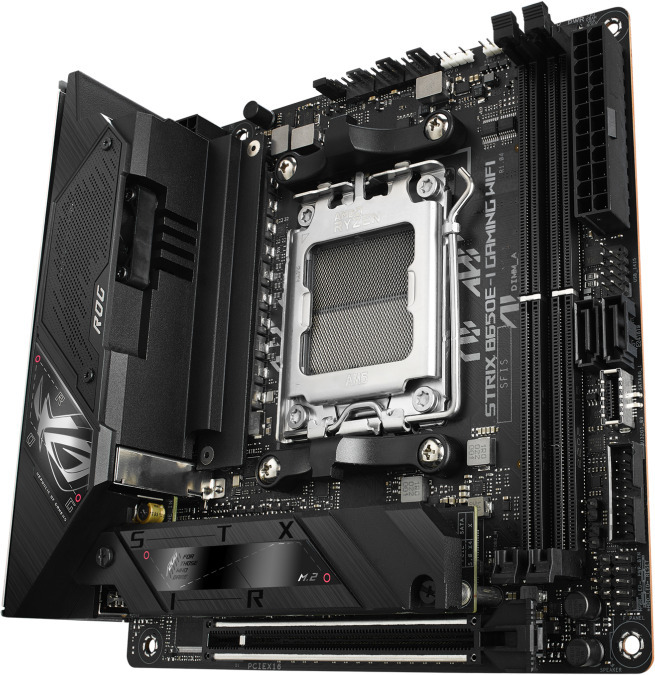

ASUS ROG STRIX B650E-I GAMING WIFI is an AM5 socket mITX gaming motherboard for Ryzen 7000 series processors, featuring PCIe 5.0, two M.2 slots, 2.5 Gb Intel LAN, WiFi 6E, DDR5 memory support, 10+2 power stages, and plenty of connectivity options for various needs, not to mention Asus Aura Sync RGB support.

Don’t be fooled by its small size—Strix B650E-I delivers impressive performance! It is equipped with a powerful VRM and DDR, as well as PCIe 5, making it the perfect companion for Ryzen 7000, especially in smaller SFF builds.

Fully compliant with the new standard, Strix B650E-I offers end-to-end PCIe 5.0 support, providing unlimited bandwidth for the fastest SSDs and graphics cards. The x16 expansion slot is Gen 5 ready and protected by a SafeSlot bracket. The built-in M.2 slot is also geared for PCIe 5.0, enabling incredible 16 GB/s read and write speeds, while the other slot offers 8 GB/s transfers via PCIe 4.0 connection.

Features:

• Chipset: AMD B650
• Processor socket: AM5
• Processor support: AMD Ryzen 7000 series
• Motherboard size: Mini ITX
• Memory slots (pcs): 2
• Memory type: DDR5
• Maximum memory capacity (GB): 64
• Network connections: 2.5 Gb Intel LAN, Wi-Fi 6E (802.11a/b/g/n/ac/ax) 2×2 Dual Band, Bluetooth v5.2
• Sound card: ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080
• Dimensions: 17 x 17 cm

Expansion slots:

• AMD Ryzen 7000: 1 x PCIe 5.0 x16 slot

Graphics:

• 1 x USB 3.2 Gen 2 port supports USB Type-C display outputs
• 1 x HDMI, max 4K 60Hz

Storage connections:

• 2 x SATA 6 Gb/s ports
• 2 x M.2 slots
• AMD Ryzen 7000: M.2_1 slot (Key M) type 2242/2260/2280 (supports PCIe 5.0 x4 mode), M.2_2 slot (Key M) type 2242/2260/2280 (supports PCIe 4.0 x4 mode)

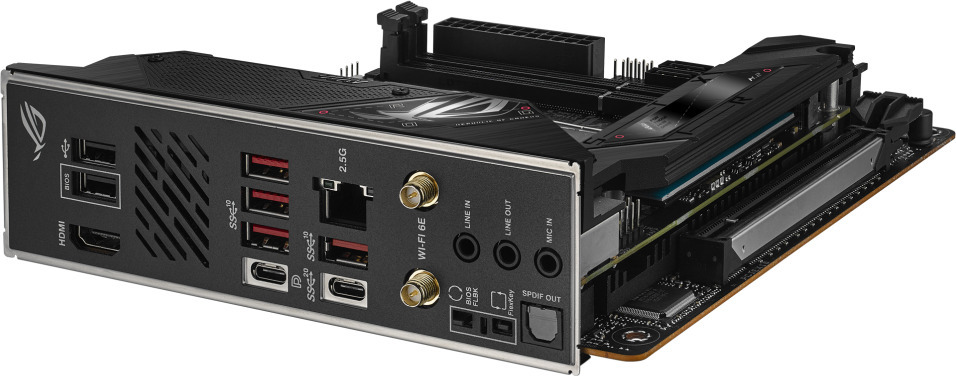

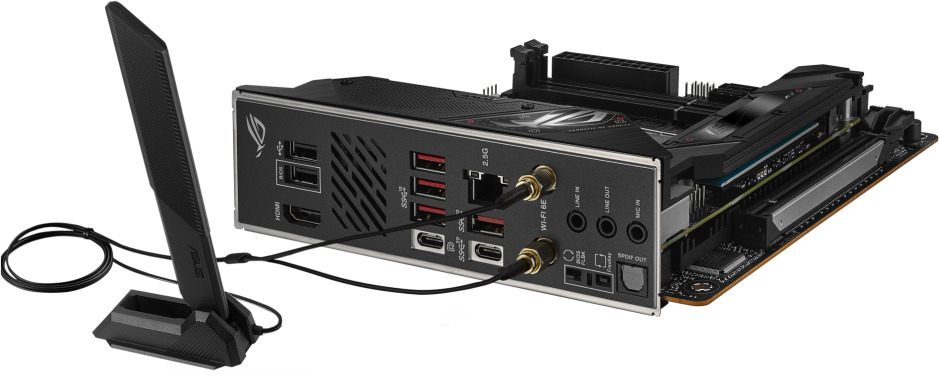

Rear panel connections:

• 1 x USB 3.2 Gen 2×2 port (1 x USB Type-C)
• 5 x USB 3.2 Gen 2 ports (4 x Type-A, 1 x USB Type-C)
• 2 x USB 2.0 ports
• 1 x HDMI port
• 1 x Wi-Fi Module
• 1 x Intel 2.5 Gb Ethernet port
• 3 x audio jacks
• 1 x Optical S/PDIF out port
• 1 x BIOS FlashBack button
• 1 x FlexKey button

Internal connections:

• Fan and Cooling related
• 1 x 4-pin CPU Fan header(s)
• 1 x 4-pin AIO Pump header
• 1 x 4-pin Chassis Fan headers
• Power related
• 1 x 24-pin Main Power connector
• 1 x 8-pin +12V Power connector
• Storage related
• 2 x M.2 slots (Key M)
• 2 x SATA 6 Gb/s ports
• USB
• 1 x USB 3.2 Gen 2 connector
• 1 x USB 3.2 Gen 1 headers support additional 2 USB 3.2 Gen 1 ports
• 1 x USB 2.0 headers support additional 2 USB 2.0 ports
• Miscellaneous
• 1 x Addressable Gen 2 header
• 1 x Aura RGB header
• 1 x Clear CMOS header
• 1 x CPU Over Voltage jumper
• 1 x 12-1 pin Front Panel Audio header (AAFP)
• 1 x 10-1 pin System Panel header
• 1 x Speaker header
• 1 x Thermal Sensor header
