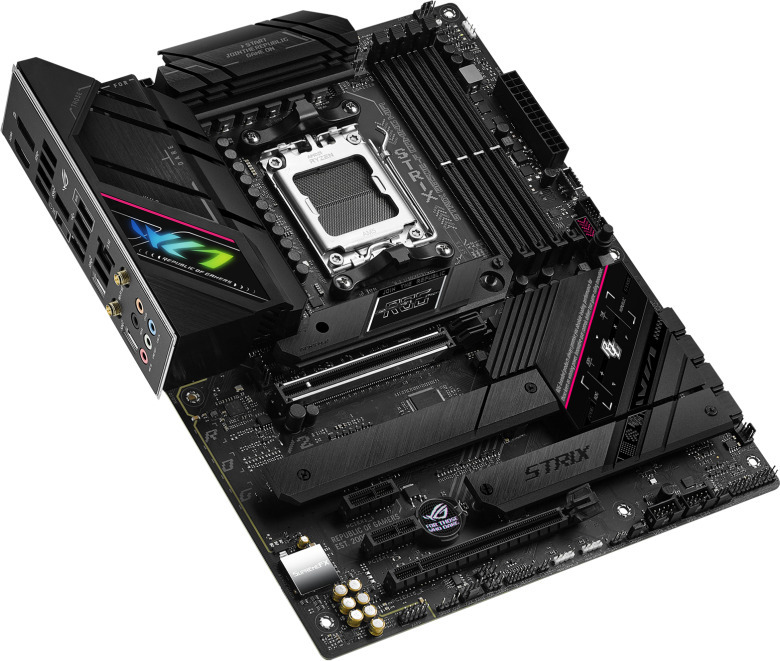

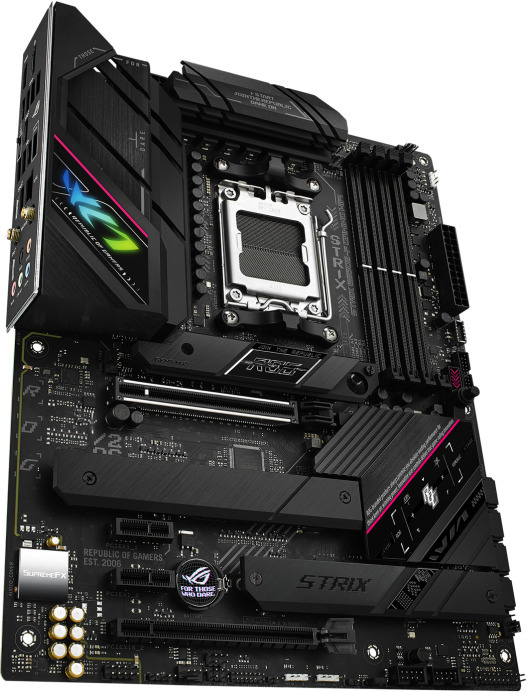

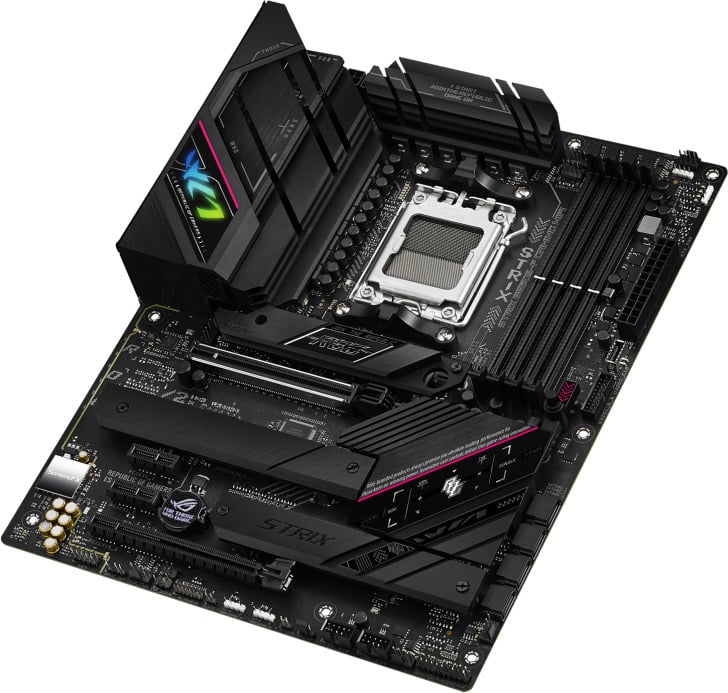

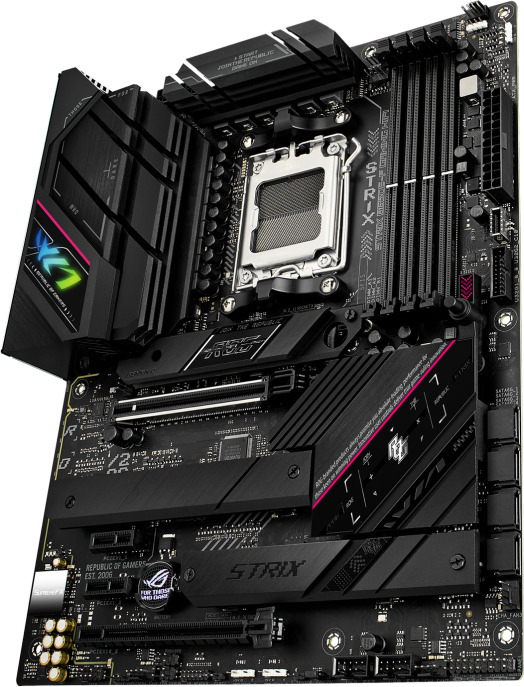

ASUS ROG STRIX B650E-F GAMING WIFI is an AM5 socket ATX gaming motherboard for Ryzen 7000 series processors, featuring PCIe 5.0, three M.2 slots, 2.5 Gb Intel LAN, WiFi 6E, DDR5 memory support, 12+2 power stages, and plenty of connectivity options for various needs, not to mention Asus Aura Sync RGB support.

This beast is the heart of the next build for any PC builder. The incredible speed of PCIe 5.0 and WiFi 6E, efficient cooling with internal heatsinks, and advanced power delivery design tailored for the latest Ryzen processors make the ROG Strix B650E-F outclass its competitors. Take advantage of future-proof storage and graphics performance with PCIe 5.0 and two PCIe 4.0 M.2 slots, all equipped with robust heatsinks, plus a PCIe 5.0 x16 slot featuring SafeSlot for enhanced durability and Q-Release for easy upgrades.

The dark aesthetic is highlighted by strong brand-specific details and a logo that glows with fully customizable RGB lighting. The combination of form and function is exemplified by the I/O shield, which allows additional airflow through the underlying VRM cooling channels. Pair the Strix B650E-F with other versatile products from the ROG ecosystem to create a fully customized gaming rig that reflects each user’s personal style.

Features:

• Chipset: AMD B650
• Processor socket: AM5
• Processor support: AMD Ryzen 7000 series
• Motherboard size: ATX
• Memory slots (pcs): 4
• Memory type: DDR5
• Maximum memory (GB): 128

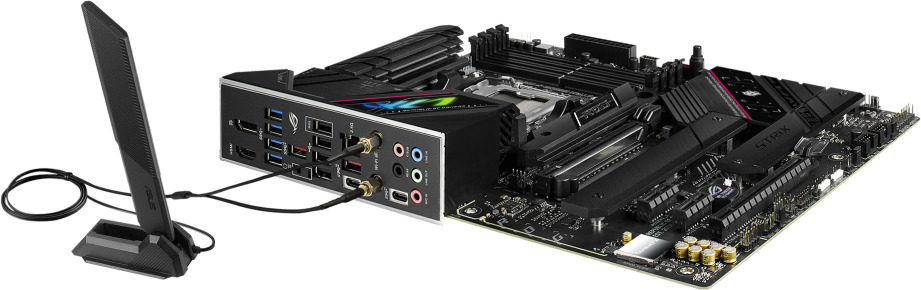

• Network connections: 2.5 Gb Intel LAN, Wi-Fi 6E (802.11a/b/g/n/ac/ax) 2×2 Dual Band, Bluetooth v5.2
• Sound card: ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080
• Dimensions: 30.5 x 24.4 cm

Expansion slots:

• AMD Ryzen 7000: 1 x PCIe 5.0 x16 slot
• AMD B650 Chipset: 1 x PCIe 4.0 x16 slot (supports x4 mode), 2 x PCIe 4.0/3.0 x1

Graphics:

• 1 x DisplayPort, max 8K 60 Hz
• 1 x HDMI, max 4K 60 Hz

Storage connections:

• 4 x SATA 6 Gb/s ports
• 3 x M.2 slots
• AMD Ryzen 7000: M.2_1 slot (Key M) type 2242/2260/2280 (supports PCIe 5.0 x4 mode), M.2_2 slot (Key M) type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
• AMD B650 Chipset: M.2_4 slot (Key M) type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)

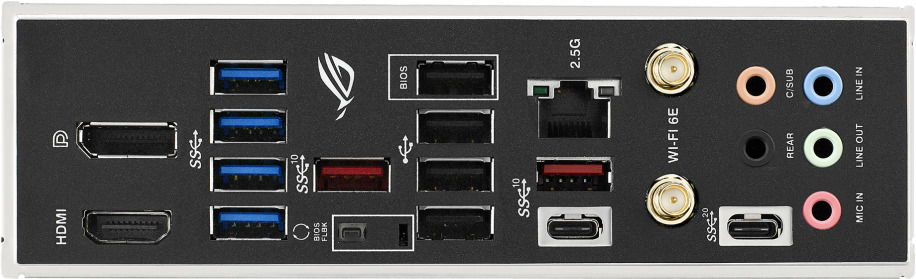

Rear panel connections:

• 1 x USB 3.2 Gen 2×2 port (1 x USB Type-C)
• 3 x USB 3.2 Gen 2 ports (2 x Type-A, 1 x USB Type-C)
• 4 x USB 3.2 Gen 1 ports (4 x Type-A)
• 4 x USB 2.0 ports
• 1 x DisplayPort
• 1 x HDMI port
• 1 x Wi-Fi Module
• 1 x Intel 2.5 Gb Ethernet port
• 5 x audio jacks
• 1 x BIOS FlashBack button

Internal connections:

• Fan and Cooling related
• 1 x 4-pin CPU Fan header(s)
• 1 x 4-pin CPU OPT Fan header(s)
• 1 x 4-pin AIO Pump header
• 4 x 4-pin Chassis Fan headers
• Power related
• 1 x 24-pin Main Power connector
• 1 x 8-pin +12V Power connector
• 1 x 4-pin +12V Power connector
• Storage related
• 3 x M.2 slots (Key M)
• 4 x SATA 6 Gb/s ports
• USB
• 1 x USB 3.2 Gen 2×2 connector (supports USB Type-C)
• 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
• 2 x USB 2.0 headers support additional 4 USB 2.0 ports
• Miscellaneous
• 3 x Addressable Gen 2 headers
• 1 x Aura RGB header
• 1 x Clear CMOS header
• 1 x CPU Over Voltage jumper
• 1 x Front Panel Audio header (AAFP)
• 1 x S/PDIF Out header
• 1 x 20-3 pin System Panel header with Chassis intrude function
• 1 x Thermal Sensor header
• 1 x Thunderbolt header
• 1 x COM_DEBUG header
