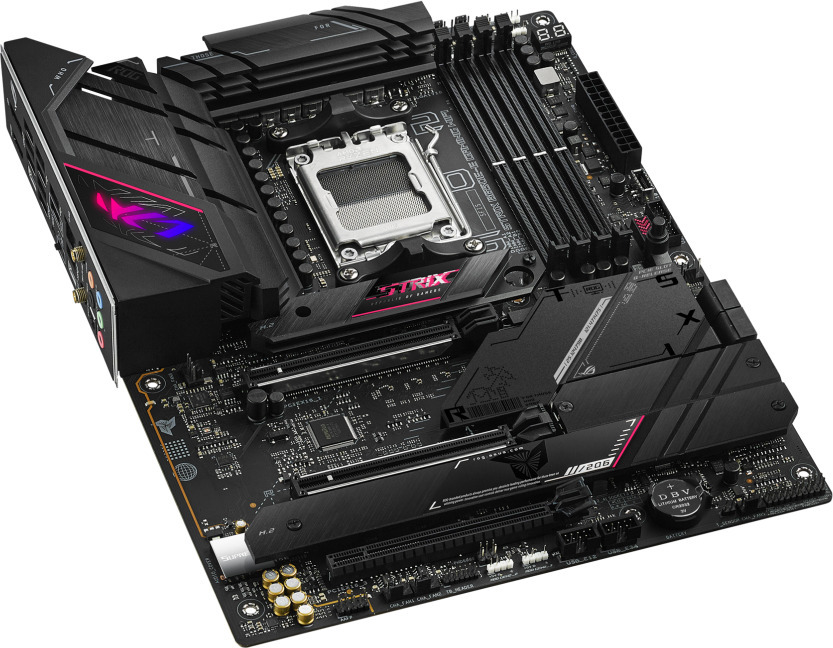

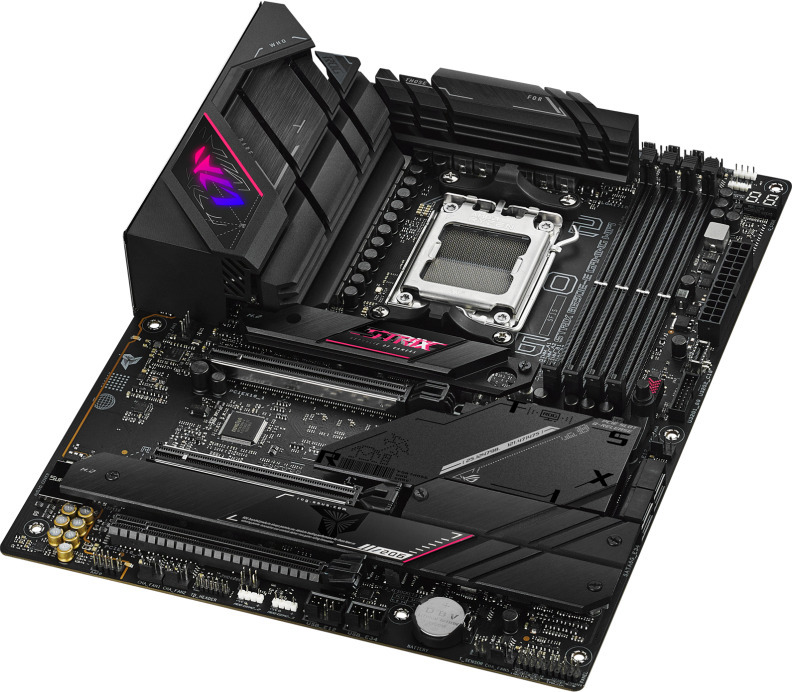

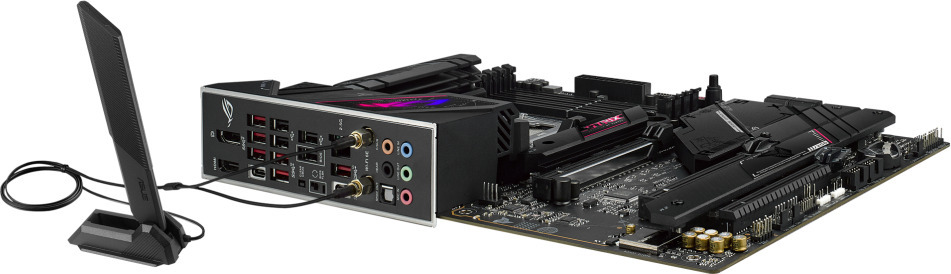

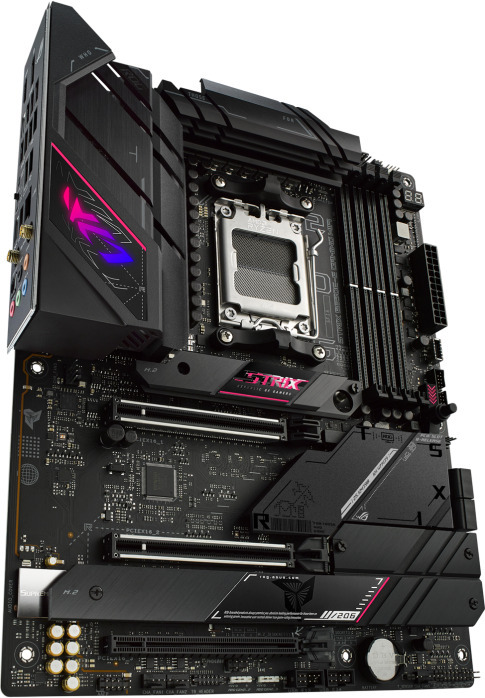

ASUS ROG STRIX B650E-E GAMING WIFI is an AM5-socket ATX gaming motherboard for Ryzen 7000 series processors, featuring PCIe 5.0, four M.2 slots, 2.5 Gb Intel LAN, WiFi 6E, DDR5 memory support, 16+2 power stages, and plenty of connectivity options for various needs, not to mention Asus Aura Sync RGB support.

Take your build from B-class to S-class with the Strix B650E-E! PCIe 5.0 and DDR5 bring your hardware into the future, and innovative Q-Design features make system installation easy. All these benefits are supported by a robust power solution, cooling elements, and exclusive overclocking technologies that take Ryzen 7000 series processors to the next level.

The Strix B650E-E offers extensive PCIe 5.0 support, providing unlimited bandwidth for the fastest SSDs and graphics cards. Both x16 expansion slots are Gen 5 ready and protected with SafeSlot brackets. Two of the internal M.2 slots are capable of 16 Gb/s read and write speeds thanks to PCIe 5.0 connections, while the 4.0 slot offers 8 Gb/s transfer speed. All M.2 slots are also equipped with cooling elements.

Features:

• Chipset: AMD B650
• Processor Socket: AM5
• Processor Support: AMD Ryzen 7000 series
• Motherboard Size: ATX
• Memory Slots: 4
• Memory Type: DDR5
• Maximum Memory (GB): 128
• Network Connections: 2.5 Gb Intel LAN, Wi-Fi 6E (802.11a/b/g/n/ac/ax) 2×2 Dual Band, Bluetooth v5.2
• Sound Card: ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080
• Dimensions: 30.5 x 24.4 cm

Expansion Slots:

• AMD Ryzen 7000: 2 x PCIe 5.0 x16 slots
• AMD B650 Chipset: 1 x PCIe 4.0 x16 slot

Graphics:

• 1 x DisplayPort, max 8K 60 Hz
• 1 x HDMI, max 4K 60 Hz

Storage Connections:

• 4 x SATA 6 Gb/s ports
• 4 x M.2 slots
• AMD Ryzen 7000: M.2_1 slot (Key M) type 2242/2260/2280 (supports PCIe 5.0 x4 mode), M.2_2 slot (Key M) type 2242/2260/2280 (supports PCIe 4.0 x4 mode), M.2_3 slot (Key M) type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode)
• AMD B650 Chipset: M.2_4 slot (Key M) type 2242/2260/2280 (supports PCIe 4.0 x4 mode)

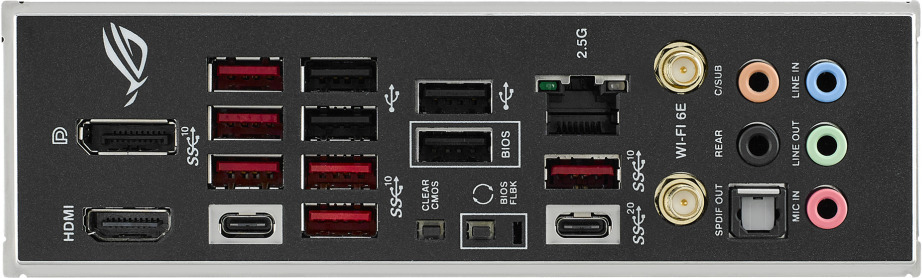

Rear Panel Connections:

• 1 x USB 3.2 Gen 2×2 port (1 x USB Type-C)
• 7 x USB 3.2 Gen 2 ports (6 x Type-A, 1 x USB Type-C)
• 4 x USB 2.0 ports
• 1 x DisplayPort
• 1 x HDMI port
• 1 x Wi-Fi Module
• 1 x Intel 2.5 Gb Ethernet port
• 5 x audio jacks
• 1 x Optical S/PDIF out port
• 1 x BIOS FlashBack button
• 1 x Clear CMOS button

Internal Connections:

• Fan and Cooling related
• 1 x 4-pin CPU Fan header(s)
• 1 x 4-pin CPU OPT Fan header(s)
• 1 x 4-pin AIO Pump header
• 5 x 4-pin Chassis Fan headers
• Power related
• 1 x 24-pin Main Power connector
• 2 x 8-pin +12V Power connectors
• Storage related
• 4 x M.2 slots (Key M)
• 4 x SATA 6 Gb/s ports
• USB
• 1 x USB 3.2 Gen 2×2 connector (supports USB Type-C)
• 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
• 2 x USB 2.0 headers support additional 4 USB 2.0 ports
• Miscellaneous
• 3 x Addressable Gen 2 headers
• 1 x Aura RGB header
• 1 x CPU Over Voltage jumper
• 1 x Front Panel Audio header (AAFP)
• 1 x 20-3 pin System Panel header with Chassis intrude function
• 1 x Thermal Sensor header
• 1 x Thunderbolt header
