| Country of Origin | China |
|---|---|
| PID | 1035710 |
| Product depth (mm) | 244 |
| Product height (mm) | 57 |
| Product weight (g) | 2 622 |
| Product width (mm) | 305 |
| Bluetooth | Yes |
| Bluetooth version | 5.4 |
| WiFi | Yes |
| Wireless network standard | Wi-Fi 7 (802.11be) |
| Motherboard Chipset | AMD X870E |
| Motherboard form factor | ATX |
| Processor Socket | AM5 |
| Maximum supported memory (Gt) | 256 |
| Number of RAM slots | 4 |
| Supported RAM | DDR5 |
| Manufacturer address | "Torshamnsgatan 35, 164 40 Kista, Sweden " |
| Manufacturer's email address | https://www.asus.com/content/asus-product-security-advisory/ |
| Manufacturer name | Asus Nordic AB |

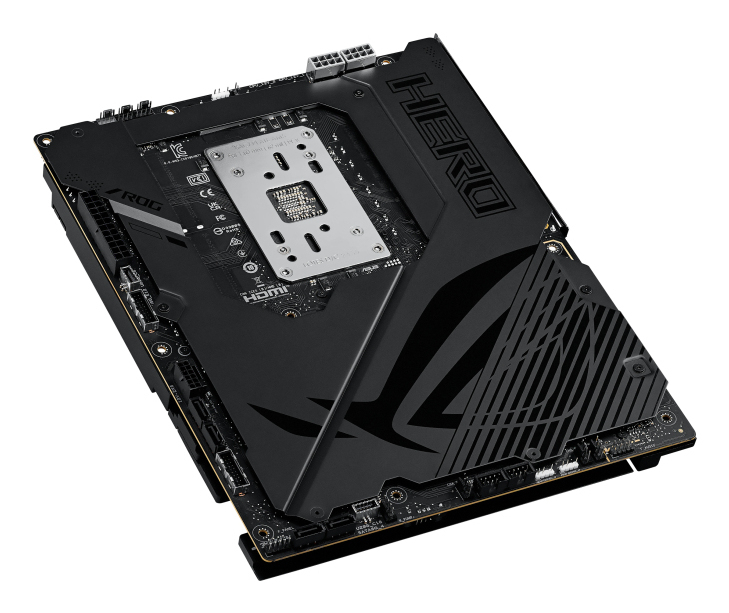

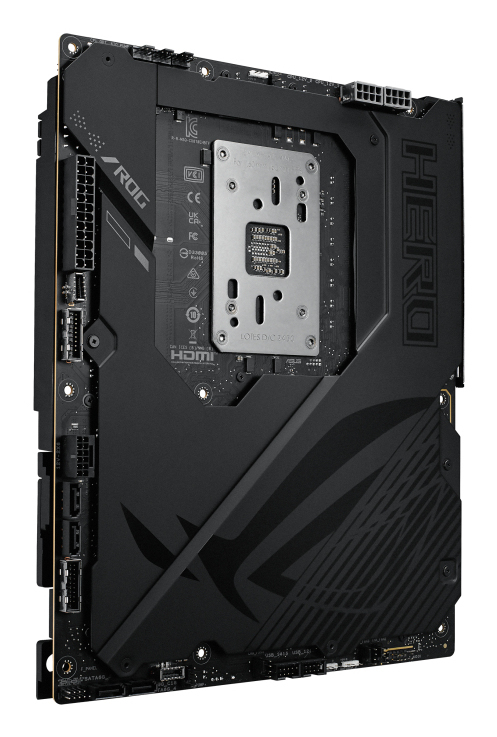

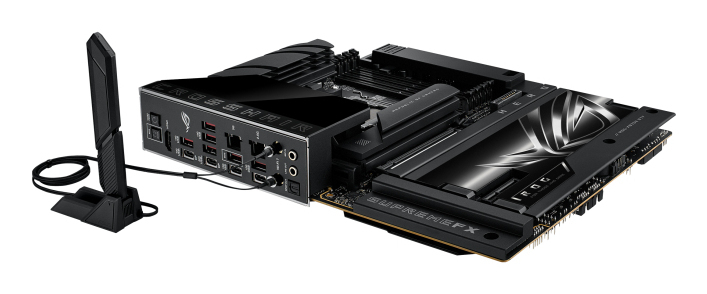

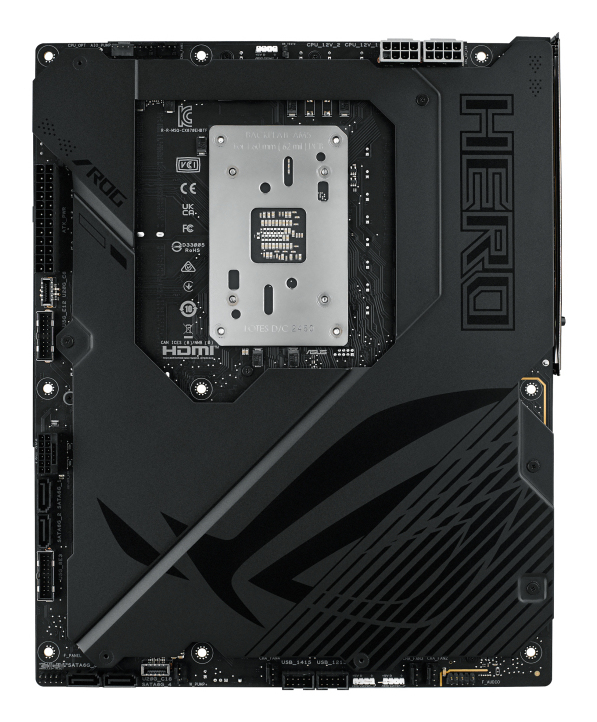

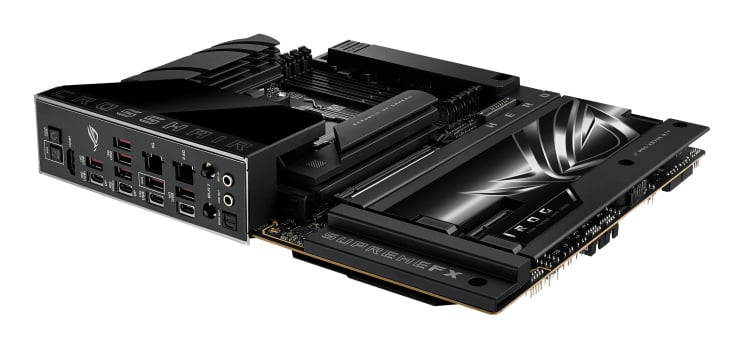

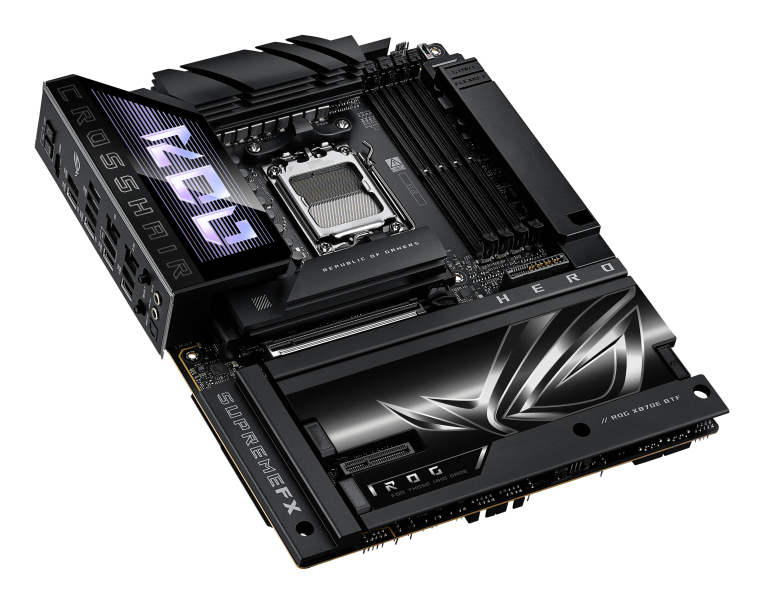

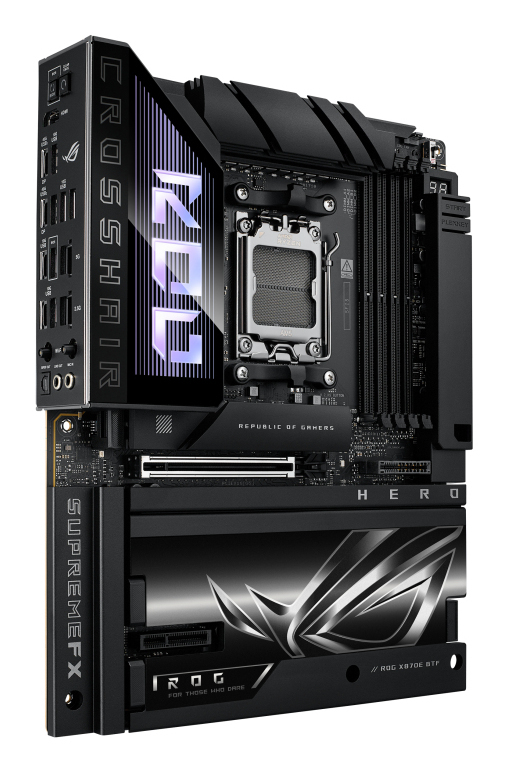

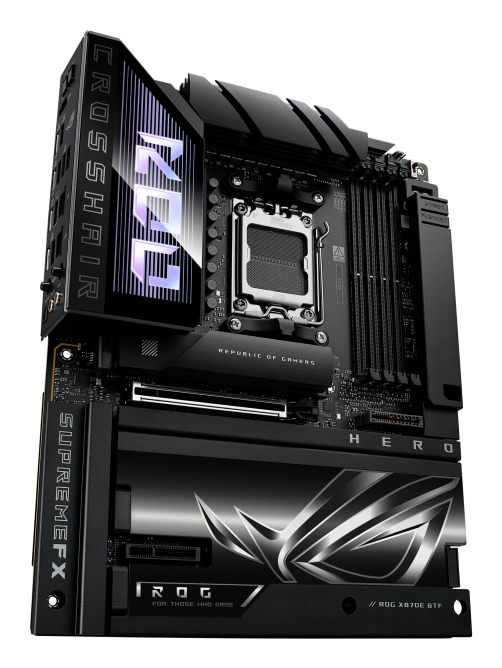

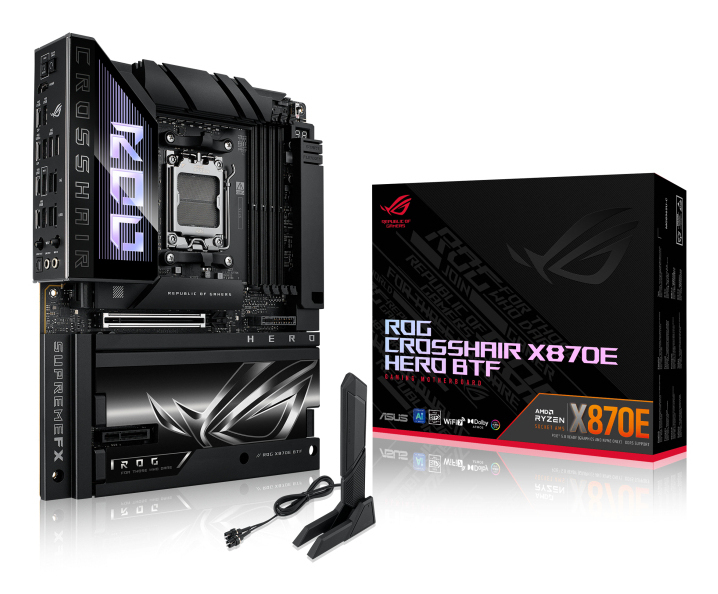

The ASUS ROG CROSSHAIR X870E HERO BTF is a powerful ATX-sized motherboard designed for AMD Ryzen 7000, 8000, and 9000 series processors with the AM5 socket. It offers extensive support for DDR5 memory and versatile connectivity and storage solutions, making it suitable for demanding gaming and versatile PC building.
The motherboard supports AMD’s latest Ryzen 7000, 8000, and 9000 series processors with the AM5 socket, providing powerful performance. DDR5 SDRAM support allows for up to 256 GB of memory using four DIMM slots, dual-channel architecture, and clock speeds up to 8600 MHz. The motherboard supports both ECC and Non-ECC memory, enhancing stability and performance for various use cases.
The ROG CROSSHAIR X870E HERO BTF offers versatile storage options, including five M.2 slots and four SATA III connectors, supporting both SSD and HDD drives. RAID support at levels 0, 1, 5, and 10 ensures flexible and high-performance storage solutions. A PCI Express x4 slot (generation 4.x) provides fast expansion options for additional cards.

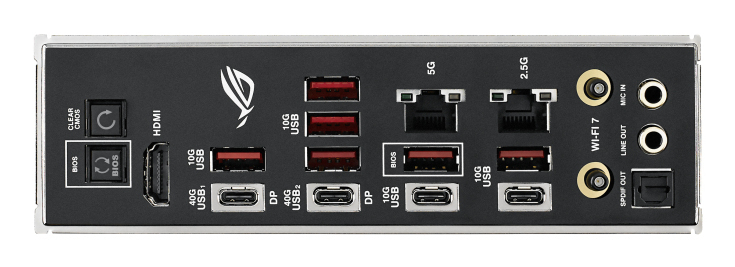

The motherboard features comprehensive connectivity, such as two USB 3.2 Gen 2×2 ports, six USB 3.2 Gen 2 Type-A ports, two USB 3.2 Gen 1 ports, and two USB 2.0 connectors. Additionally, there are two USB4 Gen 3×2 ports. Network features include Wi-Fi 7 (802.11be) and Bluetooth 5.4, along with two Ethernet ports supporting 2.5 Gbps and 5 Gbps speeds. Audio output is 7.1-channel, with a microphone input and S/PDIF output included.
The motherboard is ATX-sized, measuring 305 x 244 x 57 mm. It includes multiple fan connectors: one CPU fan connector and four chassis fan connectors. Power delivery is handled by a 24-pin ATX power connector and an 8-pin EPS connector. The BIOS is UEFI AMI type, with 256 Mbit memory and a Clear CMOS button for easy settings reset. The product weight is 2.62 kg, and the package weight is 4.47 kg.
5 in stock
