The ASUS ROG Astral GeForce RTX 5090 Edition 20 is ROG’s 20th anniversary model, combining top-tier performance with striking design. The NVIDIA GeForce RTX 5090 graphics card is based on the Blackwell architecture and features 32 GB of GDDR7 memory, 21,760 CUDA cores, and 3,352 TOPS of AI performance. A curved AMOLED display, transparent glass backplate, and dual power input GC-HPWR adapter (up to 800 W) make the card visually and technically exceptional. Four fans, liquid metal cooling, and a patented vapor chamber keep temperatures under control even under full load.

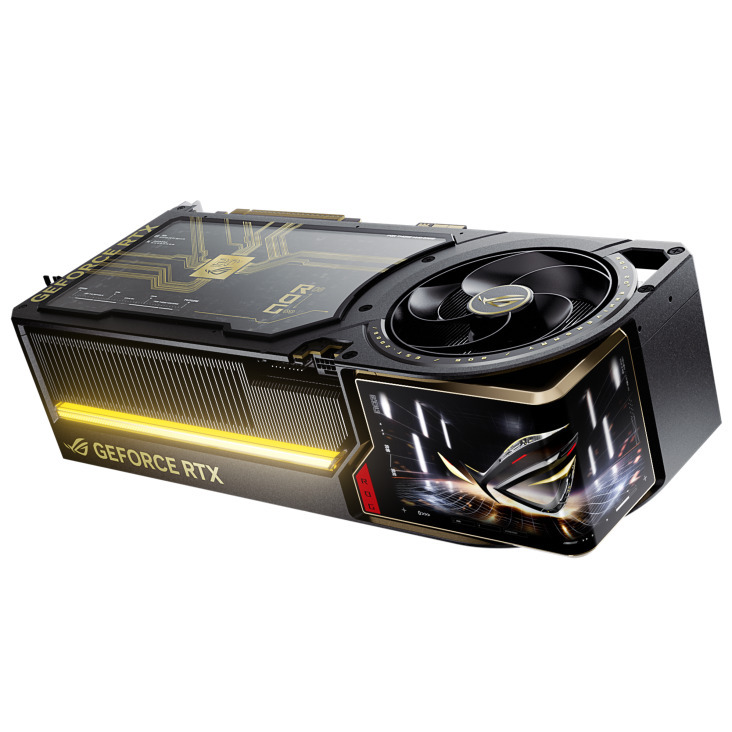

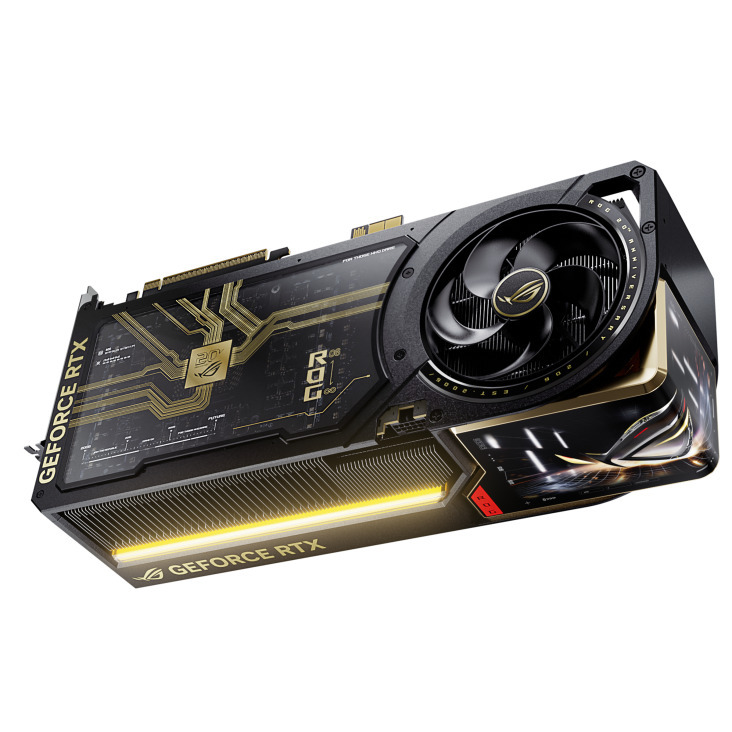

The built-in curved AMOLED display reproduces dynamic 3D graphics, customizable content, and real-time hardware data. The display is detachable, allowing customization of the appearance to suit individual needs. The transparent glass backplate reveals the PCB and components and is also detachable.
The NVIDIA Blackwell architecture introduces fifth-generation Tensor cores (FP4 and DLSS 4.5 support), fourth-generation Ray Tracing cores, and new Streaming Multiprocessors. DLSS 4.5 Dynamic Multi Frame Generation technology multiplies frame rates using AI. NVIDIA Reflex reduces input lag in games, and path tracing technology provides realistic lighting. The clock speed is 2760 MHz in OC mode and 2730 MHz in Default mode.

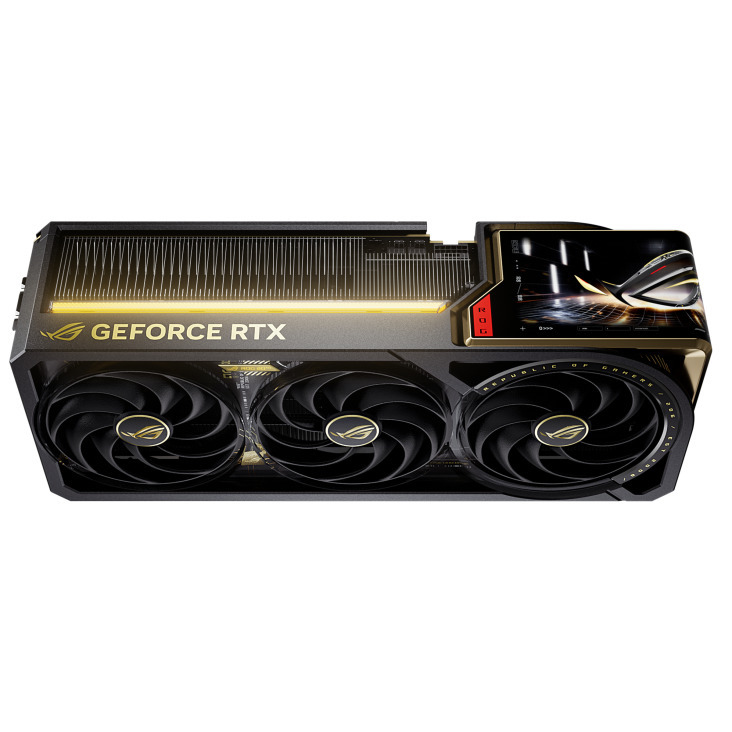

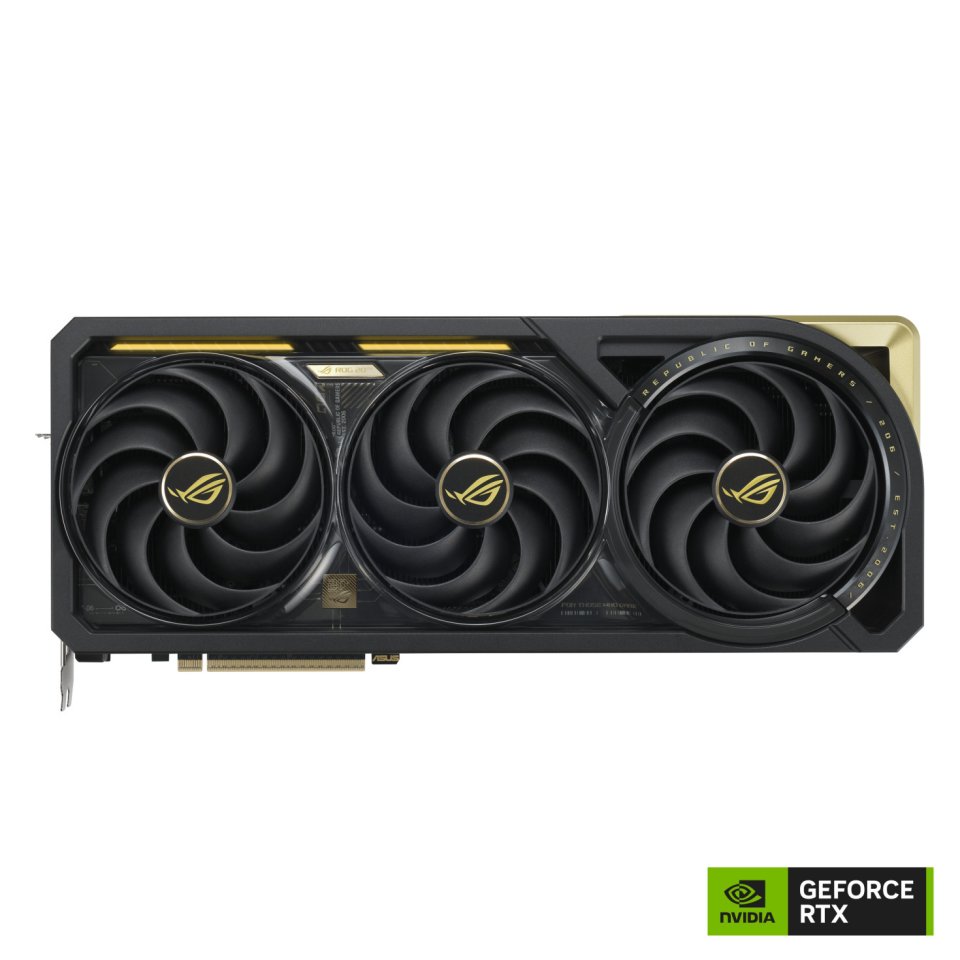

The card supports dual power input via the detachable GC-HPWR adapter and 12V-2×6 cable. The total power is up to 800 W. A recommended power supply is 1200 W or higher. The four-fan design increases airflow and pressure by 20%, and together with liquid metal cooling, the vapor chamber, and heat pipes, GPU temperatures remain low even during long gaming sessions.
NVIDIA Studio drivers and tools accelerate creative work such as 3D modeling and video editing. NVIDIA Broadcast and the ninth-generation NVIDIA Encoder improve streaming and video quality. NVIDIA ACE enables the creation of AI-based digital characters and assistants.

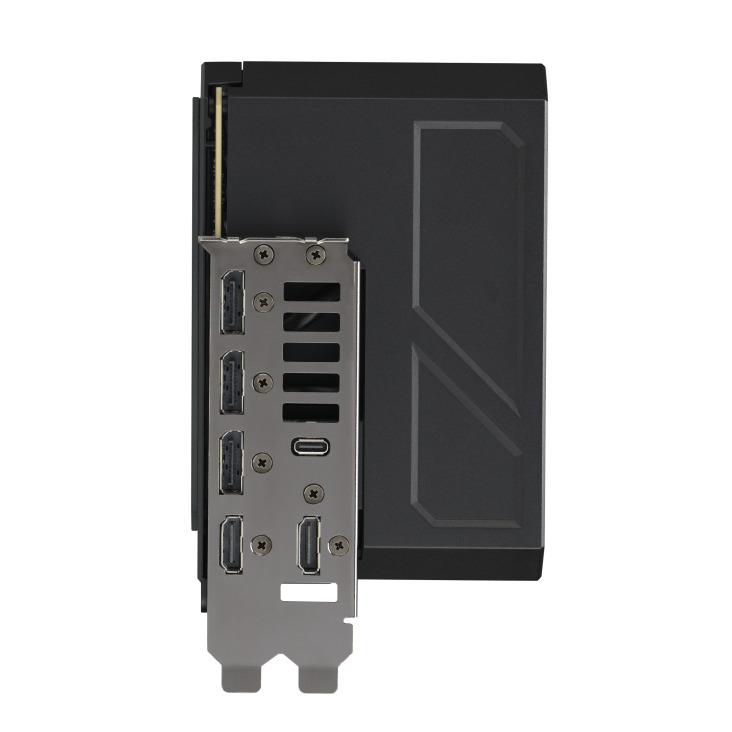

The Hidden-Connector (BTF) design allows cable hiding behind compatible motherboards. The card supports two native HDMI 2.1b ports and three DisplayPort 2.1b ports, up to four displays simultaneously, and resolutions up to 7680 x 4320. Aura Sync ARGB lighting enables synchronization with other components.
| Color | Black |
|---|---|
| Country of Origin | China |
| PID | 1058332 |
| Product depth (mm) | 139 |
| Product height (mm) | 94 |
| Product weight (g) | 3 300 |
| Product width (mm) | 361 |
| Base clock speed (GHz) | 2,76 |
| Base clock speed (OC mode) (GHz) | 2,76 |
| Boost clock speed (GHz) | 2,73 |
| Boost clock speed (OC mode) (GHz) | 2,76 |
| Graphics card | GeForce RTX 5090 |
| Maximum displays | 4 |
| Number of slots | 4,7 |
| Graphics Card Memory (Gt) | 32 |
| Graphics card memory type | GDDR7 |
| Memory bus (bit) | 512 |
| Power consumption (W) | 800 |
| Recommended Power Supply (W) | 1 200 |
| Maximum resolution | 7680 x 4320 |
| Manufacturer address | "Torshamnsgatan 35, 164 40 Kista, Sweden " |
| Manufacturer's email address | https://www.asus.com/content/asus-product-security-advisory/ |
| Manufacturer name | Asus Nordic AB |
