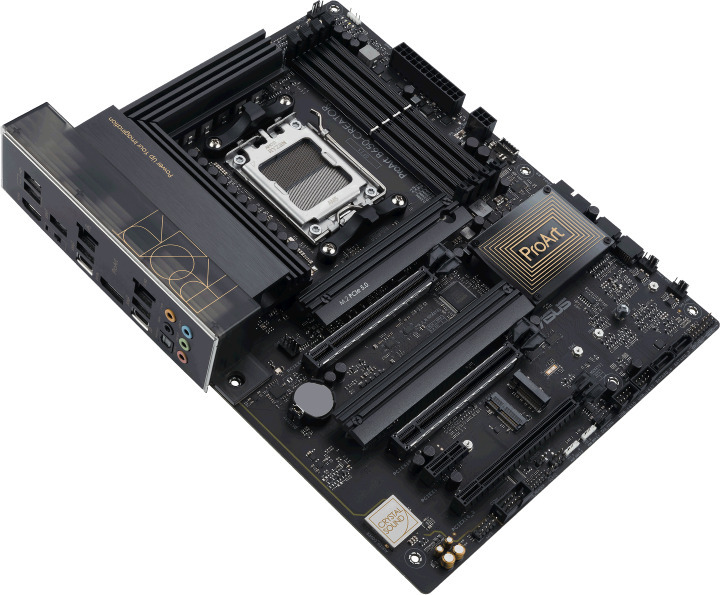

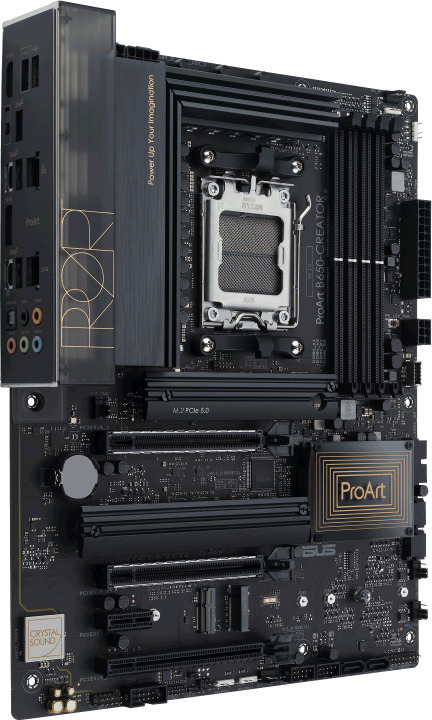

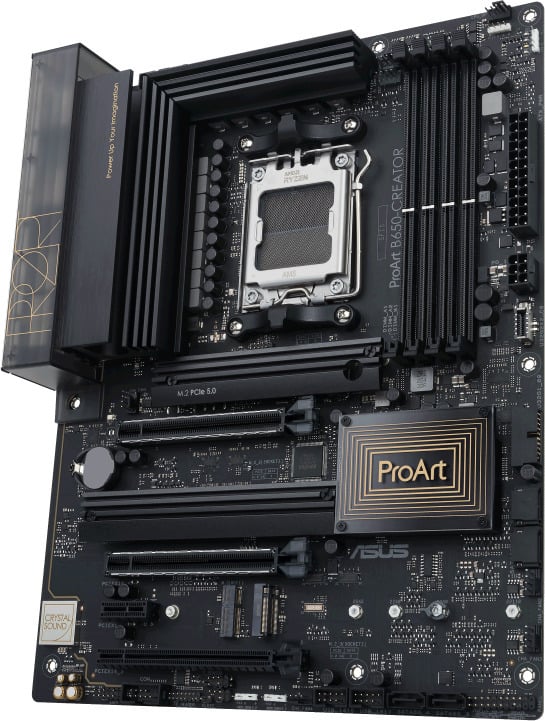

ASUS ProArt B650-CREATOR is an AM5 socket ATX motherboard for Ryzen 7000 series processors, featuring PCIe 5.0 M.2 support, three M.2 slots, 2.5 Gb LAN, DDR5 memory support, and plenty of connectivity options for various needs.

The ASUS ProArt B650-CREATOR is an advanced motherboard designed for intensive content creation such as virtual production, 3D rendering, and 4K/8K video editing. It unleashes the performance of AMD Ryzen 7000 series processors with robust power delivery and cooling design, and its comprehensive connectivity includes 2.5 Gb and 1 Gb Ethernet, a USB 3.2 Gen 2×2 Type-C port on the rear panel with Quick Charge 4+ functionality, and DisplayPort over USB-C.

Features:

• Chipset: AMD B650
• Processor socket: AM5
• Processor support: AMD Ryzen 7000 series
• Motherboard size: ATX
• Memory slots (pcs): 4
• Memory type: DDR5
• Maximum memory (GB): 128
• Network interfaces: Realtek 2.5 Gb & 1 Gb Intel LAN, M.2 slot (Key E)
• Sound card: Realtek 7.1 Surround Sound High Definition Audio CODEC
• Dimensions: 30.5 x 24.4 cm

Expansion slots:

• AMD Ryzen 7000: 2 x PCIe 4.0 x16 slots
• AMD B650 Chipset: 1 x PCIe 4.0 x16 slot, 1 x PCIe 4.0 x1 slot

Graphics:

• 1 x USB Type-C, max 8K 60Hz
• 1 x HDMI, max 4K 60Hz

Storage connections:

• 4 x SATA 6Gb/s ports
• 3 x M.2 slots
• AMD Ryzen 7000: M.2_1 slot (Key M) type 2242/2260/2280 (supports PCIe 5.0 x4 mode), M.2_2 slot (Key M) type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
• AMD B650 Chipset: M.2_3 slot (Key M) type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)

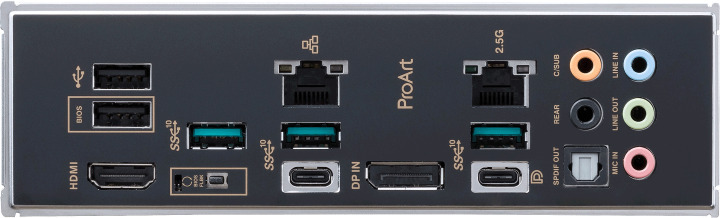

Rear panel connections:

• 1 x USB 3.2 Gen 2 port (1 x USB Type-C)
• 4 x USB 3.2 Gen 2 ports (3 x Type-A, 1 x USB Type-C)
• 2 x USB 2.0 ports
• 1 x HDMI port
• 1 x 2.5 Gb Ethernet port
• 1 x 1 Gb Ethernet port
• 5 x audio jacks
• 1 x Optical S/PDIF out port
• 1 x BIOS FlashBack button

Internal connections:

• Fan and Cooling related
• 1 x 4-pin CPU Fan header(s)
• 1 x 4-pin CPU OPT Fan header(s)
• 1 x 4-pin AIO Pump header
• 4 x 4-pin Chassis Fan headers
• Power related
• 1 x 24-pin Main Power connector
• 1 x 8-pin +12V Power connector
• 1 x 4-pin +12V Power connector
• 1 x 6-pin PCIe Power connector
• Storage related
• 3 x M.2 slots (Key M)
• 4 x SATA 6Gb/s ports
• USB
• 1 x USB 3.2 Gen 2×2 connector (supports USB Type-C)
• 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
• 2 x USB 2.0 headers support additional 4 USB 2.0 ports
• Miscellaneous
• 3 x Addressable Gen 2 headers
• 1 x Aura RGB header
• 1 x Clear CMOS header
• 1 x Front Panel Audio header (AAFP)
• 1 x M.2 slot (Key E)
• 1 x 20-5 pin System Panel header
• 1 x Thermal Sensor header
• 1 x Thunderbolt header
