The ASUS Prime series is expertly designed to unleash the full potential of the third-generation AMD Ryzen platform. Prime A520 series motherboards feature a robust power design, comprehensive cooling solutions, and intelligent tuning options that offer everyday users and DIY PC builders a range of performance-oriented installation options through intuitive software and firmware features.

Comprehensive controls form the foundation of the ASUS Prime series. The Prime A520 motherboard includes flexible tools to tune all parts of the system. These allow you to adjust performance settings to perfectly match your working style—maximizing productivity.

Features:

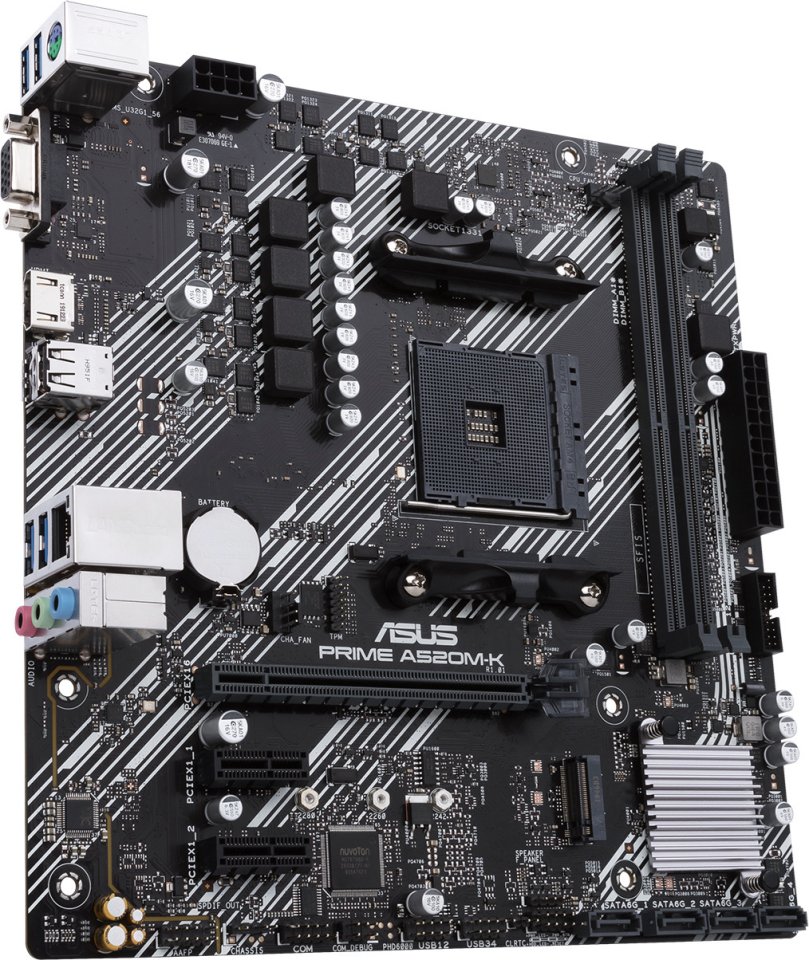

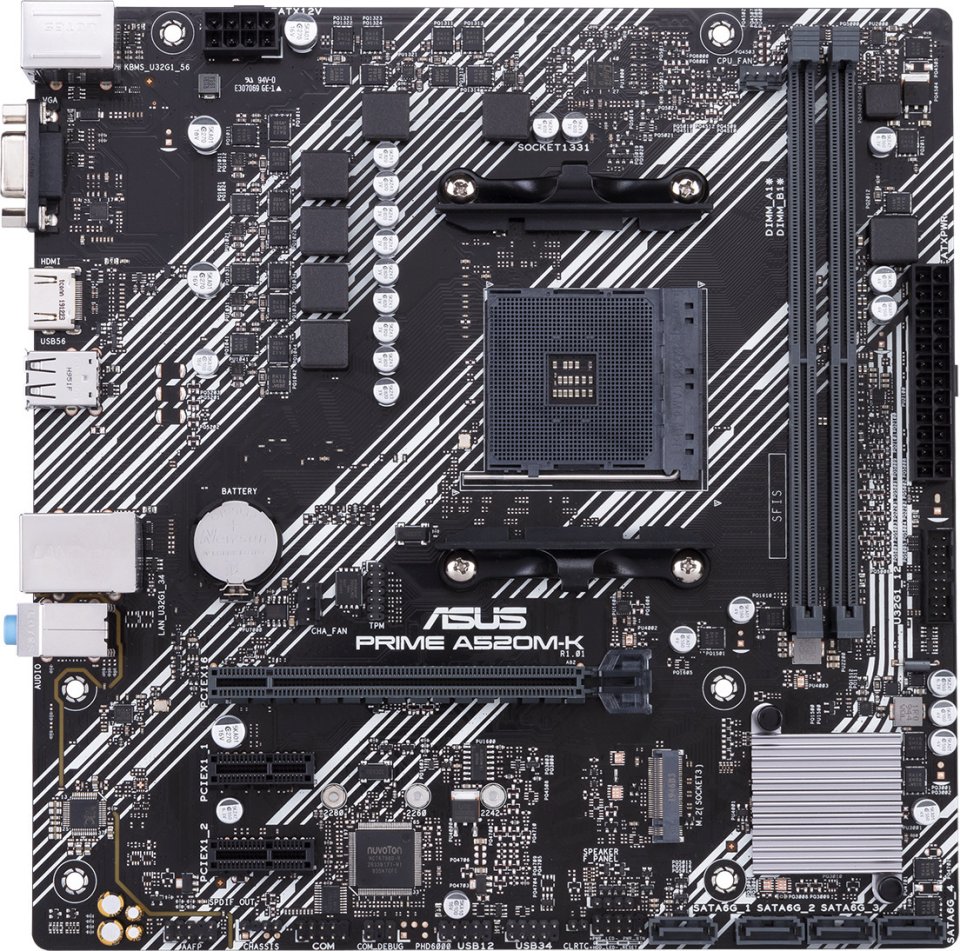

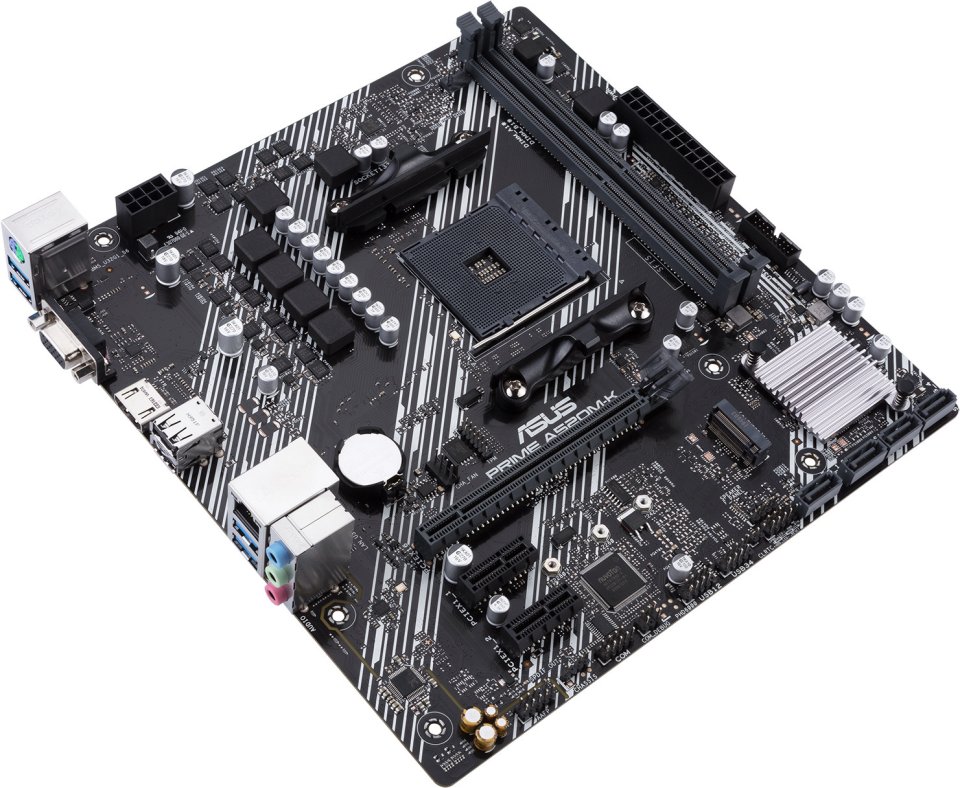

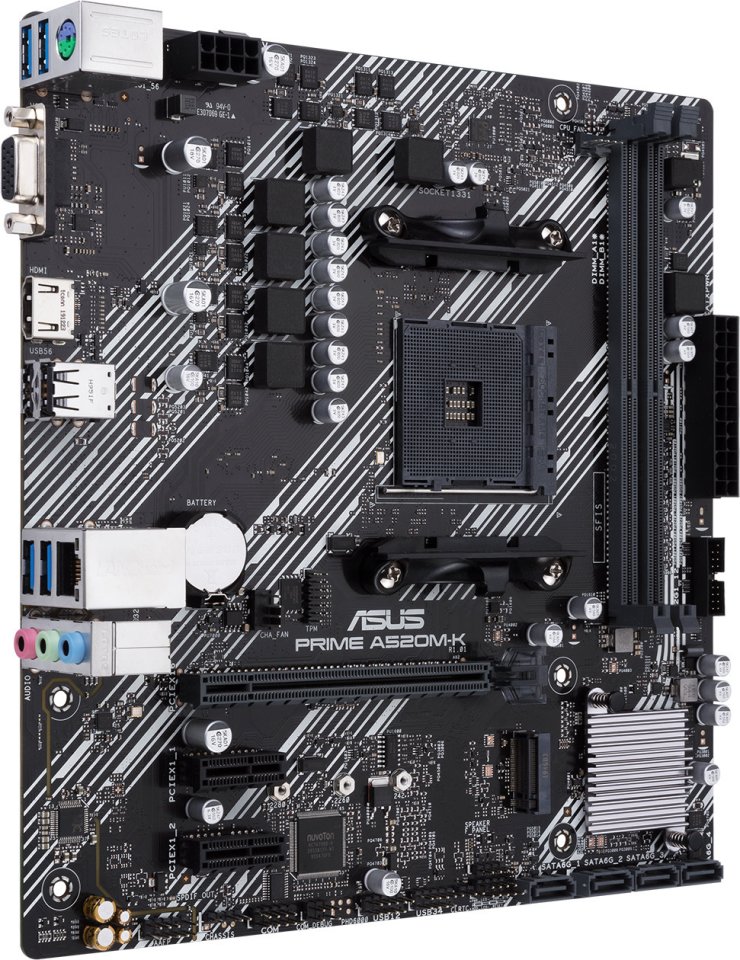

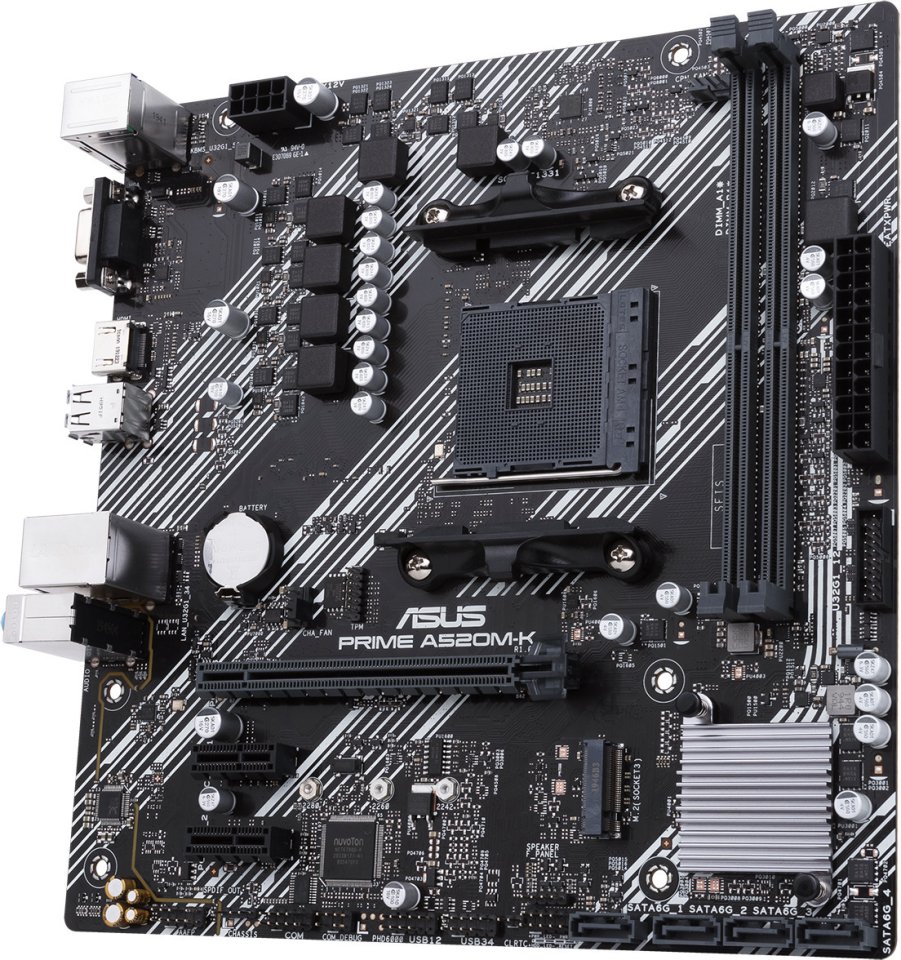

• Model: PRIME A520M-K
• Chipset: AMD A520
• Processor Socket: AMD AM4 Socket
• Processor Support: Ryzen (supports: 3rd Gen Ryzen / 3rd Gen Ryzen with Radeon Graphics)
• Motherboard Size: mATX
• Memory Slots (pcs): 2
• Memory Type: DDR4 DIMM, max. 64 GB
• LAN: Realtek RTL8111H 1Gb Ethernet, ASUS LANGuard
• Audio Card: Realtek ALC887/897 7.1 Surround Sound High Definition Audio CODEC
• Expansion Slots: 3rd Gen AMD Ryzen and 3rd Gen AMD Ryzen with Radeon Graphics Processors: 1 x PCIe 3.0 x16 (x16 mode), AMD A520 chipset: 2 x PCIe 3.0 x1
• Storage: 1 x M.2 and 4 x SATA 6 Gb/s
• USB Ports: Rear: 4 x USB 3.2 Gen 1 (4 x Type-A), 2 x USB 2.0 (2 x Type-A), Front: 2 x USB 3.2 Gen 1 ports (2 x Type-A), 4 x USB 2.0 ports (4 x Type-A)
• BIOS: 256 Mb Flash ROM, UEFI AMI BIOS
• Management: WOL by PME, PXE
• Operating System: Windows 10 64-bit
• Form Factor: mATX Form Factor 22.6 cm x 22.1 cm

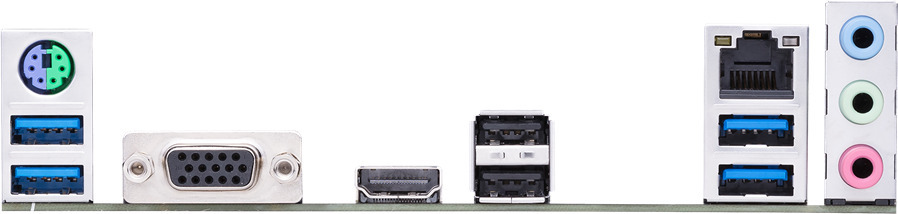

Rear I/O ports:

• 1 x PS/2 keyboard/mouse combo port
• 1 x D-Sub
• 1 x HDMI
• 1 x LAN (RJ45) port
• 4 x USB 3.2 Gen 1 (blue) Type-A
• 2 x USB 2.0
• 3 x Audio jacks

Internal I/O ports:

• 1 x CPU Fan connector
• 1 x Chassis Fan connector
• 1 x USB 3.2 Gen 1 (up to 5 Gbps) connector supporting an additional 2 USB 3.2 Gen 1 ports
• 2 x USB 2.0 connectors supporting an additional 4 USB 2.0 ports
• 1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage device support (SATA & PCIe 3.0 x4 mode)
• 1 x SPI TPM header
• 4 x SATA 6 Gb/s connectors
• 1 x S/PDIF out header
• 1 x 24-pin EATX Power connector
• 1 x 8-pin EATX 12V Power connector
• 1 x Front panel audio connector (AAFP)
• 1 x Clear CMOS jumper
• 1 x System panel connector
• 1 x COM port header
• 1 x Speaker connector
