| Color | Black |
|---|---|
| Country of Origin | China |
| PID | 973886 |
| Product depth (mm) | 244 |
| Product height (mm) | 50 |
| Product weight (g) | 815 |
| Product width (mm) | 244 |
| WiFi | No |
| Motherboard Chipset | Intel B860 |
| Motherboard form factor | Micro-ATX |
| Processor Socket | LGA 1851 |
| Maximum supported memory (Gt) | 256 |
| Number of RAM slots | 4 |
| Supported RAM | DDR5 |
| Manufacturer address | Torshamnsgatan 35 164 40 Kista, Sweden |
| Manufacturer's email address | https://www.asus.com/content/asus-product-security-advisory/ |
| Manufacturer name | Asus Nordic AB |

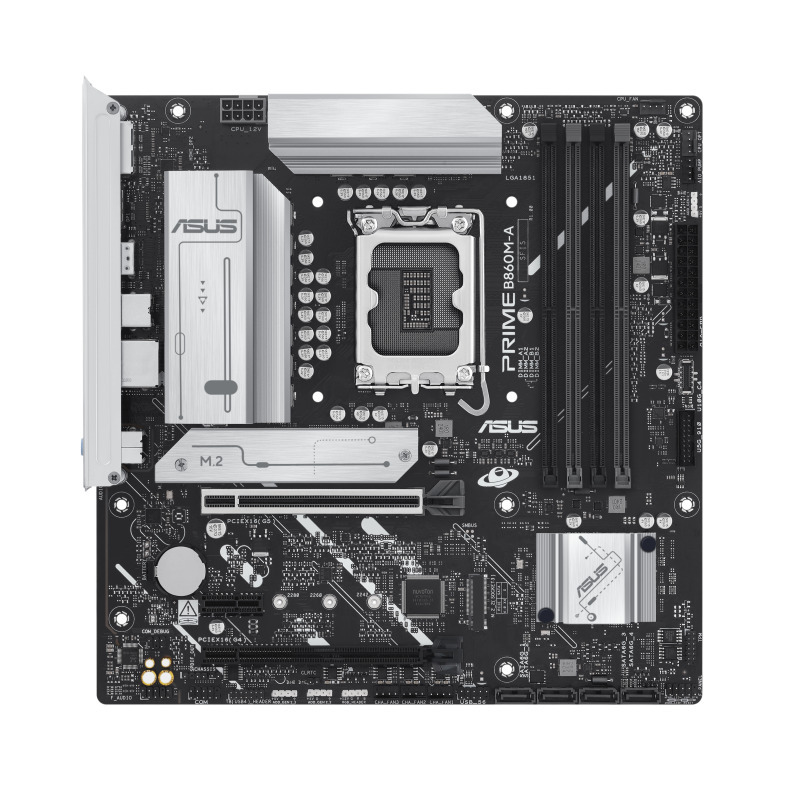

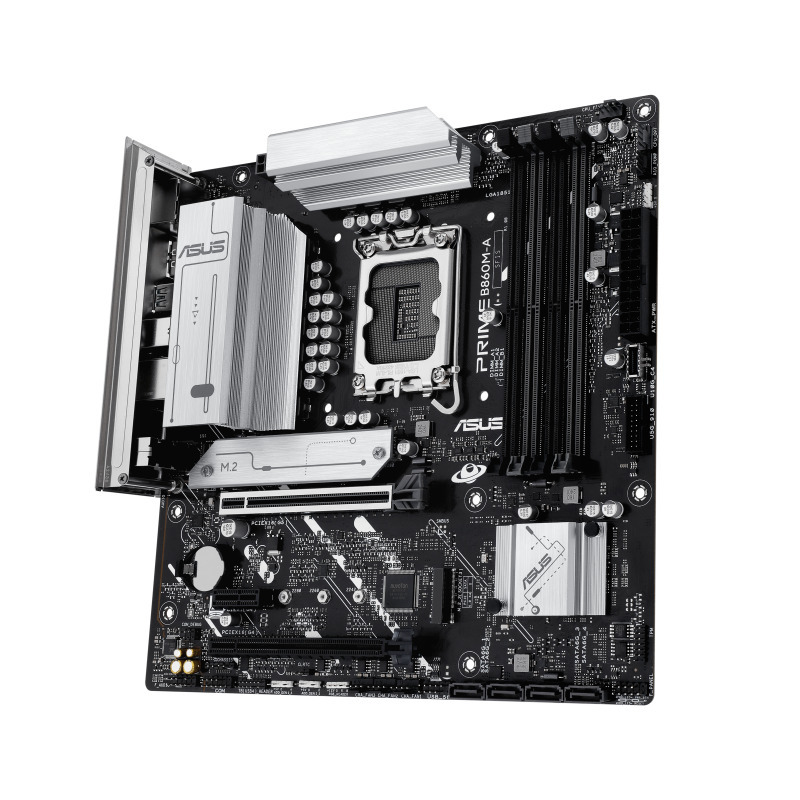

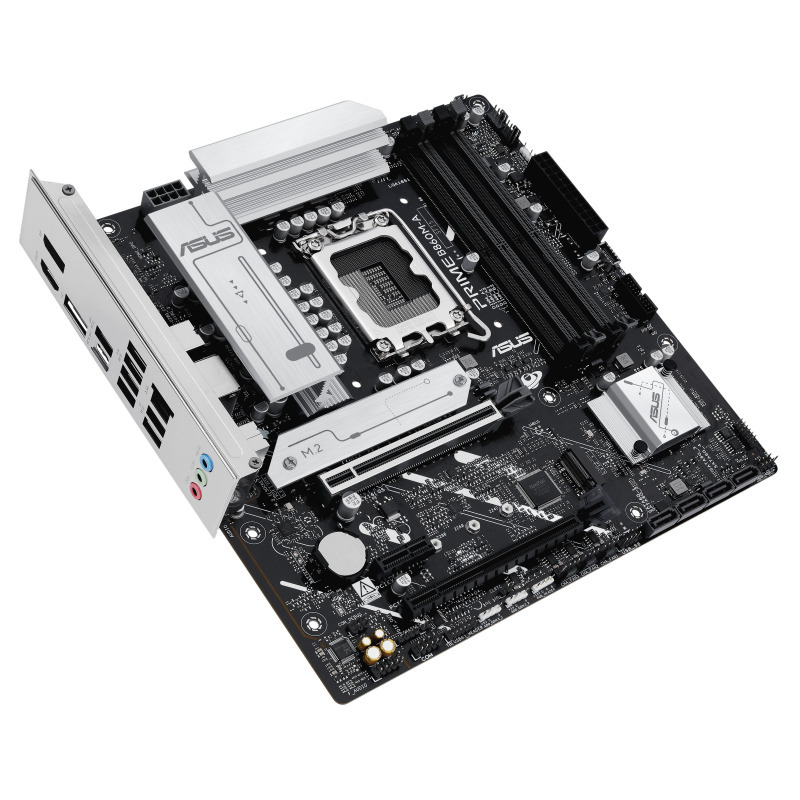

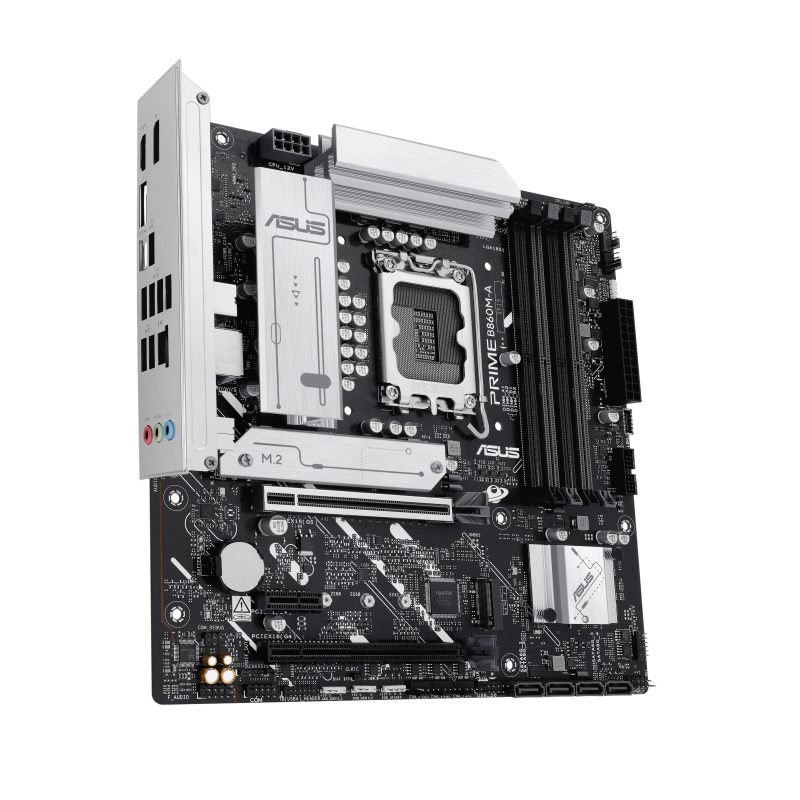

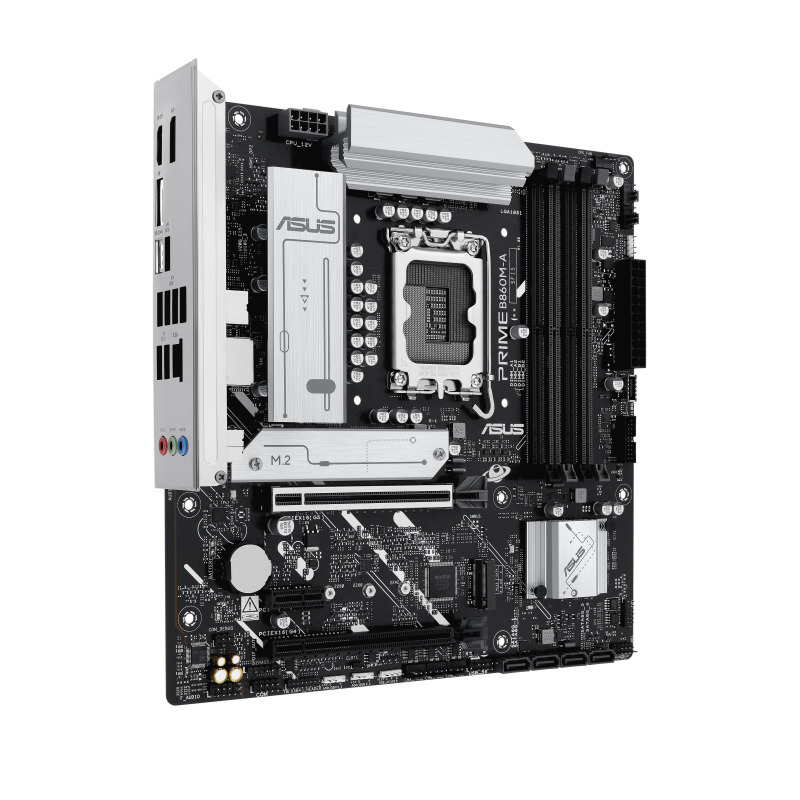

ASUS PRIME B860M-A-CSM is designed to harness the full potential of Intel® Core™ Ultra processors (2nd generation). Its 7+1+1+1 power stages and extensive cooling solutions ensure stable performance even in demanding conditions. The motherboard supports DDR5 memory and offers two M.2 slots, one of which enables data transfer speeds of up to 128 Gbps via PCIe 5.0, speeding up system boot times and application loading.
For cooling, the PRIME B860M-A CSM is equipped with massive VRM heatsinks and thermal pads that improve heat transfer from MOSFETs and coils. Additionally, the motherboard features multiple hybrid fan headers and support for ASUS Fan Xpert 2+ software, allowing comprehensive fan control and optimization to ensure quiet and efficient system operation.

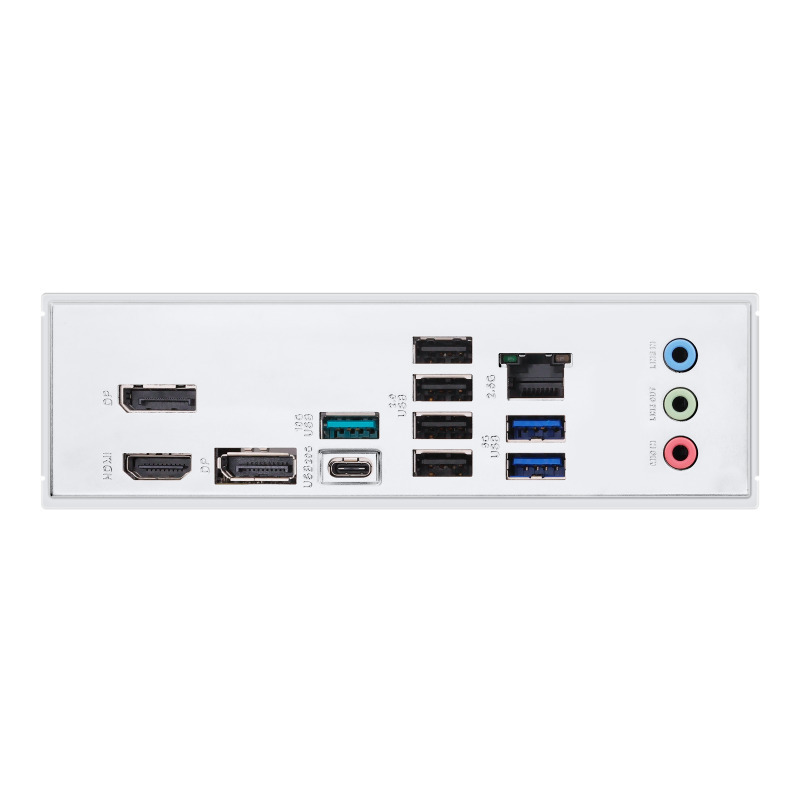

In terms of connectivity, the motherboard offers versatile options such as built-in WiFi 6E support, which utilizes the 6 GHz frequency band to provide fast and stable wireless connections. Furthermore, the motherboard includes 2.5 Gb Ethernet, PCIe 5.0 support, and multiple USB ports, including a USB 20 Gbps Type-C® port that enables ultra-fast data transfers and versatile device compatibility.
Technical specifications:
ASUS PRIME B860M-A-CSM is designed to harness the full potential of Intel® Core™ Ultra processors (2nd generation). Its 7+1+1+1 power stages and extensive cooling solutions ensure stable performance even in demanding conditions. The motherboard supports DDR5 memory and offers two M.2 slots, one of which enables data transfer speeds of up to 128 Gbps via PCIe 5.0, speeding up system boot times and application loading.
For cooling, the PRIME B860M-A CSM is equipped with massive VRM heatsinks and thermal pads that improve heat transfer from MOSFETs and coils. Additionally, the motherboard features multiple hybrid fan headers and support for ASUS Fan Xpert 2+ software, allowing comprehensive fan control and optimization to ensure quiet and efficient system operation.
In terms of connectivity, the motherboard offers versatile options such as built-in WiFi 6E support, which utilizes the 6 GHz frequency band to provide fast and stable wireless connections. Furthermore, the motherboard includes 2.5 Gb Ethernet, PCIe 5.0 support, and multiple USB ports, including a USB 20 Gbps Type-C® port that enables ultra-fast data transfers and versatile device compatibility.
