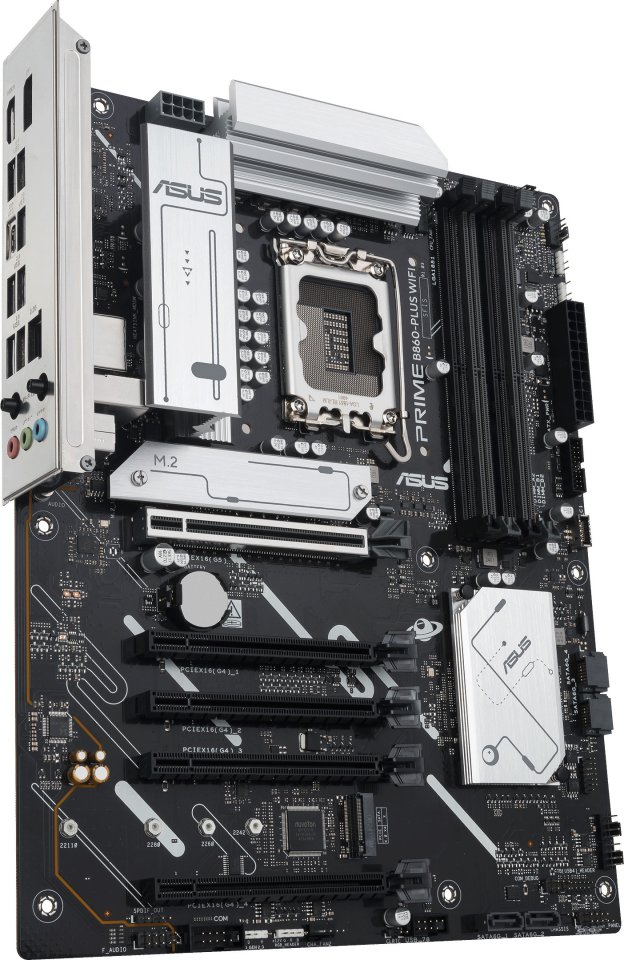

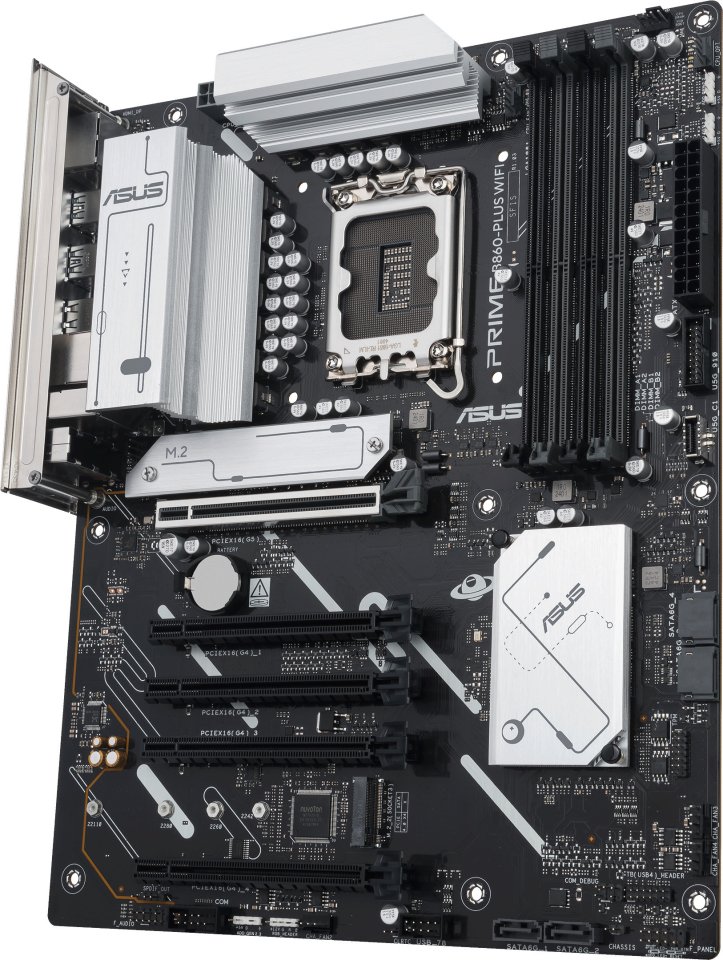

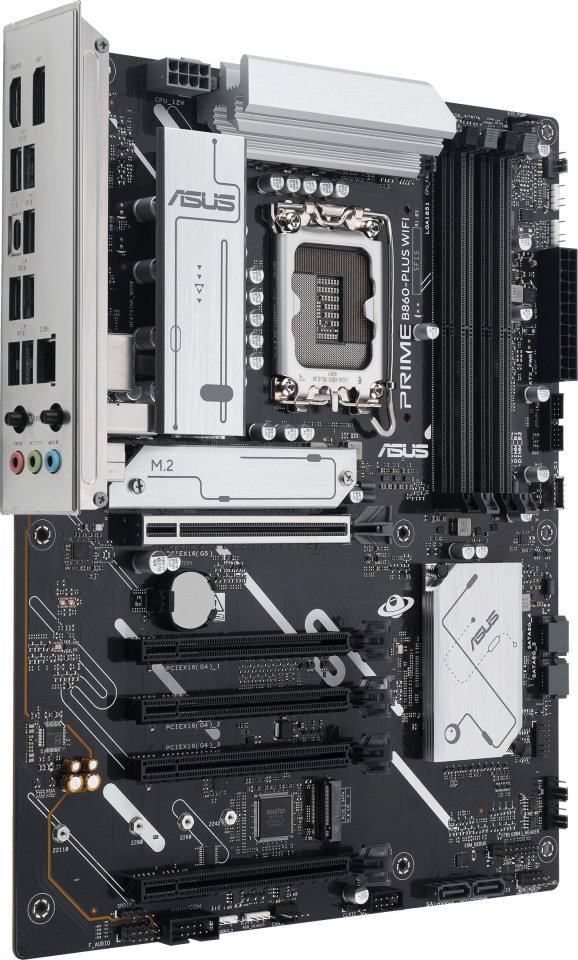

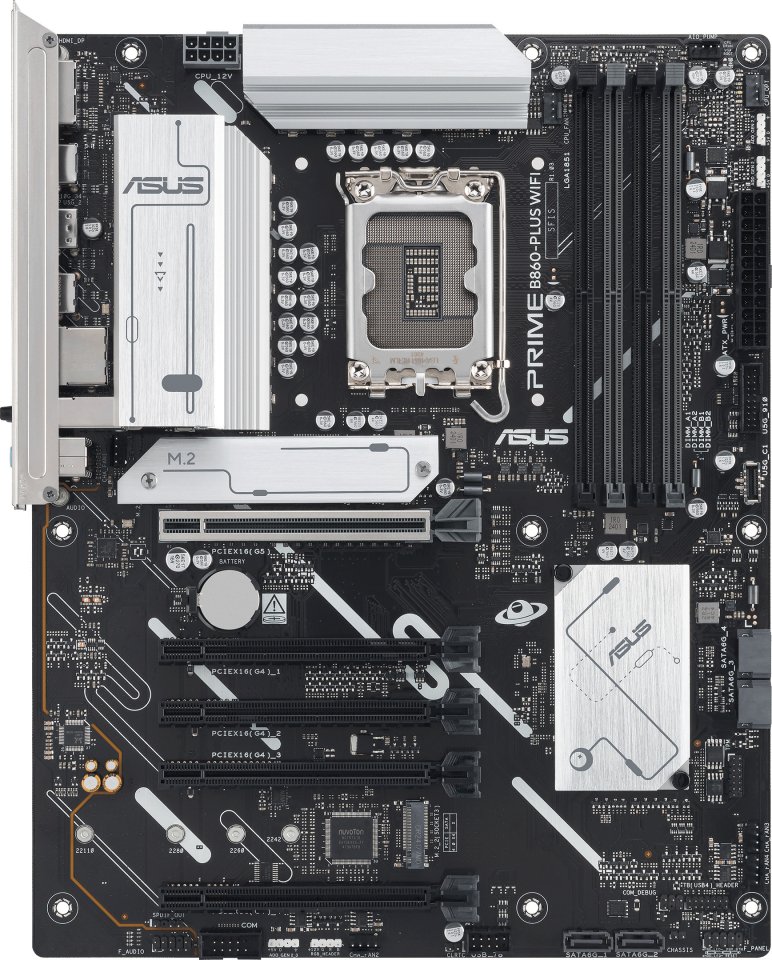

ASUS PRIME B860-PLUS WIFI is designed to harness the full potential of the latest Intel® Core Ultra processors (2nd generation). Its robust power delivery system, consisting of 8+1+1+1 power stages, ensures stable and efficient performance even in demanding applications. The motherboard supports DDR5 memory and offers a PCIe 5.0 expansion slot, enabling the use of fast components such as the latest graphics cards and storage solutions.

Cooling solutions, including VRM and chipset heatsinks as well as M.2 drive cooling, keep system temperatures in check during intensive use. WiFi 6E support and a 2.5 Gb Ethernet port provide fast and stable network connections, while versatile connectivity options, such as a USB 20 Gbps Type-C port, enable rapid data transfer and extensive peripheral use.

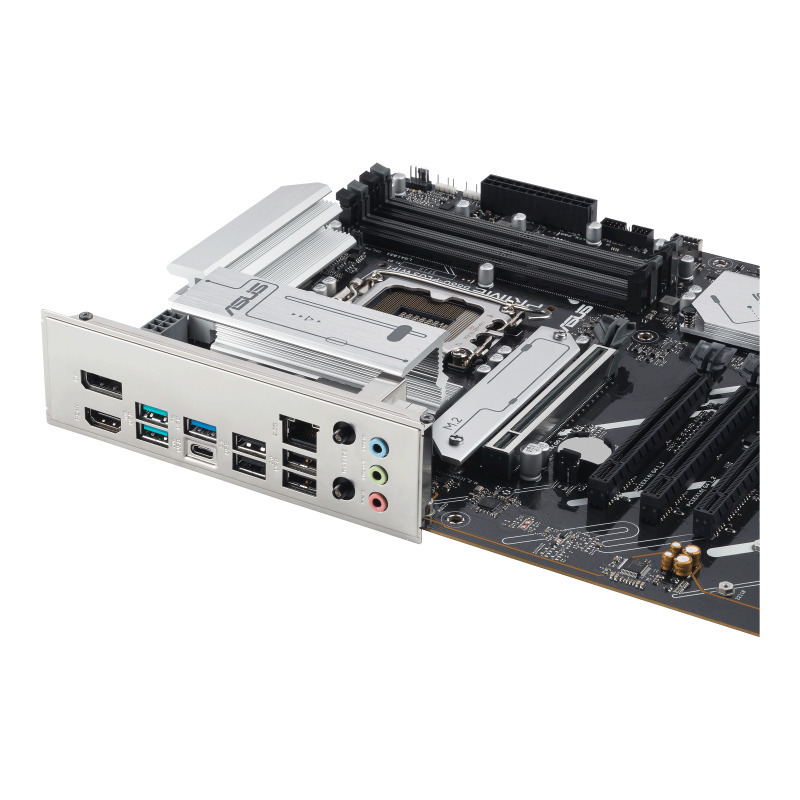

The motherboard also features Aura Sync RGB lighting support, allowing system customization. The pre-installed I/O shield simplifies assembly and enhances aesthetics. ASUS PRIME B860-PLUS WIFI is an excellent choice for users seeking a reliable and high-performance platform for versatile use, whether for gaming, content creation, or other demanding computing tasks.

Technical specifications:

• Model name: PRIME B860-PLUS-WIFI
• Form factor: ATX
• Processor support: Intel Core Ultra Processors (Series 2)
• Processor socket: Intel LGA 1851
• Chipset: Intel B860
• Expansion slots: 1 x PCIe 5.0 x16, 1 x PCIe 4.0 x16, 3 x PCIe 4.0 x16 (PCIEX16(G4)_1/2/4) (supports x1 mode)
• Display outputs: 1 x HDMI port, 1 x DisplayPort
• Storage: 2 x M.2, 4 x SATA 6 Gb/s
• Memory support: 4 x DIMM slots, up to 256 GB, DDR5, supports up to 8666+ MT/s (OC)

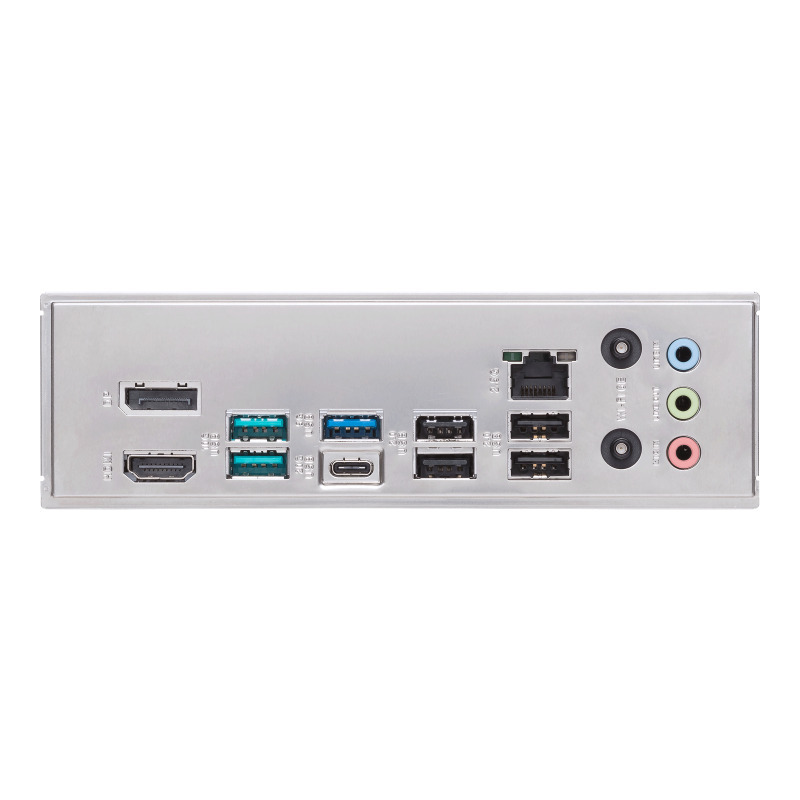

• USB ports: Rear panel: 1 x USB 20 Gbps (Type-C), 2 x USB 10 Gbps (2 x Type-A), 1 x USB 5 Gbps (Type-A), 4 x USB 2.0 (Type-A); Front panel: 1 x USB 5 Gbps (Type-C), 1 x USB 5 Gbps, 1 x USB 2.0
• Network: Realtek 2.5 Gb, Wi-Fi 6E, BT 5.3
• Audio: Realtek 7.1 Surround Sound High Definition Audio CODEC
