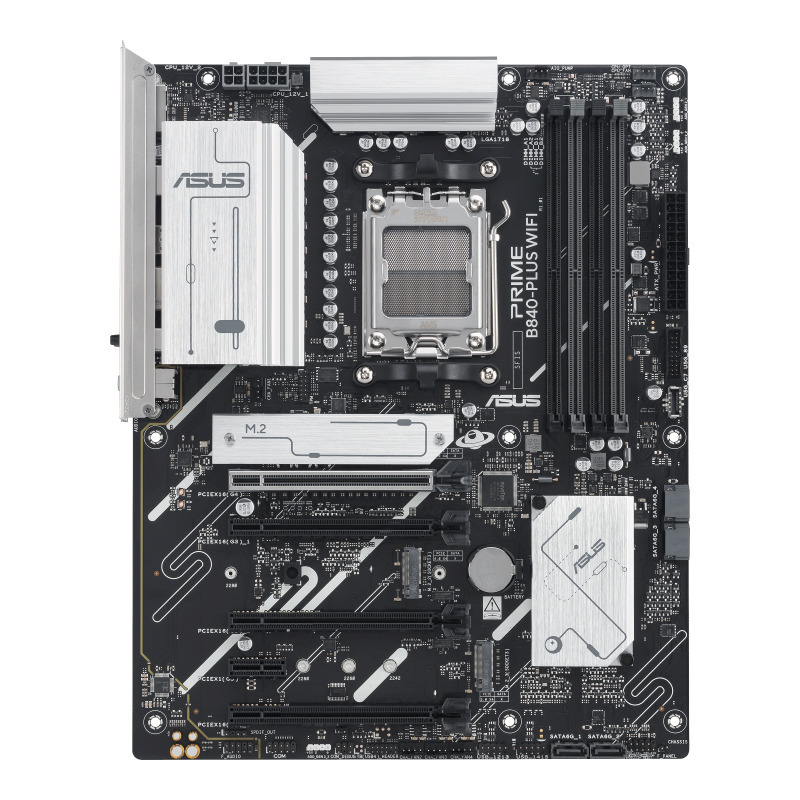

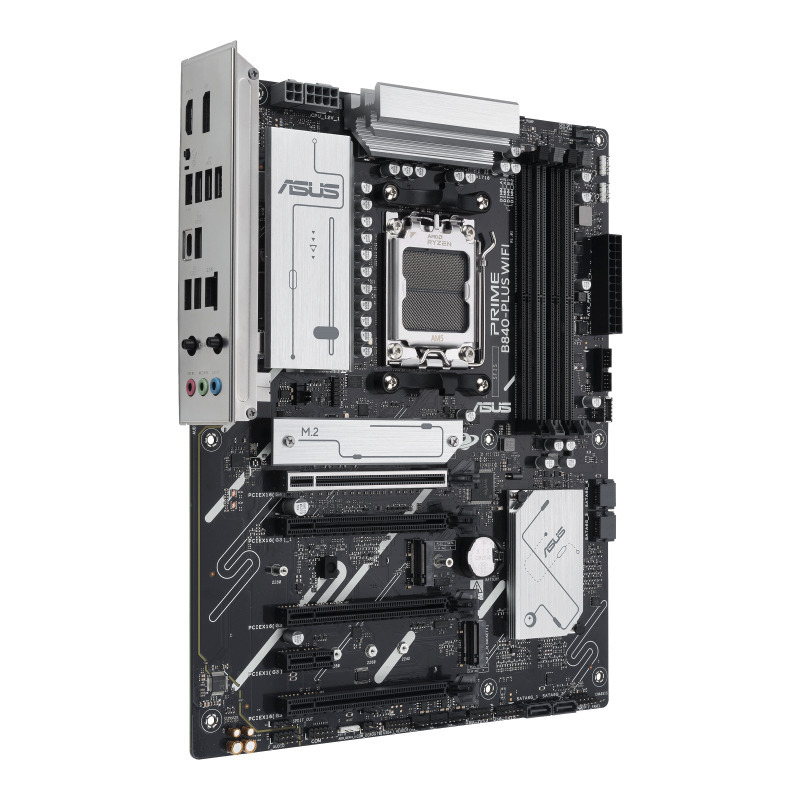

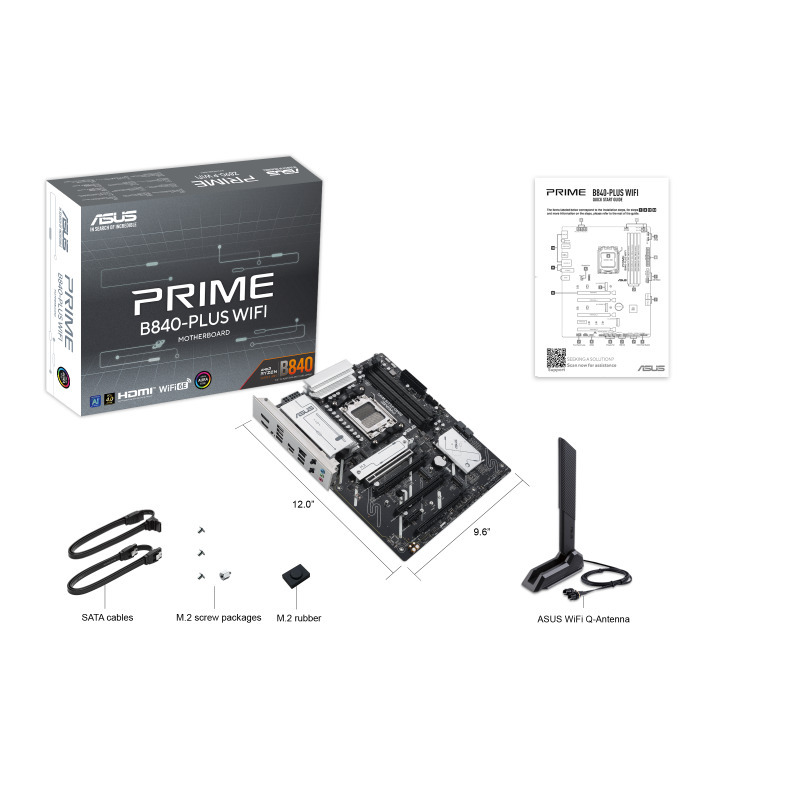

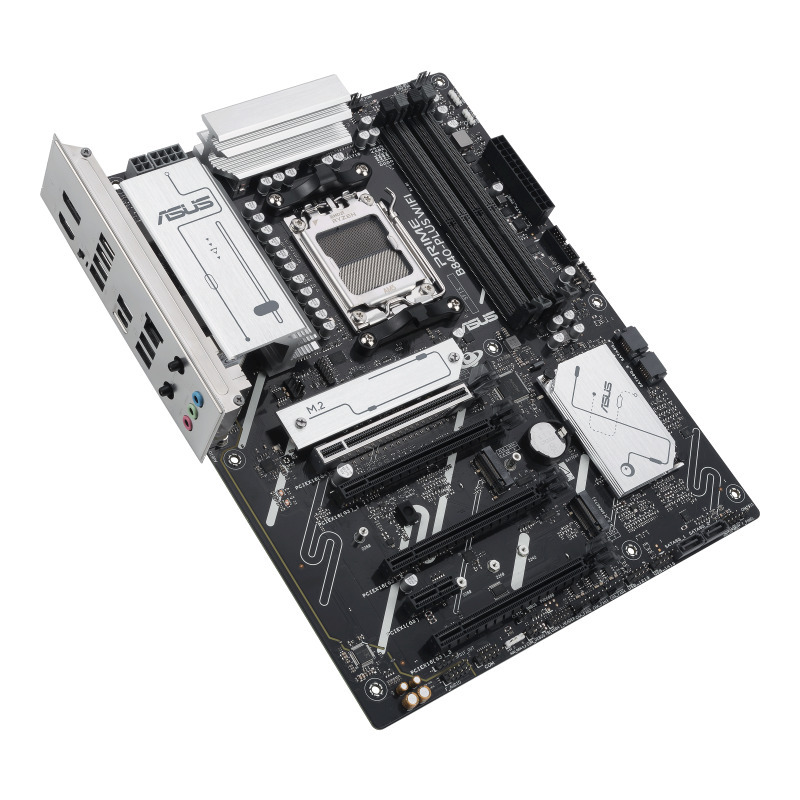

ASUS PRIME B840-PLUS WIFI is an excellent choice for building an AMD Ryzen-based computer. It provides a solid foundation for gaming, work, and entertainment alike. The motherboard’s versatile features and connections ensure a smooth user experience even in demanding tasks. Thanks to DDR5 memory and PCIe 4.0 lanes, the PRIME B840-PLUS WIFI delivers top-tier performance. Connect multiple displays via DisplayPort and HDMI ports and enjoy fast data transfer with the 2.5Gb Ethernet connection and Wi-Fi 6E connectivity.

Technical specifications:

• Model name: PRIME B840-PLUS WIFI
• Form factor: ATX
• Processor support: AMD Ryzen™ 9000, 8000, and 7000 series desktop processors
• Processor socket: AMD Socket AM5
• Chipset: AMD B840
• Expansion slots: 2 x PCIe 4.0 x16 slots, 3 x PCIe 3.0 x16 slots, 1 x PCIe 3.0 x1 slot
• Display outputs: 1 x HDMI port, 1 x DisplayPort
• Storage: 3 x M.2, 4 x SATA 6 Gb/s
• Memory support: 4 x DIMM slots, up to 192 GB, DDR5, supports up to 8000+ MT/s (OC)

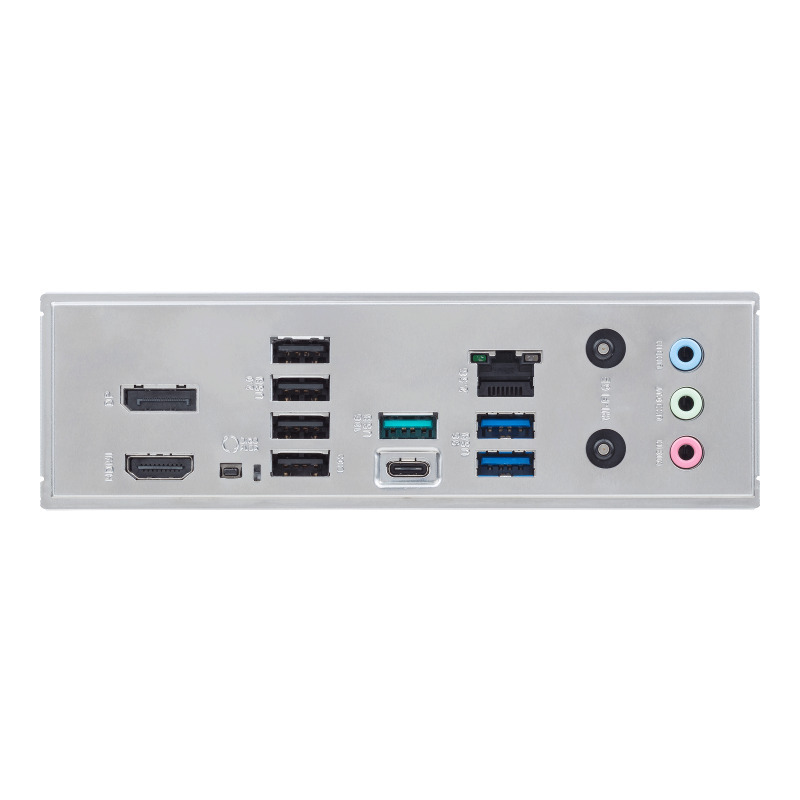

• USB ports: Rear panel: 2 x USB 10 Gbps (1 x Type-A + 1 x Type-C), 2 x USB 5 Gbps (1 x Type-C), 4 x USB 2.0 (Type-A); Front panel: 1 x USB 5 Gbps (1 x Type-C), 1 x USB 5 Gbps, 2 x USB 2.0

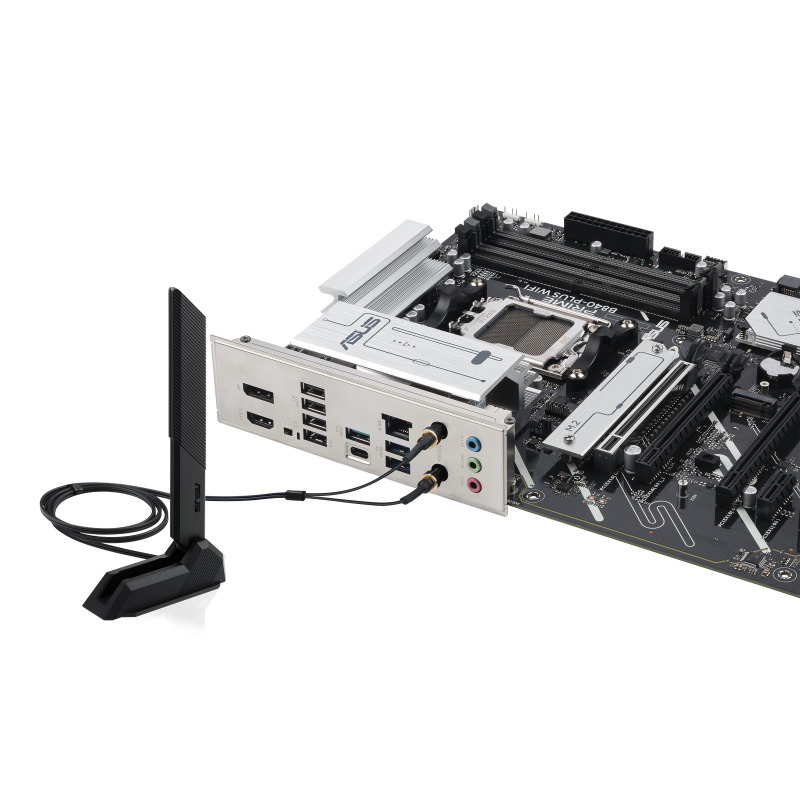

• Network: Realtek 2.5 Gb, WiFi 6E, BT 5.3
• Audio: Realtek 7.1 Surround Sound High Definition Audio CODEC
