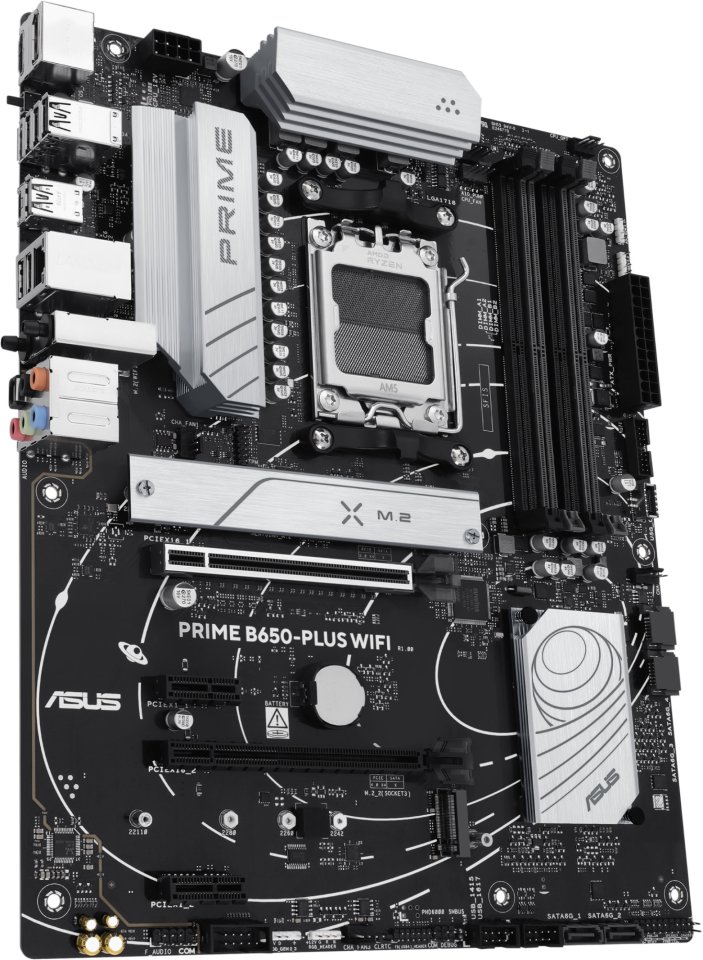

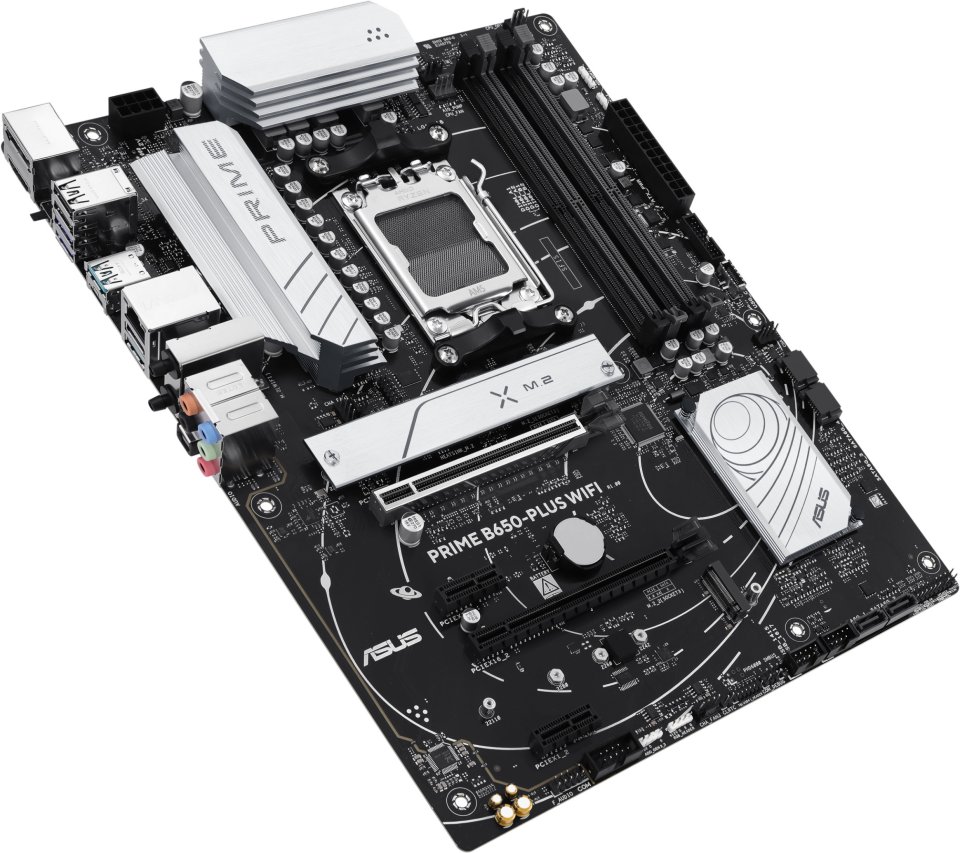

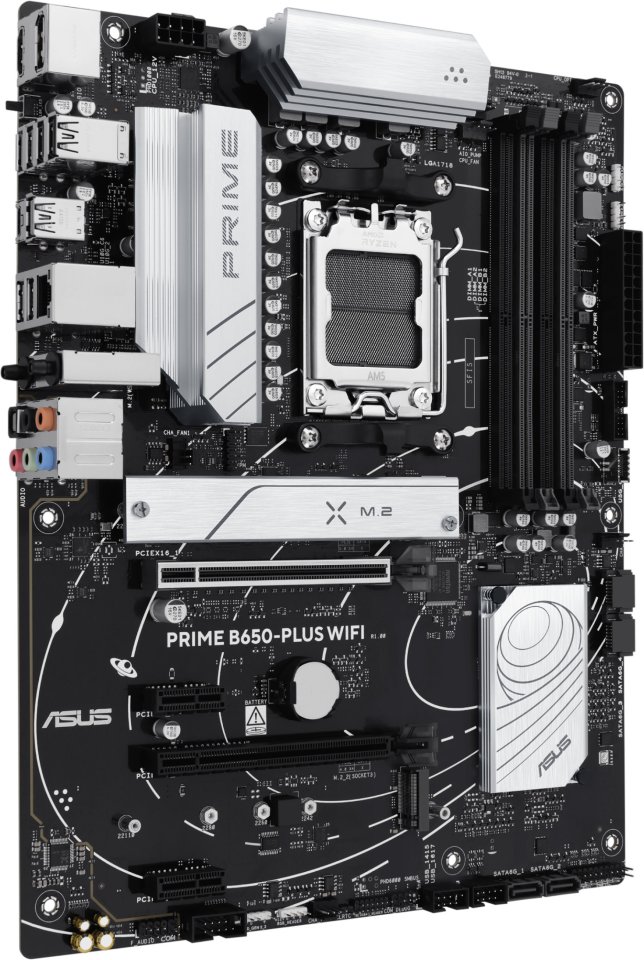

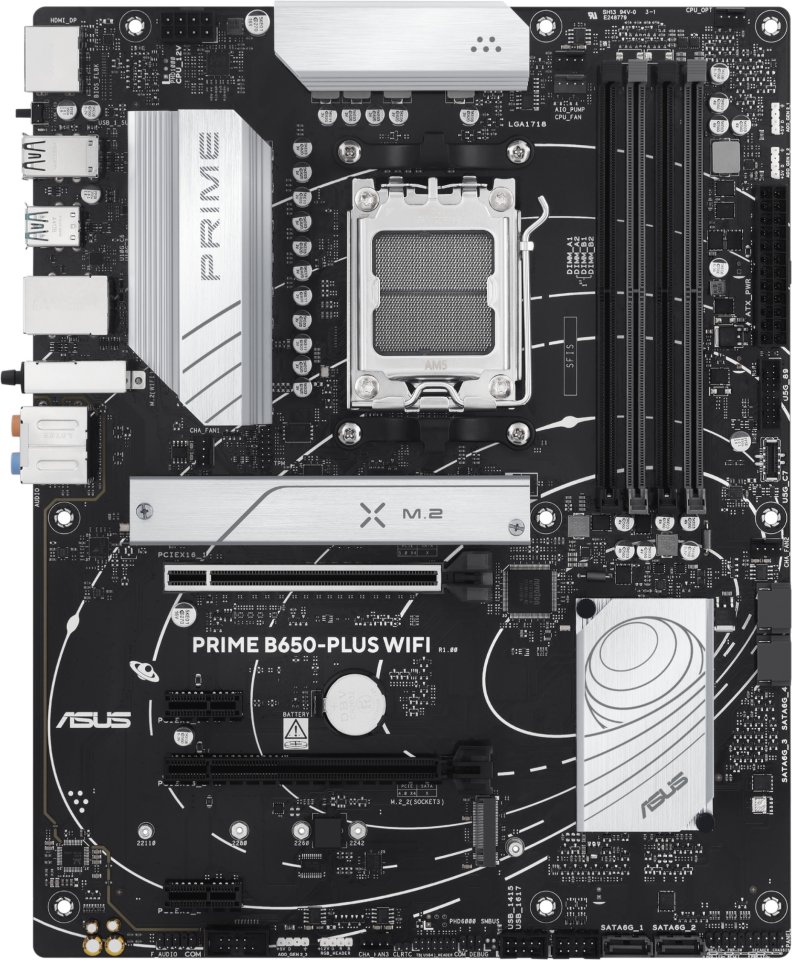

The ASUS PRIME B650-PLUS WIFI is an AMD-based ATX-sized motherboard that supports the latest Ryzen 7000, 8000, and 9000 series processors with the AM5 socket. It offers versatile connectivity and powerful memory support for DDR5-SDRAM memory modules, with a maximum capacity of up to 192 GB. The motherboard features integrated Wi-Fi 6E and Bluetooth 5.3 connections, ensuring fast wireless connectivity. Additionally, it supports a 2.5 Gb Ethernet connection, enabling stable and fast network connections.

Performance and Processor Support

The motherboard is designed for AMD’s latest Ryzen processors with the AM5 socket. It supports powerful DDR5 memory modules running at speeds up to 7600 MHz and offers ECC and Non-ECC memory compatibility. Dual-channel memory functionality allows smooth multitasking and heavy applications.

Storage and Expandability

The ASUS PRIME B650-PLUS WIFI includes two M.2 slots and four SATA III connectors, supporting both SSD and HDD drives. RAID support at levels 0, 1, and 10 provides options for enhanced performance and data security. There are two PCI Express 4.0 slots sized x16 and two sized x1, enabling versatile expandability.

Connectivity and Networking

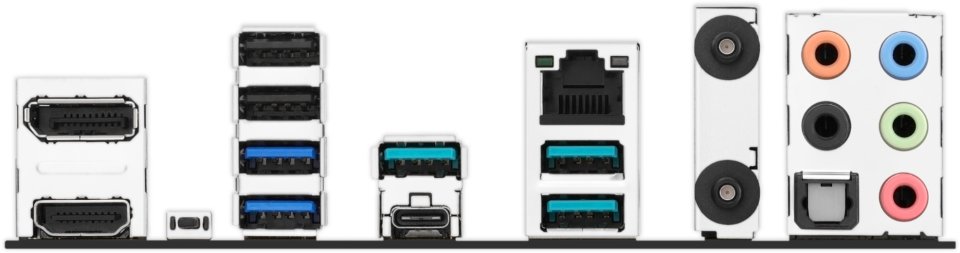

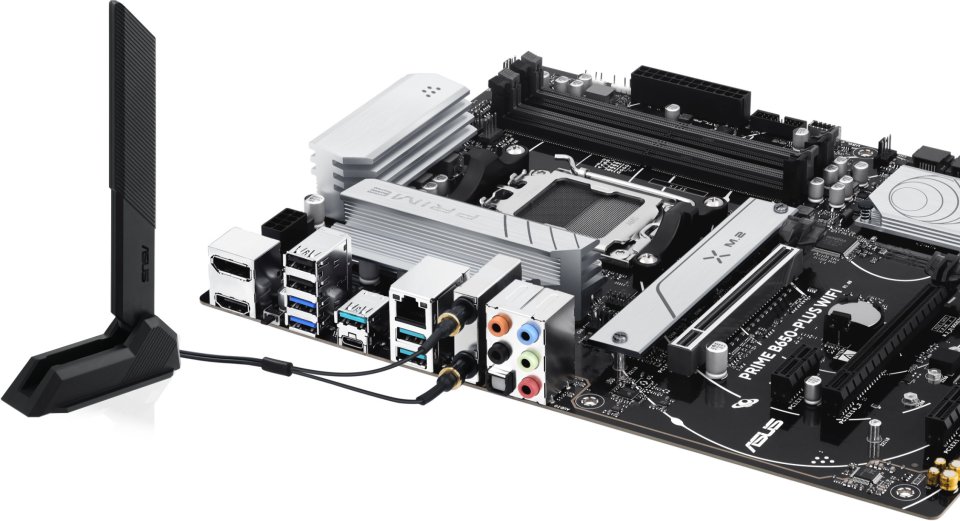

The motherboard offers plenty of USB ports: USB 3.2 Gen 2 Type-A and Type-C ports, as well as USB 2.0 ports. In addition, HDMI and DisplayPort connections allow for versatile display combinations. Wireless networking is facilitated by Wi-Fi 6E standard and Bluetooth 5.3. The Ethernet connection runs at 2.5 Gb, suitable for demanding network use.

Additional Features

The motherboard features RGB LED lighting, allowing customization of the appearance. Built-in fan connectors and a TPM connector support system management and security. The BIOS is of the UEFI AMI type, with 256 Mbit memory, ensuring flexible settings and updates.

Compatibility

The ASUS PRIME B650-PLUS WIFI works with Windows 10 x64 and Windows 11 operating systems, making it suitable for a variety of PC builds and upgrades.

Features

• Processor Manufacturer: AMD
• Processor Socket: AM5
• Compatible Processors: AMD Ryzen 7000, 8000, 9000 series
• Memory Type: DDR5-SDRAM, 4 DIMM slots, max 192 GB
• Memory Speeds: up to 7600 MHz
• Memory Channels: dual-channel
• Supported Storage Interfaces: 2 x M.2 (PCIe 5.0 & 4.0), 4 x SATA III
• RAID Support: 0, 1, 10
• PCI Express: 2 x x16 Gen 4, 2 x x1 Gen 4
• Network Interfaces: 2.5 Gigabit Ethernet, Wi-Fi 6E (802.11ax), Bluetooth 5.3
• USB Ports: USB 3.2 Gen 2 (3 x Type-A, 1 x Type-C), USB 3.2 Gen 1 (2 pcs), USB 2.0 (2 pcs)
• Display Outputs: 1 x HDMI, 1 x DisplayPort
• Audio Output: 7.1 channels, S/PDIF output
• Motherboard Form Factor: ATX
• BIOS: UEFI AMI, 256 Mbit
• RGB LED Lighting: 1 pin header
• Power Connectors: 24-pin ATX, 8-pin EPS, 12V connector
• System Connectors: CPU fan (2 pcs), chassis fan (3 pcs), TPM connector, COM connector

Package Contents

• ASUS PRIME B650-PLUS WIFI motherboard
• SATA cables
• Wi-Fi antenna
• Screws
