| Color | Black |
|---|---|
| Country of Origin | China |
| PID | 1013945 |
| Product depth (mm) | 244 |
| Product weight (g) | 859 |
| Product width (mm) | 244 |
| Bluetooth | Yes |
| Bluetooth version | 5.4 |
| WiFi | Yes |
| Wireless network standard | Wi-Fi 6 (802.11ax) |
| Motherboard Chipset | AMD B850 |
| Motherboard form factor | Micro-ATX |
| Processor Socket | AM5 |

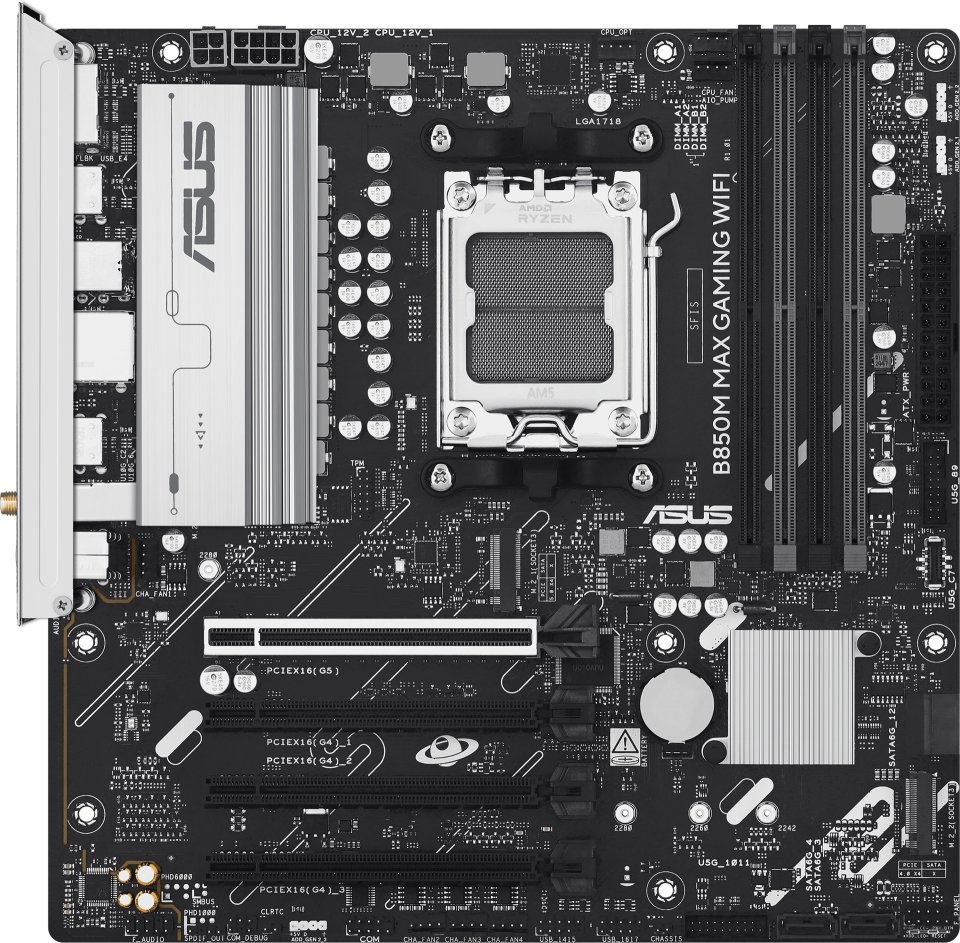

The ASUS B850M MAX GAMING WIFI is an mATX motherboard based on the AMD B850 chipset, supporting the latest AMD Ryzen processors with the AM5 socket. It offers DDR5 memory support, three M.2 slots, and PCIe 5.0 readiness, making it an excellent choice for high-performance gaming builds and AI-ready workstations. Built-in Wi-Fi 6 and Bluetooth 5.4 ensure fast and stable connections.
The motherboard supports AMD Ryzen 7000, 8000, and 9000 series processors with the AM5 socket. Four DIMM slots allow up to 256 GB of DDR5 memory in dual-channel mode, supporting both ECC and non-ECC memory. Storage options include three M.2 slots (one with PCIe 5.0 support) and four SATA III connectors, with RAID 0/1/5/10 support. There are a total of four expansion slots, including one PCIe 5.0 x16 and three PCIe 4.0 x16 slots (operating in x1 mode), enabling versatile configuration options.

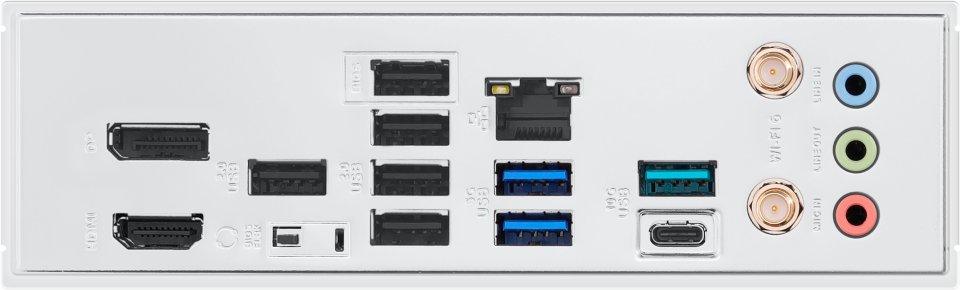

The motherboard offers a comprehensive selection of USB ports: USB 10Gbps Type-A and Type-C, USB 5Gbps, and USB 2.0. Graphics card connections include HDMI and DisplayPort. Wireless connectivity is handled by Wi-Fi 6 and Bluetooth 5.4, while wired networking operates via 1 Gb Ethernet.
The motherboard features passive chipset cooling and multiple fan headers, including AIO pump support. RGB LED lighting and three Addressable RGB Gen 2 pin headers allow visual customization of the build using Aura Sync software. The BIOS is UEFI AMI type, and the BIOS FlashBack™ feature simplifies updates without an installed processor. The motherboard supports Windows 10 x64 and Windows 11 operating systems.
12 in stock
The ASUS B850M MAX GAMING WIFI is an mATX motherboard based on the AMD B850 chipset, supporting the latest AMD Ryzen processors with the AM5 socket. It offers DDR5 memory support, three M.2 slots, and PCIe 5.0 readiness, making it an excellent choice for high-performance gaming builds and AI-ready workstations. Built-in Wi-Fi 6 and Bluetooth 5.4 ensure fast and stable connections.
The motherboard supports AMD Ryzen 7000, 8000, and 9000 series processors with the AM5 socket. Four DIMM slots allow up to 256 GB of DDR5 memory in dual-channel mode, supporting both ECC and non-ECC memory. Storage options include three M.2 slots (one with PCIe 5.0 support) and four SATA III connectors, with RAID 0/1/5/10 support. There are a total of four expansion slots, including one PCIe 5.0 x16 and three PCIe 4.0 x16 slots (operating in x1 mode), enabling versatile configuration options.
The motherboard offers a comprehensive selection of USB ports: USB 10Gbps Type-A and Type-C, USB 5Gbps, and USB 2.0. Graphics card connections include HDMI and DisplayPort. Wireless connectivity is handled by Wi-Fi 6 and Bluetooth 5.4, while wired networking operates via 1 Gb Ethernet.
The motherboard features passive chipset cooling and multiple fan headers, including AIO pump support. RGB LED lighting and three Addressable RGB Gen 2 pin headers allow visual customization of the build using Aura Sync software. The BIOS is UEFI AMI type, and the BIOS FlashBack™ feature simplifies updates without an installed processor. The motherboard supports Windows 10 x64 and Windows 11 operating systems.
