| Color | White |
|---|---|
| Country of Origin | China |
| PID | 1013951 |
| Product depth (mm) | 244 |
| Product weight (g) | 1 260 |
| Product width (mm) | 305 |
| Bluetooth | Yes |
| Bluetooth version | 5.4 |
| WiFi | Yes |
| Wireless network standard | Wi-Fi 6 (802.11ax) |
| Motherboard Chipset | AMD B650E |
| Motherboard form factor | ATX |
| Processor Socket | AM5 |
| Maximum supported memory (Gt) | 256 |
| Number of RAM slots | 4 |
| Supported RAM | DDR5 |
| Manufacturer address | "Torshamnsgatan 35, 164 40 Kista, Sweden " |
| Manufacturer's email address | https://www.asus.com/content/asus-product-security-advisory/ |
| Manufacturer name | Asus Nordic AB |

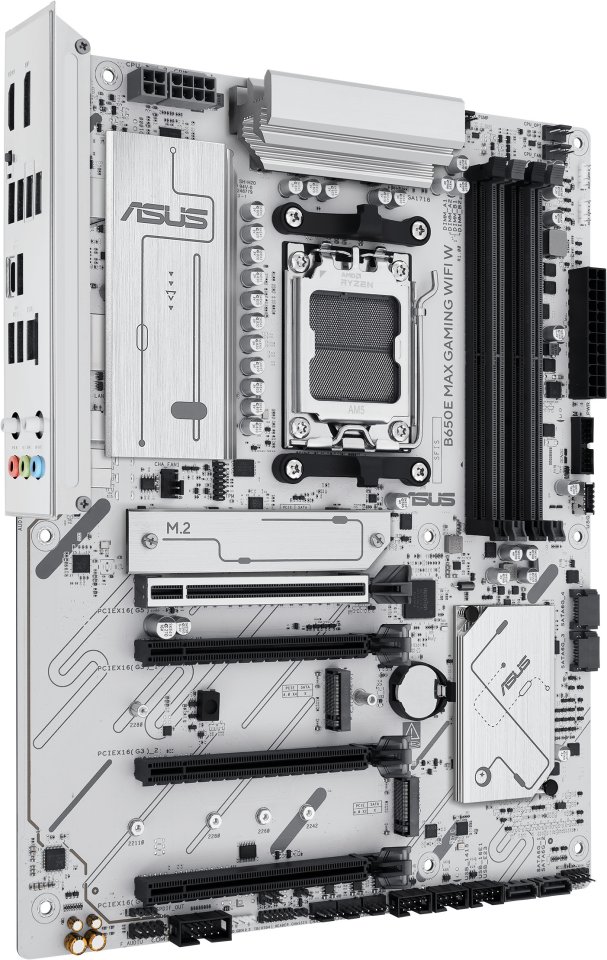

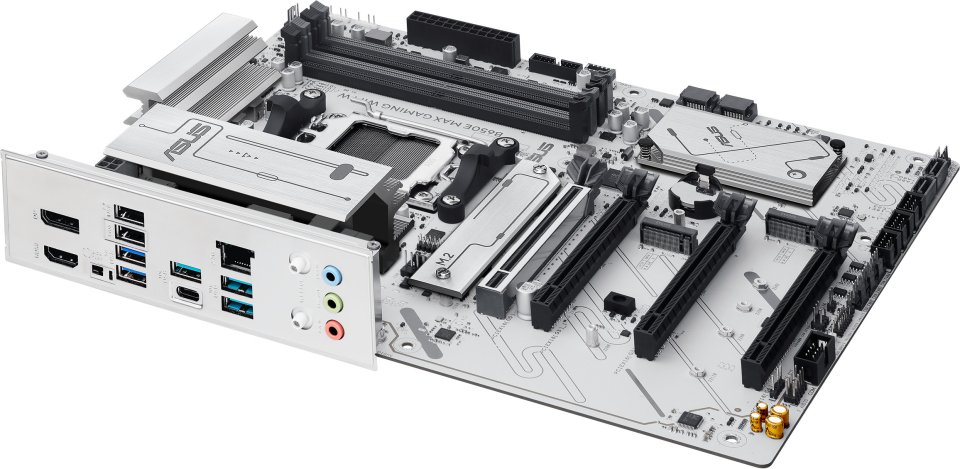

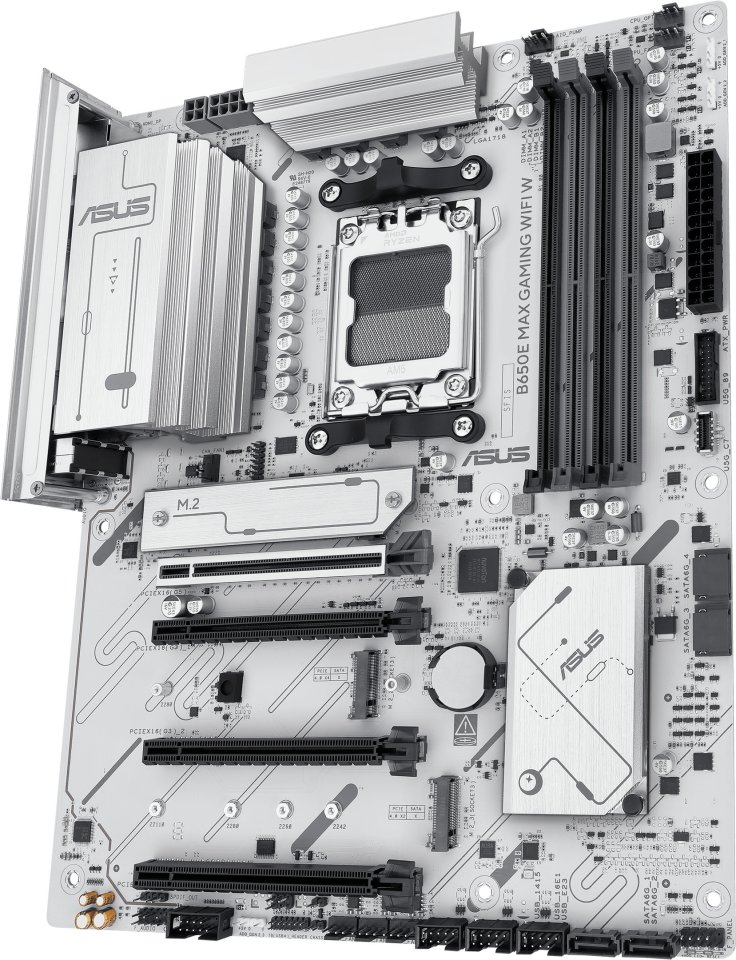

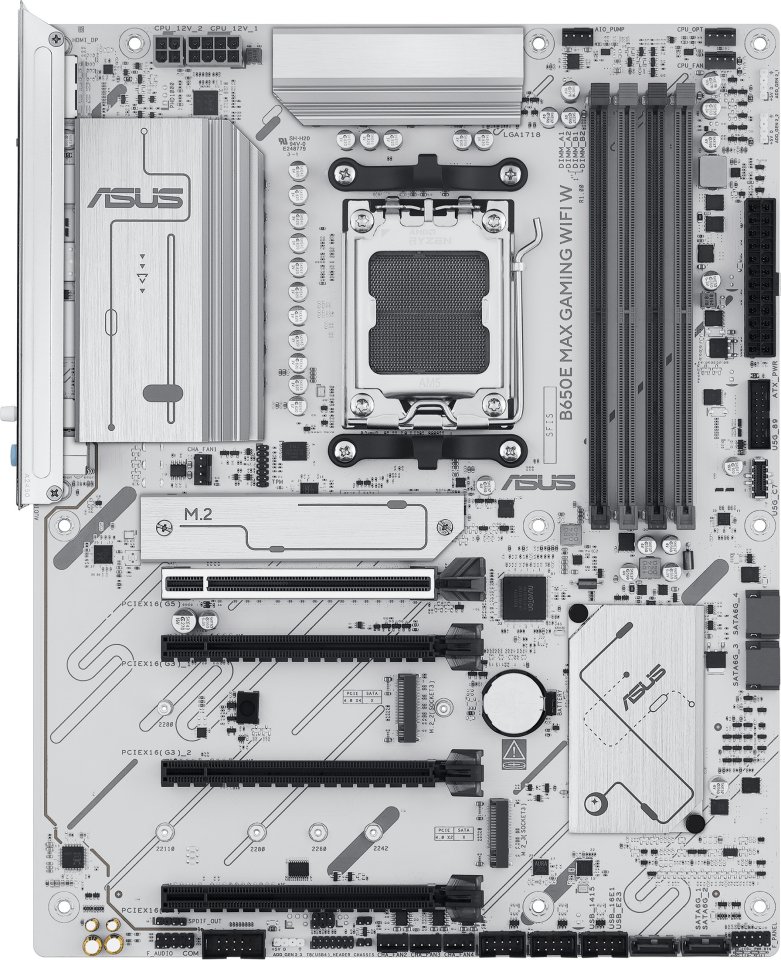

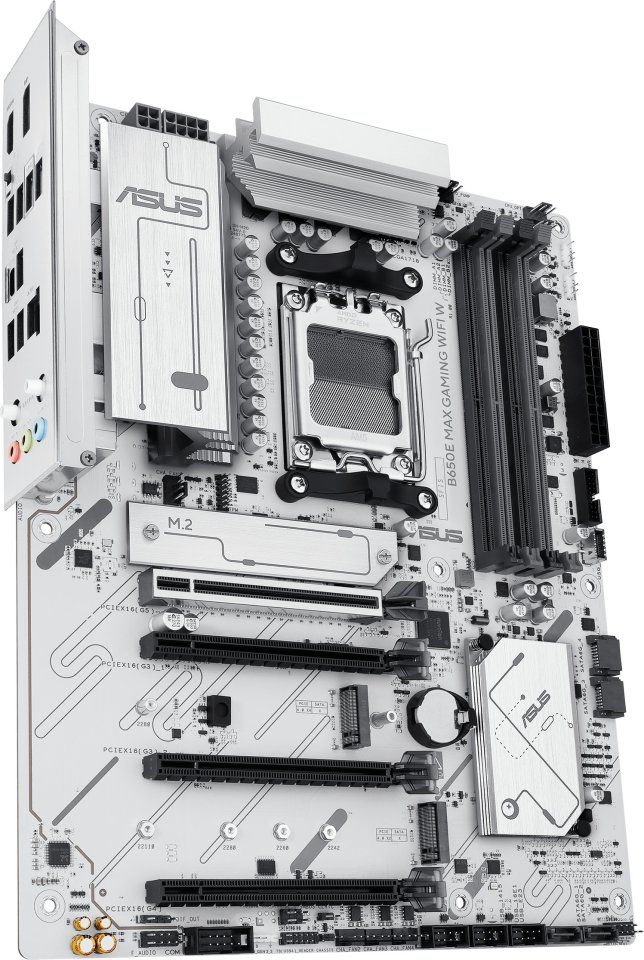

The ASUS B650E MAX GAMING WIFI W is an ATX motherboard based on the AMD B650 chipset, supporting the latest AMD Ryzen processors with the AM5 socket. It offers DDR5 memory support, three M.2 slots, and PCIe 5.0 readiness, ensuring excellent performance for demanding gaming builds and workstations. Built-in Wi-Fi 6E and 2.5 Gb Ethernet connections guarantee fast and stable network connectivity.
The motherboard supports AMD Ryzen 7000, 8000, and 9000 series processors with the AM5 socket. Four DIMM slots allow up to 256 GB of DDR5 memory in dual-channel configuration, with support for both ECC and non-ECC memory. Storage solutions include three M.2 slots (one with PCIe 5.0 support) and four SATA III ports with RAID 0/1/5/10 support. There are a total of five expansion slots, including one PCIe 5.0 x16 and two PCIe 3.0 x16 slots, enabling versatile build configurations.

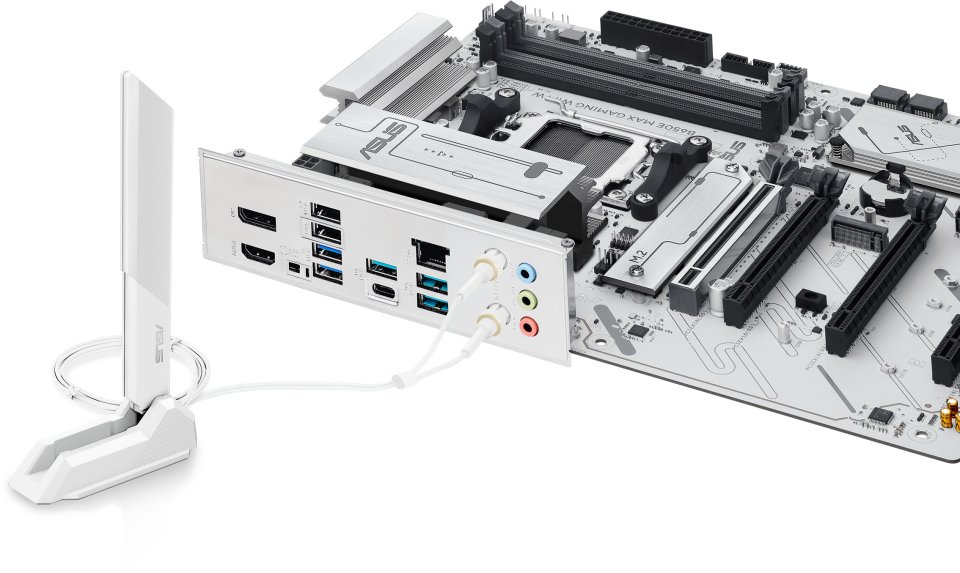

The motherboard offers a comprehensive selection of USB ports: USB 3.2 Gen 2 Type-A and Type-C, USB 3.2 Gen 1, and USB 2.0. Graphics card connections include HDMI and DisplayPort. Wireless connectivity is handled by Wi-Fi 6E and Bluetooth 5.3, while wired connections operate via 2.5 Gb Ethernet.
A passive cooling solution helps keep components cool quietly. RGB LED lighting and three RGB LED headers allow visual customization of the build with Aura Sync software. The BIOS is UEFI AMI type, and the BIOS FlashBack™ feature makes updates easy without an installed processor. The motherboard supports Windows 10 x64 and Windows 11 operating systems.
