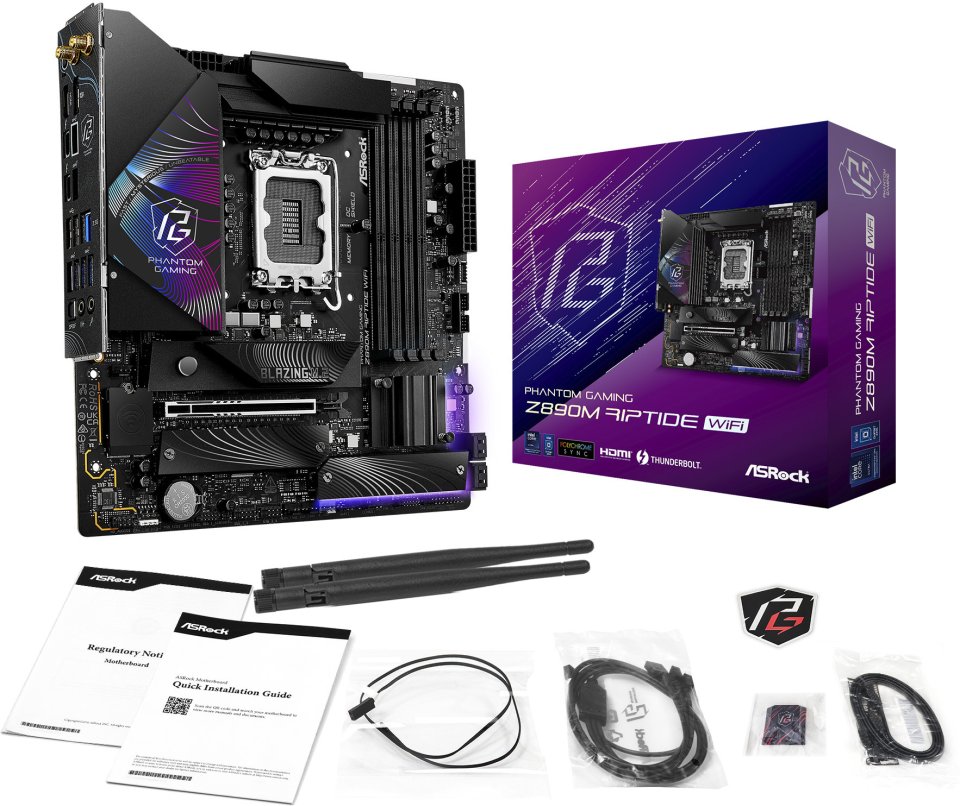

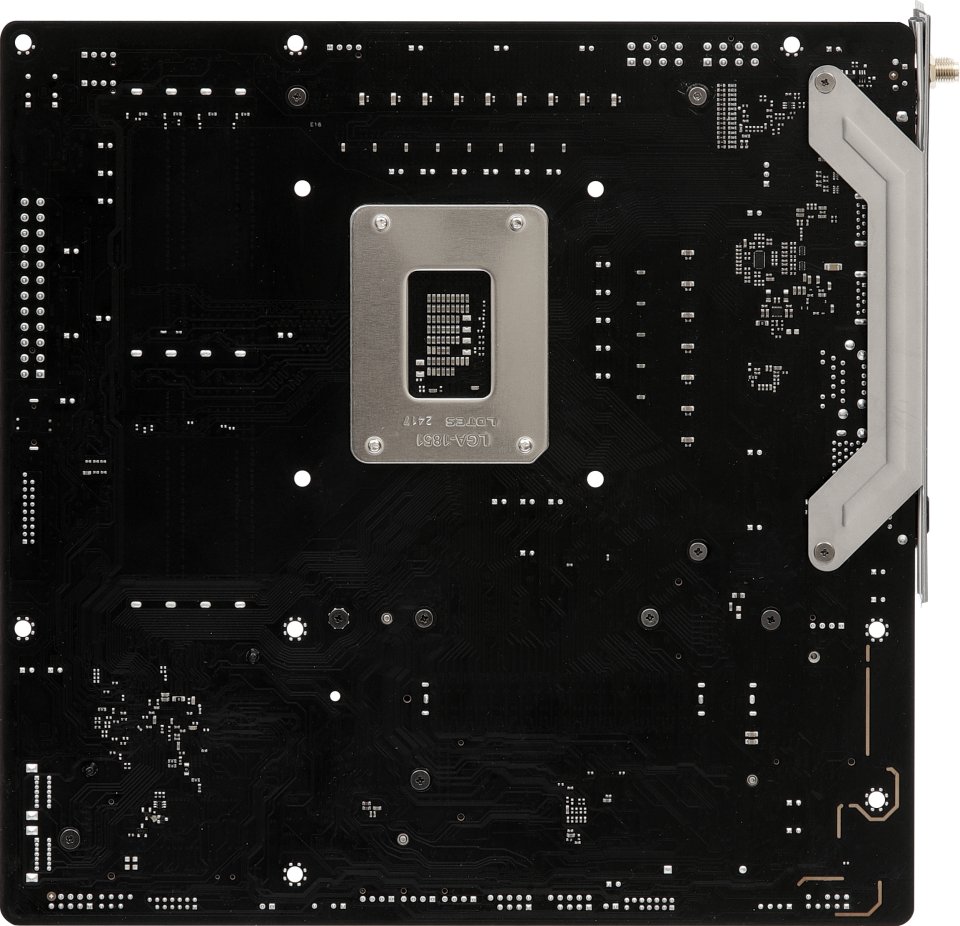

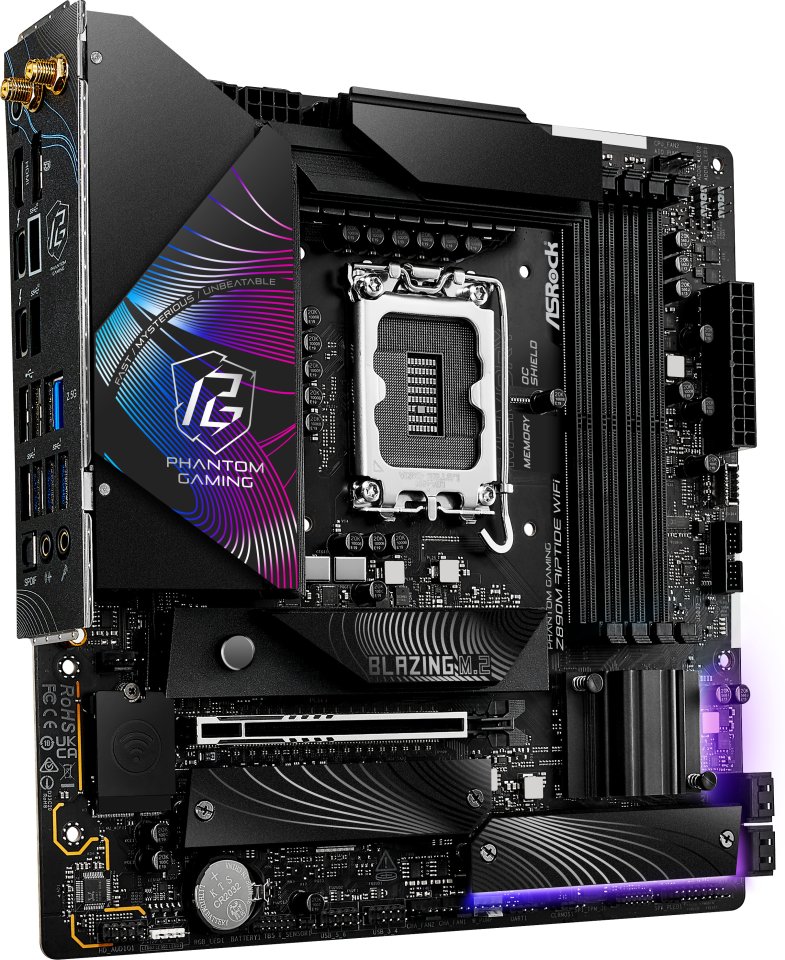

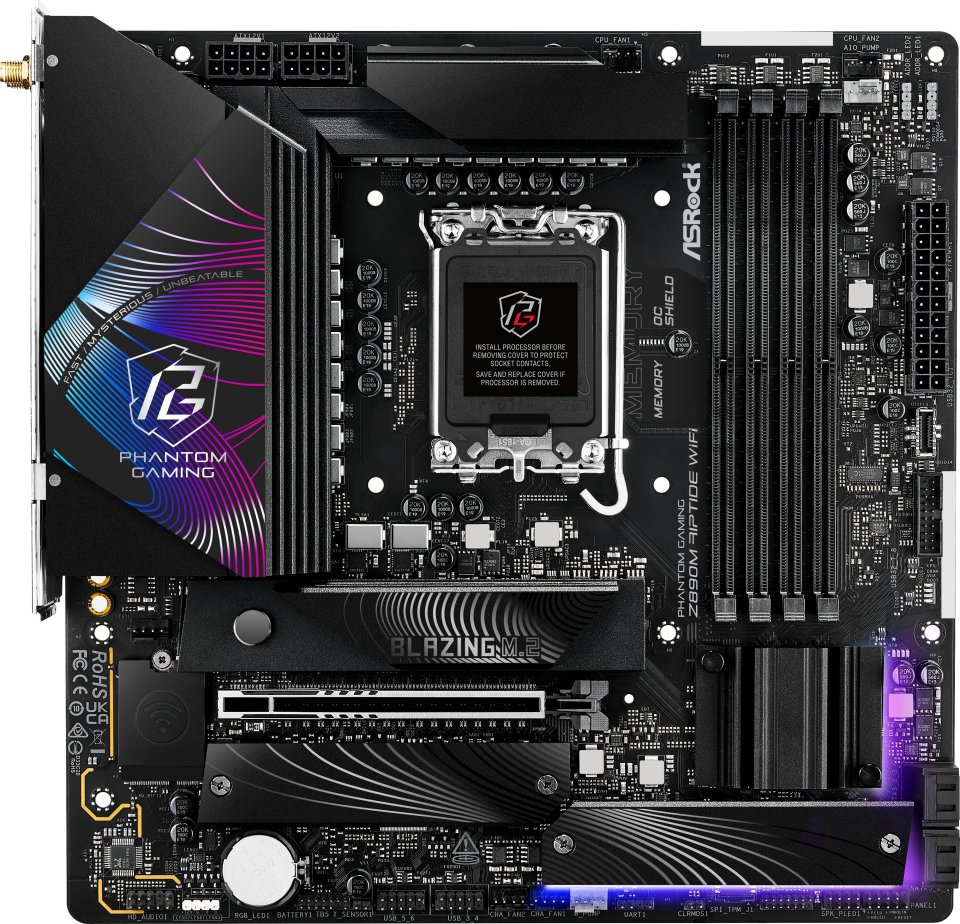

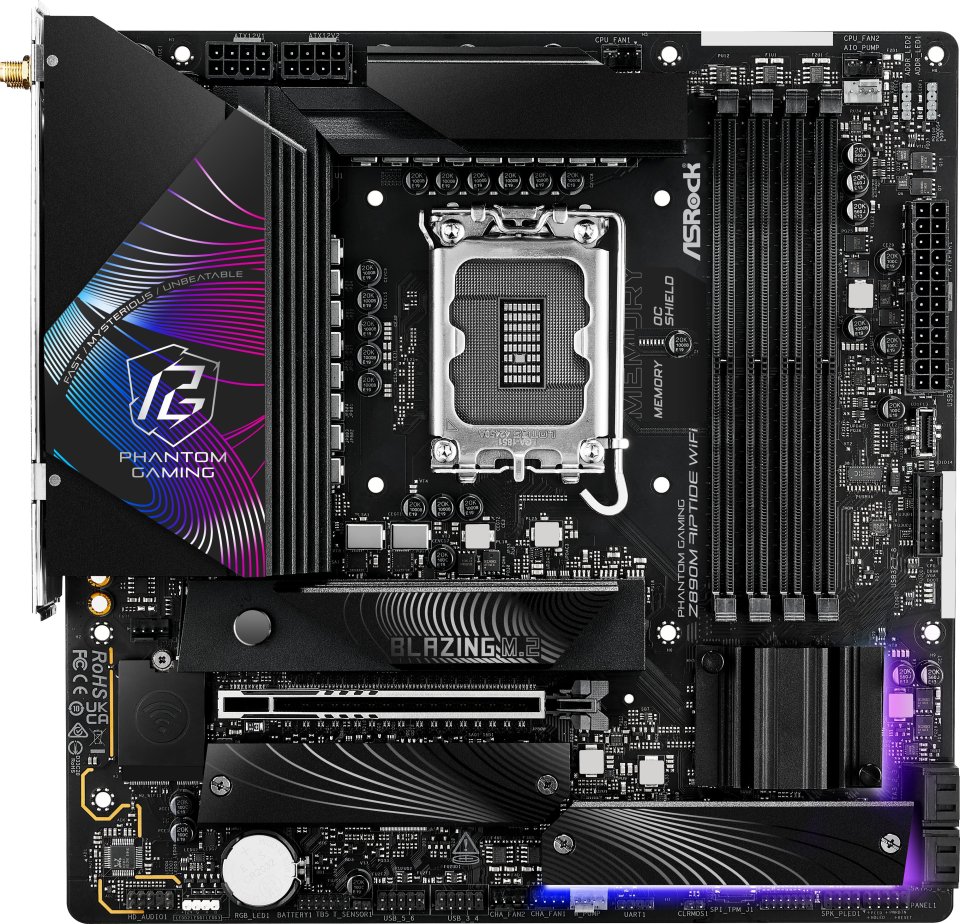

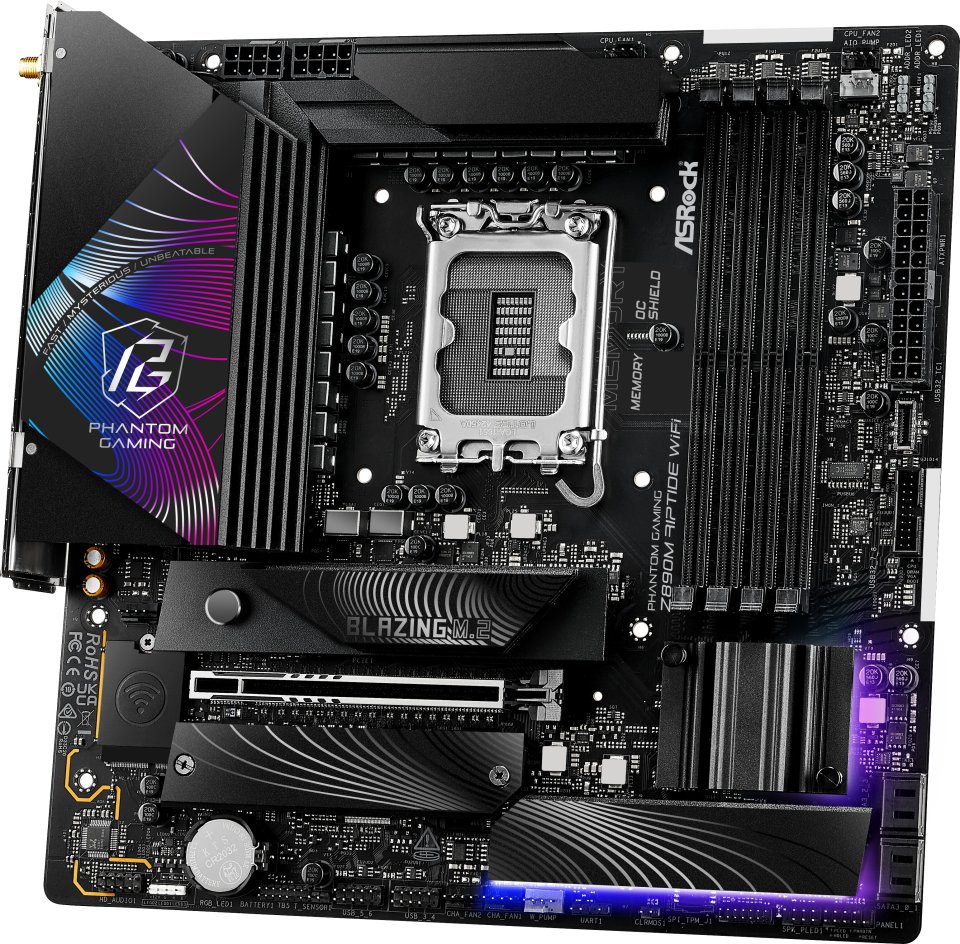

ASRock Z890M Riptide WiFi is a high-quality and durable Micro ATX motherboard with an LGA 1851 socket for Intel Core Ultra (Series 2) processors.

The Riptide WiFi is designed for demanding users, such as gamers and content creators. The motherboard, with its sleek and bold appearance, houses all the latest features, including DDR5 memory support, PCIe 5.0 slots, and ultra-fast 5G LAN and WiFi 7 network connections. The Z890M Riptide WiFi is an ideal choice for those who want to build a high-performance and feature-rich computer setup.

ASRock Polychrome RGB Sync
Control all the LED accessories in your setup through ASRock’s own application. The motherboard includes an RGB header and an addressable RGB header, to which LED products can be connected and synchronized into a spectacular light show. ASRock’s application is Razer Chroma compatible, and supported peripherals can also be managed through the same software.

– Supports Intel Core Ultra Series 2 processors

– 18+1+1+1+1 phase power delivery

– 4 x DDR5 DIMM memory slots, supports up to 9066 MHz+(OC)

– 1 PCIe 5.0 x16 slot

– 3 x M.2 slots, 4 x SATA ports

– 2.5G LAN, Wi-Fi 6E + Bluetooth

Features:

• Chipset: Intel Z890
• Processor socket: Intel LGA 1851
• Processor support: Intel Core Ultra (Series 2)
• Motherboard size: Micro ATX (9.6 x 9.6 inches)
• Memory slots (pcs): 4
• Memory type: DDR5 (Dual Channel), non-ECC, un-buffered, up to 9066+(OC) MHz
• Maximum memory capacity (GB): 256
• Network connections: Killer E3100G 2.5 Gigabit LAN, Wi-Fi 6E (802.11a/b/g/n/ac/ax/axe), Bluetooth 5.3
• Sound card: 7.1 CH HD Audio (Realtek ALC897 Audio Codec), Nahimic Audio

Expansion slots

• CPU
  1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode
• Chipset
  1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel CNVio/CNVio2 (Integrated WiFi/BT)

Storage connections

• 4 x SATA 6Gb/s ports
• CPU
  1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode
  1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode
• Chipset
  1 x Hyper M.2 Socket (M2_3, Key M), supports type 2280 SATA3 6.0 Gb/s & PCIe Gen4x4 (64 Gb/s) modes

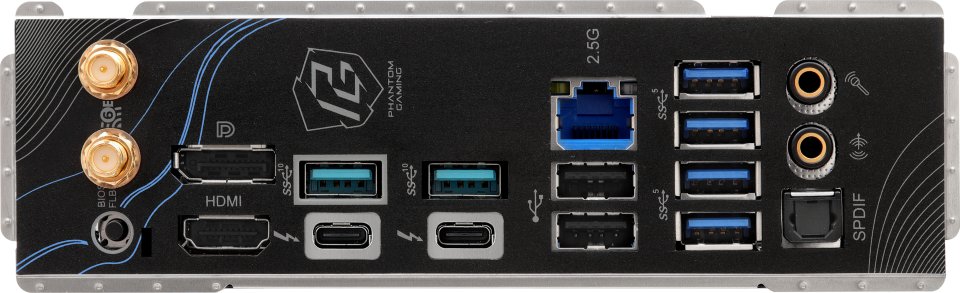

Rear panel connections

• 2 x Antenna Ports
• 1 x HDMI Port
• 1 x DisplayPort 1.4
• 1 x Optical SPDIF Out Port
• 2 x Thunderbolt 4 Type-C Ports (40 Gb/s for USB4 protocol; 40 Gb/s for Thunderbolt protocol)
• 2 x USB 3.2 Gen2 Type-A Ports (10 Gb/s)
• 4 x USB 3.2 Gen1 Ports
• 2 x USB 2.0 Ports
• 1 x RJ-45 LAN Port
• 1 x BIOS Flashback Button
• 1 x Line Out Jack (Gold Audio Jack)
• 1 x Microphone Input Jack (Gold Audio Jack)

Internal connectors

• 1 x Thermistor Cable Header
• 1 x SPI TPM Header
• 1 x Power LED and Speaker Header
• 1 x RGB LED Header
• 2 x Addressable LED Headers
• 2 x CPU Fan Connectors (4-pin) (Smart Fan Speed Control)
• 3 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control)
• 1 x AIO Pump Fan Connector (4-pin) (Smart Fan Speed Control)
• 1 x Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)
• 1 x 24 pin ATX Power Connector (Hi-Density Power Connector)
• 2 x 8 pin 12V Power Connectors (Hi-Density Power Connector)
• 1 x Front Panel Audio Connector (15μ Gold Audio Connector)
• 2 x USB 2.0 Headers (Support 4 USB 2.0 ports)
• 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)
• 1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s)
