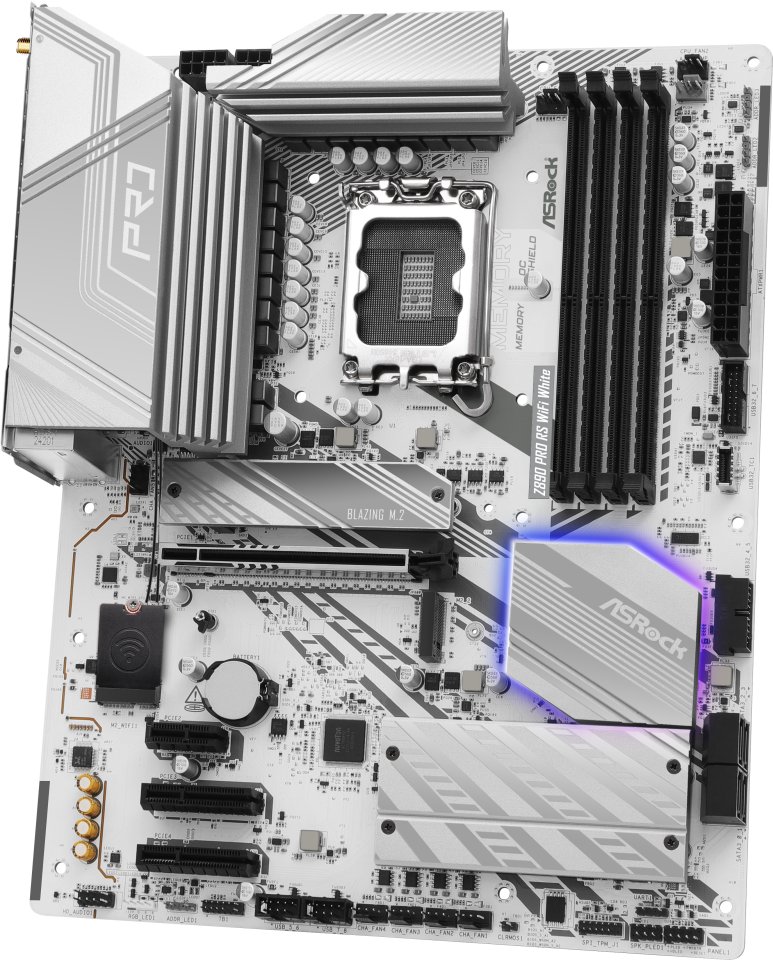

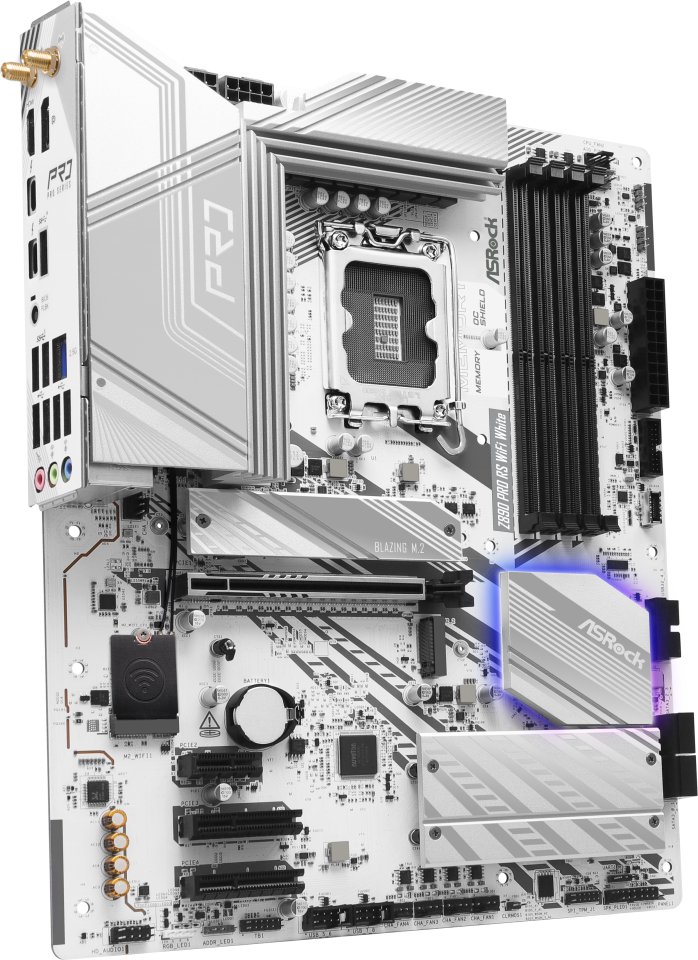

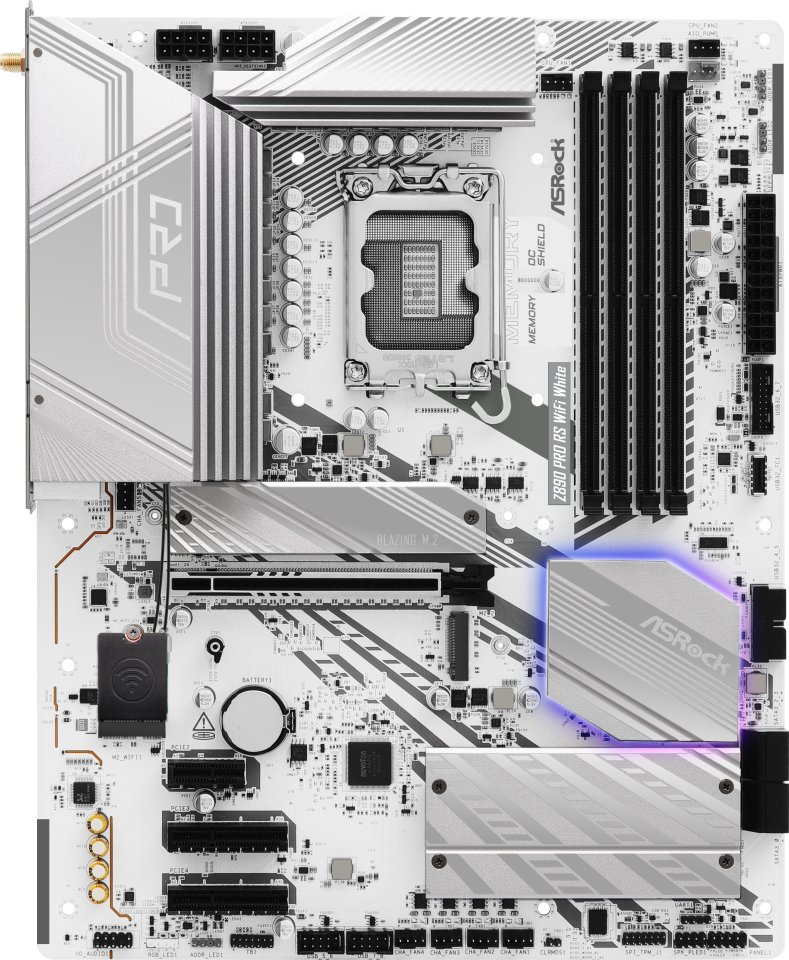

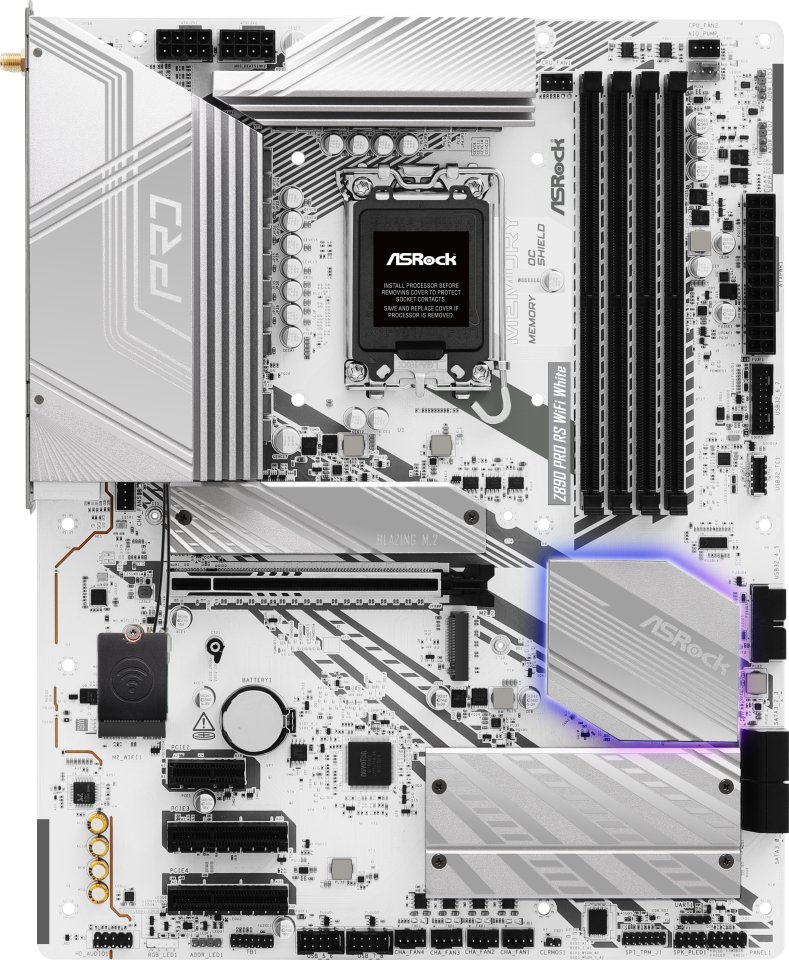

ASRock PRO RS WIFI is a high-quality and durable LGA 1851 ATX motherboard for Intel Core Ultra (Series 2) processors.

PRO RS WIFI is a modern, futuristic motherboard equipped with attractive technical features. It offers excellent productivity, rock-solid durability, and ultra-fast connectivity, making it well-suited for modern and powerful gaming setups.

The Pro RS series is aimed at everyday users and enthusiasts. The series provides high-quality materials and components that ensure stable and reliable performance.

ASRock Polychrome RGB Sync
Manage all the LED accessories of your setup through ASRock’s own application. The motherboard features an RGB header and an addressable RGB header, to which LED products can be connected and synchronized into a spectacular light show. ASRock’s application is Razer Chroma compatible, and supported peripherals can also be managed through the same software.

– Supports Intel Core Ultra Series 2 processors

– 16+1+1+1+1 phase power delivery

– 4 x DDR5 DIMM memory slots, supports up to 8666 MHz+(OC)

– 1 PCIe 5.0 x16, 2 PCIe 4.0 x4, 1 PCIe 4.0 x1

– 4 x M.2 slots, 4 x SATA

– 2.5G LAN, Wi-Fi 6E + Bluetooth

Features:

• Chipset: Intel Z890
• Processor socket: Intel LGA 1851
• Processor support: Intel Core Ultra (Series 2)
• Motherboard size: ATX (12 x 9.6 in)
• Memory slots (pcs): 4
• Memory type: DDR5 (Dual Channel), non-ECC, un-buffered, up to 8666+(OC) MHz
• Maximum memory capacity (GB): 256
• Network interfaces: Dragon RTL8125BG 2.5 Gigabit LAN, Wi-Fi 6E (802.11a/b/g/n/ac/ax/axe), Bluetooth 5.3
• Sound card: 7.1 CH HD Audio Content Protection (Realtek ALC897 Audio Codec), Nahimic Audio

Expansion slots

• CPU
  1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode
• Chipset
  2 x PCIe 4.0 x4 Slots (PCIE3 and PCIE4), support x4 mode
  1 x PCIe 4.0 x1 Slot (PCIE2)
  1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel CNVio/CNVio2 (Integrated WiFi/BT)

Storage connections

• 4 x SATA 6Gb/s ports
• CPU
  1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode
  1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode
• Chipset
  1 x Hyper M.2 Socket (M2_3, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode
  1 x Hyper M.2 Socket (M2_4, Key M), supports type 2230/2242/2260/2280 SATA3 6.0 Gb/s & PCIe Gen4x4 (64 Gb/s) modes

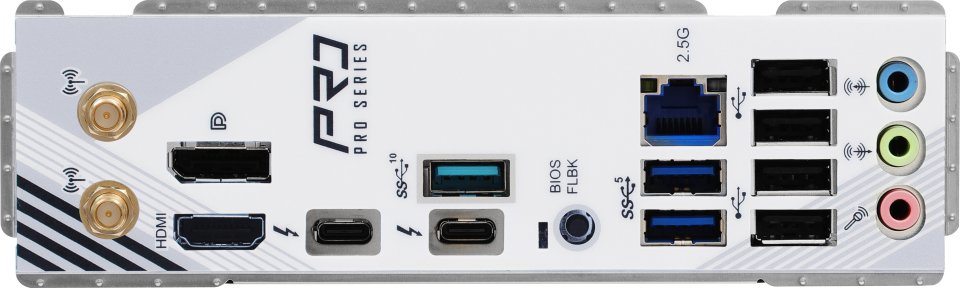

Rear panel connections

• 2 x Antenna Ports
• 1 x HDMI Port
• 1 x DisplayPort 1.4
• 2 x Thunderbolt 4 Type-C Ports (40 Gb/s for USB4 protocol; 40 Gb/s for Thunderbolt protocol)
• 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s)
• 2 x USB 3.2 Gen1 Ports
• 4 x USB 2.0 Ports
• 1 x RJ-45 LAN Port
• 1 x BIOS Flashback Button
• HD Audio Jacks: Line in / Front Speaker / Microphone

Internal connections

• 1 x SPI TPM Header
• 1 x Power LED and Speaker Header
• 1 x RGB LED Header
• 3 x Addressable LED Headers
• 2 x CPU Fan Connectors (4-pin) (Smart Fan Speed Control)
• 5 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control)
• 1 x AIO Pump Fan Connector (4-pin) (Smart Fan Speed Control)
• 1 x 24 pin ATX Power Connector
• 2 x 8 pin 12V Power Connectors (Hi-Density Power Connector)
• 1 x Front Panel Audio Connector
• 2 x USB 2.0 Headers (Support 4 USB 2.0 ports)
• 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports)
• 1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s)
