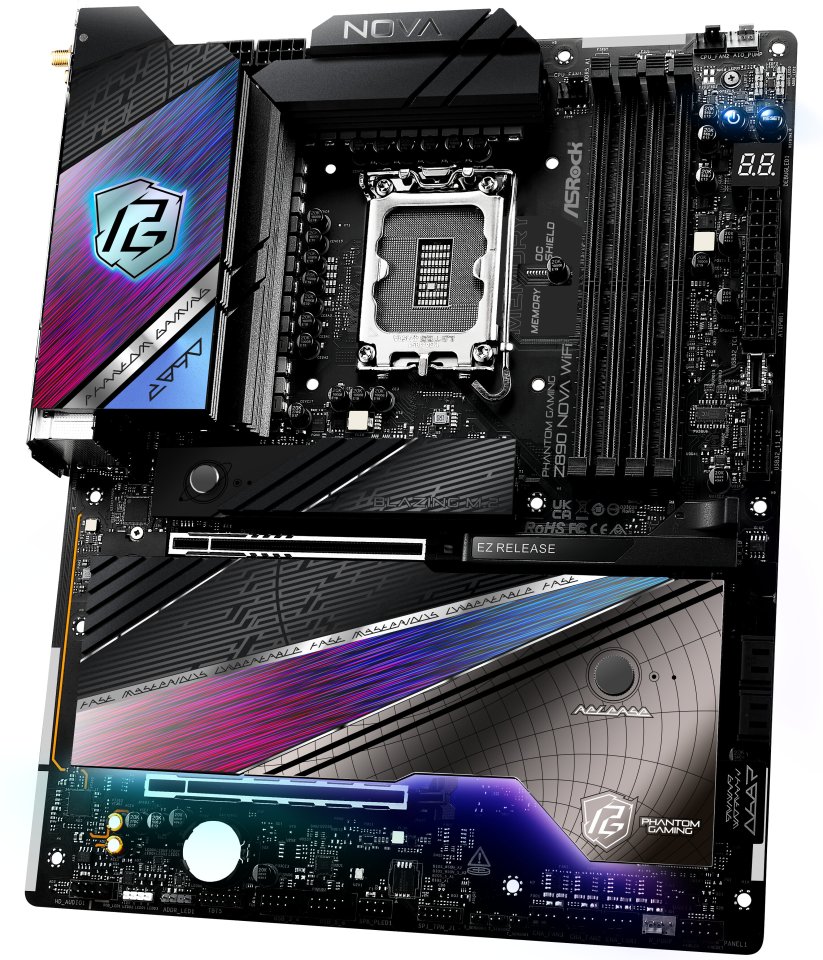

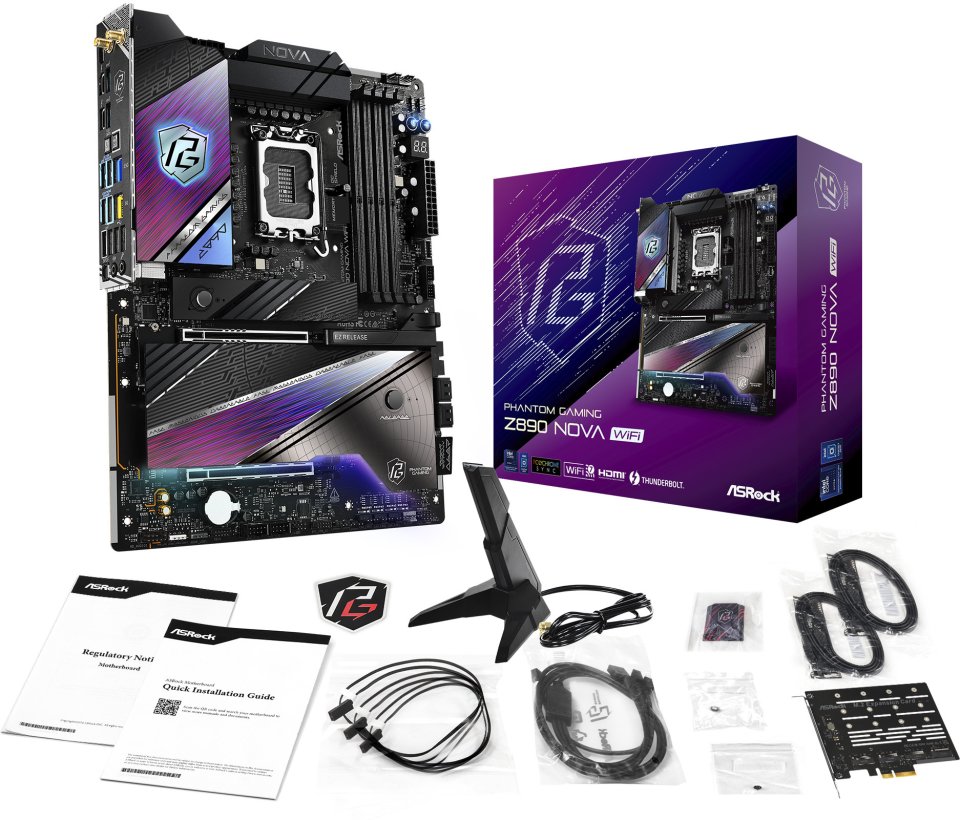

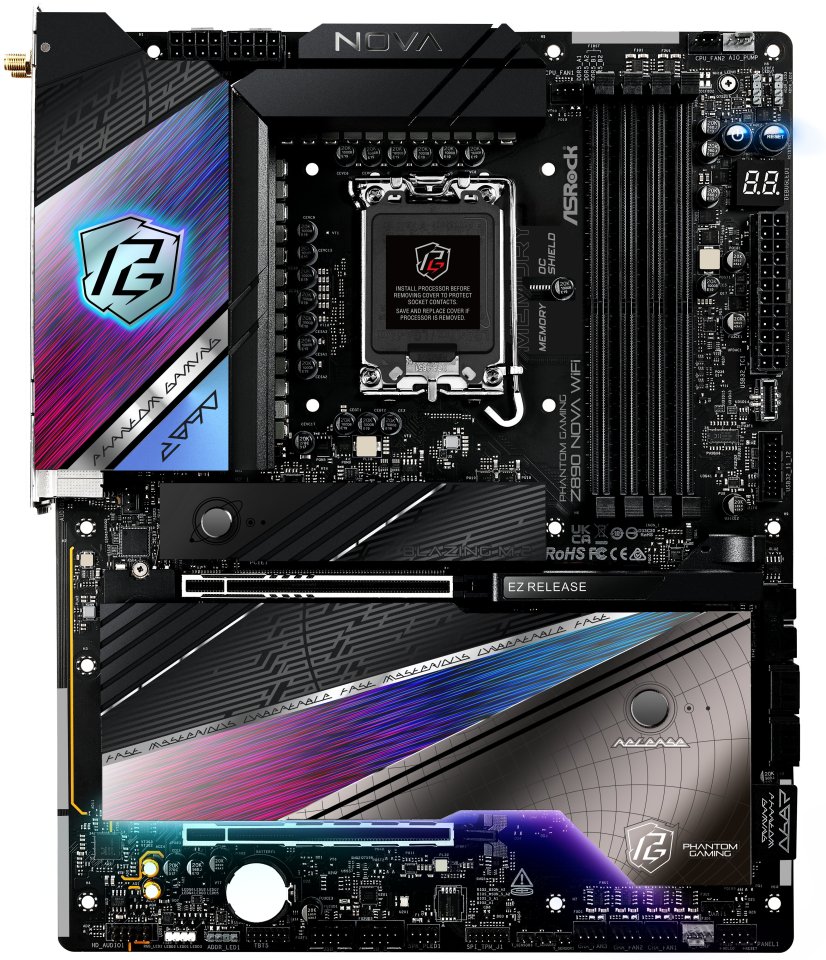

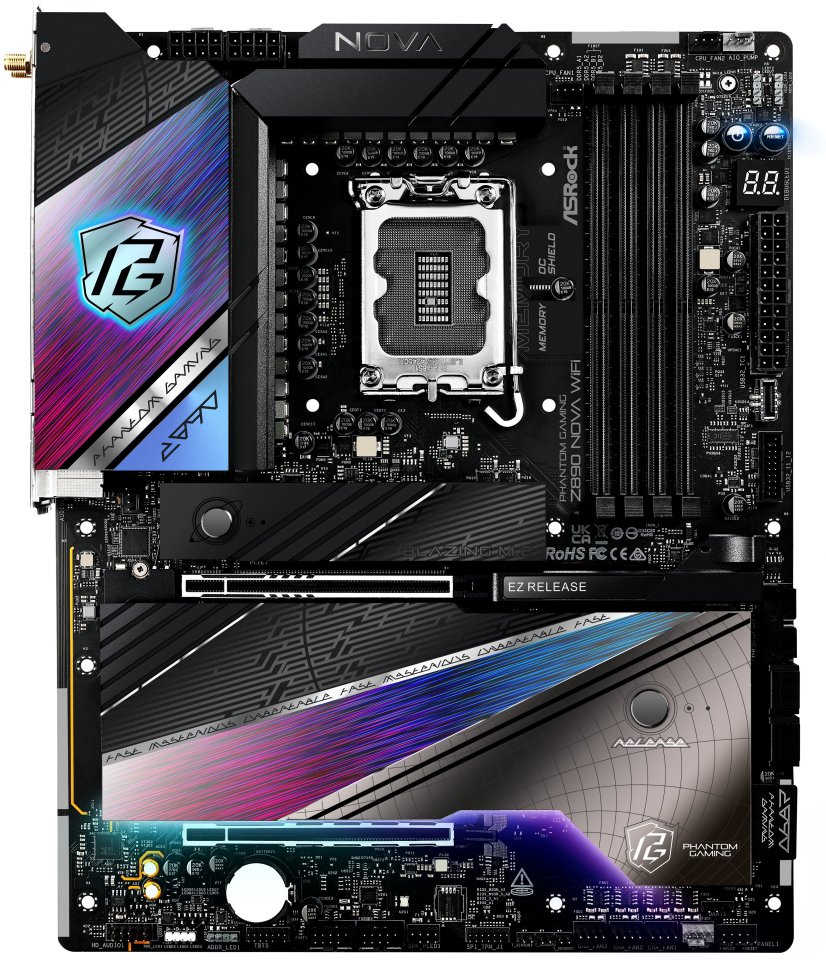

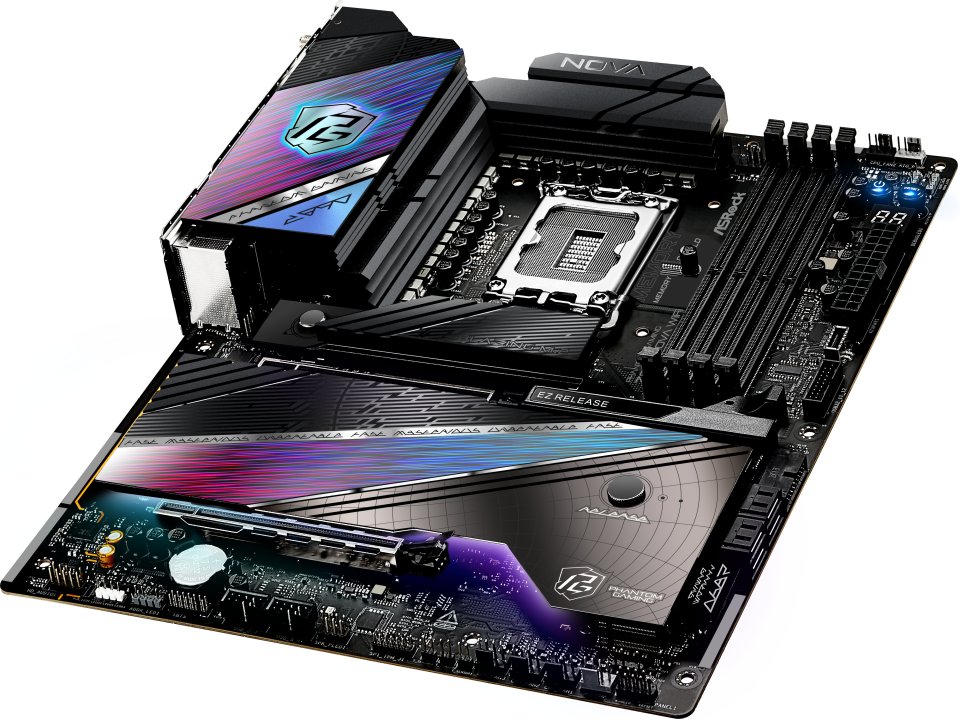

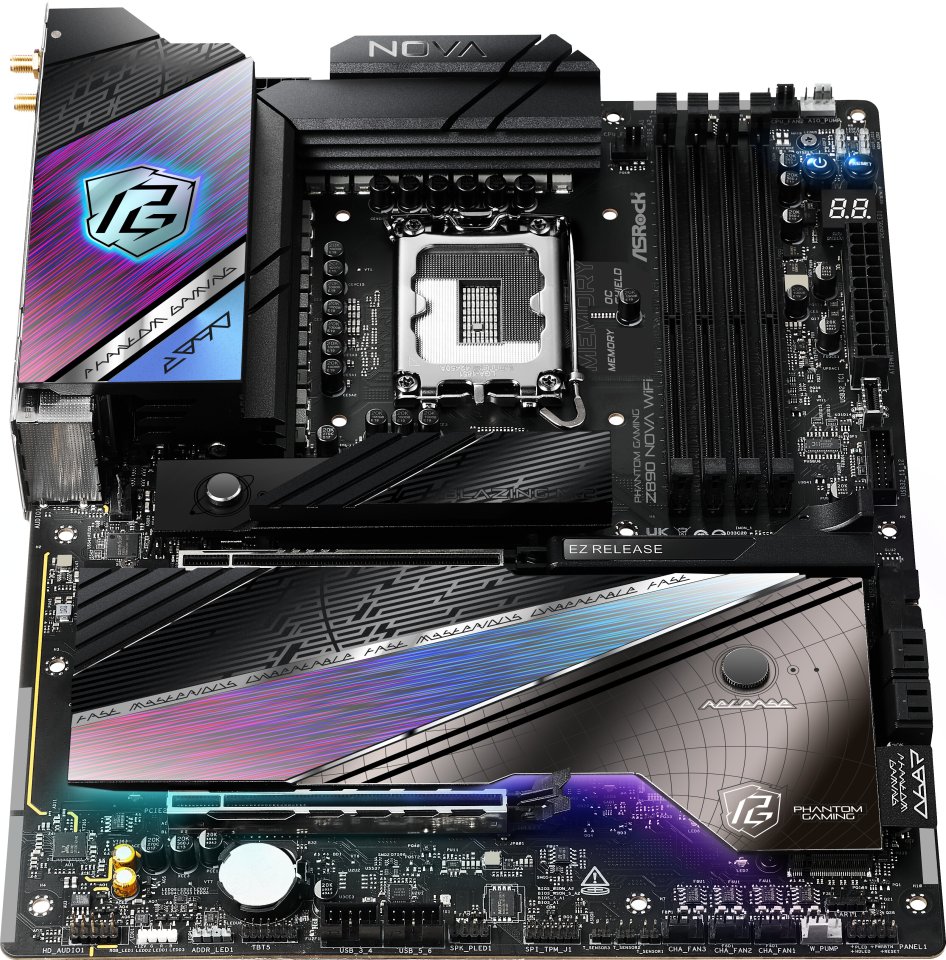

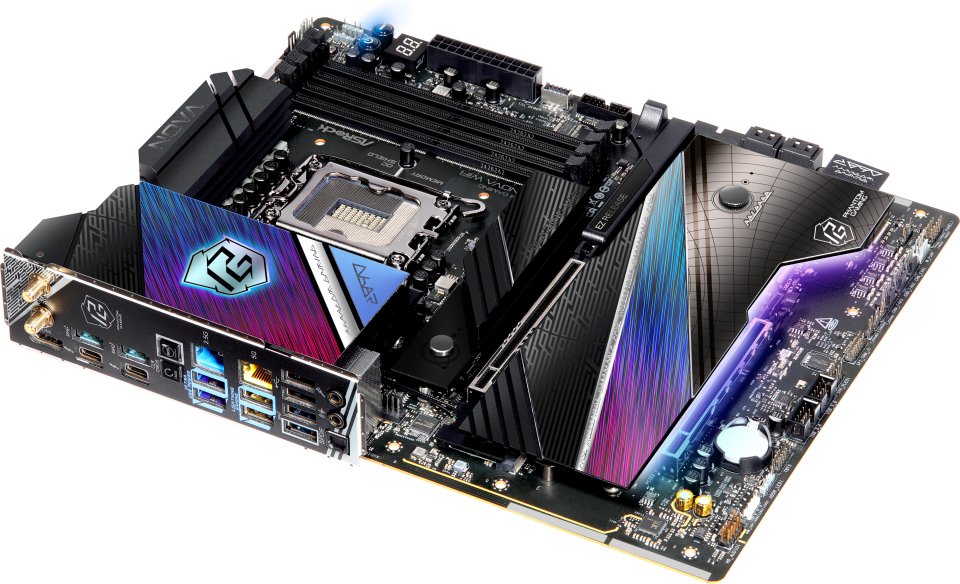

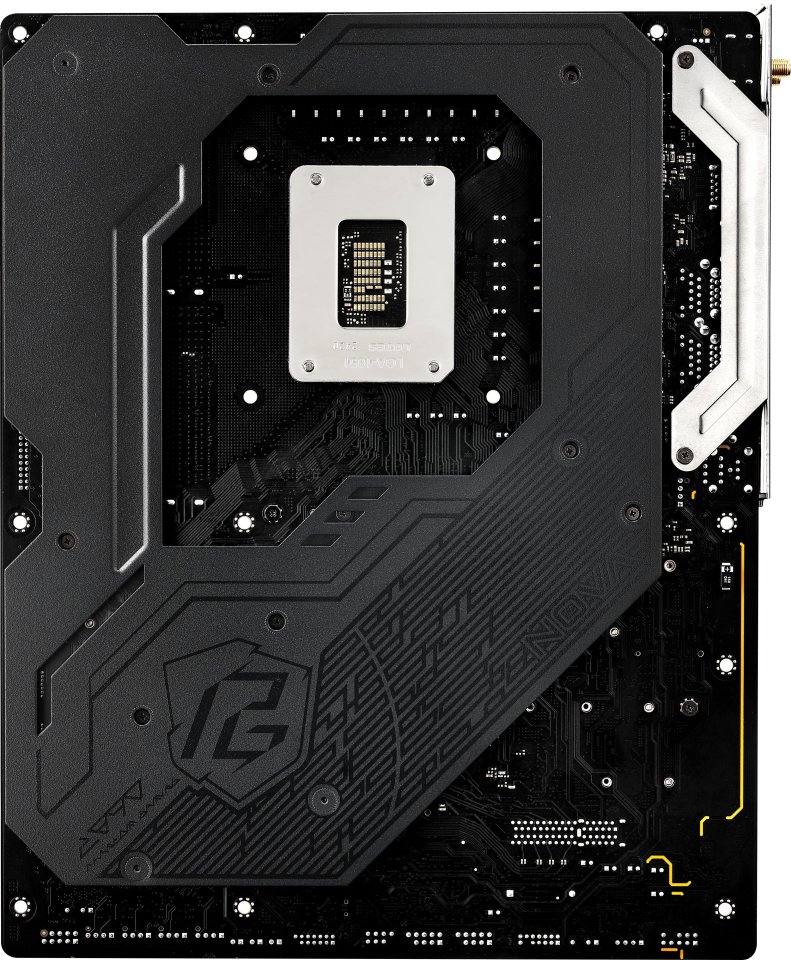

ASRock Z890 Nova WiFi is a high-end LGA 1851 socket ATX motherboard for Intel Core Ultra (Series 2) processors.

Nova WiFi is designed for demanding users such as gamers and content creators. The motherboard, with its stylish and bold appearance, houses all the latest features, including DDR5 memory support, PCIe 5.0 slots, and ultra-fast 5G LAN and WiFi 7 network connections. The Z890 Nova WiFi is an ideal choice for those who want to build a high-performance and feature-rich premium PC setup.

ASRock Polychrome RGB Sync
Control all the LED accessories in your setup through ASRock’s own application. The motherboard includes an RGB header and an addressable RGB header, to which LED products can be connected and synchronized into an impressive light show. ASRock’s application is Razer Chroma compatible, and supported peripherals can also be managed through the same software.

– Supports Intel Core Ultra Series 2 processors

– 20+1+2+1+1 phase power delivery

– 4 x DDR5 DIMM memory slots, supports up to 9200 MHz+(OC)

– 1 PCIe 5.0 x16, 1 PCIe 4.0 x16

– 6 x M.2 slots, 4 x SATA

– 5G LAN + 2.5G LAN, Wi-Fi 7 + Bluetooth

Features:

• Chipset: Intel Z890
• Processor socket: Intel LGA 1851
• Processor support: Intel Core Ultra (Series 2)
• Motherboard size: ATX (12 x 9.6 in)
• Memory slots (pcs): 4
• Memory type: DDR5 (Dual Channel), non-ECC, unbuffered, up to 9200+(OC) MHz
• Maximum memory capacity (GB): 256
• Network connections: Realtek RTL8126 5 Gigabit LAN, Wi-Fi 7 (802.11be 2×2), Bluetooth 5.4
• Sound card: 7.1 CH HD Audio Content Protection (Realtek ALC4082 Audio Codec), Nahimic Audio

Expansion slots

• CPU
  1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode
• Chipset
  1 x PCIe 4.0 x16 Slot (PCIE2), supports x4 mode
  1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module

Storage connections

• 4 x SATA 6Gb/s ports
• CPU
  1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode
  1 x Hyper M.2 Socket (M2_2, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode
• Chipset
  1 x Hyper M.2 Socket (M2_3, Key M), supports type 2230/2242/2260/2280 SATA3 6.0 Gb/s & PCIe Gen4x4 (64 Gb/s) modes
  1 x Hyper M.2 Socket (M2_4, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode
  1 x Hyper M.2 Socket (M2_5, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode
  1 x Hyper M.2 Socket (M2_6, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode

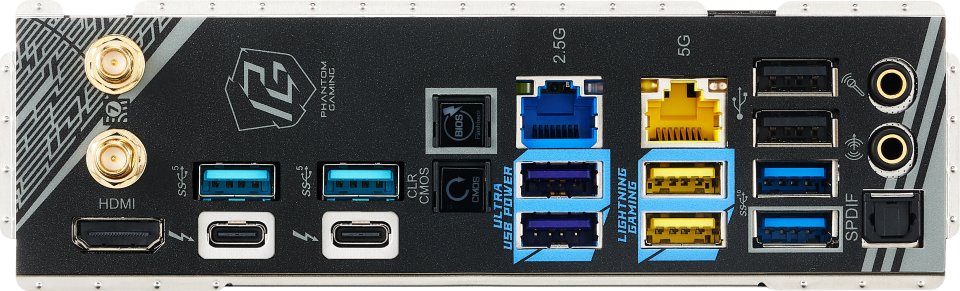

Rear panel connections

• 2 x Antenna Ports
• 1 x HDMI Port
• 1 x Optical SPDIF Out Port
• 2 x Thunderbolt 4 Type-C Ports (40 Gb/s for USB4 protocol; 40 Gb/s for Thunderbolt protocol)
• 4 x USB 3.2 Gen2 Type-A Ports (10 Gb/s)
• 4 x USB 3.2 Gen1 Ports
• 2 x USB 2.0 Ports
• 2 x RJ-45 LAN Ports
• 1 x Clear CMOS Button
• 1 x BIOS Flashback Button
• 1 x Line Out Jack (Gold Audio Jack)
• 1 x Microphone Input Jack (Gold Audio Jack)

Internal connections

• 3 x Thermistor Cable Headers
• 1 x SPI TPM Header
• 1 x Power LED and Speaker Header
• 1 x RGB LED Header
• 3 x Addressable LED Headers
• 2 x CPU Fan Connector (4-pin) (Smart Fan Speed Control)
• 4 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control)
• 1 x AIO Pump Fan Connector (4-pin) (Smart Fan Speed Control)
• 1 x Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)
• 1 x 24 pin ATX Power Connector (Hi-Density Power Connector)
• 2 x 8 pin 12V Power Connectors (Hi-Density Power Connector)
• 1 x Front Panel Audio Connector (15μ Gold Audio Connector)
• 2 x USB 2.0 Headers (Support 4 USB 2.0 ports)
• 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports)
• 1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s)
• 1 x Dr. Debug with LED
• 1 x Power Button with LED
• 1 x Reset Button with LED
