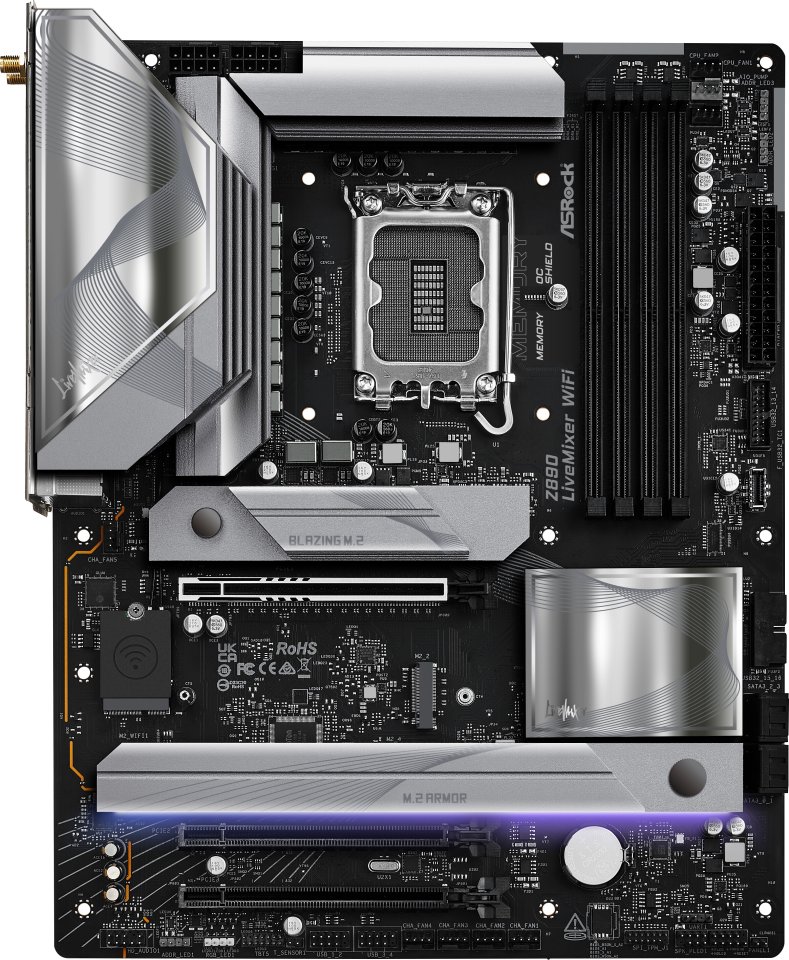

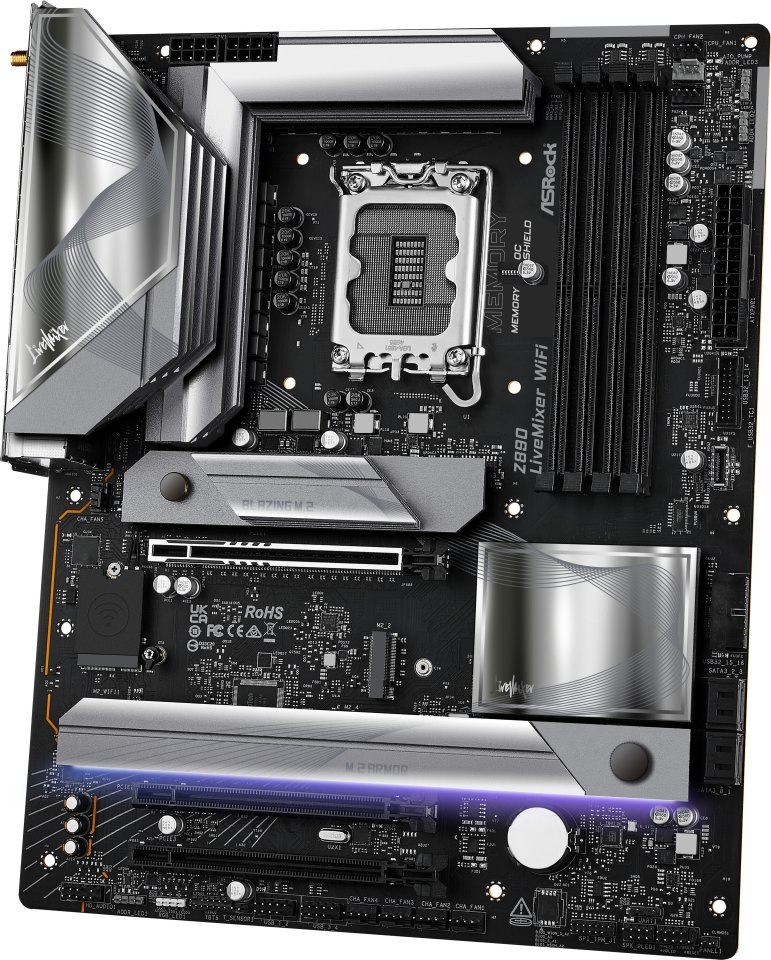

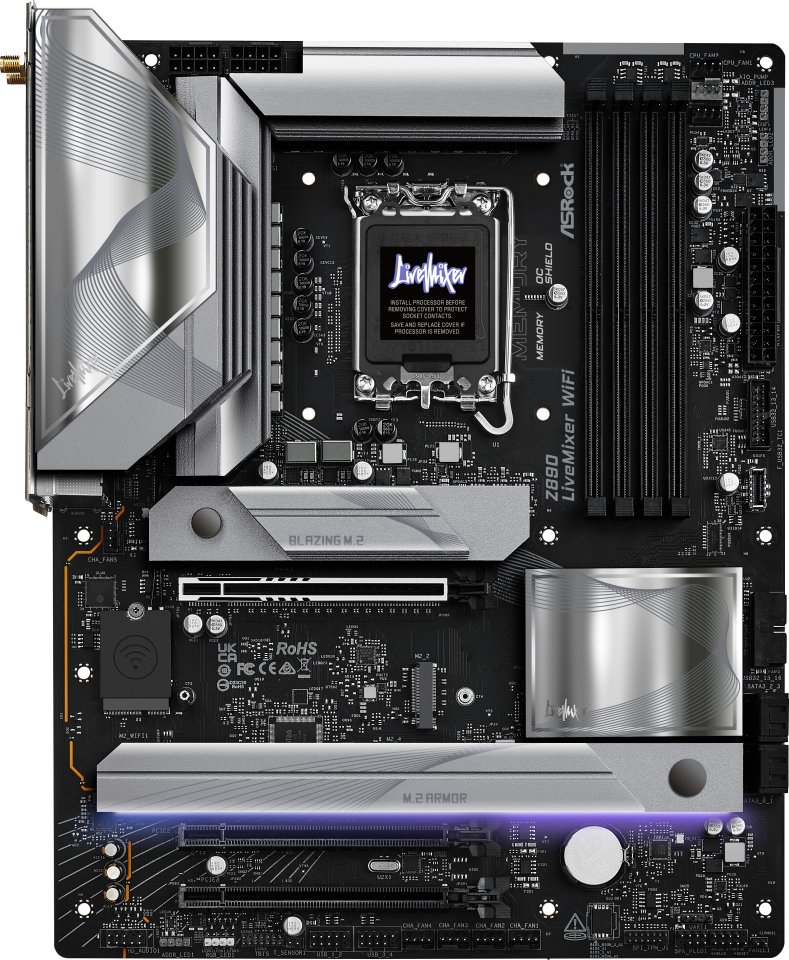

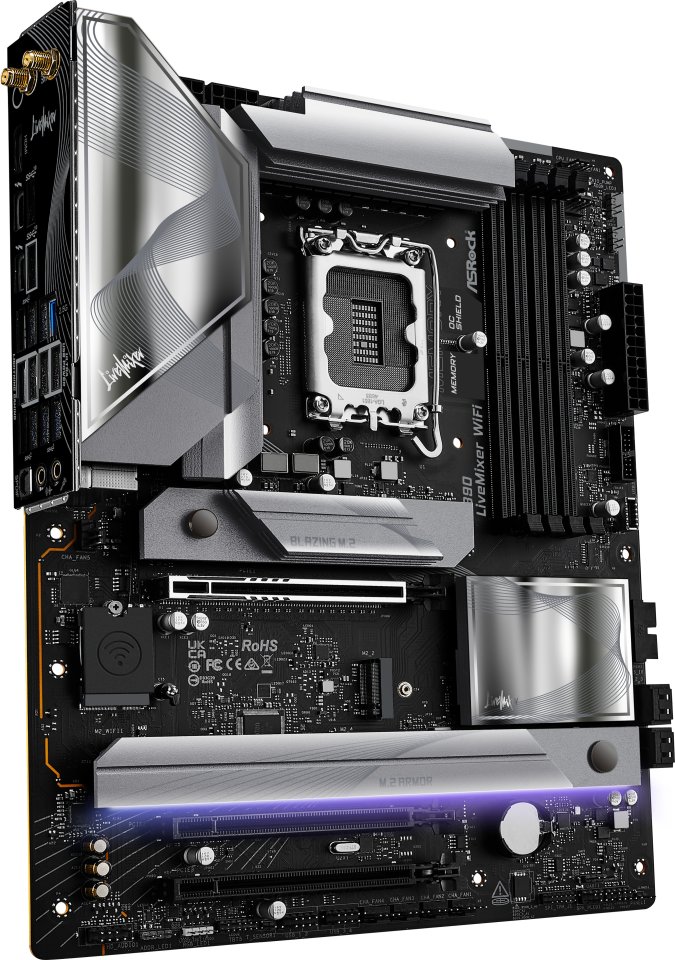

ASRock Z890 LiveMixer is a high-quality LGA 1851 socket ATX motherboard for Intel Core Ultra (Series 2) processors.

The LiveMixer series is designed to meet the needs of content creators, offering excellent connectivity options for streaming and multiple peripherals. Reliable performance ensures seamless content creation and efficient time management.

ASRock Polychrome RGB Sync
Control all the LED accessories of your setup through ASRock’s own application. The motherboard features an RGB header and an addressable RGB header, to which LED products can be connected and synchronized into a spectacular light show. ASRock’s application is Razer Chroma compatible, and supported peripherals can also be managed through the same software.

– Supports Intel Core Ultra Series 2 processors

– 18+1+1+1+1 phase power delivery

– 4 x DDR5 DIMM memory support, supports up to 9066 MHz+(OC)

– 1 PCIe 5.0 x16, 2 PCIe 4.0 x16

– 4 x M.2 slots, 4 x SATA

– 2.5G LAN, Wi-Fi 7 + Bluetooth

Features:

• Chipset: Intel Z890
• Processor socket: Intel LGA 1851
• Processor support: Intel Core Ultra (Series 2)
• Motherboard size: ATX (12 x 9.6 in)
• Memory slots: 4
• Memory type: DDR5 (Dual Channel), non-ECC, un-buffered, up to 9066+(OC) MHz
• Maximum memory capacity (GB): 256
• Network interfaces: Dragon RTL8125BG 2.5 Gigabit LAN, Wi-Fi 7 (802.11be 2×2), Bluetooth 5.4
• Sound card: 7.1 CH HD Audio Content Protection (Realtek ALC1220 Audio Codec), Nahimic Audio

Expansion slots

• CPU
  1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode
• Chipset
  2 x PCIe 4.0 x16 Slots (PCIE2 and PCIE3), support x4 mode
  1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel CNVio/CNVio2 (Integrated WiFi/BT)

Storage interfaces

• 4 x SATA 6Gb/s ports
• CPU
  1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode
  1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode
• Chipset
  1 x Hyper M.2 Socket (M2_3, Key M), supports type 2230/2242/2260/2280 PCIe Gen4x4 (64 Gb/s) mode
  1 x Hyper M.2 Socket (M2_4, Key M), supports type 2280 SATA3 6.0 Gb/s & PCIe Gen4x4 (64 Gb/s) modes

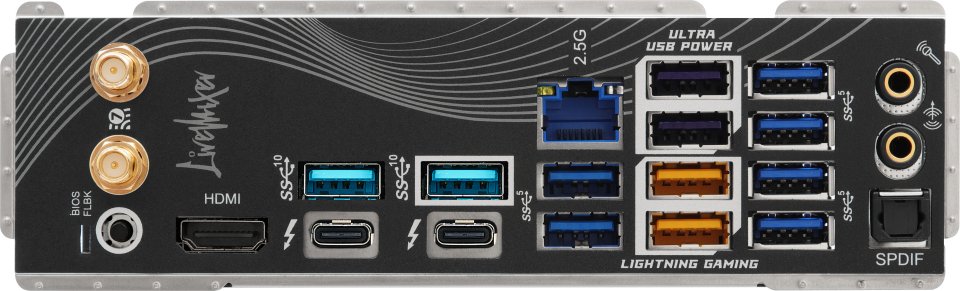

Rear panel connectors

• 2 x Antenna Ports
• 1 x HDMI Port
• 1 x Optical SPDIF Out Port
• 2 x Thunderbolt 4 Type-C Ports (40 Gb/s for USB4 protocol; 40 Gb/s for Thunderbolt protocol)
• 2 x USB 3.2 Gen2 Type-A Ports (10 Gb/s)
• 10 x USB 3.2 Gen1 Ports
• 1 x RJ-45 LAN Port
• 1 x BIOS Flashback Button
• 1 x Line Out Jack (Gold Audio Jack)
• 1 x Microphone Input Jack (Gold Audio Jack)

Internal connectors

• 1 x Thermistor Cable Header
• 1 x SPI TPM Header
• 1 x Power LED and Speaker Header
• 1 x RGB LED Header
• 3 x Addressable LED Headers
• 2 x CPU Fan Connectors (4-pin) (Smart Fan Speed Control)
• 5 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control)
• 1 x AIO Pump Fan Connector (4-pin) (Smart Fan Speed Control)
• 1 x 24 pin ATX Power Connector
• 2 x 8 pin 12V Power Connectors (Hi-Density Power Connector)
• 1 x Front Panel Audio Connector
• 2 x USB 2.0 Headers (Support 4 USB 2.0 ports)
• 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports)
• 1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s)
