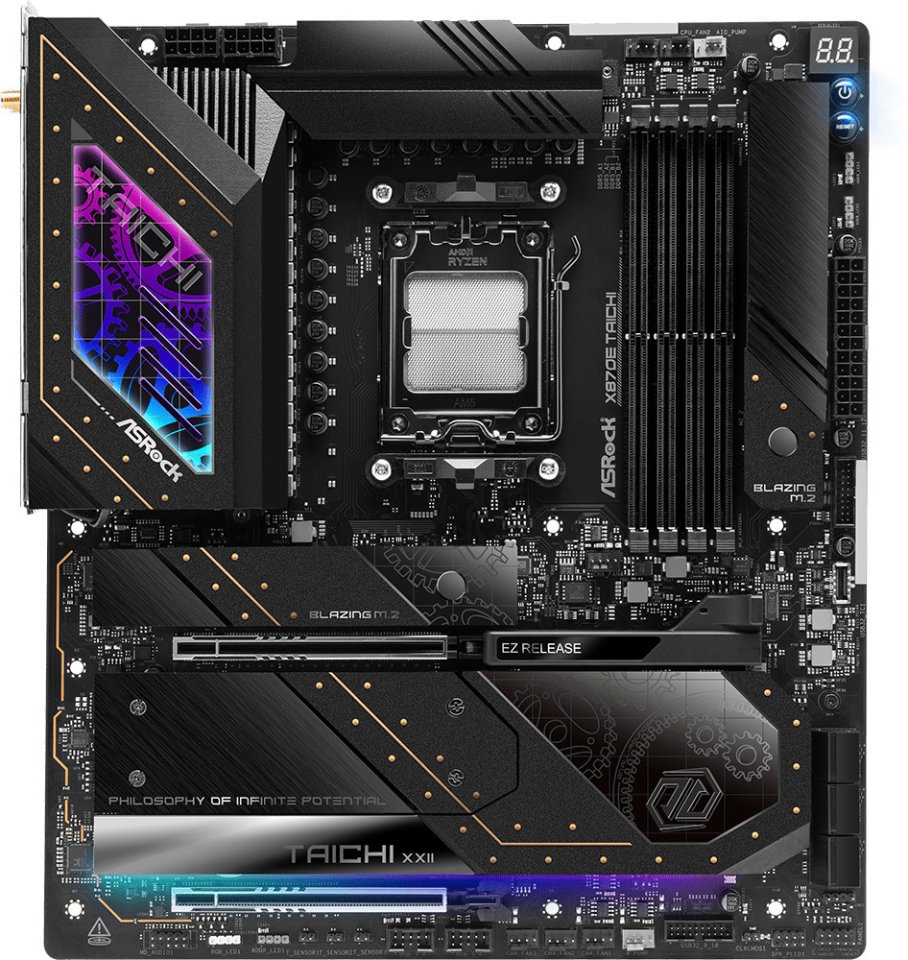

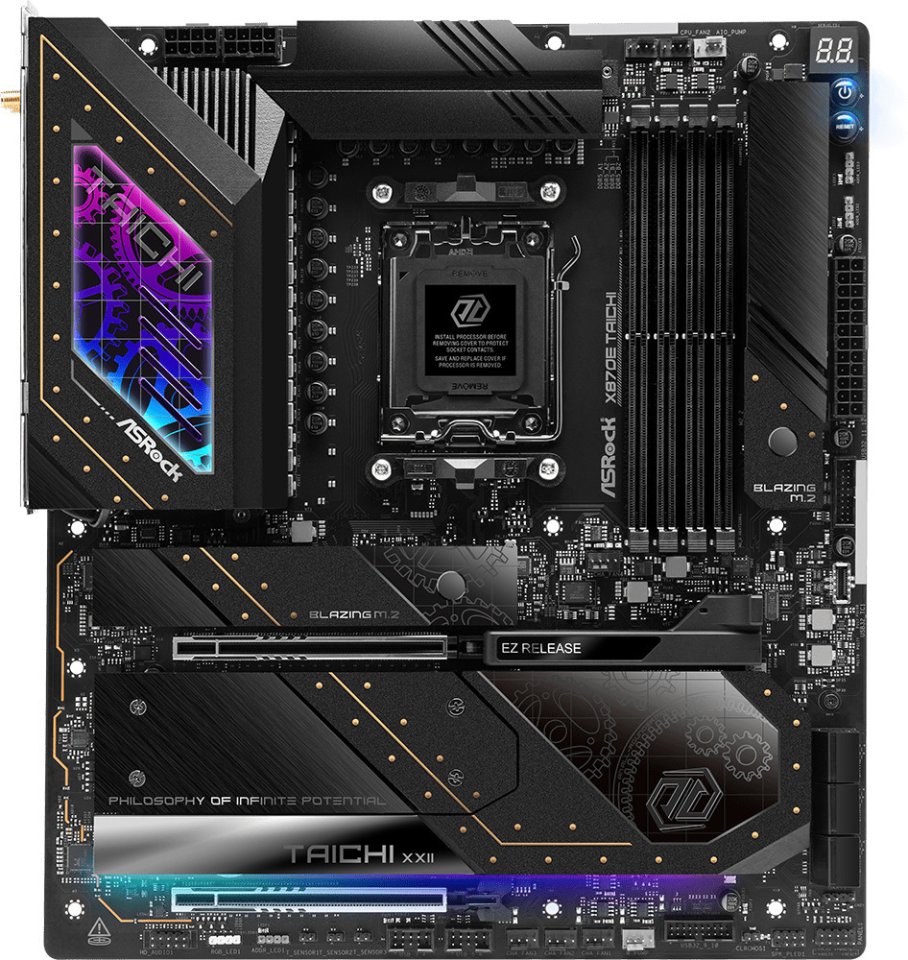

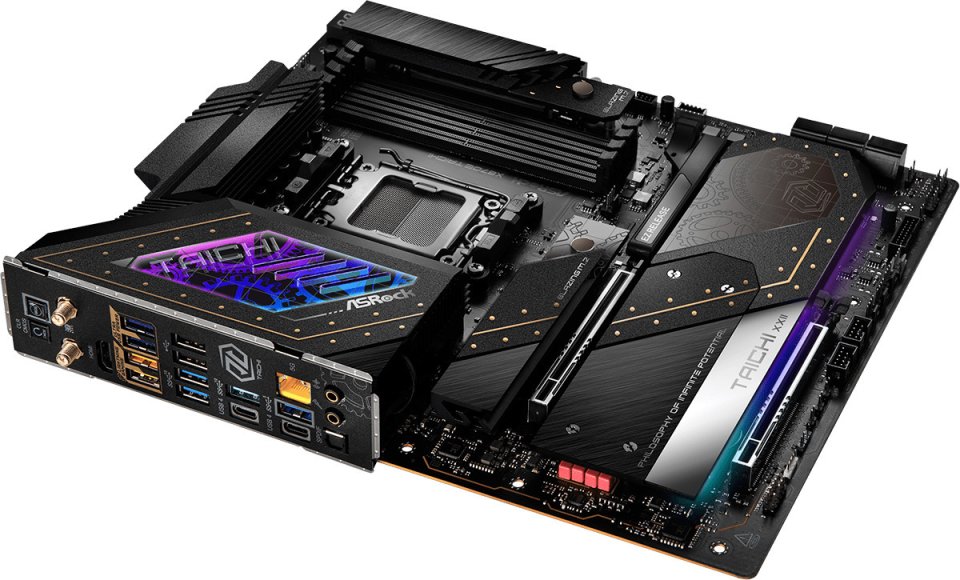

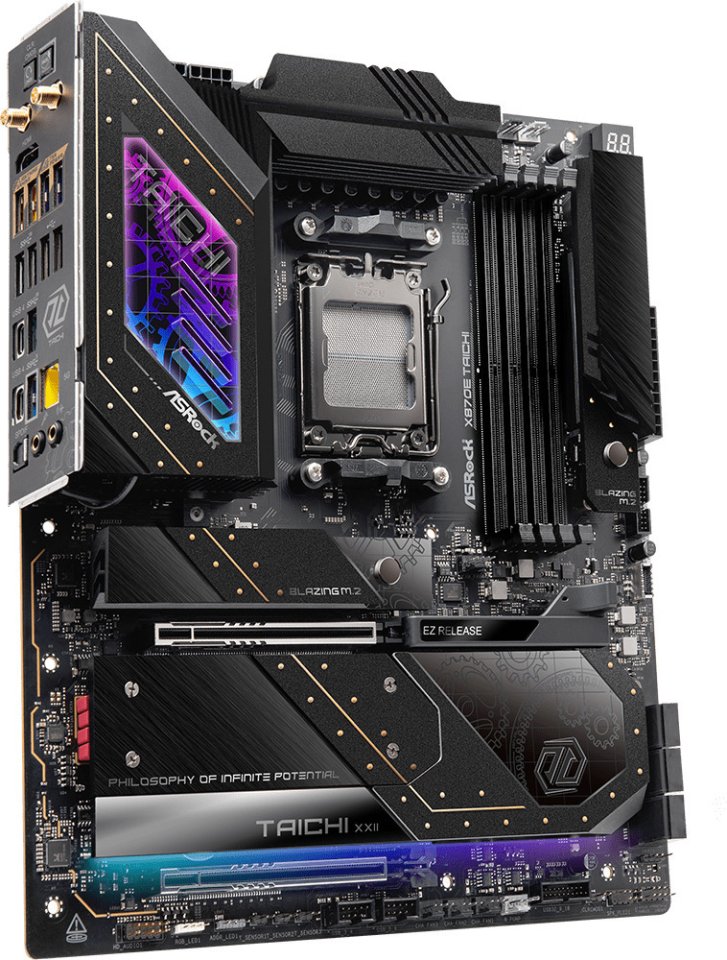

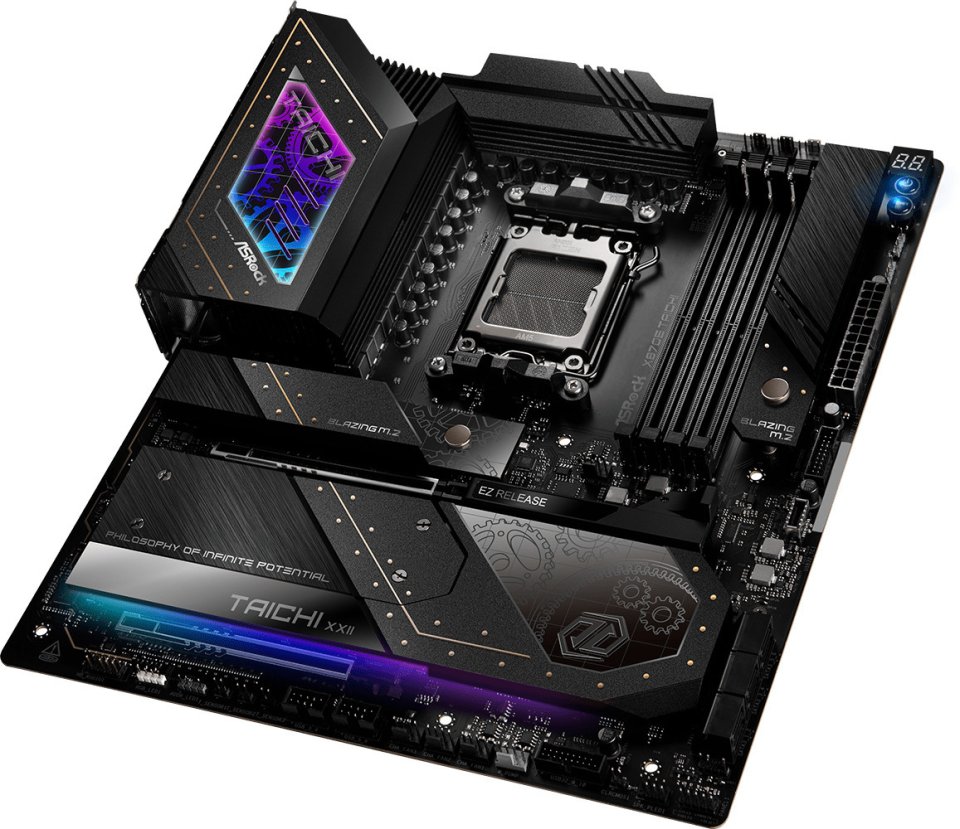

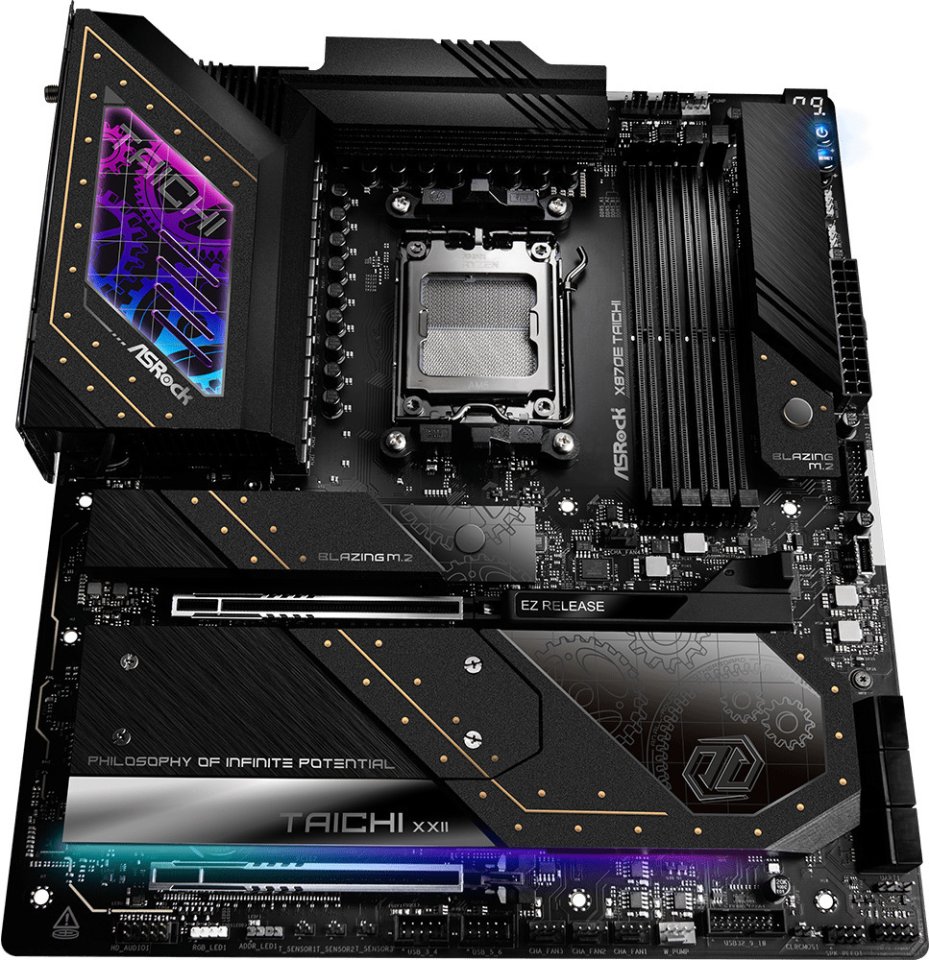

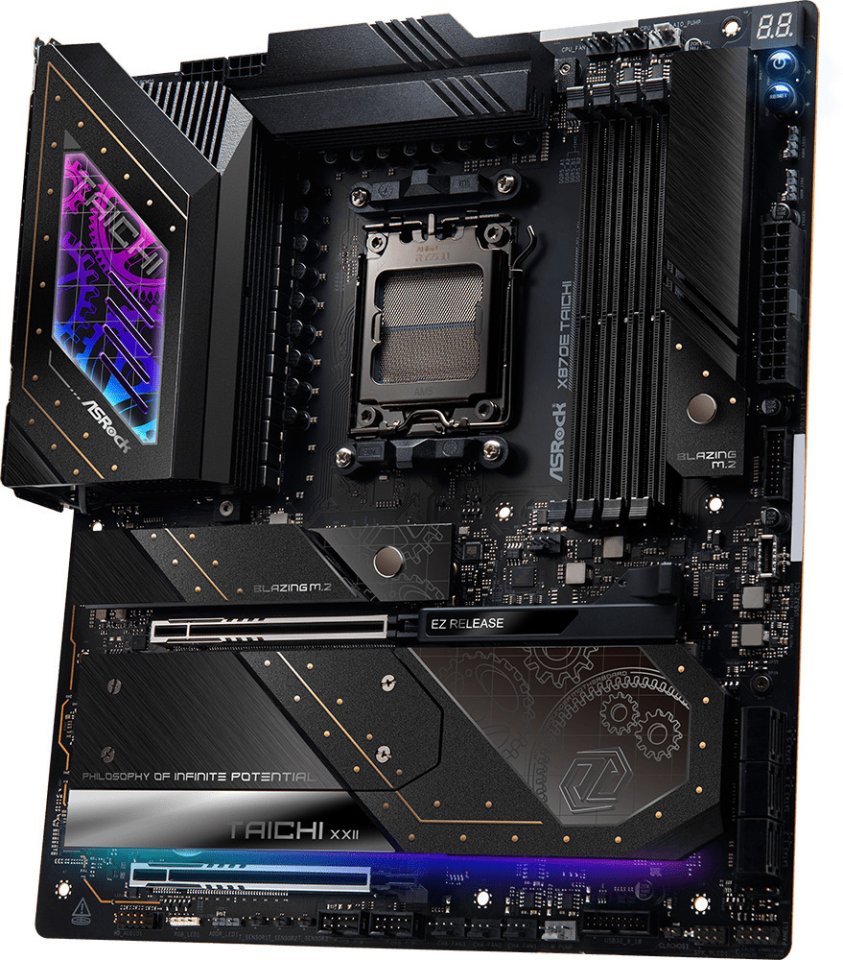

ASRock X870E Taichi is a high-end AM5 socket E-ATX motherboard for Ryzen 7000/8000/9000 series processors.

Taichi represents the manufacturer’s flagship lineup and is aimed at users who do not want to compromise on anything in their powerful setup. The motherboard is made from the highest quality raw materials and components, making it an excellent foundation for building an impressive and respected gaming rig or high-performance workstation.
X870E Taichi features innovative design and modern materials. A motherboard that fulfills all tasks – Taichi style!

ASRock Polychrome RGB Sync
Control all LED accessories in your setup through ASRock’s own application. The motherboard includes an RGB header and an addressable RGB header, to which LED products can be connected and synchronized into a spectacular light show. ASRock’s application is compatible with Razer Chroma, and supported peripherals can also be managed through the same software.

– Supports AMD Ryzen 9000, 8000, and 7000 series processors

– 24+2+1 phase power delivery

– 4 x DDR5 DIMM memory slots, supports up to 8200 MHz+ (OC)

– 2 x PCIe 5.0 x16 slots

– 4 x M.2 slots, 6 x SATA

– 5G LAN, Wi-Fi 7 + Bluetooth

Features:

• Chipset: AMD X870E
• Processor socket: AM5
• Processor support: AMD Ryzen 7000 / 8000 / 9000 series
• Motherboard size: E-ATX (12 x 10.5 in)
• Memory slots (qty): 4
• Memory type: DDR5 (Dual Channel), ECC/non-ECC, un-buffered, up to 8200+ (OC) MHz
• Maximum memory capacity (GB): 256
• Network interfaces: Realtek RTL8126 5 Gigabit LAN, Wi-Fi 7 (802.11be 2×2), Bluetooth 5.4
• Audio: 5.1 CH HD Audio Content Protection (Realtek ALC4082 Audio Codec), ESS SABRE9219 DAC Rear Panel Audio, Nahimic Audio

Expansion slots

• CPU
  2 x PCIe 5.0 x16 Slots (PCIE1 and PCIE2), support x16 or x8/x8 modes
• Chipset
  1 x Vertical M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module

Storage interfaces

• 6 x SATA 6Gb/s ports
• CPU
  1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode
• Chipset
  1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode
  1 x Hyper M.2 Socket (M2_3, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode
  1 x Hyper M.2 Socket (M2_4, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode

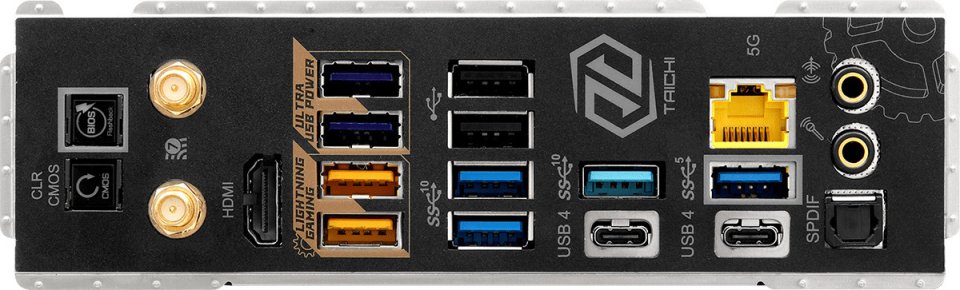

Rear panel connectors

• 2 x Antenna Ports
• 1 x HDMI Port
• 1 x Optical SPDIF Out Port
• 2 x USB4 Type-C Ports (40 Gb/s)
• 5 x USB 3.2 Gen2 Type-A Ports (10 Gb/s) (USB32_12 are Lightning Gaming Ports)
• 3 x USB 3.2 Gen1 Type-A Ports (USB32_34 supports Ultra USB Power)
• 2 x USB 2.0 Ports
• 1 x RJ-45 LAN Port
• 1 x Clear CMOS Button
• 1 x BIOS Flashback Button
• 1 x Line Out Jack (Gold Audio Jack)
• 1 x Microphone Input Jack (Gold Audio Jack)

Internal connectors

• 3 x Thermistor Cable Headers
• 1 x Power LED and Speaker Header
• 1 x RGB LED Header
• 3 x Addressable LED Headers
• 2 x CPU Fan Connector (4-pin) (Smart Fan Speed Control)
• 4 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control)
• 1 x AIO Pump Fan Connector (4-pin) (Smart Fan Speed Control)
• 1 x Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)
• 1 x 24 pin ATX Power Connector (Hi-Density Power Connector)
• 2 x 8 pin 12V Power Connectors (Hi-Density Power Connector)
• 1 x Front Panel Audio Connector (15μ Gold Audio Connector)
• 2 x USB 2.0 Headers (Support 4 USB 2.0 ports)
• 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports)
• 1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s)
• 1 x Dr. Debug with LED
• 1 x Power Button with LED
• 1 x Reset Button with LED
