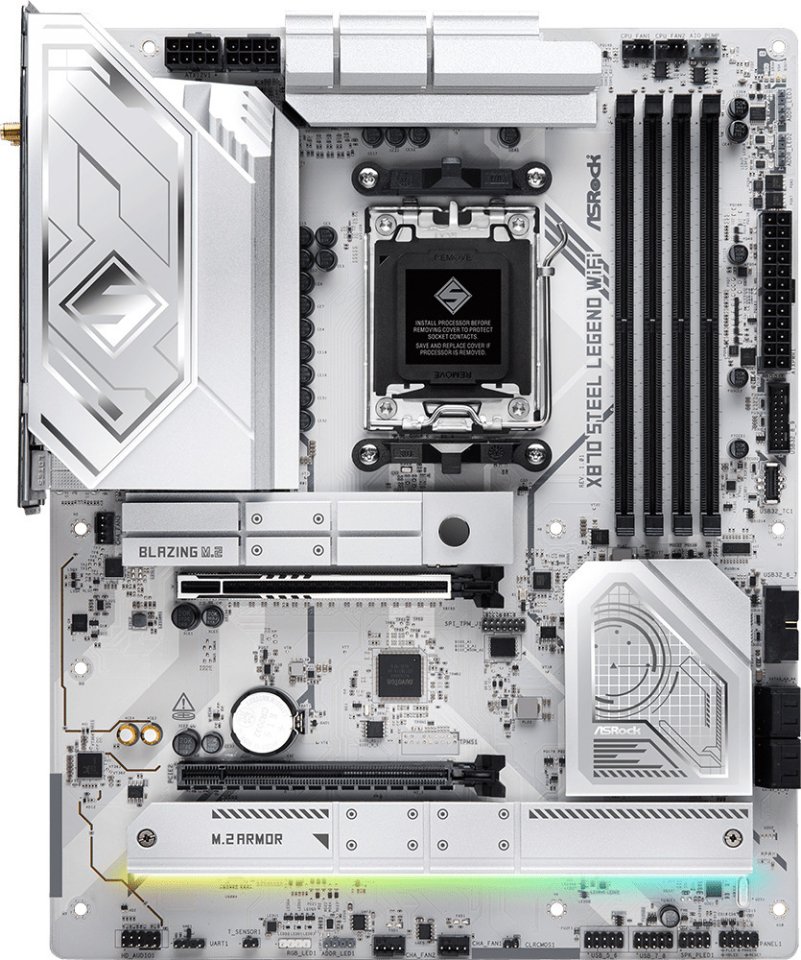

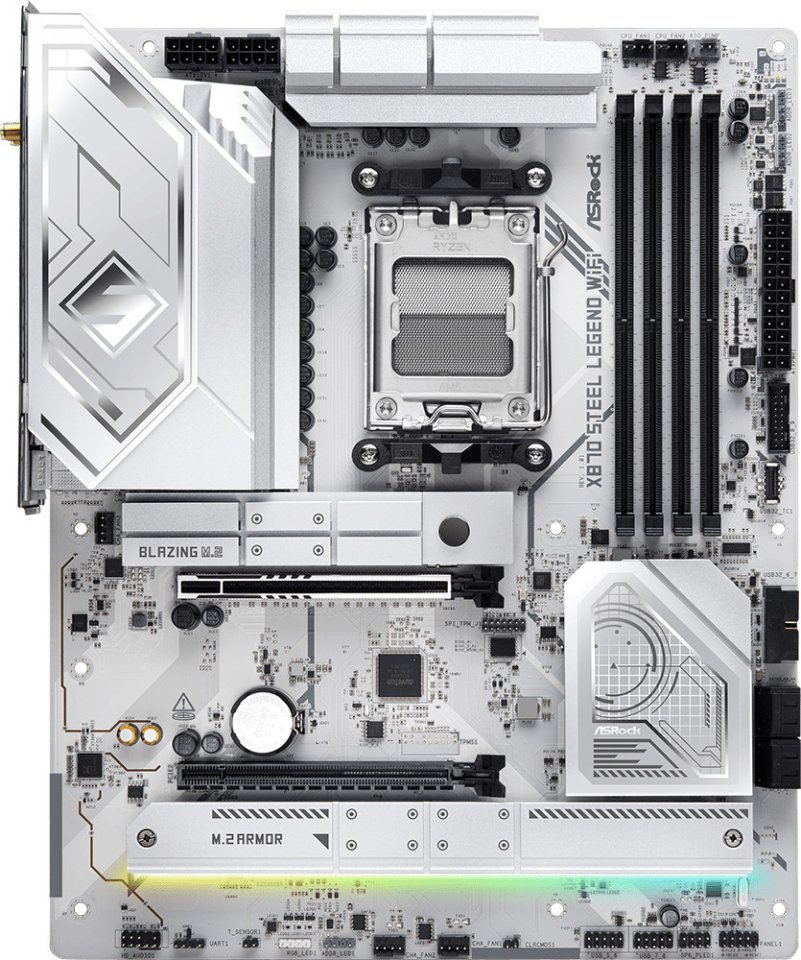

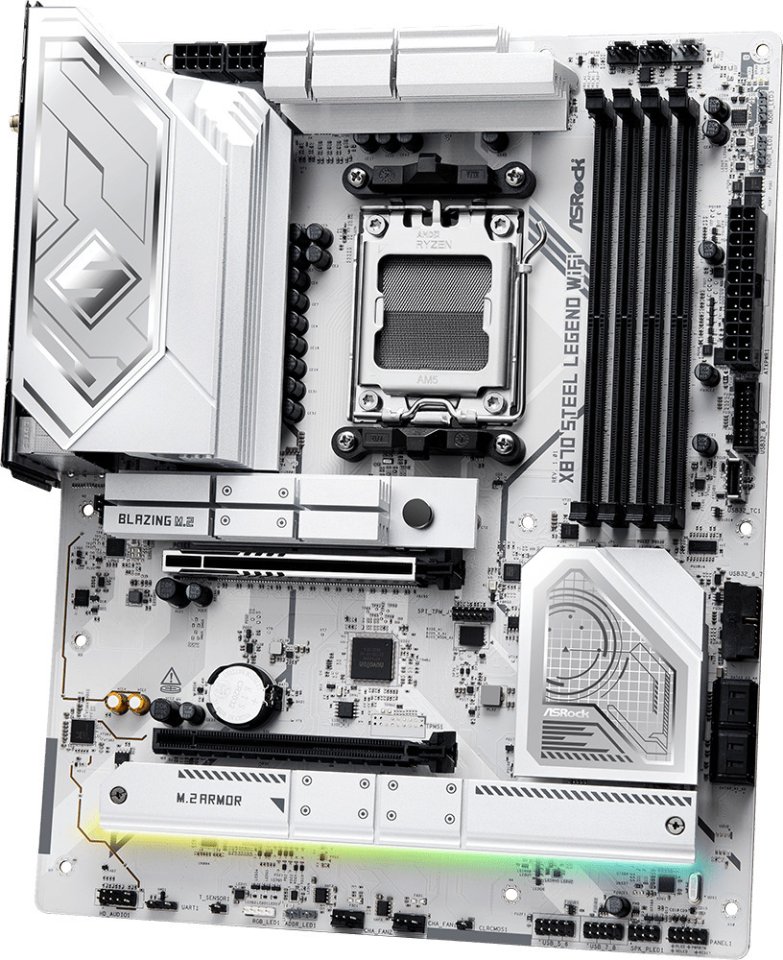

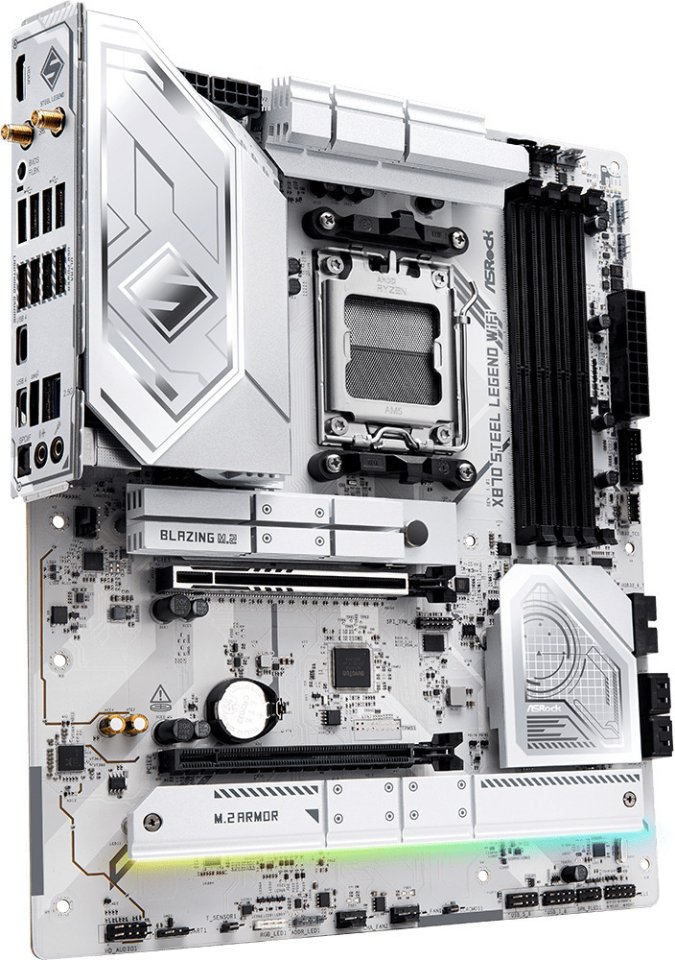

ASRock X870 STEEL LEGEND WIFI is a high-quality and durable AM5 socket ATX motherboard for 7000/8000/9000 series Ryzen processors.

STEEL LEGEND WIFI is very well suited for modern and powerful gaming setups. The striking cooling elements, playing with steel and white colors, highlight the motherboard and are perfect for enhancing the glow of RGB LEDs. The high-quality Dr.MOS power delivery also enables overclocking of the most powerful processors.

The Steel Legend series is designed to meet the most demanding technical requirements and features, targeting daily users and enthusiasts. The series offers high-quality materials and components that ensure stable and reliable performance.

ASRock Polychrome RGB Sync
Control all the LED accessories of your setup through ASRock’s own application. The motherboard features an RGB header and an addressable RGB header, to which LED products can be connected and synchronized into a spectacular light show. ASRock’s application is Razer Chroma compatible, allowing supported peripherals to be managed through the same software.

– Supports AMD Ryzen 9000, 8000, and 7000 series processors

– 14+2+1 phase power delivery

– 4 x DDR5 DIMM memory support, up to 8000 MHz+(OC)

– 1 PCIe 5.0 x16, 1 PCIe 4.0 x16

– 3 x M.2 slots, 4 x SATA

– 2.5G LAN, Wi-Fi 7 + Bluetooth

Features:

• Chipset: AMD X870
• Processor socket: AM5
• Processor support: AMD Ryzen 7000 / 8000 / 9000 series
• Motherboard size: ATX (12 x 9.6 inches)
• Memory slots (pcs): 4
• Memory type: DDR5 (Dual Channel), ECC/non-ECC, un-buffered, up to 8000+(OC) MHz
• Maximum memory capacity (GB): 256
• Network interfaces: Dragon RTL8125BG 2.5 Gigabit LAN, Wi-Fi 7 (802.11be 2×2), Bluetooth 5.4
• Sound card: 7.1 CH HD Audio Content Protection (Realtek ALC4082 Audio Codec), Nahimic Audio

Expansion slots

• CPU
  1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode
  1 x PCIe 4.0 x16 Slot (PCIE2), supports x4 mode
• Chipset
  1 x Vertical M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module

Storage interfaces

• 4 x SATA 6Gb/s ports
• CPU
  1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode
• Chipset
  1 x Hyper M.2 Socket (M2_2, Key M), supports type 2230/2260/2280 PCIe Gen4x4 (64 Gb/s) mode
  1 x Hyper M.2 Socket (M2_3, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode

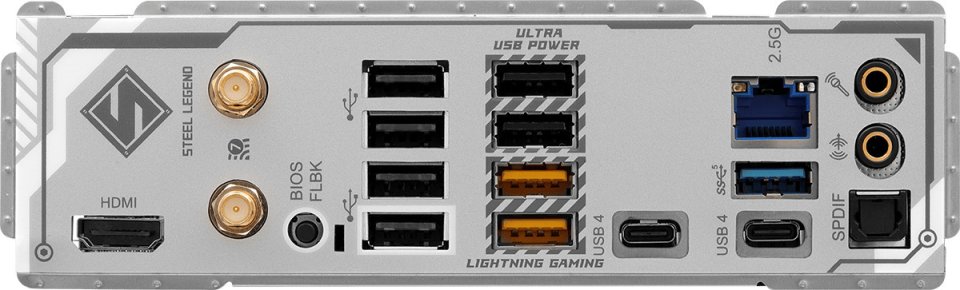

Rear panel connectors

• 2 x Antenna Ports
• 1 x HDMI Port
• 1 x Optical SPDIF Out Port
• 2 x USB4 Type-C Ports (40 Gb/s)
• 3 x USB 3.2 Gen1 Type-A Ports (USB32_12 are Lightning Gaming Ports)
• 2 x USB 3.2 Gen2 Type-A Ports (10 Gb/s) (USB32_34 supports Ultra USB Power)
• 4 x USB 2.0 Ports
• 1 x RJ-45 LAN Port
• 1 x BIOS Flashback Button
• 1 x Line Out Jack (Gold Audio Jack)
• 1 x Microphone Input Jack (Gold Audio Jack)

Internal connectors

• 1 x Thermistor Cable Header
• 1 x Power LED and Speaker Header
• 1 x RGB LED Header
• 3 x Addressable LED Headers
• 2 x CPU Fan Connectors (4-pin) (Smart Fan Speed Control)
• 3 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control)
• 1 x AIO Pump Fan Connector (4-pin) (Smart Fan Speed Control)
• 1 x 24 pin ATX Power Connector (Hi-Density Power Connector)
• 2 x 8 pin 12V Power Connectors (Hi-Density Power Connector)
• 1 x Front Panel Audio Connector
• 2 x USB 2.0 Headers (Support 4 USB 2.0 ports)
• 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports)
• 1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s)
