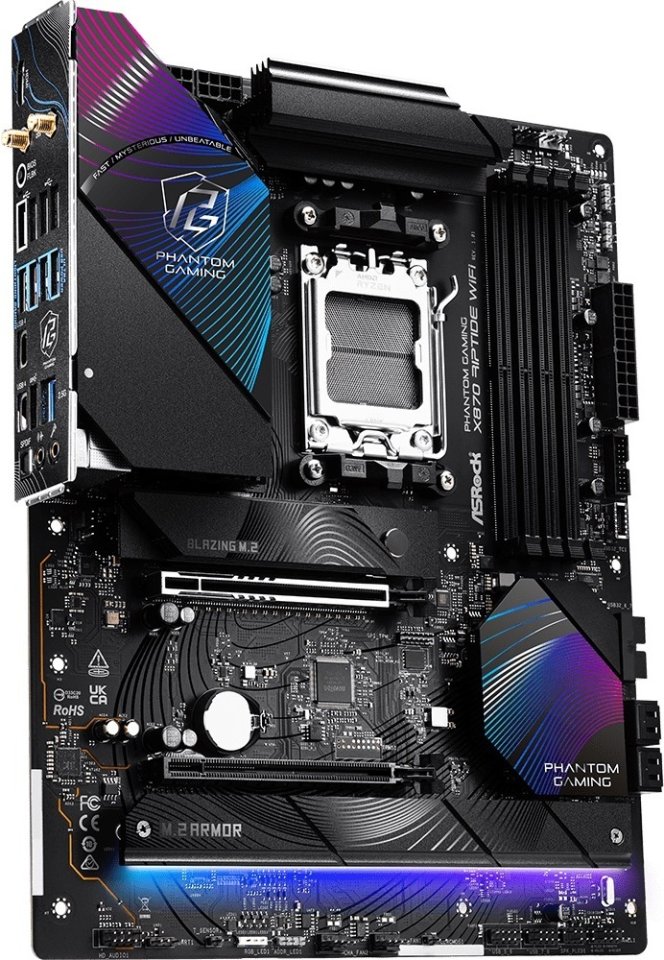

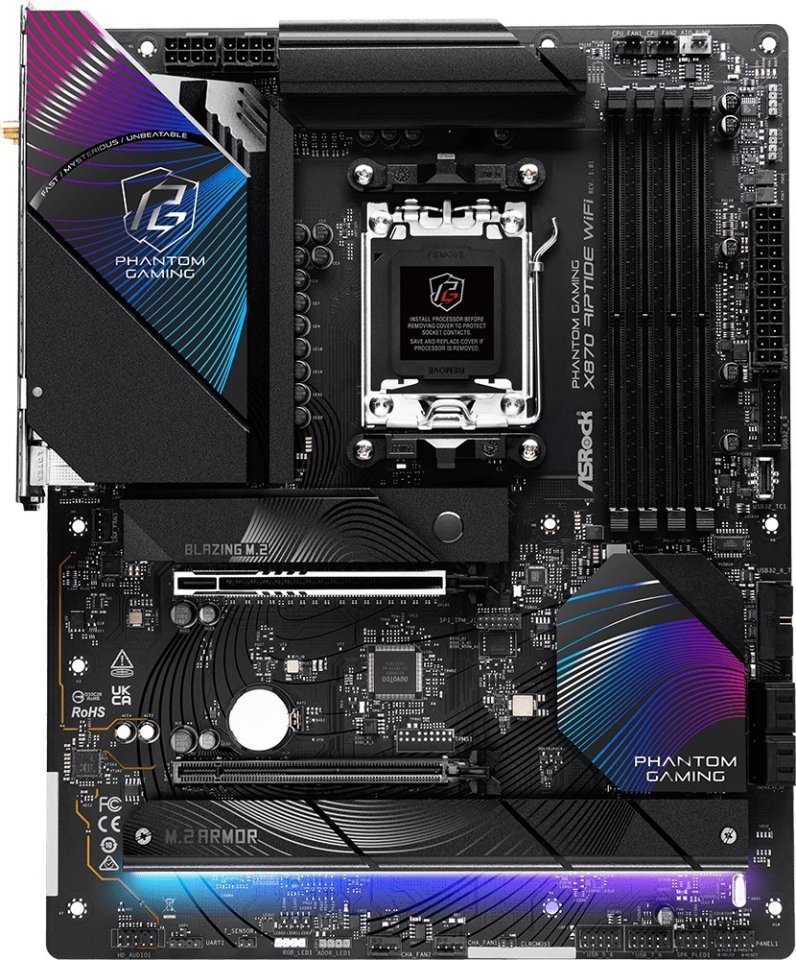

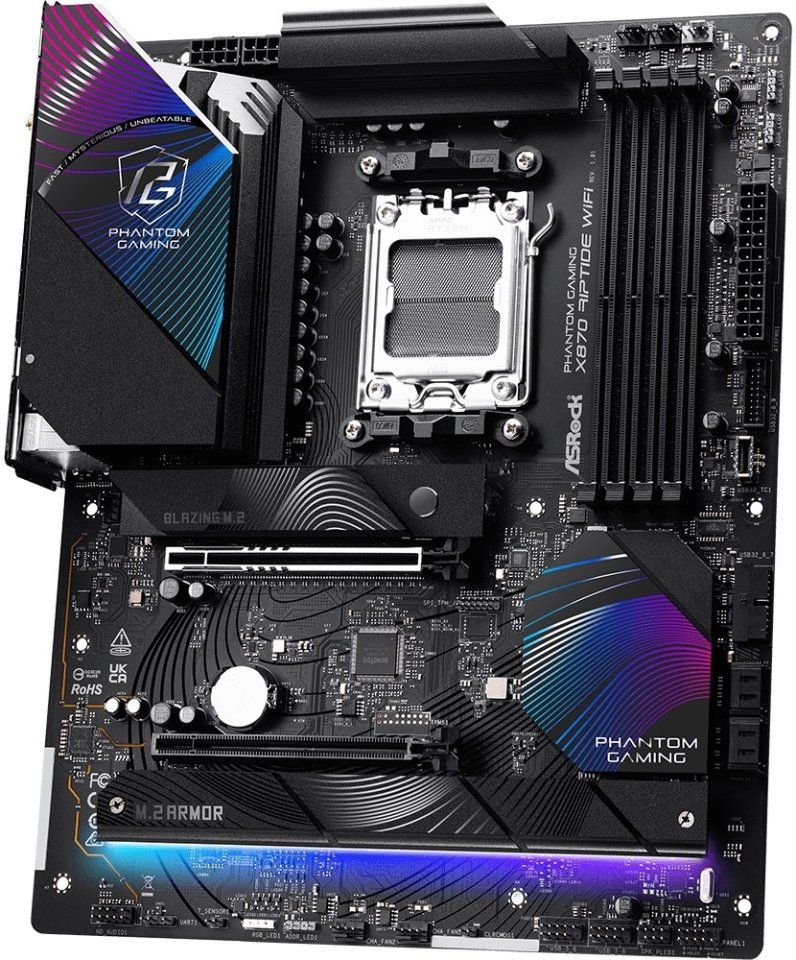

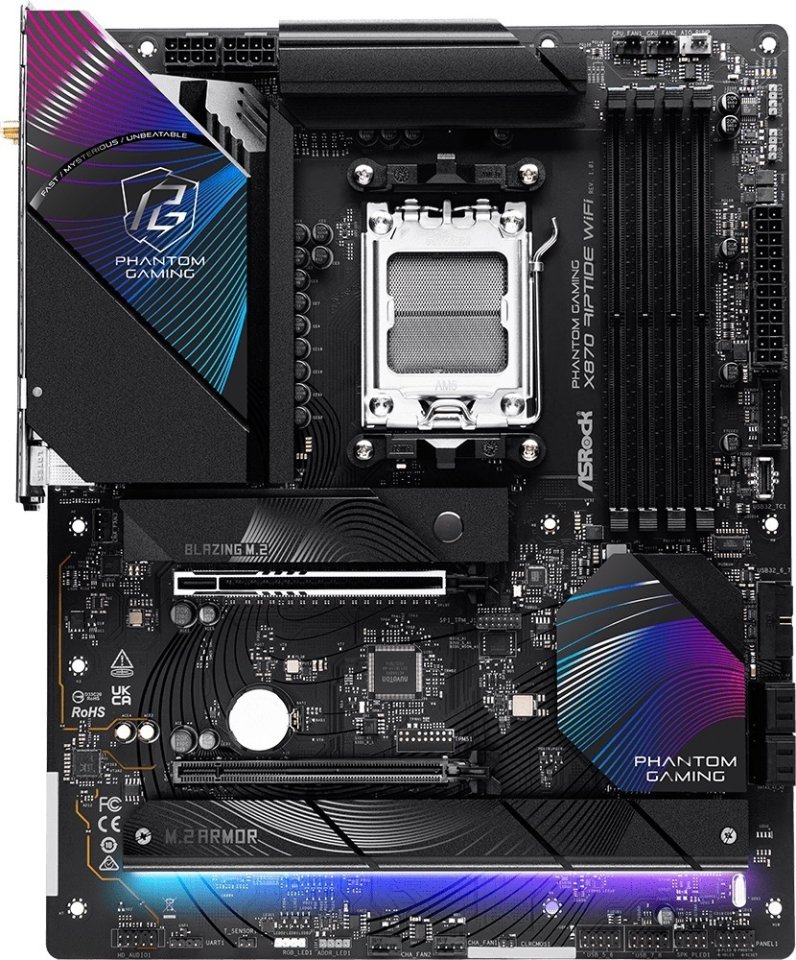

ASRock X870 Riptide WiFi is a high-quality and durable AM5 socket ATX motherboard for 7000/8000/9000 series Ryzen processors.

The Riptide WiFi is designed for demanding users such as gamers and content creators. The motherboard, featuring a sleek and bold appearance, houses all the latest features, including DDR5 memory support, PCIe 5.0 slots, and ultra-fast 5G LAN and WiFi 7 network connections. The X870 Riptide WiFi is an ideal choice for those looking to build a high-performance and feature-rich computer setup.

ASRock Polychrome RGB Sync
Control all the LED accessories in your setup through ASRock’s own application. The motherboard includes an RGB header and an addressable RGB header, to which LED products can be connected and synchronized into a stunning light show. ASRock’s application is Razer Chroma compatible, and supported peripherals can also be controlled through the same software.

– Supports AMD Ryzen 9000, 8000, and 7000 series processors

– 14+2+1 phase power delivery

– 4 x DDR5 DIMM memory support, up to 8000 MHz+ (OC)

– 1 PCIe 5.0 x16, 1 PCIe 4.0 x16

– 3 x M.2 slots, 4 x SATA

– 2.5G LAN, Wi-Fi 7 + Bluetooth

Features:

• Chipset: AMD X870
• CPU Socket: AM5
• Processor Support: AMD Ryzen 7000 / 8000 / 9000 series
• Motherboard Size: ATX (12 x 9.6 in)
• Memory Slots: 4
• Memory Type: DDR5 (Dual Channel), ECC/non-ECC, unbuffered, up to 8000+ (OC) MHz
• Maximum Memory Capacity (GB): 256
• Network Interfaces: Killer E3100G 2.5 Gigabit LAN, Wi-Fi 7 (802.11be 2×2), Bluetooth 5.4
• Audio Card: 7.1 CH HD Audio Content Protection (Realtek ALC4082 Audio Codec), Nahimic Audio

Expansion Slots

• CPU
  1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode
  1 x PCIe 4.0 x16 Slot (PCIE2), supports x4 mode
• Chipset
  1 x Vertical M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module

Storage Interfaces

• 4 x SATA 6Gb/s ports
• CPU
  1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode
• Chipset
  1 x Hyper M.2 Socket (M2_2, Key M), supports type 2230/2260/2280 PCIe Gen4x4 (64 Gb/s) mode
  1 x Hyper M.2 Socket (M2_3, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode

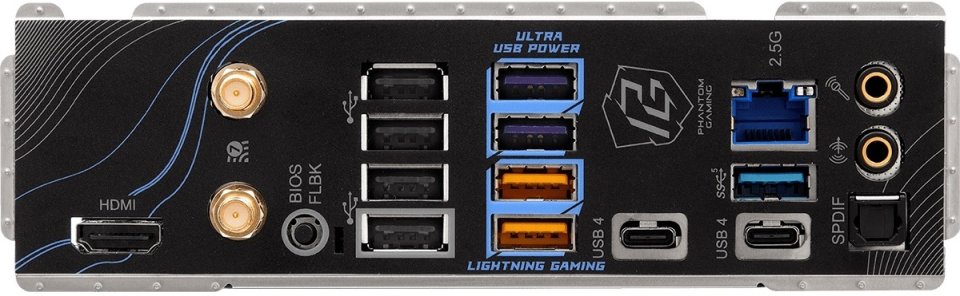

Rear Panel Connectors

• 2 x Antenna Ports
• 1 x HDMI Port
• 1 x Optical SPDIF Out Port
• 2 x USB4 Type-C Ports (40 Gb/s)
• 3 x USB 3.2 Gen1 Type-A Ports (USB32_12 are Lightning Gaming Ports)
• 2 x USB 3.2 Gen2 Type-A Ports (10 Gb/s) (USB32_34 supports Ultra USB Power)
• 4 x USB 2.0 Ports
• 1 x RJ-45 LAN Port
• 1 x BIOS Flashback Button
• 1 x Line Out Jack (Gold Audio Jack)
• 1 x Microphone Input Jack (Gold Audio Jack)

Internal Connectors

• 1 x Thermistor Cable Header
• 1 x Power LED and Speaker Header
• 1 x RGB LED Header
• 3 x Addressable LED Headers
• 2 x CPU Fan Connectors (4-pin) (Smart Fan Speed Control)
• 3 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control)
• 1 x AIO Pump Fan Connector (4-pin) (Smart Fan Speed Control)
• 1 x 24 pin ATX Power Connector (Hi-Density Power Connector)
• 2 x 8 pin 12V Power Connectors (Hi-Density Power Connector)
• 1 x Front Panel Audio Connector
• 2 x USB 2.0 Headers (Support 4 USB 2.0 ports)
• 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports)
• 1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s)
