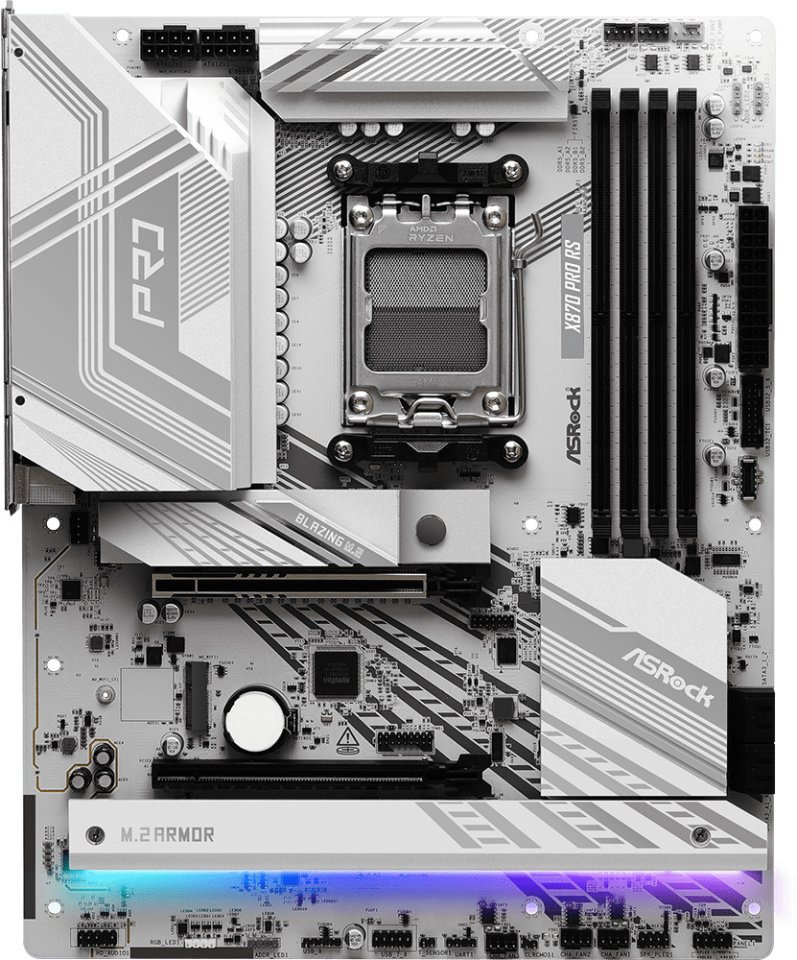

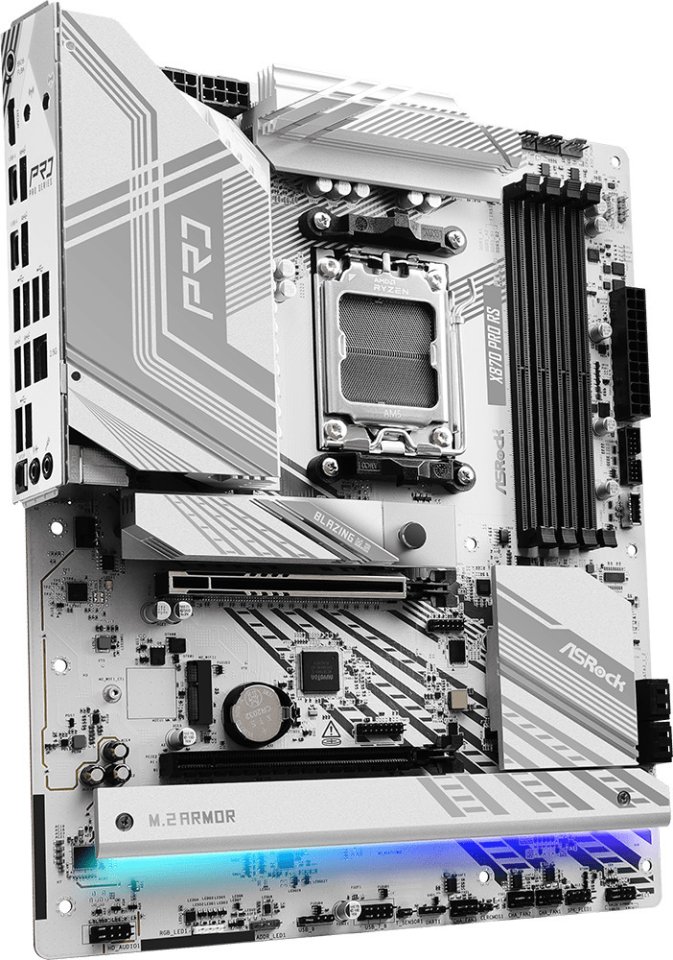

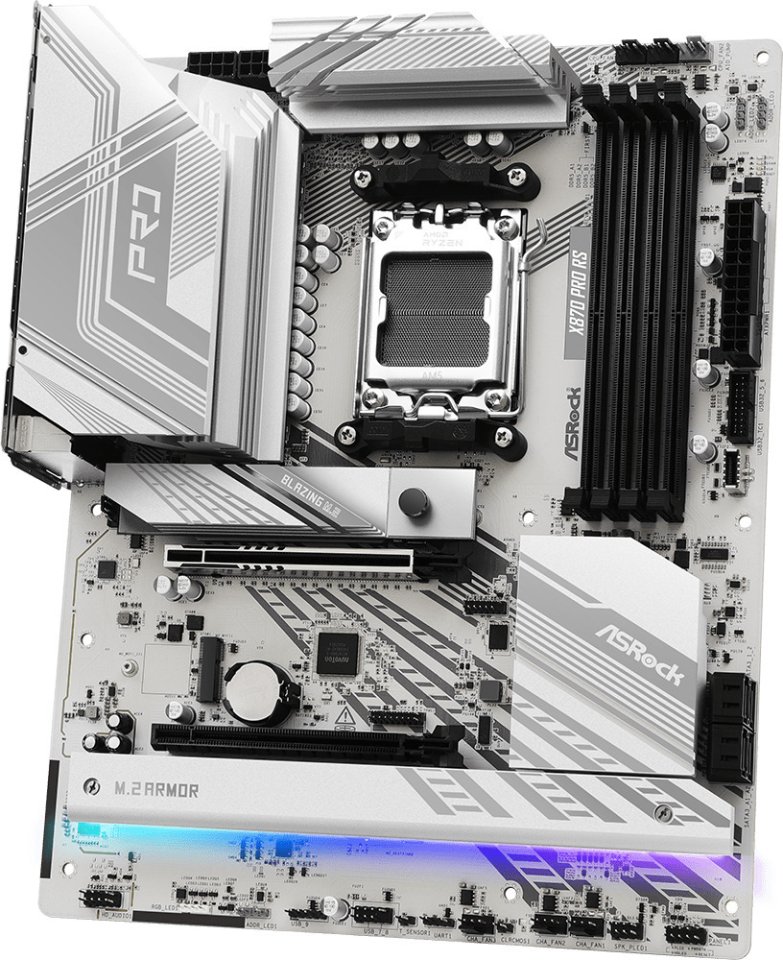

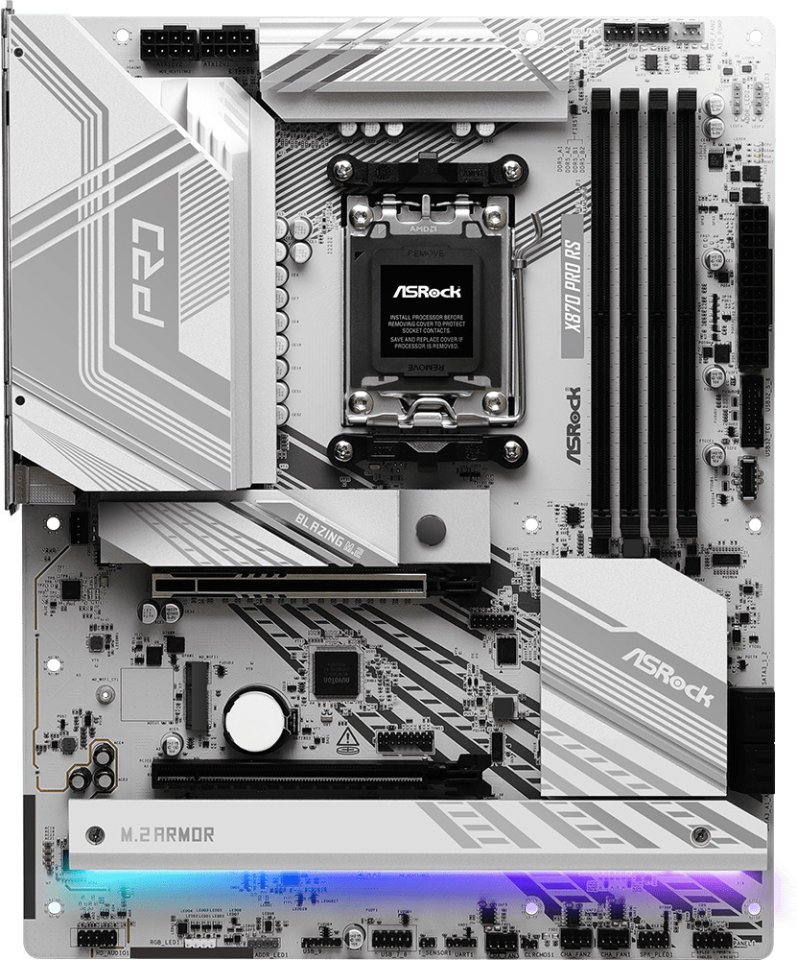

ASRock PRO RS is a high-quality and durable AM5 socket ATX motherboard for 7000/8000/9000 series Ryzen processors.

PRO RS is a modern, futuristic motherboard equipped with attractive technical features. It offers excellent productivity, rock-solid durability, and ultra-fast connectivity, making it well-suited for modern and powerful gaming setups.

The Pro RS series is aimed at everyday users and enthusiasts. The series provides high-quality materials and components that ensure stable and reliable performance.

ASRock Polychrome RGB Sync
Control all the LED accessories in your setup through ASRock’s own application. The motherboard features an RGB header and an addressable RGB header, to which LED products can be connected and synchronized into an impressive light show. ASRock’s application is Razer Chroma compatible, and supported peripherals can also be managed through the same software.

– Supports AMD Ryzen 9000, 8000, and 7000 series processors

– 14+2+1 phase power delivery

– 4 x DDR5 DIMM memory support, supports up to 8000 MHz+(OC)

– 1 PCIe 5.0 x16, 1 PCIe 4.0 x16

– 3 x M.2 slots, 4 x SATA

– 2.5G LAN Ethernet

Features:

• Chipset: AMD X870
• Processor socket: AM5
• Processor support: AMD Ryzen 7000 / 8000 / 9000 series
• Motherboard size: ATX (12 x 9.6 in)
• Memory slots (pcs): 4
• Memory type: DDR5 (Dual Channel), ECC/non-ECC, unbuffered, up to 8000+(OC) MHz
• Maximum memory capacity (GB): 256
• Network interfaces: Dragon RTL8125BG 2.5 Gigabit LAN
• Sound card: 7.1 CH HD Audio Content Protection (Realtek ALC1220 Audio Codec), Nahimic Audio

Expansion slots

• CPU
  1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode
• Chipset
  1 x PCIe 4.0 x16 Slot (PCIE2), supports x4 mode
  1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module

Storage connections

• 4 x SATA 6Gb/s ports
• CPU
  1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode
• Chipset
  1 x Hyper M.2 Socket (M2_2, Key M), supports type 2230/2242/2260/2280 PCIe Gen4x4 (64 Gb/s) mode
  1 x Ultra M.2 Socket (M2_3, Key M), supports type 2280 SATA3 6.0 Gb/s & PCIe Gen3x4 (32 Gb/s) modes

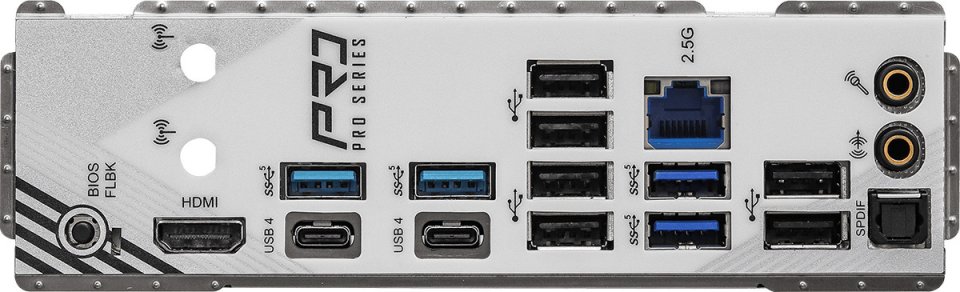

Rear panel connections

• 2 x Antenna Mounting Points
• 1 x HDMI Port
• 1 x Optical SPDIF Out Port
• 2 x USB4 Type-C Ports (40 Gb/s)
• 4 x USB 3.2 Gen1 Type-A Ports
• 6 x USB 2.0 Ports
• 1 x RJ-45 LAN Port
• 1 x BIOS Flashback Button
• 1 x Line Out Jack (Gold Audio Jack)
• 1 x Microphone Input Jack (Gold Audio Jack)

Internal connections

• 1 x Thermistor Cable Header
• 1 x Power LED and Speaker Header
• 1 x RGB LED Header
• 3 x Addressable LED Headers
• 2 x CPU Fan Connectors (4-pin) (Smart Fan Speed Control)
• 4 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control)
• 1 x AIO Pump Fan Connector (4-pin) (Smart Fan Speed Control)
• 1 x 24 pin ATX Power Connector
• 2 x 8 pin 12V Power Connectors (Hi-Density Power Connector)
• 1 x Front Panel Audio Connector
• 2 x USB 2.0 Headers (Support 3 USB 2.0 ports)
• 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)
• 1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s)
