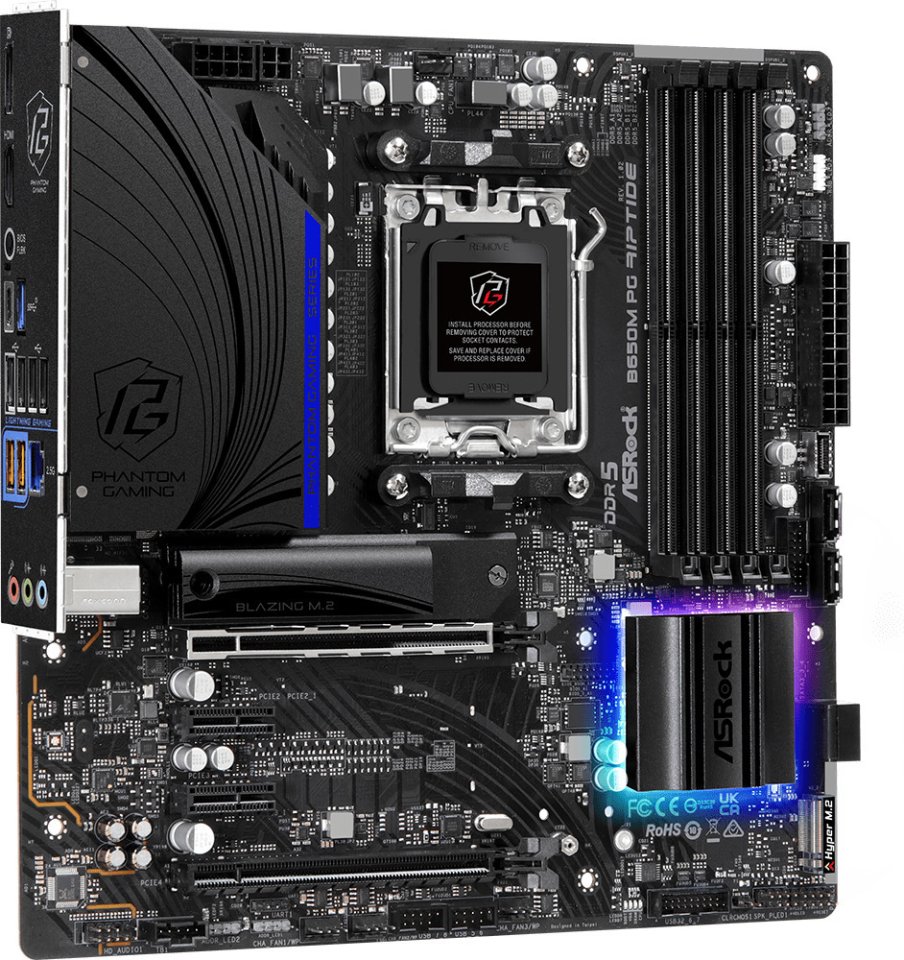

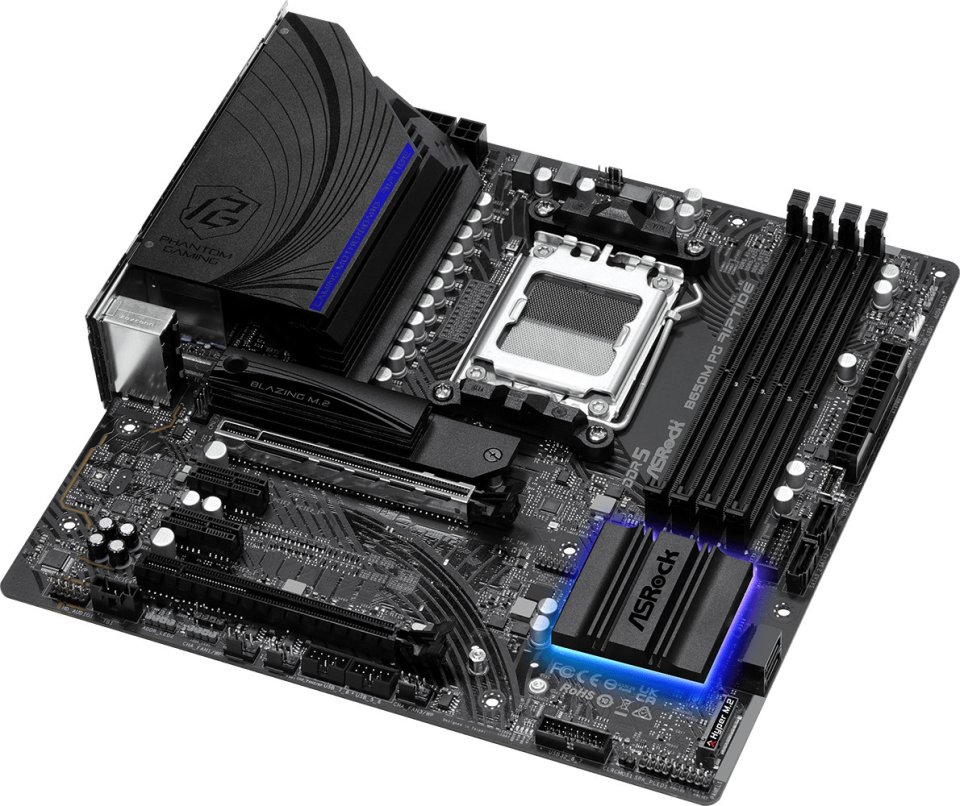

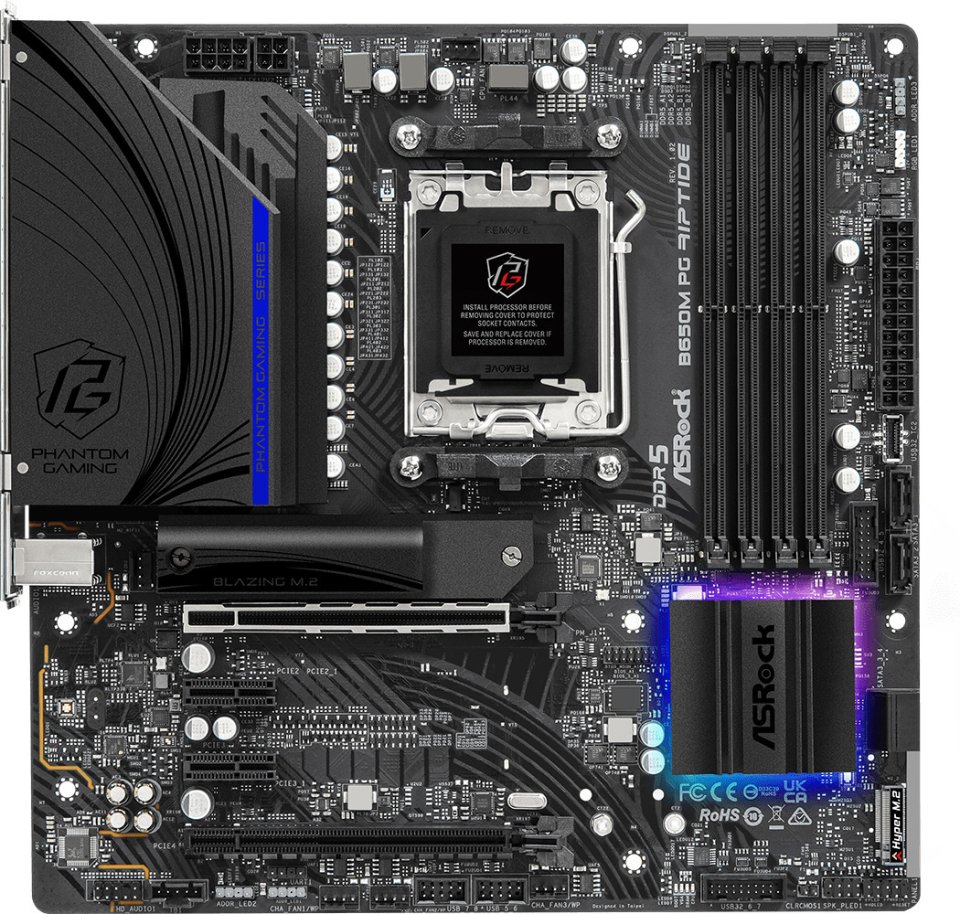

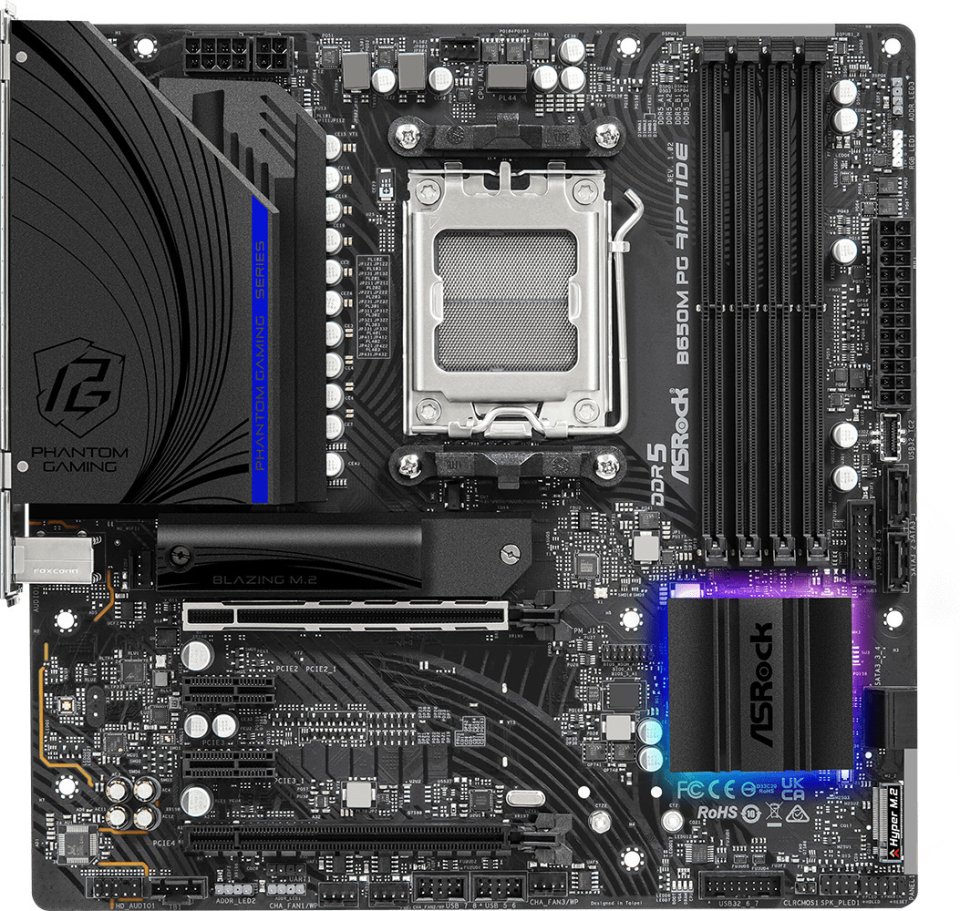

B650M PG Riptide is an AM5 socket Micro ATX motherboard with the AMD B650 chipset, designed for Ryzen 7000 series processors.

B650 series motherboards offer the essential features needed to build a quality setup at a more affordable price. B650 motherboards are well suited for gaming and work use, providing a high-quality power supply even for the most powerful AMD Ryzen processors.

– 12+2+1 phase power design with Dr.MOS

– 4 x DDR5 DIMM memory support, supports up to 6200 MHz+(OC)

– 1 x PCIe 4.0 x16, 1 x PCIe 4.0 x16, 2 x PCIe 3.0 x1

– 2 x M.2 slots, 4 x SATA

– Realtek 2.5G LAN

Features:

• Chipset: AMD B650
• Processor Socket: AM5
• Processor Support: AMD Ryzen 7000 series
• Motherboard Size: mATX / Micro ATX, 24.4 cm x 24.4 cm
• Memory Slots (pcs): 4
• Memory Type: DDR5 (Dual Channel), non-ECC, un-buffered, up to 6200+(OC) MHz
• Maximum Memory Capacity (GB): 128
• Network Interfaces: 2.5 Gigabit LAN (Dragon RTL8125BG)
• Bluetooth: –
• Sound Card: 7.1 CH HD Audio (Realtek ALC897 Audio Codec)

Expansion Slots

• CPU:
  1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode
• Chipset:
  1 x PCIe 4.0 x16 Slot (PCIE4), supports x4 mode
  2 x PCIe 3.0 x1 Slots (PCIE2 and PCIE3)

Storage Connections

• 4 x SATA 6 Gb/s ports
• 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen5x4 (128 Gb/s) mode
• 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode

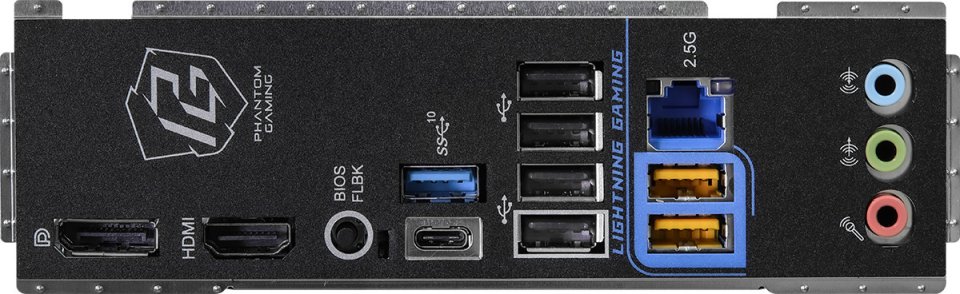

Rear Panel Connections

• 1 x HDMI Port
• 1 x DisplayPort 1.4
• 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) (ReDriver)
• 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) (ReDriver)
• 2 x USB 3.2 Gen1 Ports (USB32_23 are Lightning Gaming Ports.)
• 4 x USB 2.0 Ports
• 1 x RJ-45 LAN Port
• 1 x BIOS Flashback Button
• HD Audio Jacks: Line in / Front Speaker / Microphone

Internal Connections

• 1 x SPI TPM Header
• 1 x Power LED and Speaker Header
• 1 x RGB LED Header
• 3 x Addressable LED Headers
• 1 x CPU Fan Connector (4-pin)
• 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)
• 3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)
• 1 x 24 pin ATX Power Connector
• 1 x 8 pin 12V Power Connector
• 1 x 4 pin 12V Power Connector
• 1 x Front Panel Audio Connector
• 1 x Thunderbolt AIC Connector (5-pin) (Supports ASRock Thunderbolt 4 AIC Card)
• 2 x USB 2.0 Headers (Support 4 USB 2.0 ports)
• 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports)
• 1 x Front Panel Type C USB 3.2 Gen1 Header
