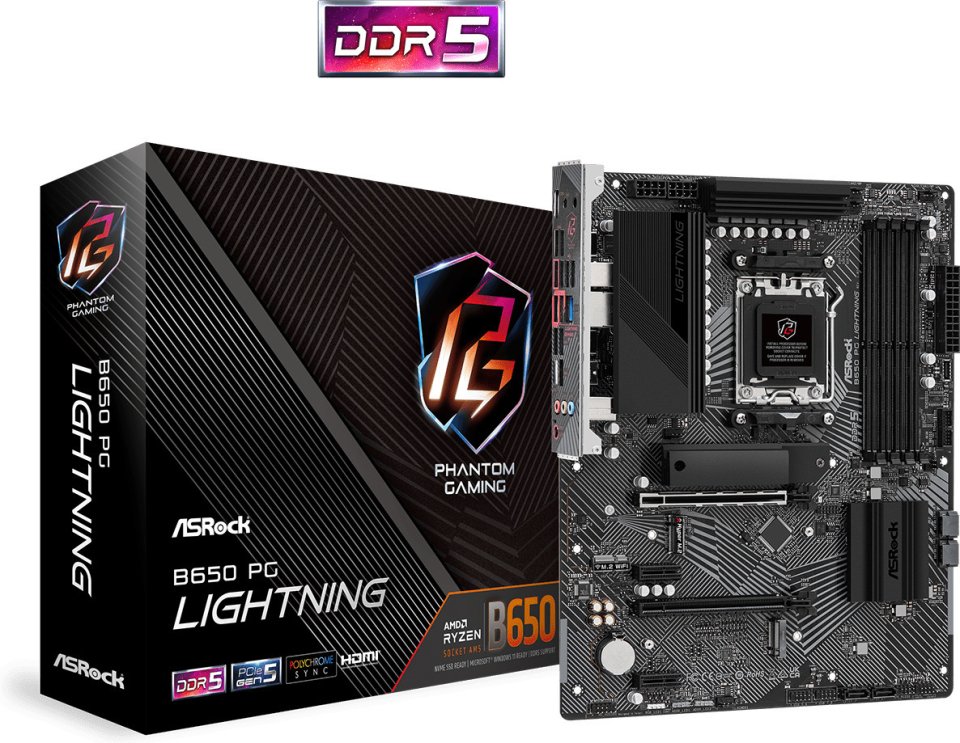

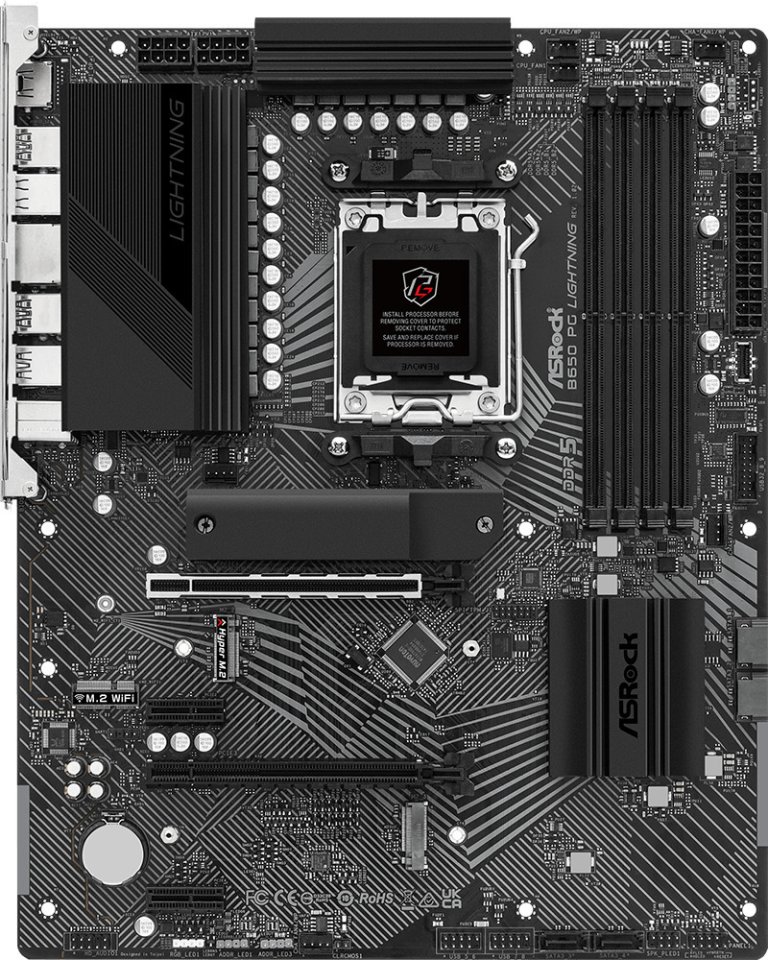

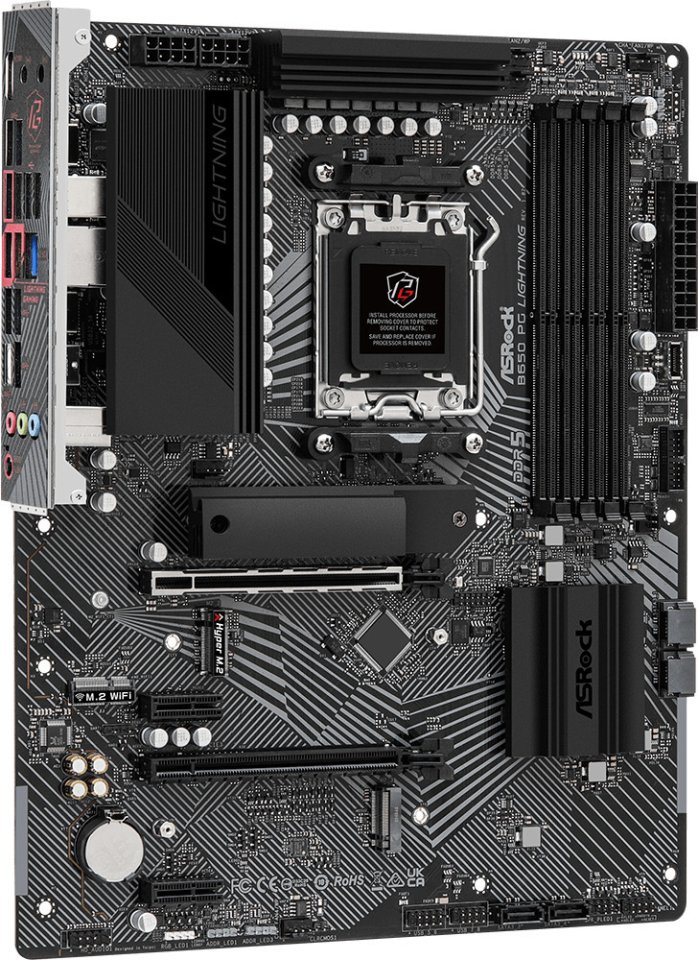

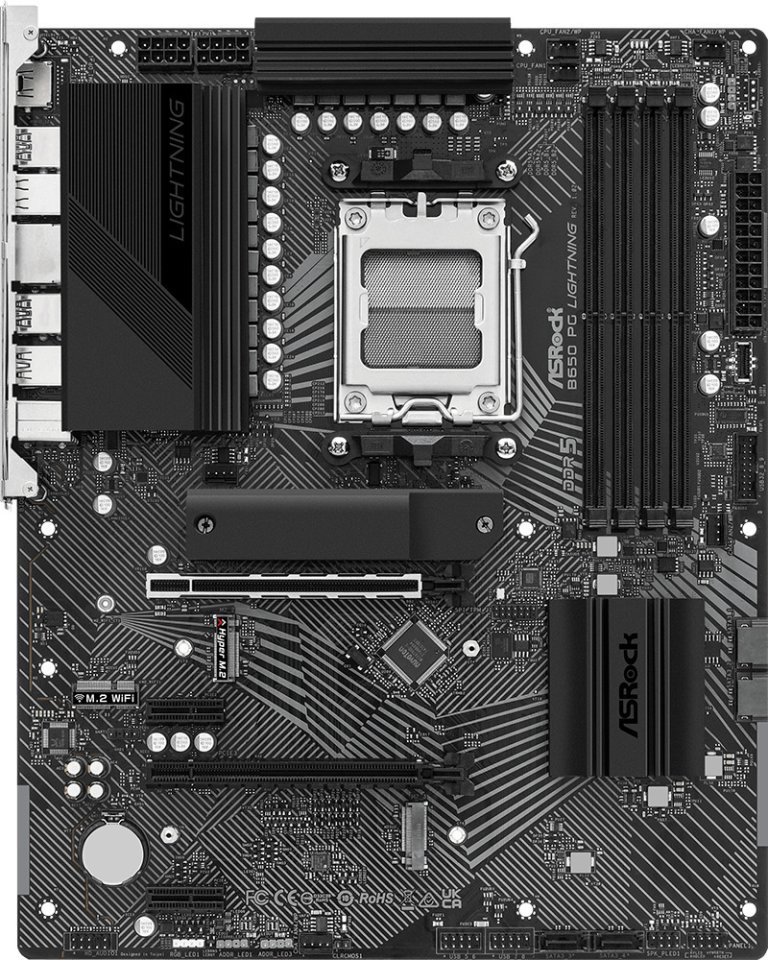

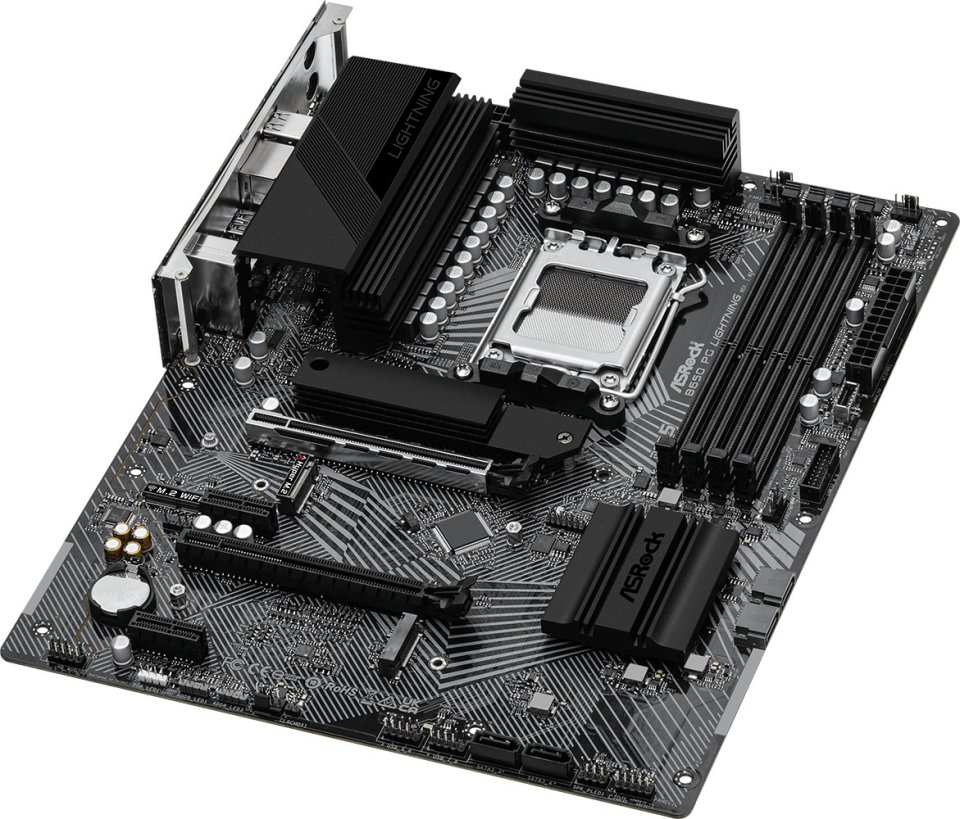

B650 PG Lightning is an ATX motherboard with the AMD B650 chipset and AM5 socket, designed for Ryzen 7000 series processors.

B650 series motherboards offer the essential features needed to build a quality setup at a more affordable price. B650 motherboards are well suited for gaming and work use, providing high-quality power delivery even for the most powerful AMD Ryzen processors.

– 14+2+1 phase power delivery and SPS, 8-layer PCB

– 4 x DDR5 DIMM memory support, supports up to 6400 MHz+(OC)

– 1 x PCIe 4.0 x16, 1 x PCIe 4.0 x16, 2 x PCIe 4.0 x1, 1 x M.2 Key-E WiFi

– 3 x M.2 slots, 4 x SATA

– Realtek 2.5G LAN

Features:

• Chipset: AMD B650
• Processor socket: AM5
• Processor support: AMD Ryzen 7000 series
• Motherboard size: ATX, 30.5 cm x 24.4 cm
• Memory slots (pcs): 4
• Memory type: DDR5 (Dual Channel), non-ECC, unbuffered, up to 6400+(OC) MHz
• Maximum memory capacity (GB): 128
• Network interfaces: 2.5 Gigabit LAN (Dragon RTL8125BG)
• Bluetooth: –
• Sound card: 7.1 CH HD Audio (Realtek ALC897 Audio Codec)

Expansion slots

• CPU:
  1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode
• Chipset:
  1 x PCIe 4.0 x16 Slot (PCIE3), supports x2 mode
  2 x PCIe 4.0 x1 Slots (PCIE2 and PCIE4)
  1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module

Storage connections

• 4 x SATA 6Gb/s ports
• 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode
• 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode
• 1 x M.2 Socket (M2_3, Key M), supports type 2280 PCIe Gen4x2 (32 Gb/s) mode

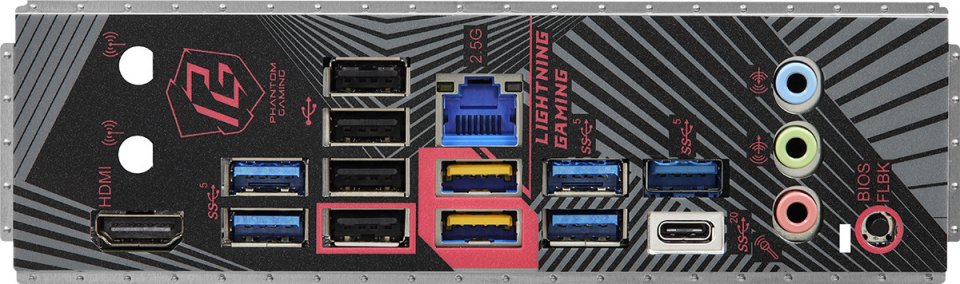

Rear panel connections

• 2 x Antenna Mounting Points
• 1 x HDMI Port
• 1 x USB 3.2 Gen2x2 Type-C Port (20 Gb/s) (ReDriver)
• 7 x USB 3.2 Gen1 Ports (USB32_34 are Lightning Gaming Ports) (USB32_12 and USB32_56 are from ASMedia ASM1074 hub)
• 4 x USB 2.0 Ports
• 1 x RJ-45 LAN Port
• 1 x BIOS Flashback Button
• HD Audio Jacks: Line in / Front Speaker / Microphone

Internal connections

• 1 x SPI TPM Header
• 1 x Power LED and Speaker Header
• 1 x RGB LED Header
• 3 x Addressable LED Headers
• 1 x CPU Fan Connector (4-pin)
• 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)
• 4 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)
• 1 x 24 pin ATX Power Connector
• 2 x 8 pin 12V Power Connectors (Hi-Density Power Connector)
• 1 x Front Panel Audio Connector
• 2 x USB 2.0 Headers (Support 4 USB 2.0 ports)
• 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)
• 1 x Front Panel Type C USB 3.2 Gen2 Header (ReDriver)
